LED Tundra Center Console Badge

Discussion in 'Lighting' started by RoasterOven, Aug 9, 2024.

Post Reply

Aug 9, 2024 at 10:07 PM

#1

#1
RoasterOven [OP] I make custom Tundra lighting

Joined:

Jan 5, 2020

Member:

#40799

Messages:

77

Gender:

Male

First Name:

Jordan

Columbia, SC

Vehicle:

2017 Tundra Crewmx SR5

TRD Pro grill Color matched bumpers Cold Air Intake Muffler delete Custom interior/exterior lighting

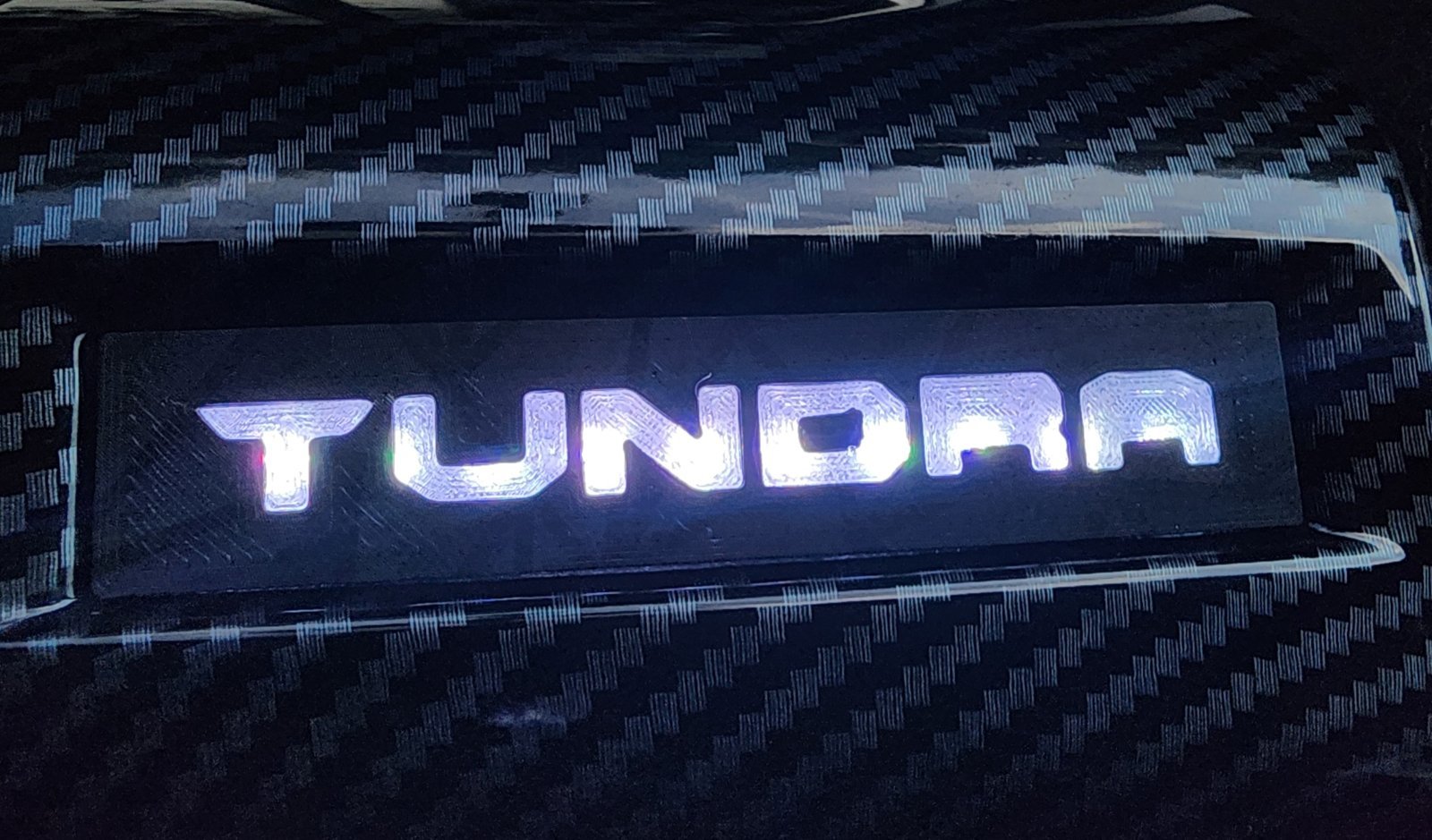

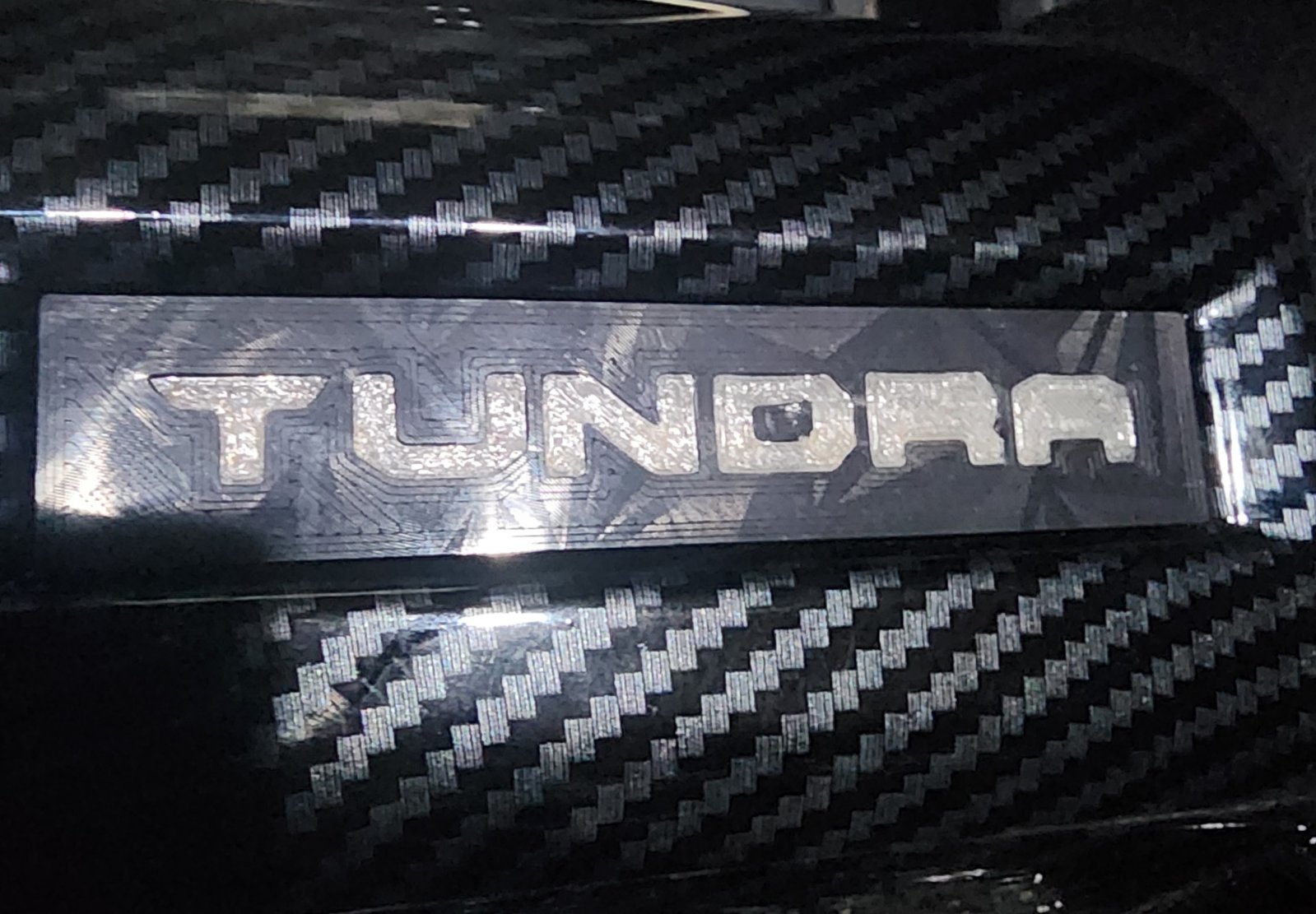

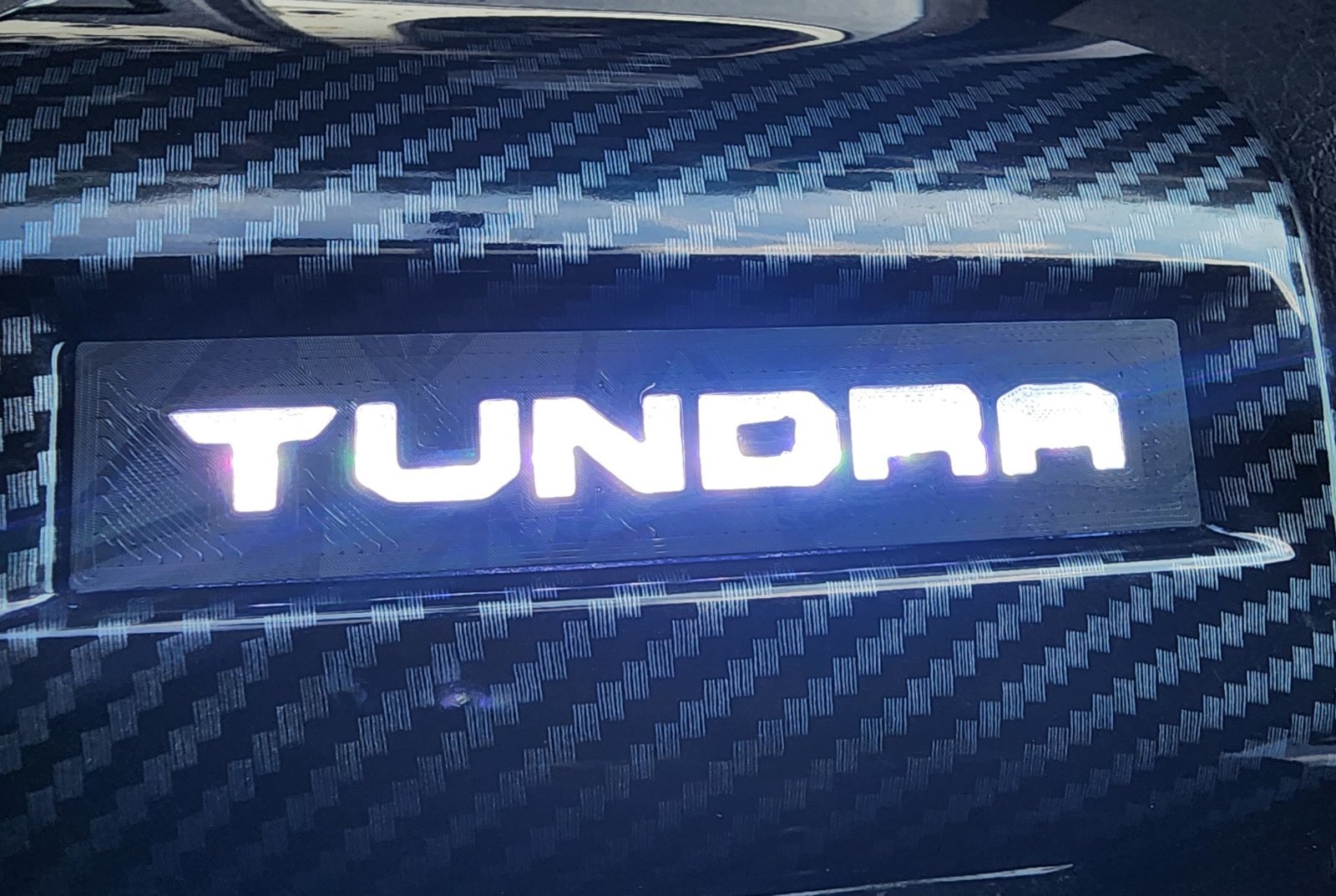

I've designed LED center console badges for the 2014-2021 Tundra's

They tap 12V power from the cigarette lighter port wires on the back of the center console.

The single color version uses a remote to change the brightness, but you'll likely only need to use it once, to set the desired brightness.

But the individually addressable RGB version (like installed in my truck) uses the WLED app to control everything. (brightness and color/patterns)

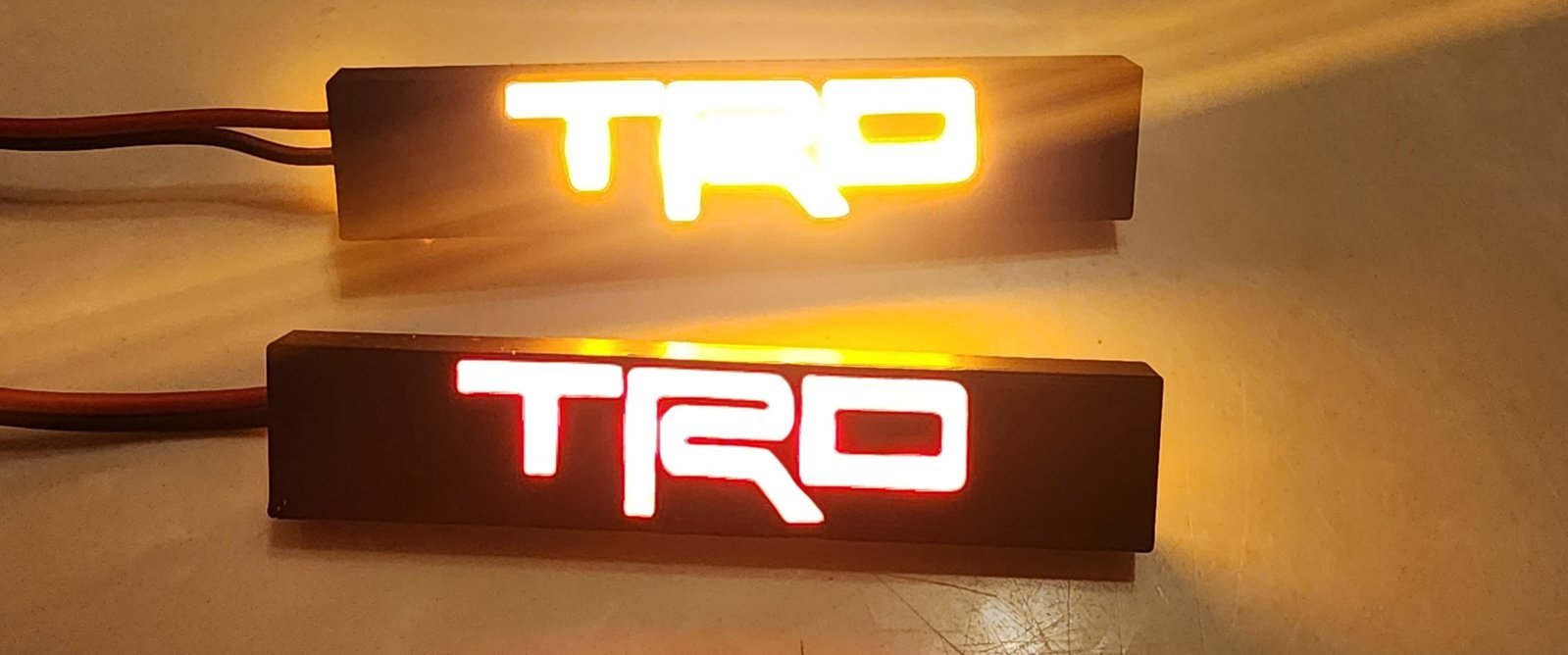

They can also be customized with your choice of word or name

https://www.etsy.com/listing/1761789480/2014-2021-tundra-center-console-led
Attached Files:

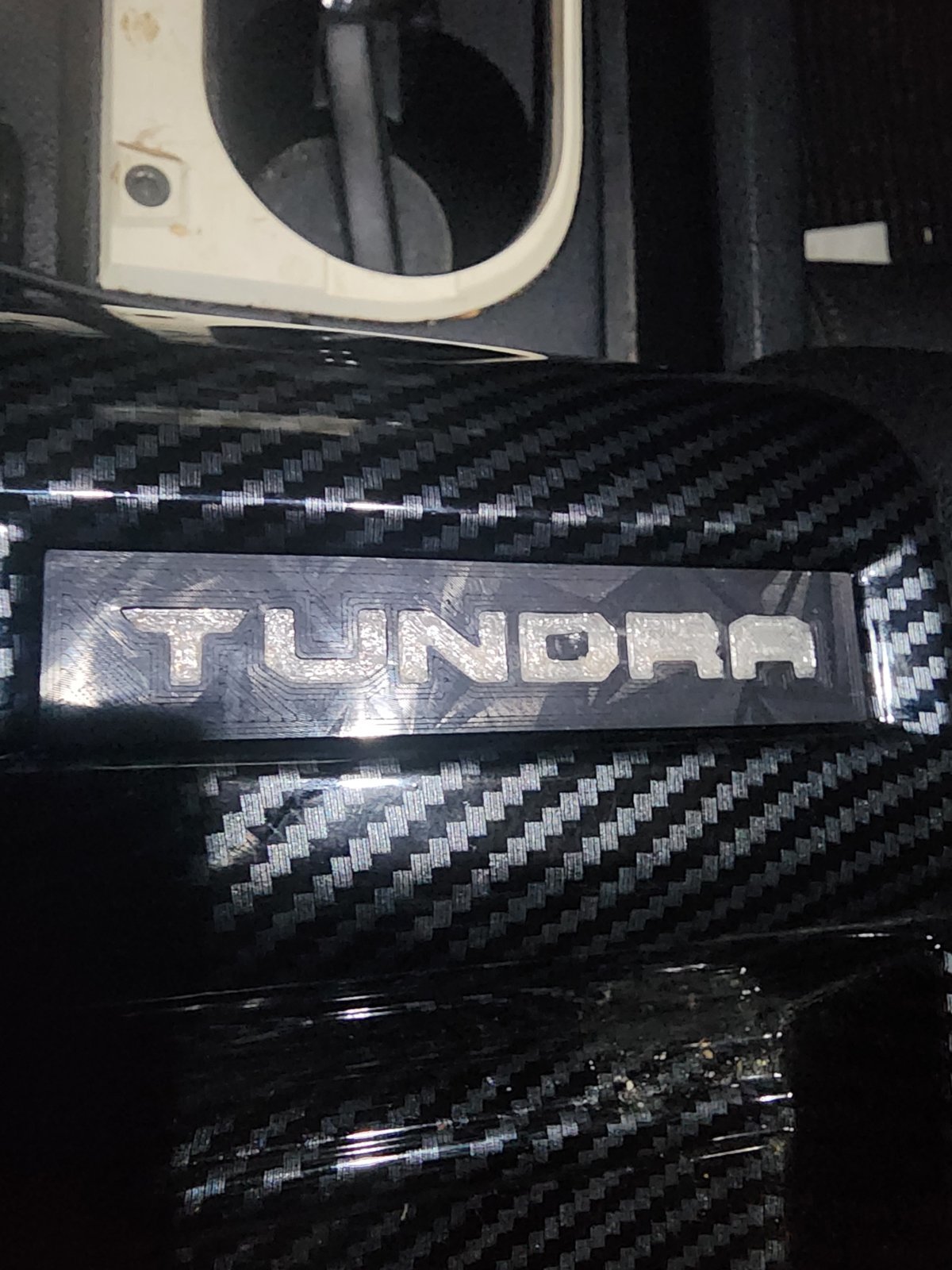

- 20240809_211009.jpg

  File size:

  261.9 KB

  Views:

  50
RoasterOven, Aug 9, 2024

#1
