LED Fog Lights wiring

Discussion in '2.5 Gen Tundras (2014-2021)' started by polishfc, Feb 18, 2021.

  1. Feb 18, 2021 at 10:00 PM
    #1
    polishfc

    polishfc [OP] New Member

    Joined:
    Sep 6, 2019
    Member:
    #35750
    Messages:
    15
    Gender:
    Male
    First Name:
    Phil
    Vehicle:
    2017 Silver Sky Metallic Tundra
    Carven Exhaust

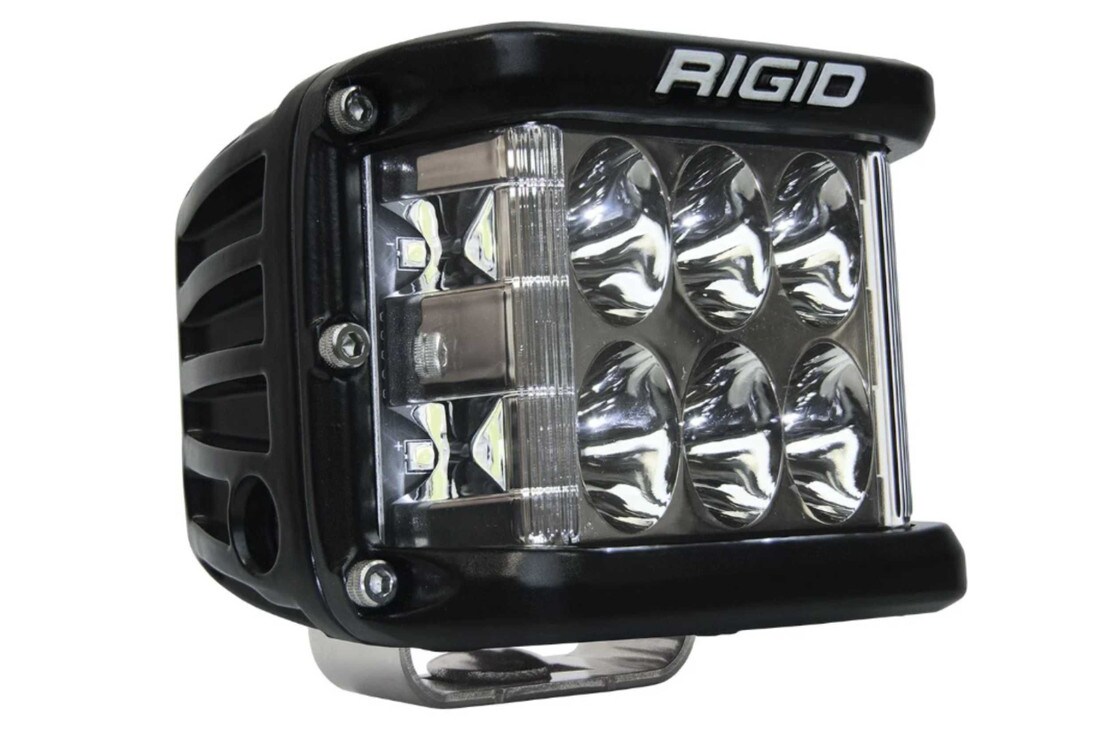

    When I bought my truck the old owner had an n-fab bumper that was replaced with an OEM bumper. Didn't have OEM fogs but the previous owner threw in rigid-esque led fogs lights such as these:

    [​IMG]

    Finally coming around to installing and stumped with the wiring. Firstly the fog lights don't have a typical two-prong connector (actually no connector at all) rather 3 wires labeled white, amber, ground, and an aftermarket fog light switch. Does anyone know if, and if so, how these lights can be installed on a 3rd gen?

  2. Feb 18, 2021 at 10:07 PM
    #2
    TRDFerguson

    TRDFerguson It’s funny because it’s bigger than a normal hat.

    Joined:
    Oct 18, 2018
    Member:
    #20730
    Messages:
    4,986
    Gender:
    Male
    First Name:
    Jake
    Arizona
    Vehicle:
    2018 MGM TRD Off Road
    You’ll probably need a wiring harness to wire those up properly, since the white and amber would be two separate triggers. You could just use an H11 adapter and splice both white and amber to the hot and the other to the ground. Another question, though, is how these pods will fit with an OEM bumper. And I assume you know that these lights probably aren’t rated as fogs for on-road use. You’d need something SAE compliant with the correct cutoff.

    Oey12 likes this.
  3. Feb 19, 2021 at 5:02 AM
    #3
    Tundra234

    Tundra234 New Member

    Joined:
    Nov 30, 2018
    Member:
    #22402
    Messages:
    10,520
    Gender:
    Male
    First Name:
    George
    Florida
    Vehicle:
    2020 Tundra DC SR5 Barcelona
    Alot of them
    Pics of what you have for wiring will help. As far as an adapter, we will know once we see what you have. I don't know about the 2017, but on my 2020, I had to use an H16. The H11 would not work.

  4. Feb 19, 2021 at 5:13 AM
    #4
    timsp8

    timsp8 Member

    Joined:
    May 11, 2018
    Member:
    #15231
    Messages:
    3,275
    Gender:
    Male
    First Name:
    Tim
    NY
    Vehicle:
    2018 Tundra Limited Crewmax
    Like they said, see if you have factory wiring and get the adapter. That’ll be the easiest way to hook them up. But it sounds like the connector was cut off.

    For the wires, white should be the power and amber the backlighting. If you don’t want backlighting then just ignore that wire. Easiest way to test it is just hold the wires directly to the battery and see what they do. Just don’t hold them too long. Don’t forget a fuse when you do install it.

  5. Feb 19, 2021 at 6:52 AM
    #5
    BlueCrushSC16

    BlueCrushSC16 New Member

    Joined:
    Jan 27, 2021
    Member:
    #58224
    Messages:
    342
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2007 Blue Streak Metallic 5.7 SR5 DC 4x4
    Phoenix Automotive 13.6" Tesla Style Radio, RedRock CAI, AlphaRex NOVA-Series LED Headlights, RCI Skid Plate, Pedal Commander, 3D Maxpider Floormats, Black Smoked Tube LED Third Brake Light, Wet Okole Neoprene Front Seat Covers, Coverking Neoprene Rear Seat Covers, Hooke Road Front and Rear Bumpers, VanTop H612T 12” 4K Mirror Dash Cam, Bilstein 5100 shocks, SAIS Bypass kit
    I'm a 2nd Gen, but you could probably do the same as I did. The square foglights that came with my Hooke Road bumpers are 2 conductor and so is the OEM wiring that goes to the stalk switch on the steering column. I cut off the OEM connectors that led to the OEM foglights and I used these for the ends of the truck wiring and wires on the new foglights.

    https://www.amazon.com/gp/product/B01F54PFLE/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1

    https://www.amazon.com/gp/product/B07C3NBTJ9/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

    I would suspect the 3rd gen Tundras also have a 2 conductor cable to the foglights so you can use the same. If for some reason they are 3 conductor you can use these instead:

    https://www.amazon.com/gp/product/B0728H9M1T/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1

  6. Feb 19, 2021 at 7:25 AM
    #6
    Oey12

    Oey12 New Member

    Joined:
    Apr 15, 2020
    Member:
    #45061
    Messages:
    1,207
    Gender:
    Male
    First Name:
    Joey
    New York
    Vehicle:
    2020 SR5 TRD OFFROAD
    None yet...
    I agree with him^^^. I wouldn’t mess with someone else’s wiring. Rigid sells harnesses for not much money. Not worth the headache...

  7. Feb 19, 2021 at 7:58 AM
    #7
    1UP

    1UP Truck Gang

    Joined:
    Oct 21, 2020
    Member:
    #53887
    Messages:
    1,538
    Vehicle:
    2019 Red CM TRD sport 4x4
  8. Feb 19, 2021 at 9:29 AM
    #8
    polishfc

    polishfc [OP] New Member

    Joined:
    Sep 6, 2019
    Member:
    #35750
    Messages:
    15
    Gender:
    Male
    First Name:
    Phil
    Vehicle:
    2017 Silver Sky Metallic Tundra
    Carven Exhaust
    Thanks for the responses, everyone. Looking more into these are starting to look more like roof/hood light pods rather than fog lights, even though they came with plates for the fogs lights in the form bumper.

    Found the wiring diagram in the box:


    Harness, or harnesses based on the diagram, does anyone know if this can be wrong on a single harness switch?

  9. Feb 19, 2021 at 9:42 AM
    #9
    TRDFerguson

    TRDFerguson It’s funny because it’s bigger than a normal hat.

    Joined:
    Oct 18, 2018
    Member:
    #20730
    Messages:
    4,986
    Gender:
    Male
    First Name:
    Jake
    Arizona
    Vehicle:
    2018 MGM TRD Off Road
    You could wire both to a single harness/switch, but you wouldn't be able to control the side/amber lights separate from the forward/white lights.
