Jomax ABS Sensor Install!

Received my set of ABS sensors from the recent group buy today. Thanks to 14burrito for organizing it!

Impressions: very nicely designed, very nicely machined and finished. I think the two points of contacts makes a huge difference in comparison to single point of contact units.

On to the install, a few photos:

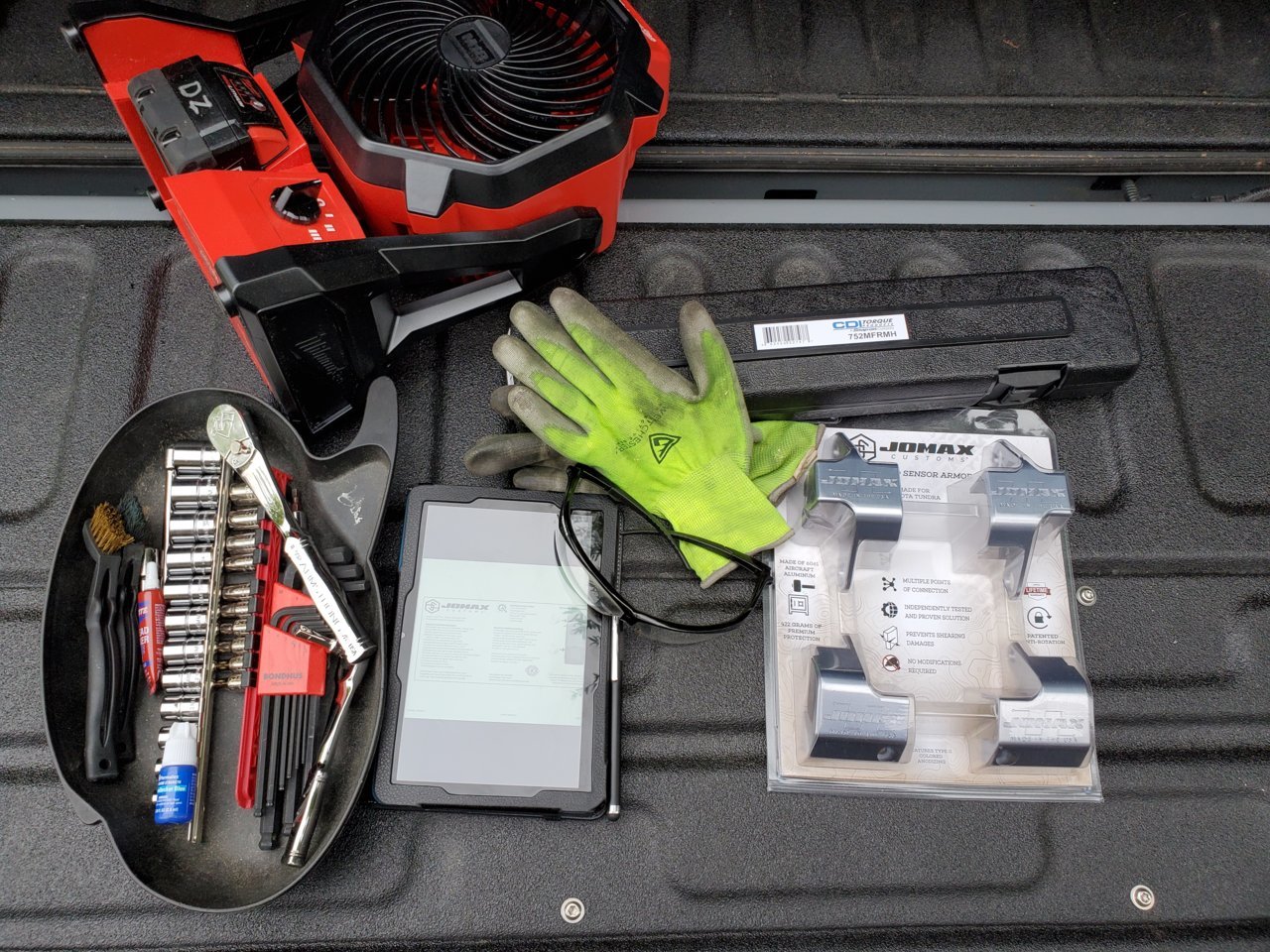

Tools for the fronts:

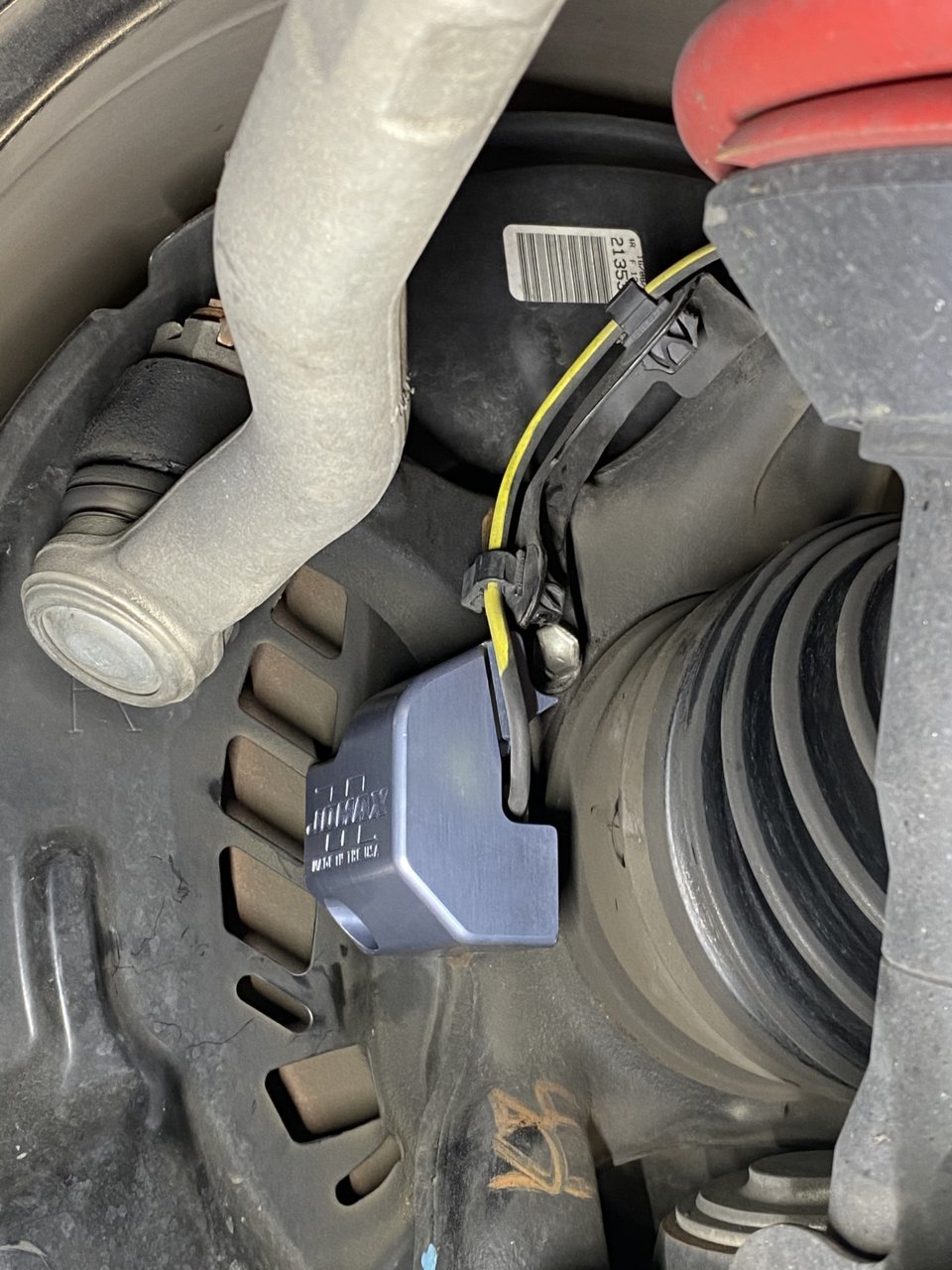

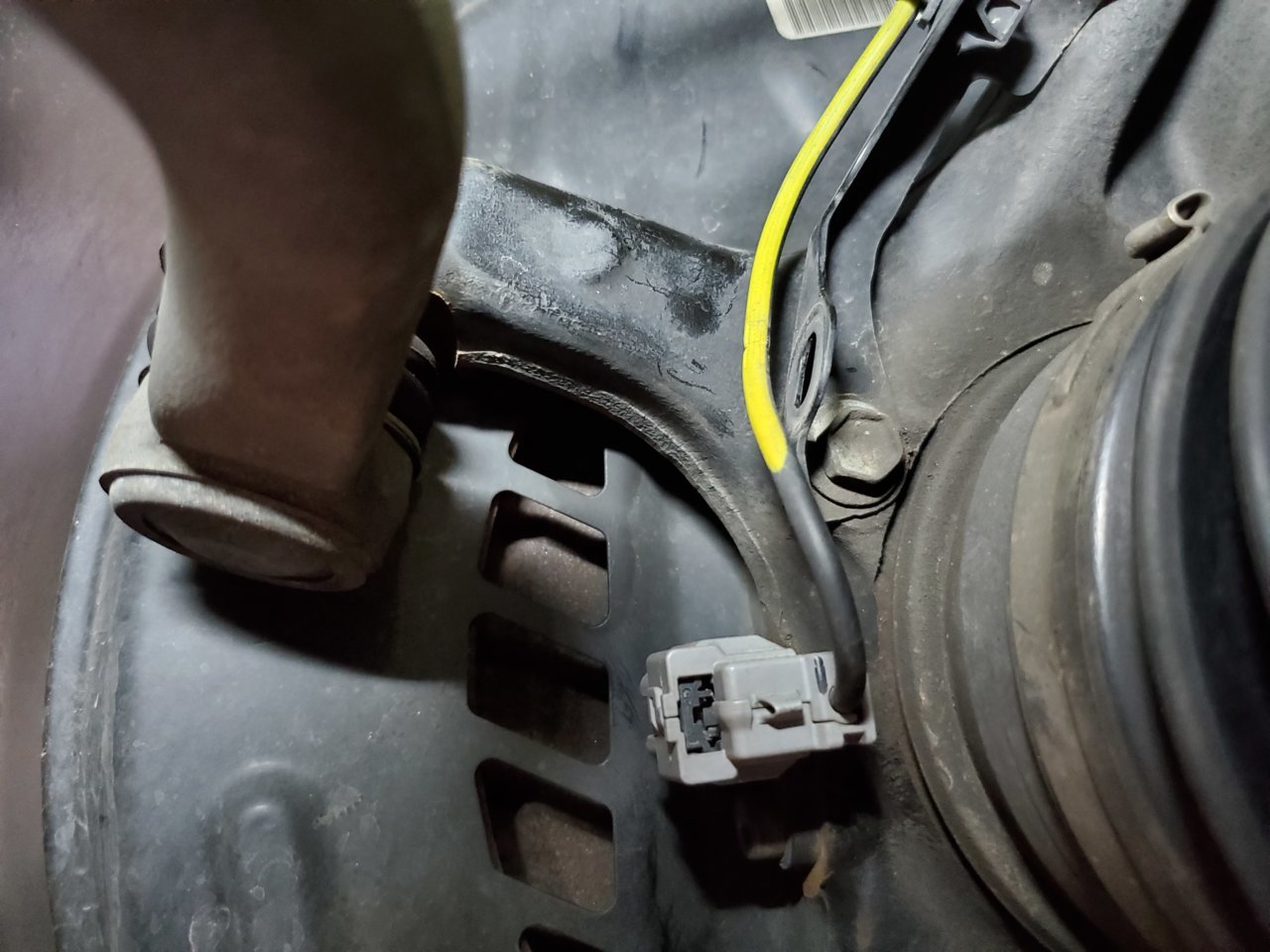

(Right Front) Remove this clip(reinstall after mounting sensor cover):

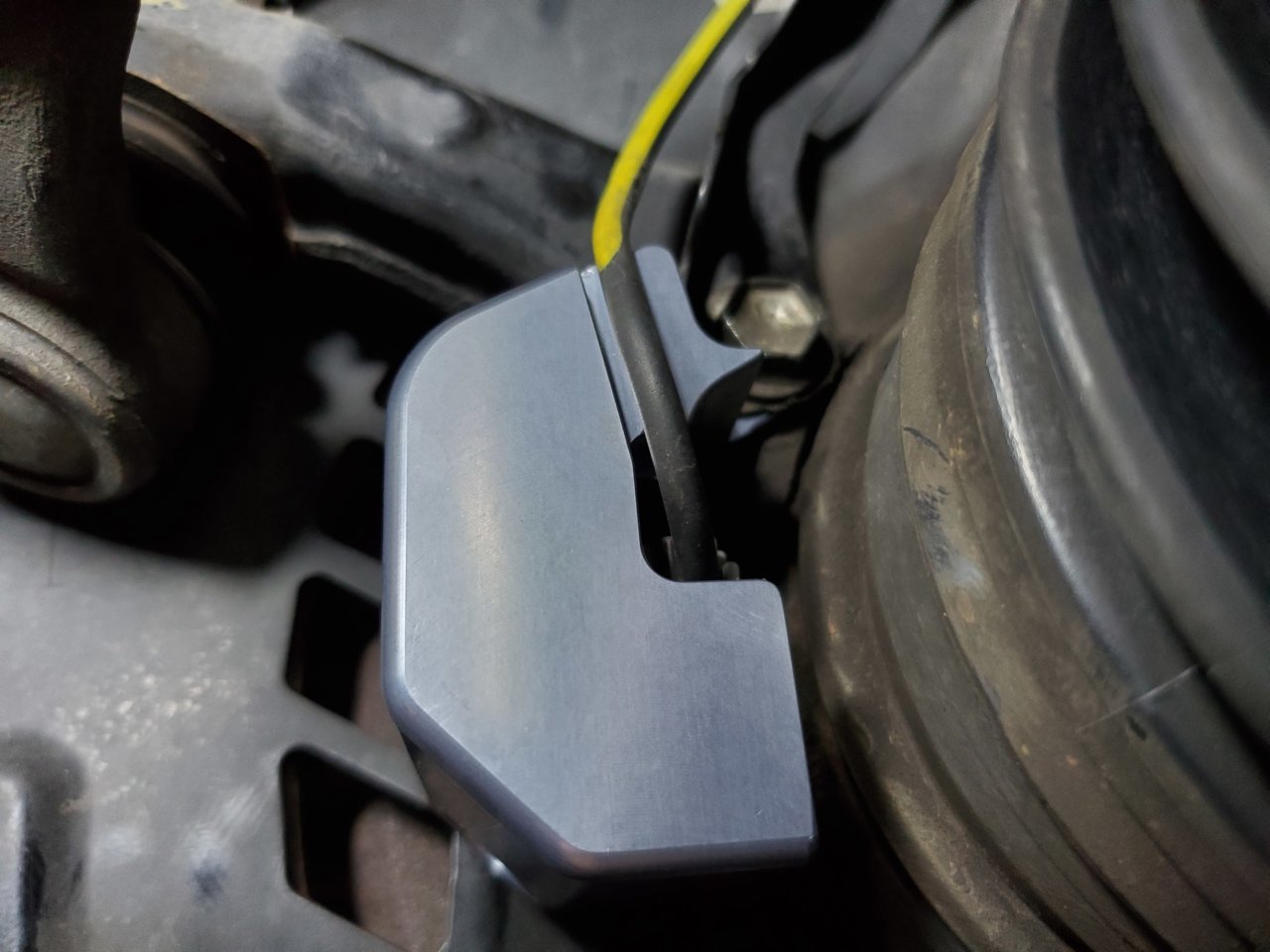

On!

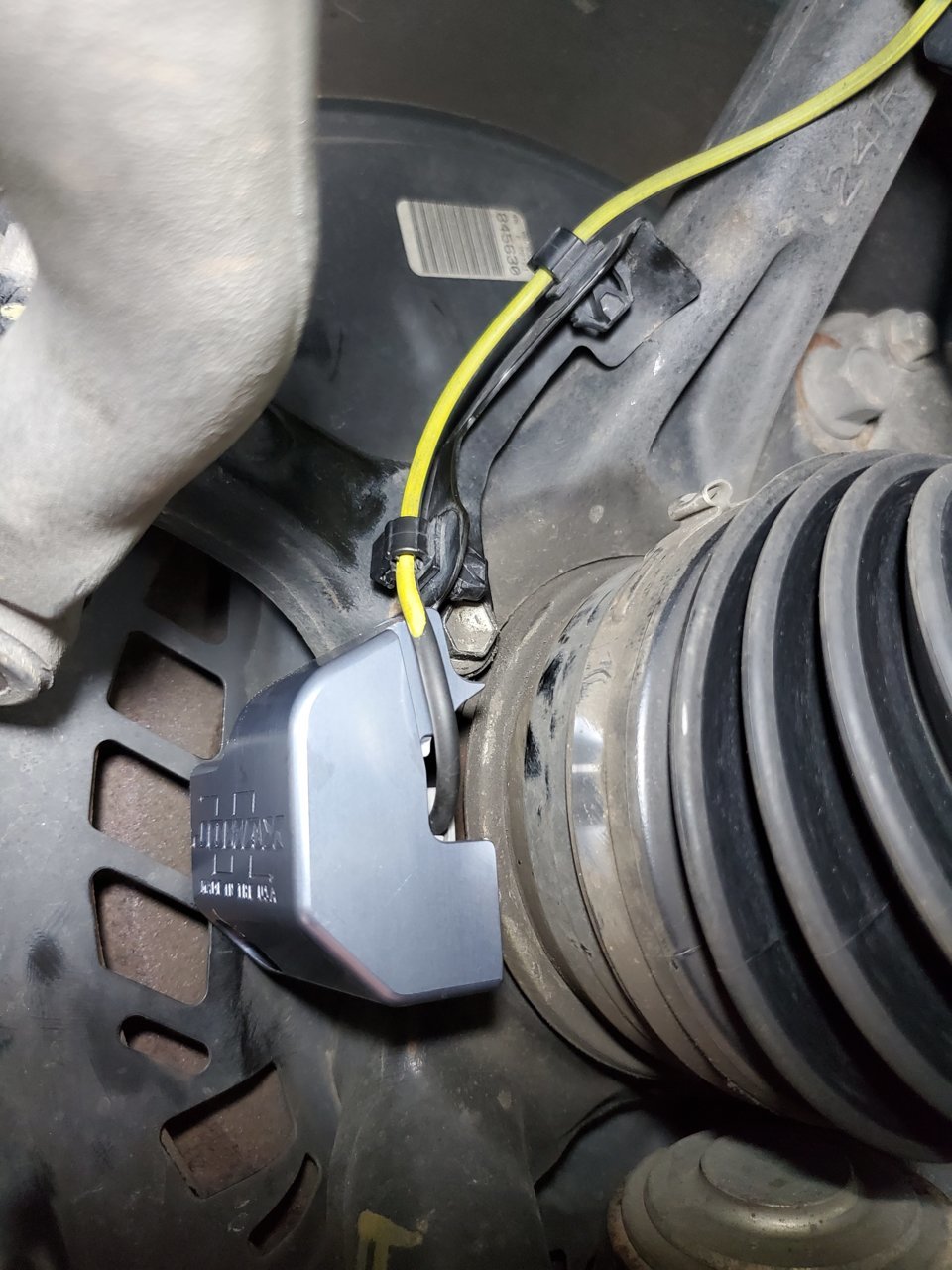

(note, clip reinstalled)

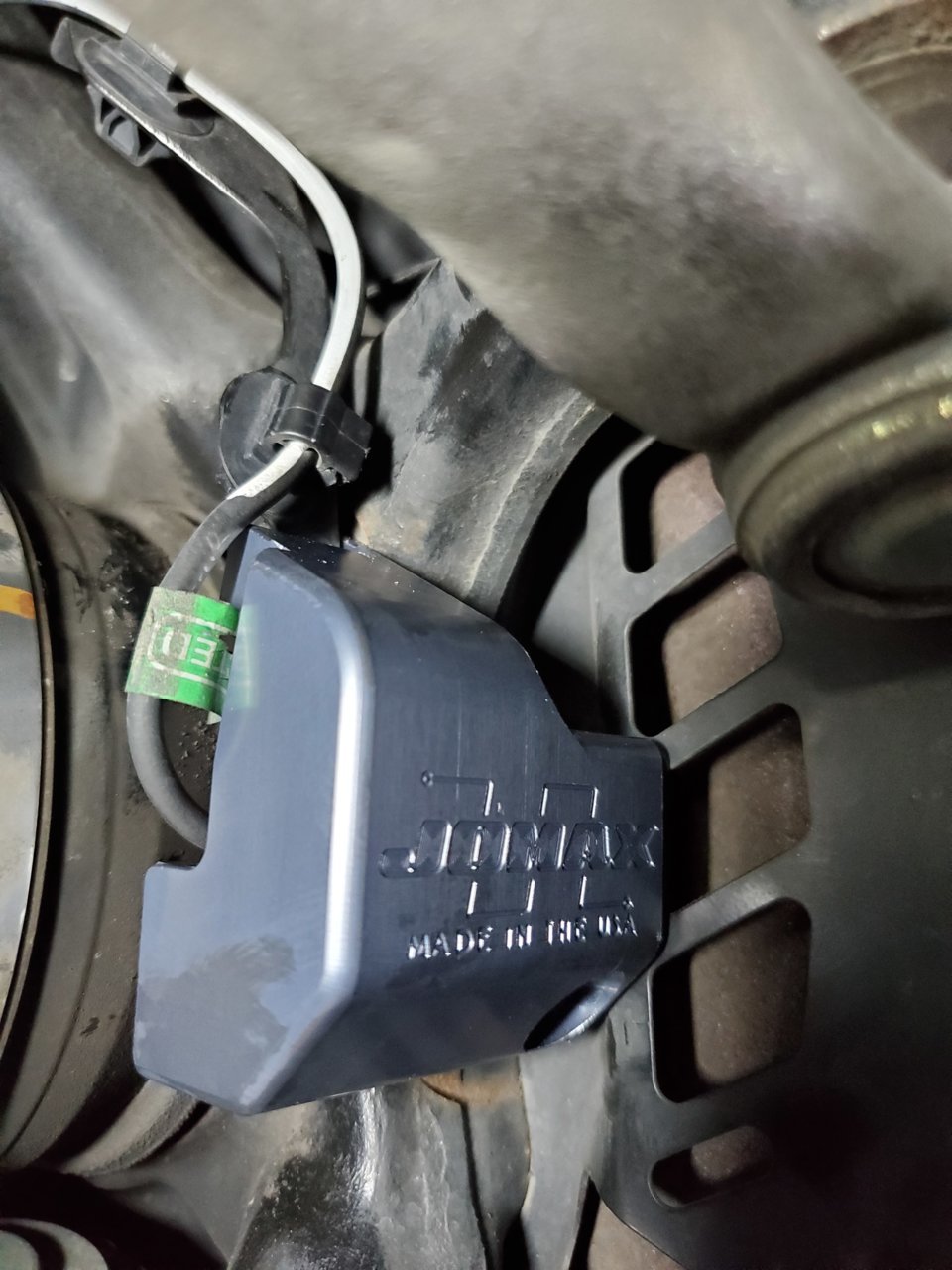

Left front:


On to the rear.

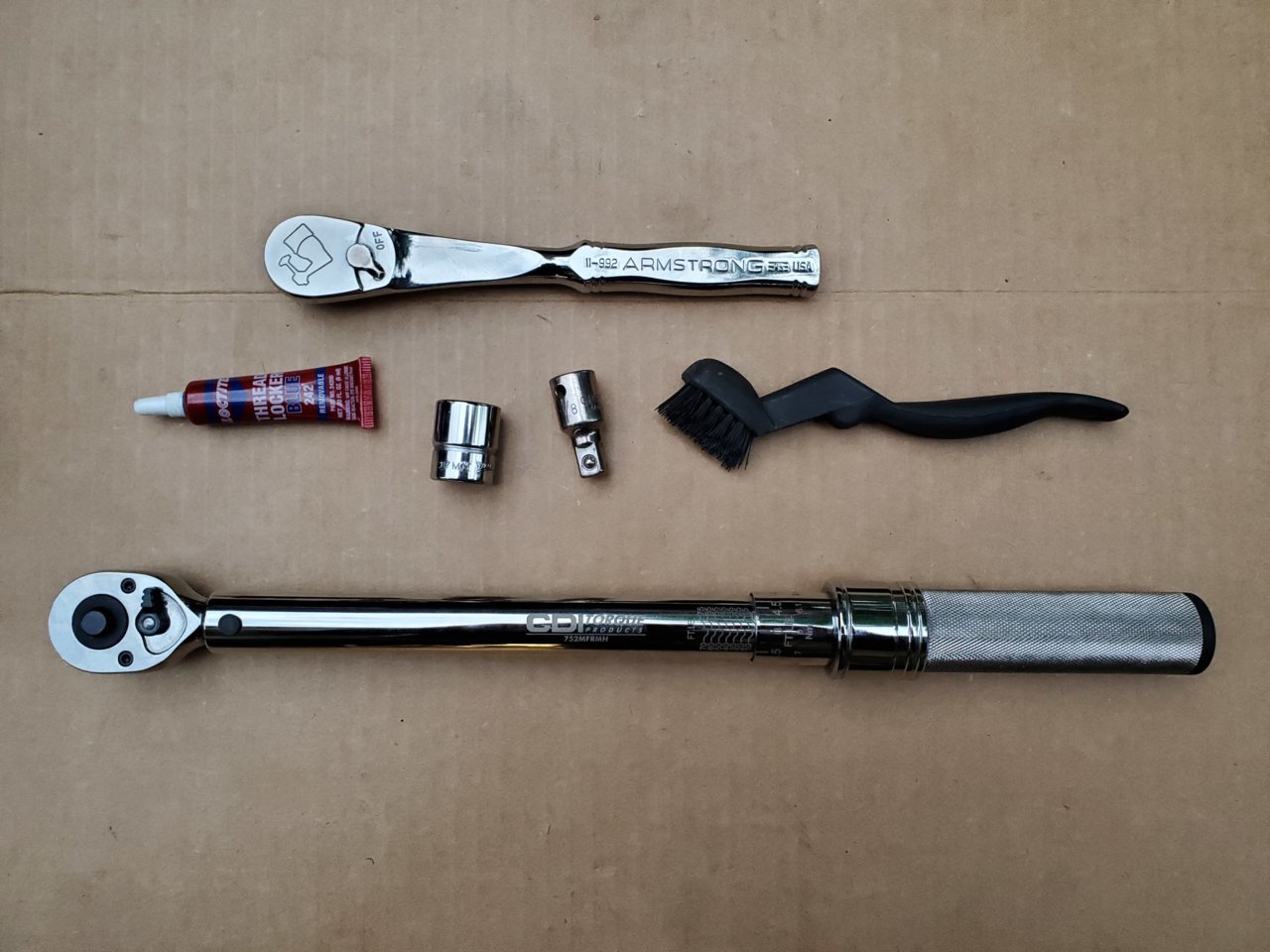

Tools used:

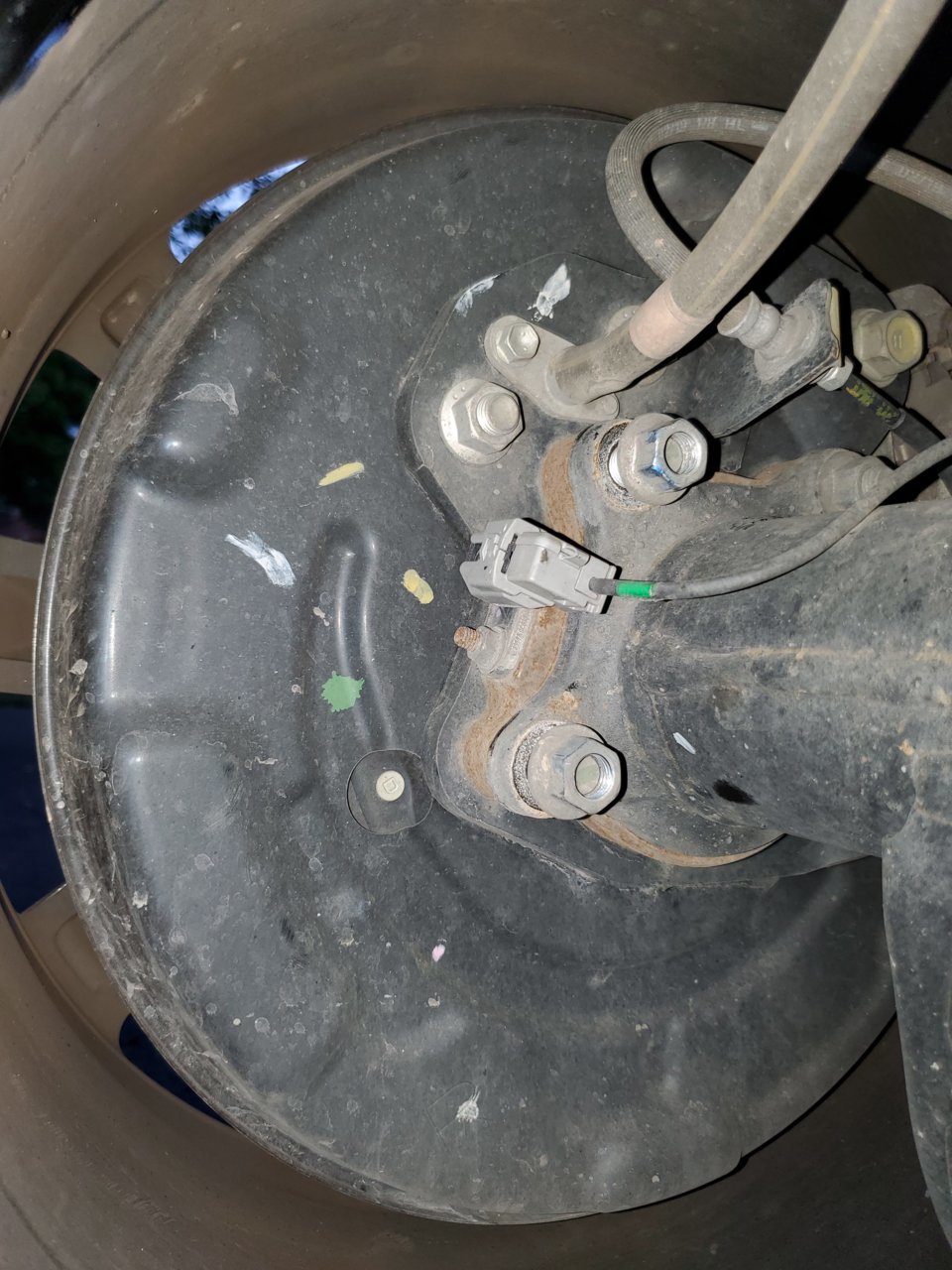

Removing the 17mm nuts:

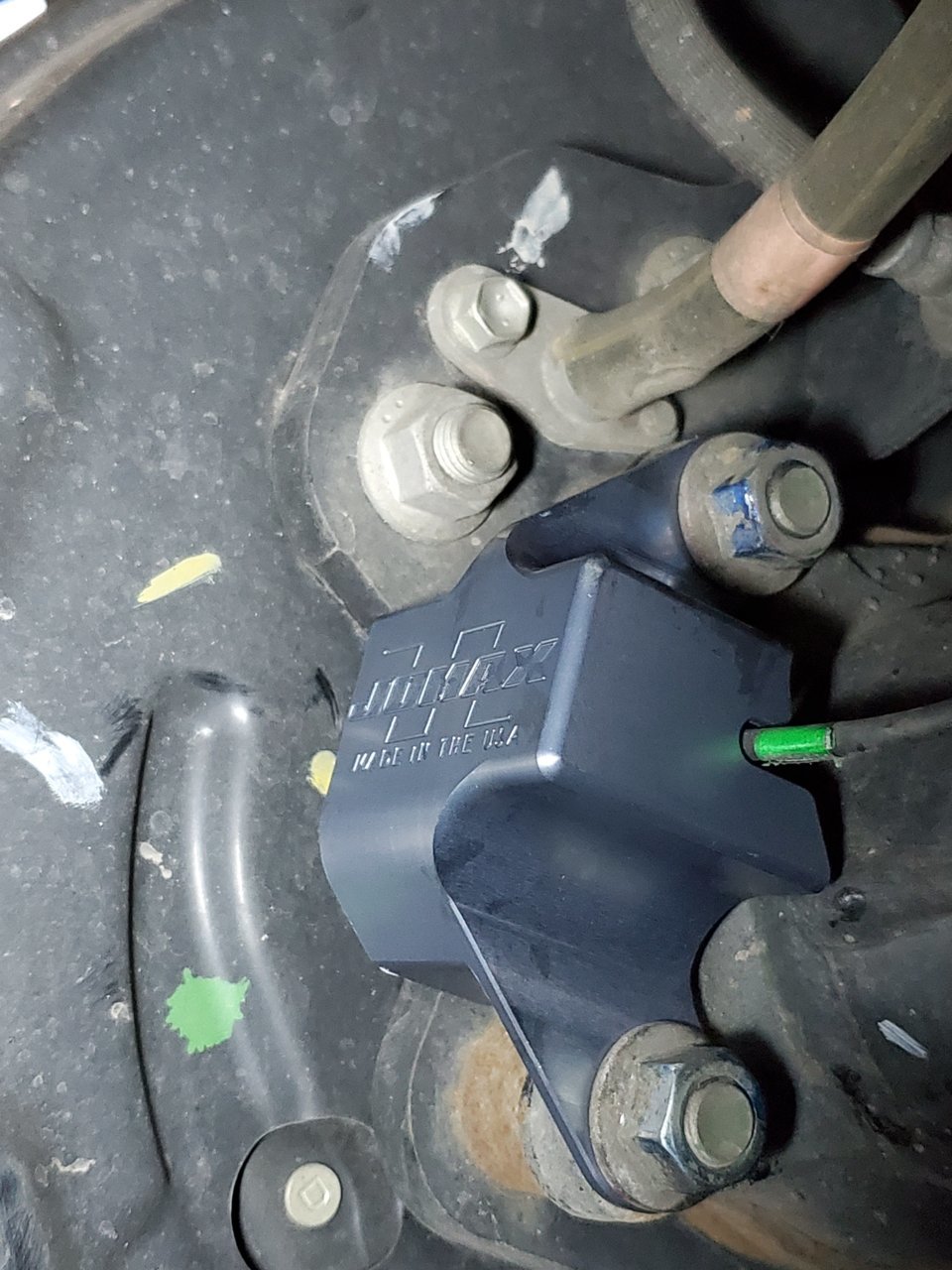

Position so the sensor wire is centered, not rubbing:

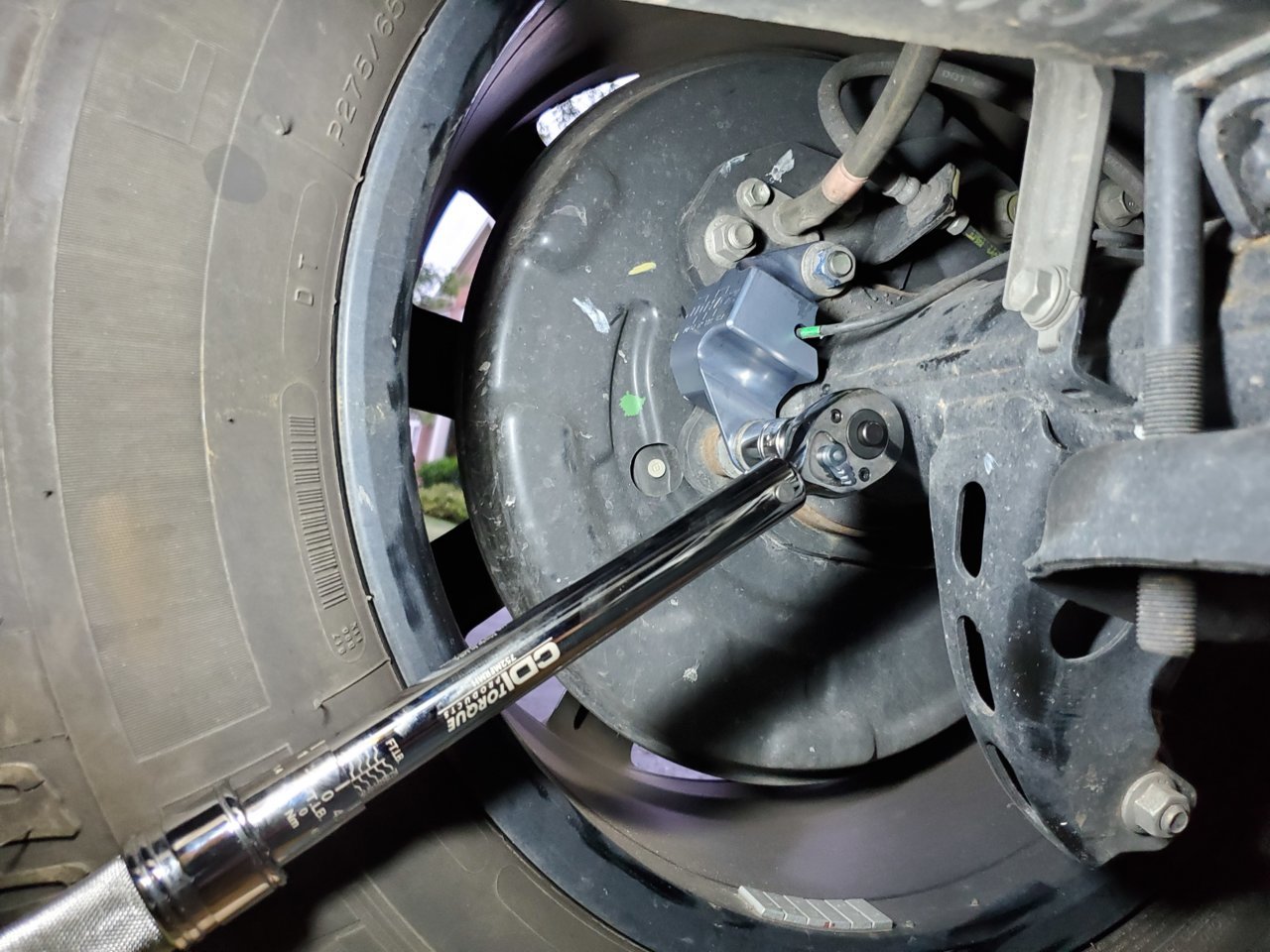

Torque to spec:

All done!



I left my clip on. Where we supposed to remove it? @14burrito



But I agree two points of contact, the coverage area of this is well worth the extra $$. Also the fact that you re use the stock bolts and not use extended bolts is an extra plus. Really thought out product and well executed.



Yes, per the instructions #2, #3 and reinstalled per #15: https://jomaxcustoms.com/installation-guides

Thanks, I clarified that I reinstalled them.



LOVE IT!!



I didn't remove my clip either. I think that was added in because (from their install experience) I think there were ever so slight deviations in the slack at the wiring there on that lip. Removing the clip and reinstalling prevented possible issues from "stretching the wiring". -- I think this is why it was added, not 100% sure offhand --

*Meant to respond to @BlueBottle



It also made removing and installing the 12mm bolt much easier. When I did the second front cover, I didn't bother popping the wire out of the clip(#2), just popping the clip off of the bracket (#3) was sufficient.
