JI45 Wire color change?

Discussion in 'Audio & Video' started by CaptainGrumpus, Jun 3, 2020.

Post Reply

Jun 3, 2020 at 2:58 PM

#1

#1
CaptainGrumpus [OP] The Mailman

Joined:

Mar 6, 2020

Member:

#43588

Messages:

1,178

Gender:

Male

First Name:

Matt

Maine

Vehicle:

2018 Inferno Tundra TRD
Finally getting around to installing the amp portion of my build and I’m using the Autoharness 4438 adapter.

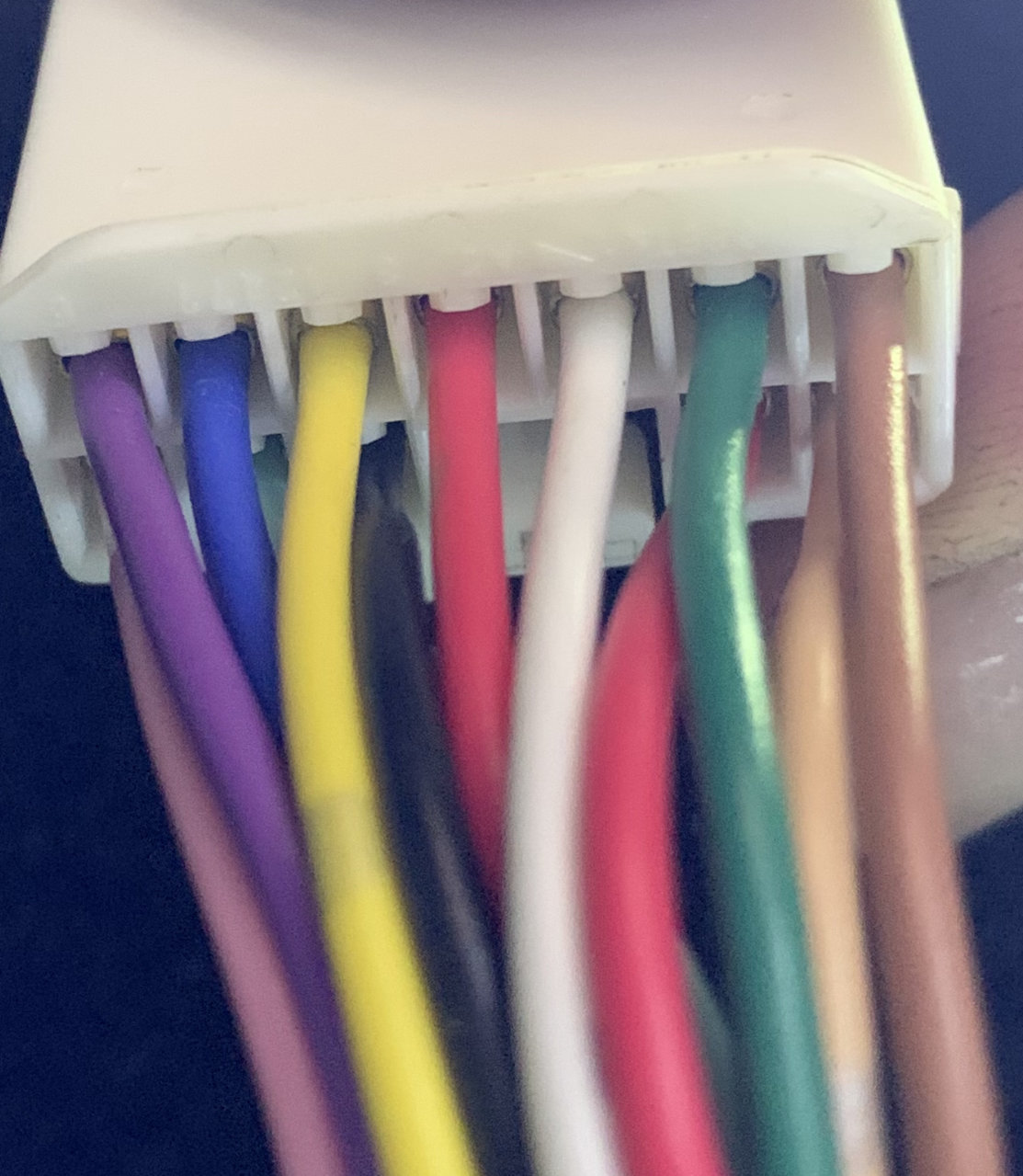

Before wiring anything I took some pics of the harness in the truck which is a 2018 non-JBL. The wire colors are quite different from what they were in 2016. Should I go with the wire colors or the pins?

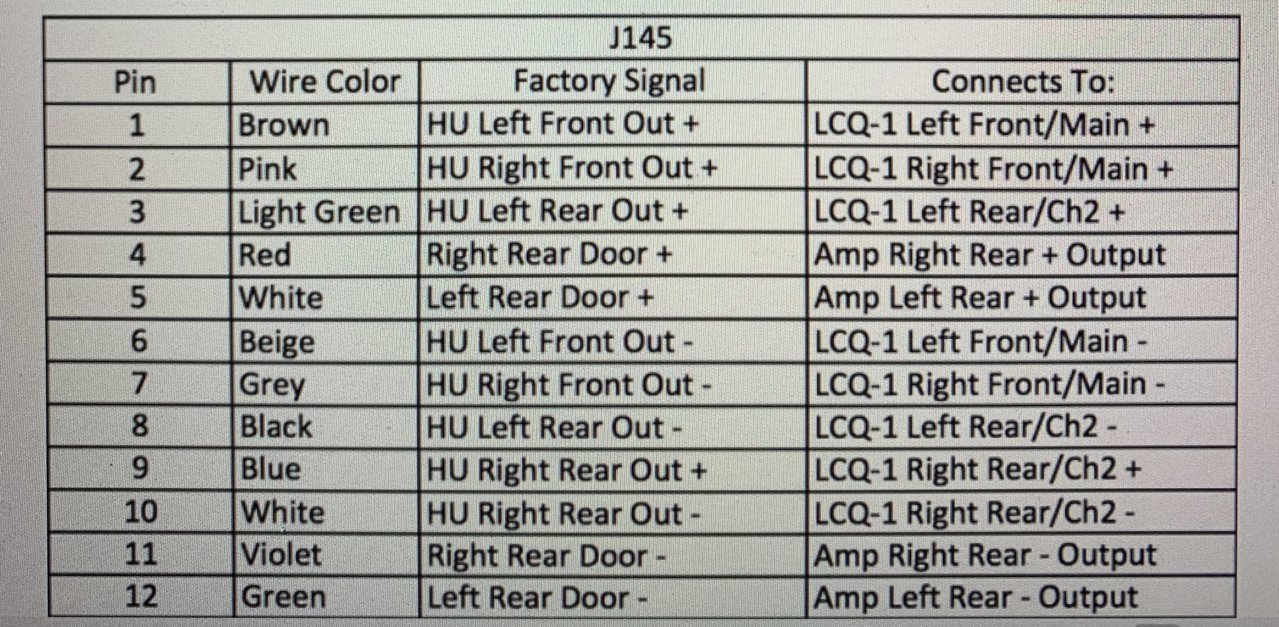

The JI44 is exact so this just the JI45 is the issue. I’m using the color code chart that Tex posted in his build thread. I took some pics to show what’s going on.
