How do I interpret this wiring diagram?

Discussion in '3rd Gen Tundras (2022+)' started by ByeF150HelloTundra, Apr 15, 2023.

Post Reply

Apr 15, 2023 at 5:34 PM

#1

#1
ByeF150HelloTundra [OP] New Member

Joined:

Jan 18, 2022

Member:

#73299

Messages:

272

DFW

Vehicle:

2022 Tundra SR5

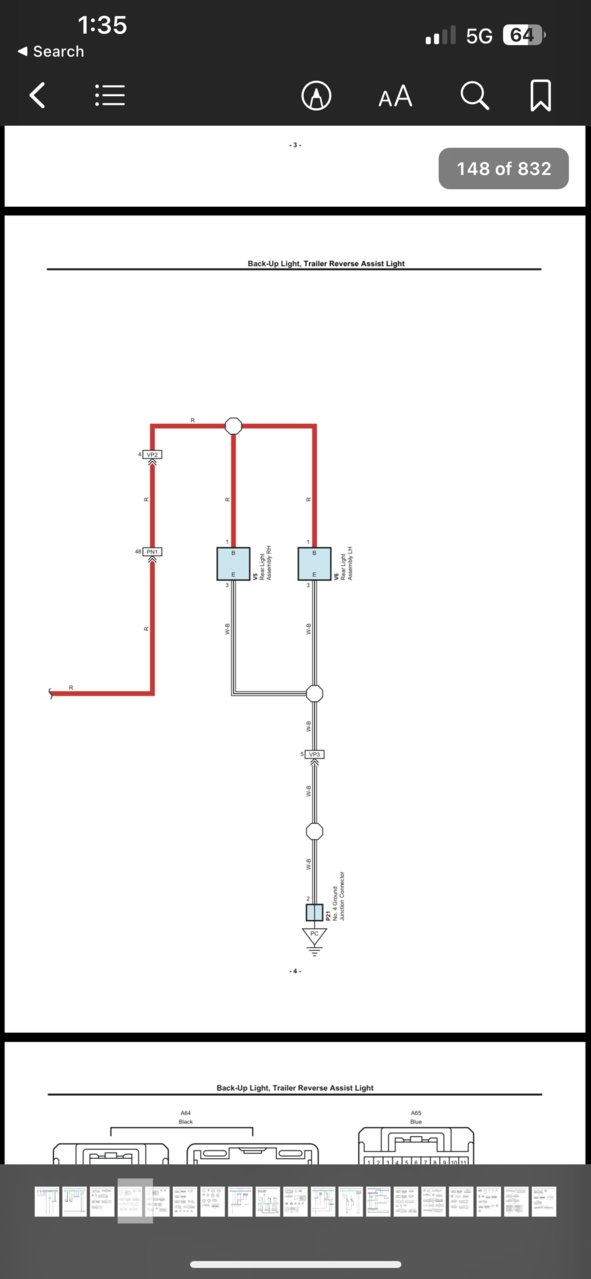

Is it the white black stripe wire or the red wire that provides power to the reverse lights?

ByeF150HelloTundra, Apr 15, 2023

#1

Apr 15, 2023 at 5:43 PM

#2

#2
chrisf111 New Member

Joined:

Dec 14, 2021

Member:

#71770

Messages:

368

Gender:

Male

Red side is power. The upside down pyramid at the end of the white line is the symbol for ground.

If you go back a page and follow the red wire it will eventually go to power.

chrisf111, Apr 15, 2023

#2

ByeF150HelloTundra[OP] likes this.
