Help With Pins on 2011 Tundra JBL Navigation Unit

Hi all,

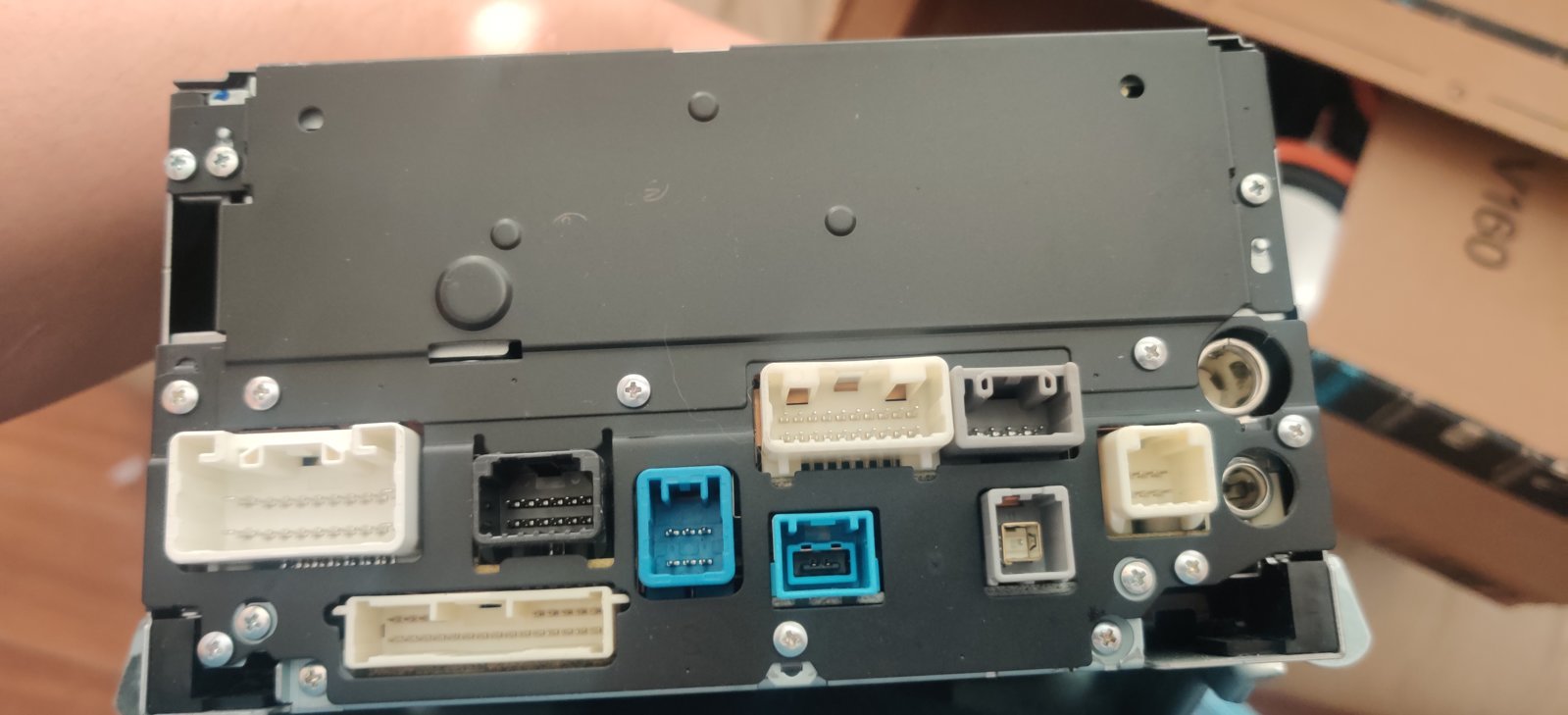

I have a Navigation radio removed from a 2011 Tundra. JBL, Toyota part # 86120-0C330. I can't seem to find a wiring diagram to locate the pins for power and ground to bench test this to make sure it works.
Can anyone help me with that? Thank you.



Did you see this thread? Look at the schematic on post #4.

https://www.tundras.com/threads/radio-pinout-question.60829/



I did see it before, I missed that part. Thanks I will try that.
I think those stereo schematic is for 2014 and up. Don't know if its the same.



I replaced the NAV/headunit on my 07 CrewMax Ltd last summer with a Kenwood DMX7709S unit. Got it from Crutchfield Canada and they were great in helping me sort things out. Was a bugger of an install, but it was mostly plug/play with a bunch of harnesses. Only issue was the controls for the steering wheel didn’t work even though they were supposed to.
