Extra Connector on Headlight Housing

Discussion in '2.5 Gen Tundras (2014-2021)' started by Mcoop, Apr 7, 2020.

Post Reply

Apr 7, 2020 at 7:33 PM

#1

#1
Mcoop [OP] Throbbing Member

Joined:

Jul 13, 2019

Member:

#33179

Messages:

716

Gender:

Male

First Name:

Michael

Berlin, NJ

Vehicle:

2015 Black SR5 5.7L DCLB 4x4

So being stuck at home due to this coronavirus thing, I've had some free time. Spending it with my '15 SR5 DCLB is what I did this evening. I will eventually upgrade my headlights to LED so I decided to pull off the grille and have a looksee at the eventual job at hand.

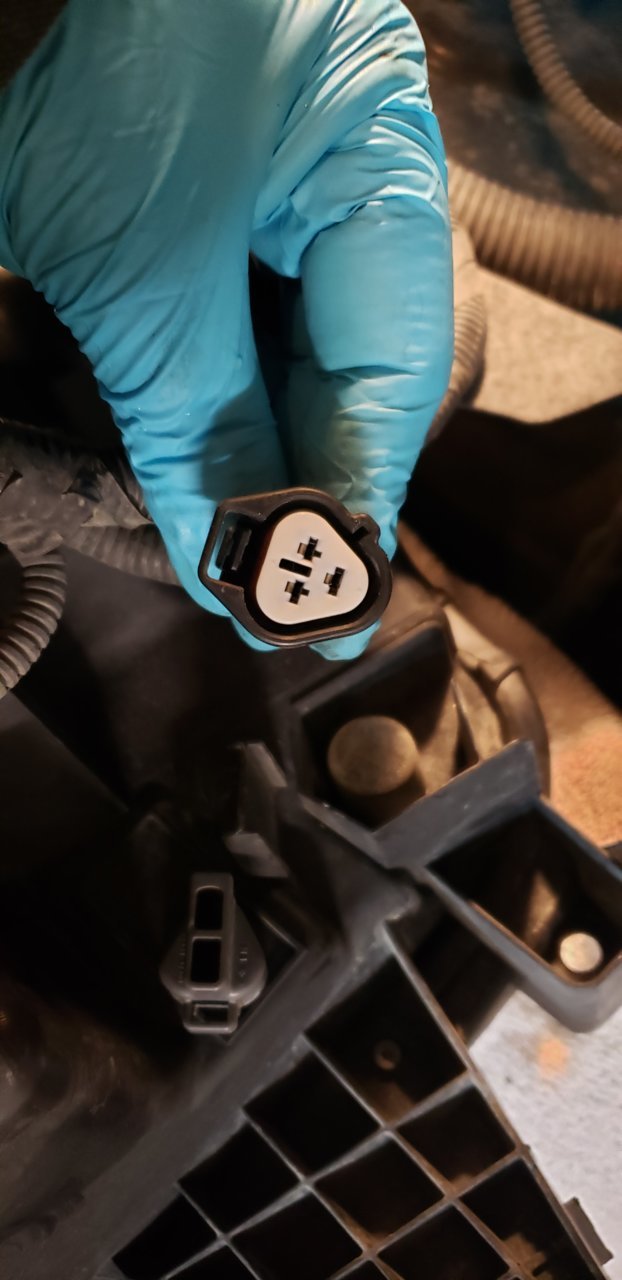

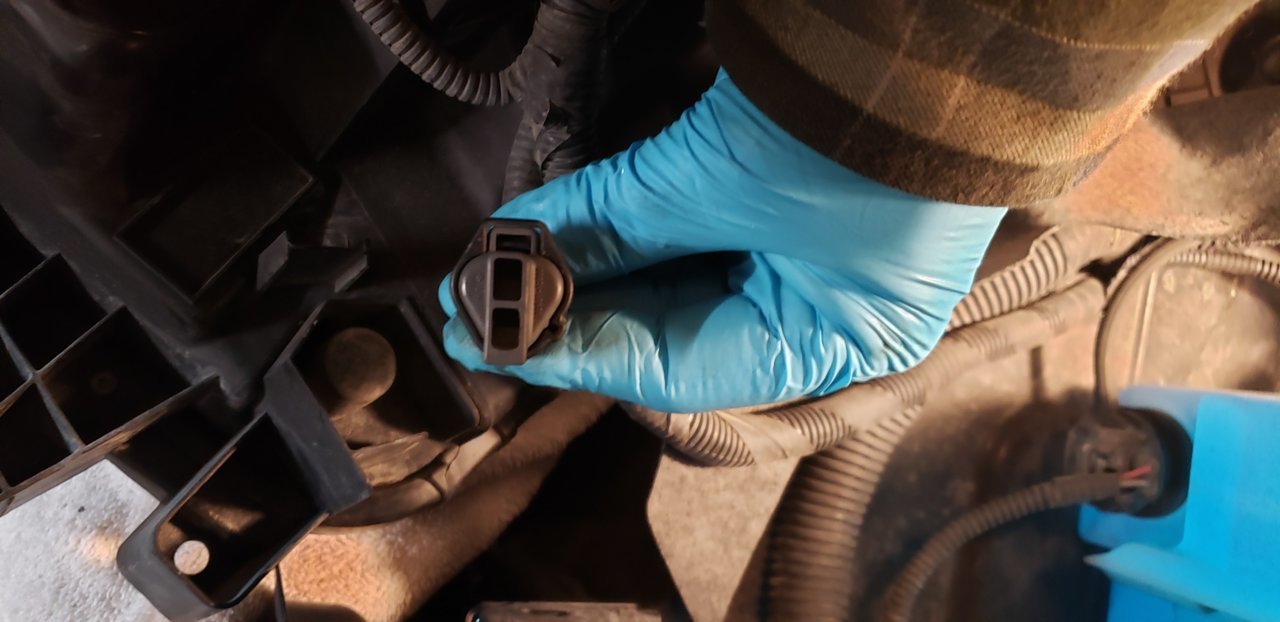

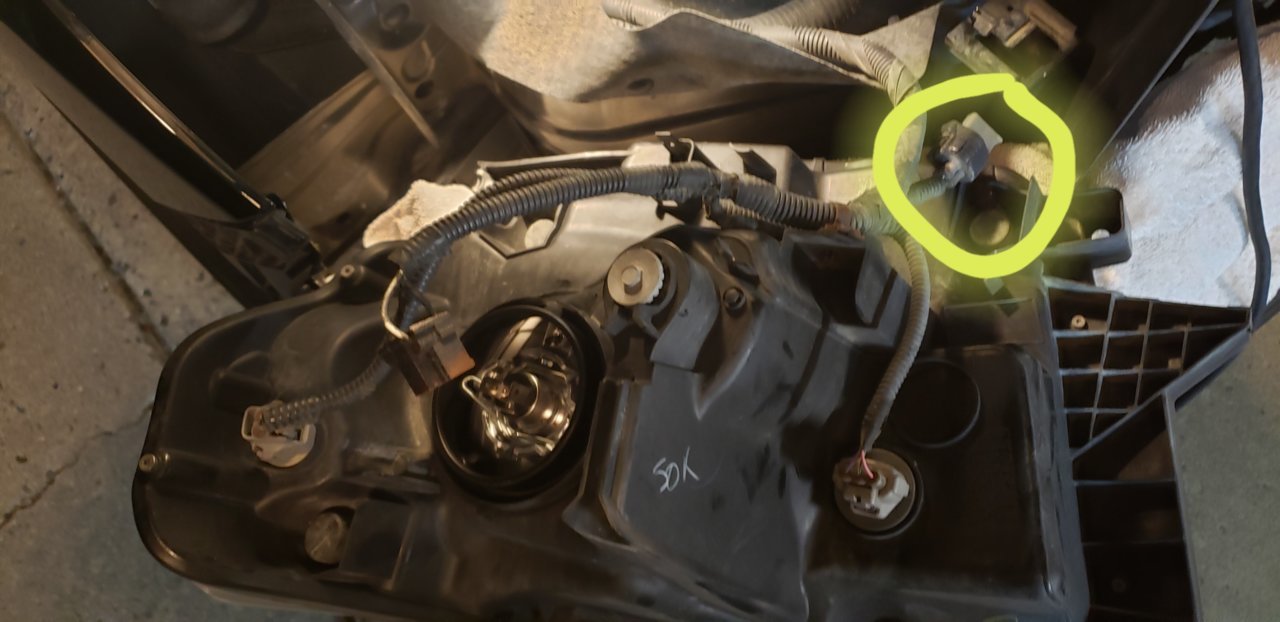

I noticed there is an extra electrical connector coming off the headlight housing. It had a plastic plug in it. What is it's purpose?

Mcoop, Apr 7, 2020

#1

Apr 7, 2020 at 7:58 PM

#2

#2
773_eddie Trd Pro

Joined:

Feb 17, 2019

Member:

#26204

Messages:

661

Gender:

Male

First Name:

Eddie

Chicago

Vehicle:

Tundra Trd Pro

12volt remote start, weathertec accessories, Trd Pro decals, Toyota console safe,VLEDS Puddle Lights,Frac Harness,TRD PRO front and Rear Sway Bar,NSV Hood Light Bar,ESP long box,AJT accessories,Thinkware U1000 dashcam, coachbuilder 1/3 Lift, HR LED’s,Pro comp Traction bars, JL complete System wit 2 10” subs, Kenwood DDX9907XR HU

I think that Could be for the headlamp leveling motor For those models that have it like my Pro

Last edited: Apr 7, 2020

773_eddie, Apr 7, 2020

#2

Mcoop[OP] likes this.
