DIY: 2007+ Aftermarket LED Backup/Reverse Light Install

Discussion in 'Lighting' started by csuviper, Aug 26, 2015.

  1. Aug 26, 2015 at 9:40 PM
    #1
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,261
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    This DIY is to install aftermarket LED lights on the rear of the truck and to tie them into the rear tail light reverse lights. The lights will only turn on when you are in reverse.


    Parts:
    (2) LED Lights - Here is the link to the lights used for this install. ~$20

    (6) 1/4" Washers
    (4) Quick Splice Connectors

    Tools:
    19mm Wrench
    Allen Wrench - Comes with this kit for install of bolts for the bracket
    Wire Cutter/Stripper/Crimper

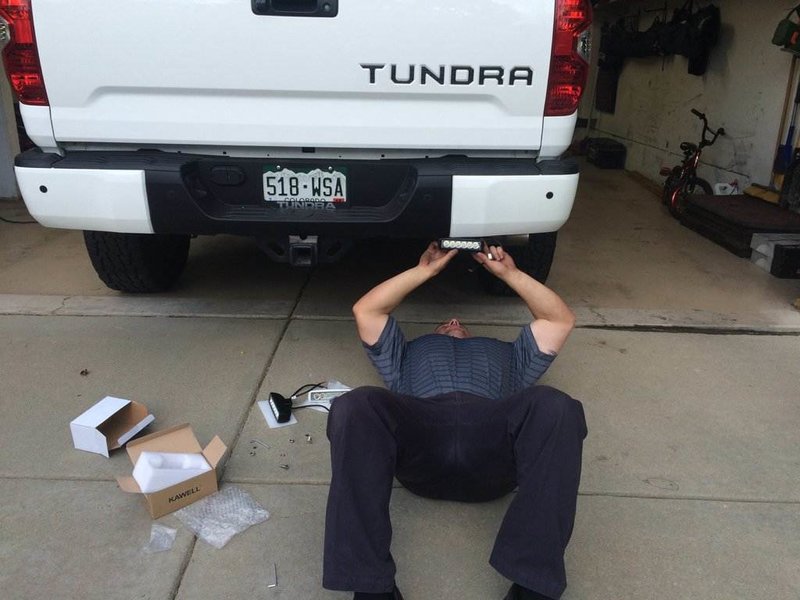

    Attaching the LED Lights

    The location of the lights is really up to what looks the best for you.
    The location that was chosen for this install was a bolt that attaches a part of the bumper to a bracket under the truck.


    Coincidentally the bolt just behind the one we used to mount the light was removed previously. We used this hole to run the electrical through to reach the electrical harness.

    Pull the existing bolt out, insert it into the hole in the bracket, add 3 washers and bolt back up. Repeat with the other side. Simple install if you pick the right location.

    [​IMG]



    Electrical Install

    Locate the wire harness that runs under the rear bumper to the tail lights.

    In the closest location to where the lights are located, pull the wire bundle out of the split wire loom.

    Use the quick splice for 18-14 gauge wire (blue) to splice into the existing wires on each side.
    The wiring that goes to the revers lights are both blue with red line and white with black line.

    • Blue wire with red line = Power = Tie to red wire on the light
    • White wire with black line = Ground = Tie to black wire on the light
    Review how to install the quick splice on youtube if you have never used one before.
    [​IMG]

    Once you have spliced the new wires into the existing wires, use electrical tape to wrap the quick splice connectors and wires. Then push the wires back into the split wire loom.



    Make sure to test to see if the lights work. If they do not then you may not have made a good connection with the quick splice connector. Check each one by pulling the plastic down, but not the wire out of the metal connector. You should find one or multiple that aren't fully into the metal connector. Reinstall and re-test.

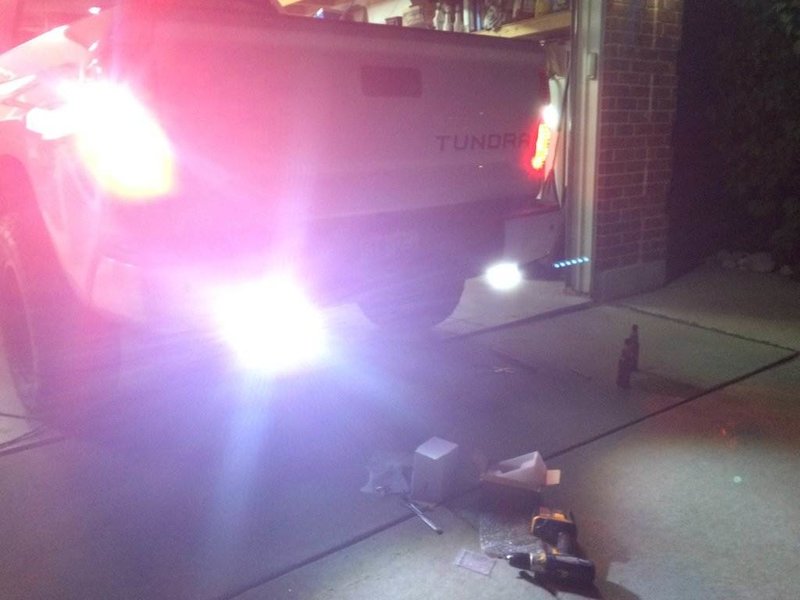

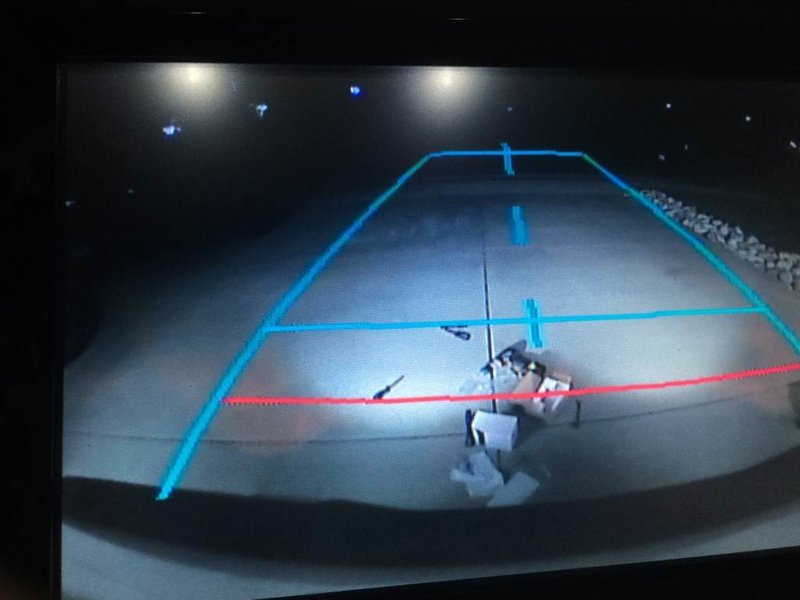

    Once complete, enjoy the added light in reverse.


    [​IMG]

    [​IMG]


    [​IMG]




    Last edited: Aug 26, 2015
  2. Aug 26, 2015 at 9:47 PM
    #2
    T-Rex266

    T-Rex266 SpaceX Director Staff Member

    Joined:
    Jan 5, 2014
    Member:
    #6
    Messages:
    159,896
    Gender:
    Male
    First Name:
    Elon
    Nice write up, B.

  3. Aug 26, 2015 at 9:56 PM
    #3
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,261
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    So everyone knows this was the install on the truck of @Sean266.

  4. Aug 27, 2015 at 4:15 AM
    #4
    CaptTyler

    CaptTyler Life’s too short to have an ugly boat.

    Joined:
    Jul 23, 2015
    Member:
    #1561
    Messages:
    1,461
    Gender:
    Male
    First Name:
    Tyler
    Florida
    Vehicle:
    2018 Ram 2500 Cummins
    I like this mod. Thanks for the great quick DIY.
    Will order that ASAP and let you know how it goes!
    Hey Sean how well do these lights match the LED's in your taillights?
    @Sean266

  5. Aug 27, 2015 at 4:35 AM
    #5
    MotoTundra

    MotoTundra The Ocho

    Joined:
    Jan 6, 2014
    Member:
    #8
    Messages:
    7,652
    Gender:
    Male
    First Name:
    Don
    -TRS Mini D2S Retrofit on TRD Pro Headlights (Apollo 2.0 Shrouds, 35w XB Ballasts, 5500k Bulbs) -Baja Designs Squadron R Sport Aux lights. -TRD Pro Grill -TRD Rear Sway Bar -BakFlip VP Tonneau w/BakBox -Dipped wheels & bumpers -Iron Cross HD steps -Undercover Swingcase -SunTek Paint Protection film -Tinted glass -Bedmat -OEM Towing Mirrors
    This may be my next project! Nice writeup guys, thanks!

    T-Rex266 likes this.
  6. Aug 27, 2015 at 5:24 AM
    #6
    T-Rex266

    T-Rex266 SpaceX Director Staff Member

    Joined:
    Jan 5, 2014
    Member:
    #6
    Messages:
    159,896
    Gender:
    Male
    First Name:
    Elon
    These lights over power them to say the least.

  7. Aug 27, 2015 at 5:53 AM
    #7
    Black Wolf

    Black Wolf Bigfoot Hunter, Sasquatch too, but not Yeti

    Joined:
    Apr 20, 2014
    Member:
    #378
    Messages:
    41,321
    Gender:
    Male
    First Name:
    Matt
    Aurora CO
    Vehicle:
    2022 Nissan Frontier SV 4X4
    TuwaPro rack, Z1 Offroad stuff, NISMO suspension stuff, FlowmasterFX Extreme exhaust, AIS, OVS, J&L can, other goodies on the way
    I got a pair of freebie allens in my kit. :cookiemonster:

    T-Rex266 likes this.
  8. Aug 27, 2015 at 6:19 AM
    #8
    CaptTyler

    CaptTyler Life’s too short to have an ugly boat.

    Joined:
    Jul 23, 2015
    Member:
    #1561
    Messages:
    1,461
    Gender:
    Male
    First Name:
    Tyler
    Florida
    Vehicle:
    2018 Ram 2500 Cummins
    Sorry, guess I should have worded that different.
    I figured they'd be brighter. But are the close to the same color-wise? (5k, 6k, etc...)?

  9. Aug 27, 2015 at 6:28 AM
    #9
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,261
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    Yes they are very close in color. Around the 5k color

  10. Aug 27, 2015 at 6:55 AM
    #10
    T-Rex266

    T-Rex266 SpaceX Director Staff Member

    Joined:
    Jan 5, 2014
    Member:
    #6
    Messages:
    159,896
    Gender:
    Male
    First Name:
    Elon
    Yep. You wouldn't notice a color difference between the two IMO.

  11. Aug 27, 2015 at 7:10 AM
    #11
    Black Wolf

    Black Wolf Bigfoot Hunter, Sasquatch too, but not Yeti

    Joined:
    Apr 20, 2014
    Member:
    #378
    Messages:
    41,321
    Gender:
    Male
    First Name:
    Matt
    Aurora CO
    Vehicle:
    2022 Nissan Frontier SV 4X4
    TuwaPro rack, Z1 Offroad stuff, NISMO suspension stuff, FlowmasterFX Extreme exhaust, AIS, OVS, J&L can, other goodies on the way
    May actually get mine in this afternoon after I get back from the Broncos/49ers scrimmage at Dove Valley that I got tickets for. Hoo wee!!

    CaptTyler and T-Rex266 like this.
  12. Aug 27, 2015 at 2:26 PM
    #12
    irishpride114

    irishpride114 New Member

    Joined:
    May 4, 2015
    Member:
    #1263
    Messages:
    156
    Gender:
    Male
    First Name:
    Travis
    Vehicle:
    2015 SR5 TRD Double Cab
    How much to do this? How many lumen's on the output?

  13. Aug 27, 2015 at 2:40 PM
    #13
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,261
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    The link says "Ultra bright 1530 lumen light will light up everything you need to see."
    The lights are $19.67 + shipping or free shipping with prime. Other items are cheap.

    $25 at most for all the parts + shipping (not including tools)
    $450 installed by me :) Members get a deal 399.99 :D (or a case of beer)

    Last edited: Aug 27, 2015
    telepowder and Stormtrooper81 like this.
  14. Aug 27, 2015 at 2:42 PM
    #14
    irishpride114

    irishpride114 New Member

    Joined:
    May 4, 2015
    Member:
    #1263
    Messages:
    156
    Gender:
    Male
    First Name:
    Travis
    Vehicle:
    2015 SR5 TRD Double Cab
    Duh. Didn't see the hyperlink. Thanks.

  15. Aug 28, 2015 at 6:35 PM
    #15
    dandailey

    dandailey King Tundra

    Joined:
    Mar 5, 2015
    Member:
    #1030
    Messages:
    2,533
    Gender:
    Male
    First Name:
    Dan D
    Newport News Va.
    Vehicle:
    2015 TRD 4x4 DC Tundra 5.7 Blue Ribbon
    Bakflip Revolver X2 ,Nestahedition Firestalk antenna, TRD dual exhaust, WeatherTech liners, in channel deflectors, 20% tint front, Tundra bed mat.AFE pro dry s filter,SA XDM 3.8 compact 9mm., Wheel to wheel N-Fab 3 steps.Lamin-X yellow on fogs, Bilstein 6112's top setting, BFG KO2's 275/70-18.Pioneer HU, JL RD amp, Focal speakers everywhere.
    Definitely my next to do mod. Looks great.:thumbsup:

    T-Rex266 likes this.
  16. Oct 28, 2015 at 3:09 PM
    #16
    AMRE2ME2

    AMRE2ME2 New Member

    Joined:
    Aug 3, 2015
    Member:
    #1609
    Messages:
    232
    Gender:
    Male
    Colorado
    Vehicle:
    2016 DC 4x4 Limited TRD
    Done, thanks guys!

  17. Oct 28, 2015 at 4:20 PM
    #17
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,261
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    Glad you got it done. Pics?

  18. Oct 28, 2015 at 6:15 PM
    #18
    Virgils12

    Virgils12 New Member

    Joined:
    Dec 21, 2014
    Member:
    #816
    Messages:
    971
    Gender:
    Male
    Vehicle:
    2012
    Camburg Fox factory 2.5" lift Xd monsters with 295/70/18 nitto terra graplerrs Corsa cat back Weather tech liners Wet okole covers
    I know this is in the wrong place but do you know what the number is for the led bulbs for a 2012 reverse lights?

  19. Oct 28, 2015 at 6:19 PM
    #19
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,261
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
  20. Oct 28, 2015 at 6:23 PM
    #20
    Virgils12

    Virgils12 New Member

    Joined:
    Dec 21, 2014
    Member:
    #816
    Messages:
    971
    Gender:
    Male
    Vehicle:
    2012
    Camburg Fox factory 2.5" lift Xd monsters with 295/70/18 nitto terra graplerrs Corsa cat back Weather tech liners Wet okole covers
    Thanks wasn't sure if those were the led numbers.

  21. Oct 28, 2015 at 6:30 PM
    #21
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,261
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    Yea the led number will be the same. It just refers to the connector/size.

  22. Oct 28, 2015 at 6:31 PM
    #22
    Virgils12

    Virgils12 New Member

    Joined:
    Dec 21, 2014
    Member:
    #816
    Messages:
    971
    Gender:
    Male
    Vehicle:
    2012
    Camburg Fox factory 2.5" lift Xd monsters with 295/70/18 nitto terra graplerrs Corsa cat back Weather tech liners Wet okole covers
    Got ya. Thanks Brian!

  23. Oct 28, 2015 at 6:40 PM
    #23
    Virgils12

    Virgils12 New Member

    Joined:
    Dec 21, 2014
    Member:
    #816
    Messages:
    971
    Gender:
    Male
    Vehicle:
    2012
    Camburg Fox factory 2.5" lift Xd monsters with 295/70/18 nitto terra graplerrs Corsa cat back Weather tech liners Wet okole covers
    You know the number or have a link to the 10 pack of LEDs you guys have for the interior lights?

  24. Oct 28, 2015 at 6:54 PM
    #24
    Airbagged

    Airbagged New Member

    Joined:
    Oct 13, 2015
    Member:
    #1947
    Messages:
    170
    Gender:
    Male
    First Name:
    Dan
    Vehicle:
    2015 Toyota Tundra TRD off road DC
    Camburg UCA Fox 2.5 front Fox 2.0 rear Timbren bump stops 20" wheels Coachbuilders shackles Coachbuilders tie rod ends 46 gallon transfer flow tank Flush bed cover Billet grill LED light bar front Led reverse lights TRD sway bar rear TRD cold air intake Locker down consol safe Towing mirrors Fender flares Magnaflow exhaust TRD shift knob Magnum running boards Paracord wrapped grab handles And more
    One of the first DIY mods I did was to add a set of Rigid lights flushed into my rear bumper. Since I use my truck for towing, and sometimes have to back up to my trailer to hitch up at night, I want to see as much as I can when in reverse.


    bulldog93, Patriot, Jordan482 and 4 others like this.
  25. Oct 28, 2015 at 6:59 PM
    #25
    Airbagged

    Airbagged New Member

    Joined:
    Oct 13, 2015
    Member:
    #1947
    Messages:
    170
    Gender:
    Male
    First Name:
    Dan
    Vehicle:
    2015 Toyota Tundra TRD off road DC
    Camburg UCA Fox 2.5 front Fox 2.0 rear Timbren bump stops 20" wheels Coachbuilders shackles Coachbuilders tie rod ends 46 gallon transfer flow tank Flush bed cover Billet grill LED light bar front Led reverse lights TRD sway bar rear TRD cold air intake Locker down consol safe Towing mirrors Fender flares Magnaflow exhaust TRD shift knob Magnum running boards Paracord wrapped grab handles And more
    Cutting the holes to flush mount the lights into the bumper on a brand new truck was pretty scary!
    I also didn't want to pull all the power for my led reverse lights from my factory tail light harness, so I ran a power wire from the battery directly to the back of the truck and to a relay then used the positive wire from the factory harness to switch the relay on and power up the new reverse lights.


  26. Oct 28, 2015 at 7:01 PM
    #26
    Airbagged

    Airbagged New Member

    Joined:
    Oct 13, 2015
    Member:
    #1947
    Messages:
    170
    Gender:
    Male
    First Name:
    Dan
    Vehicle:
    2015 Toyota Tundra TRD off road DC
    Camburg UCA Fox 2.5 front Fox 2.0 rear Timbren bump stops 20" wheels Coachbuilders shackles Coachbuilders tie rod ends 46 gallon transfer flow tank Flush bed cover Billet grill LED light bar front Led reverse lights TRD sway bar rear TRD cold air intake Locker down consol safe Towing mirrors Fender flares Magnaflow exhaust TRD shift knob Magnum running boards Paracord wrapped grab handles And more
    I was really happy with the outcome of this DIY mod


  27. Oct 28, 2015 at 7:06 PM
    #27
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,261
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    Very nice. Since the LEDs are low amps it's not a problem to tie into the factory harness, especially if you change the factory to led also. The way you did it is the proper way though to not affect anything. Would do that with large front light bars.

    bulldog93 likes this.
  28. Oct 28, 2015 at 7:07 PM
    #28
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,261
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    Not on my but look up tundra interior led and it's the ~10 kit on Amazon.

  29. Oct 28, 2015 at 7:09 PM
    #29
    csuviper

    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,261
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
  30. Oct 28, 2015 at 7:16 PM
    #30
    Airbagged

    Airbagged New Member

    Joined:
    Oct 13, 2015
    Member:
    #1947
    Messages:
    170
    Gender:
    Male
    First Name:
    Dan
    Vehicle:
    2015 Toyota Tundra TRD off road DC
    Camburg UCA Fox 2.5 front Fox 2.0 rear Timbren bump stops 20" wheels Coachbuilders shackles Coachbuilders tie rod ends 46 gallon transfer flow tank Flush bed cover Billet grill LED light bar front Led reverse lights TRD sway bar rear TRD cold air intake Locker down consol safe Towing mirrors Fender flares Magnaflow exhaust TRD shift knob Magnum running boards Paracord wrapped grab handles And more
    I did the same setup when I wired up my front lightbar. I know the electrical system on Toyotas now a days is sensitive, so I just figured better safe than sorry. As for my factory reverse lights, just left them stock, my new ones are so bright I could take them out and it wouldn't make a difference.


Products Discussed in

To Top
