Ditch Light Switch: Switch Power?

Discussion in '2.5 Gen Tundras (2014-2021)' started by The Patriot 1776, Nov 10, 2020.

  1. Nov 10, 2020 at 10:15 AM
    #1
    The Patriot 1776

    The Patriot 1776 [OP] Asskick Fabrication: Shit Is Sick!

    Joined:
    Aug 25, 2020
    Member:
    #51316
    Messages:
    667
    Gender:
    Male
    Great State Of TEXAS
    Vehicle:
    '16 TSS CM 4x4
    I'm going to install some ditch lights. I bought a Caliraised switch that can be wired different ways. I'm wanting the switch to illuminate when I turn on my parking lights so it illuminates the same as all the factory interior switches. What truck side wire(s) would I connect the switch wires to?

  2. Nov 10, 2020 at 11:07 AM
    #2
    ElNopal

    ElNopal Stay classy and be well

    Joined:
    Aug 17, 2019
    Member:
    #34762
    Messages:
    2,940
    Gender:
    Male
    First Name:
    Matt
    Willis TX
    Vehicle:
    19 Cavalry Blue CM

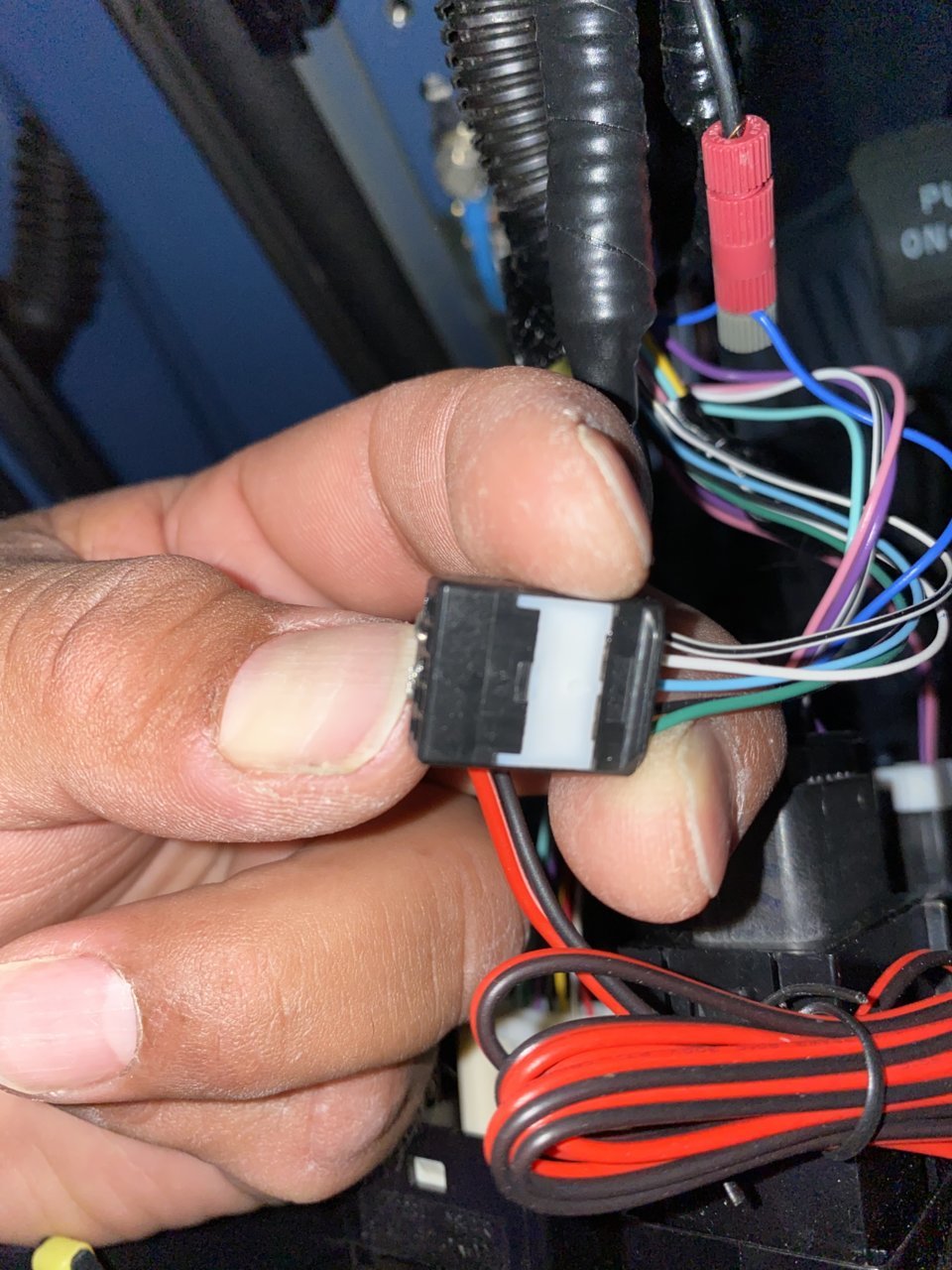

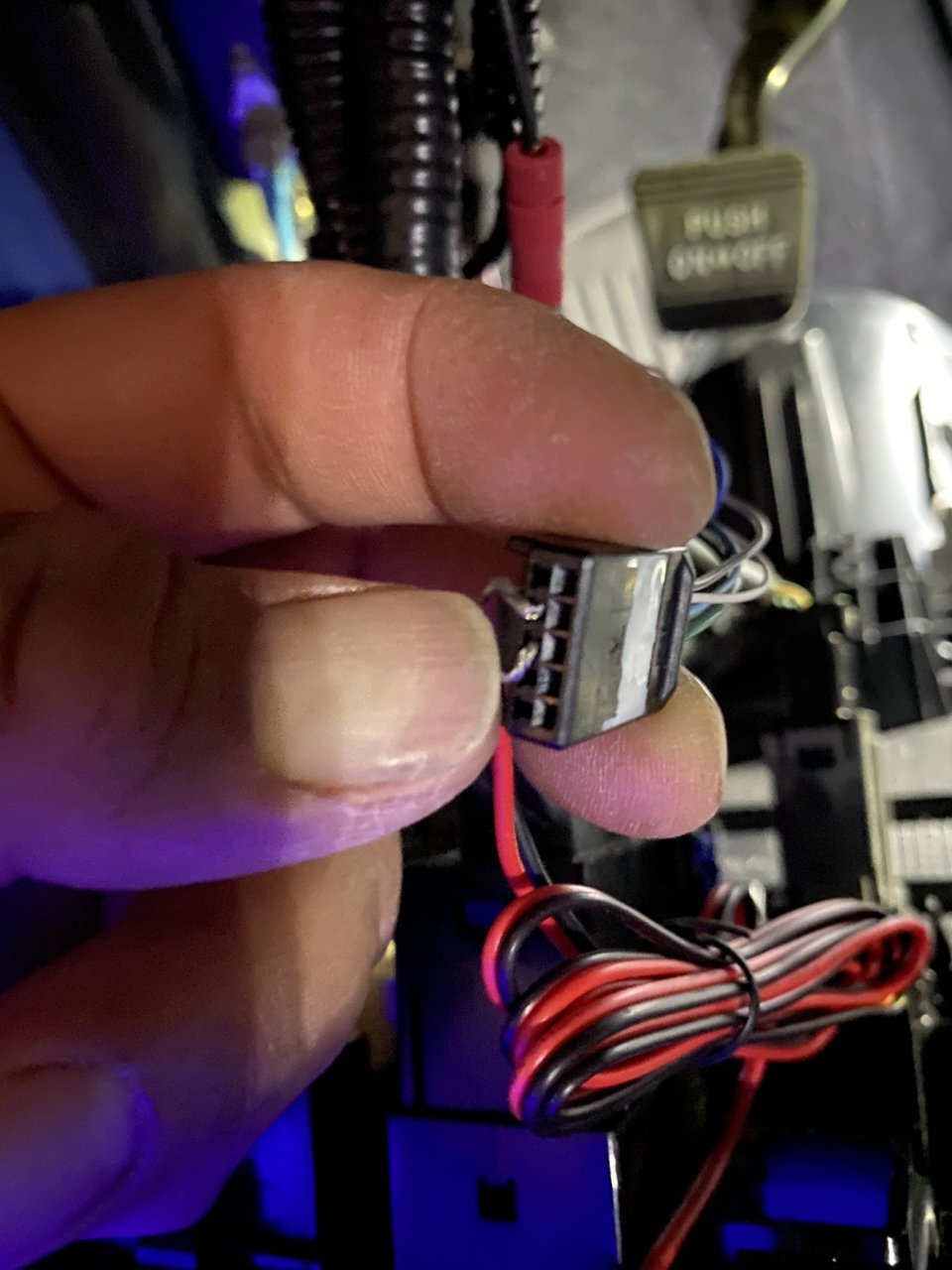

    I used the headlight leveling switch harness to access both leads for the illumination circuit.

    The light blue wire would be connected to RED closest to your BLACK wire on the ditch light switch. The BLACK wire from the ditch light switch is connected to the solid white wire to the headlight leveling switch...

    43EBF829-9339-4D77-B378-EFB5F0AFE4A6.jpg C703397C-03F2-4FD4-9A6D-61184952C4F6.jpg

    This is only for the lighting up of your switch. The other two wires are for connecting your source and accessory(ies).

    Best!
