Connecting New Backup Camera

Discussion in 'Electrical' started by Alpine22, Jun 6, 2024.

  1. Jun 6, 2024 at 10:04 AM
    #1
    Alpine22

    #1
    Alpine22 [OP] New Member

    Joined:
    Jan 7, 2022
    Member:
    #72752
    Messages:
    15
    Gender:
    Male
    Greater Houston Area
    Vehicle:
    2019 SR5
    Had to replace the tailgate handle because it was broken and I had a camera in it. The new handle has a new camera and I am hoping to not have to run new wires all the way to the radio.

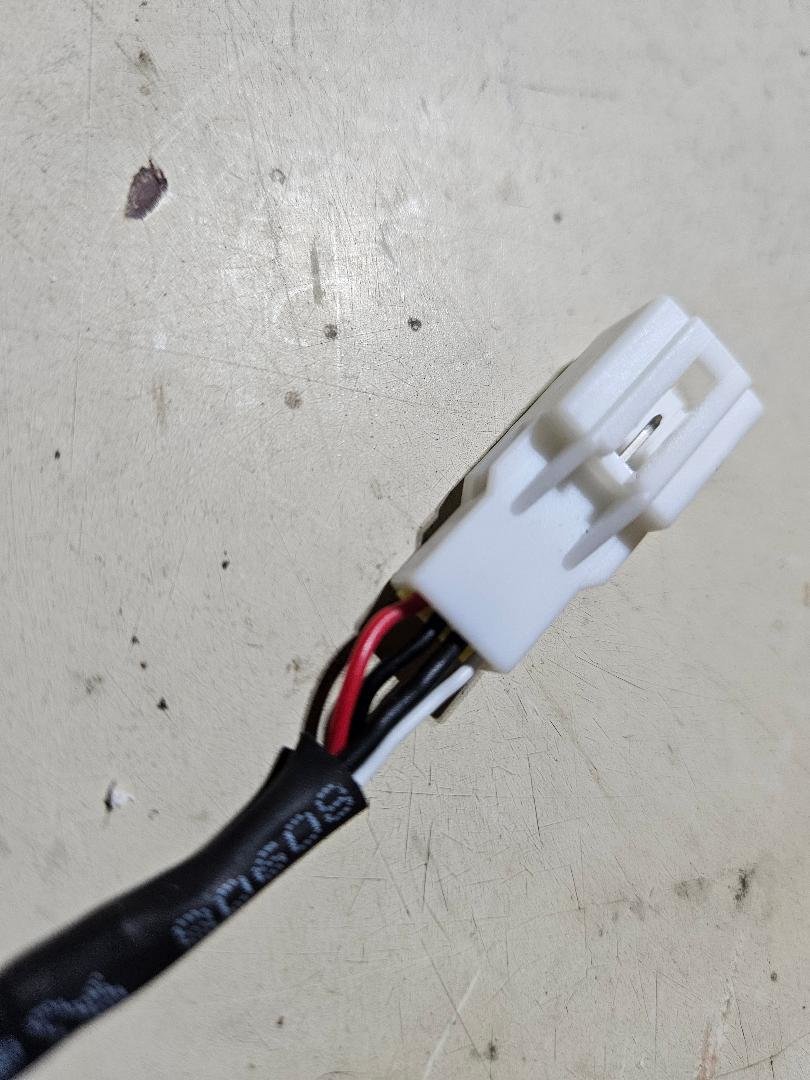

    Directly to the old camera I have a red, black, white and yellow wire (sorry no pic, its currently hanging inside the tailgate) and I am wondering if I can splice my new camera's connector (see pic) to the old wiring and then plug into the new camera. The new connector has a red, white, black, and dark gray wire.

    I am not an electrical genius but I am comfortable splicing wires or replacing things when they are an exact replacement. The new camera is from Master Tailgaters, if that helps.

    Anyone know if I would be able to do this or do I just need to run the new wire from the new camera all the way to the radio. Hopefully this makes sense.


    Last edited: Jun 6, 2024
    Alpine22, Jun 6, 2024
