Connecter ID

Discussion in '2.5 Gen Tundras (2014-2021)' started by BLONGTX, May 30, 2020.

  1. May 30, 2020 at 3:07 PM
    #1
    BLONGTX

    #1
    BLONGTX [OP] New Member

    Joined:
    May 20, 2020
    Member:
    #46838
    Messages:
    78
    SAN ANTONIO
    Vehicle:
    2019 Crewmax 4x4

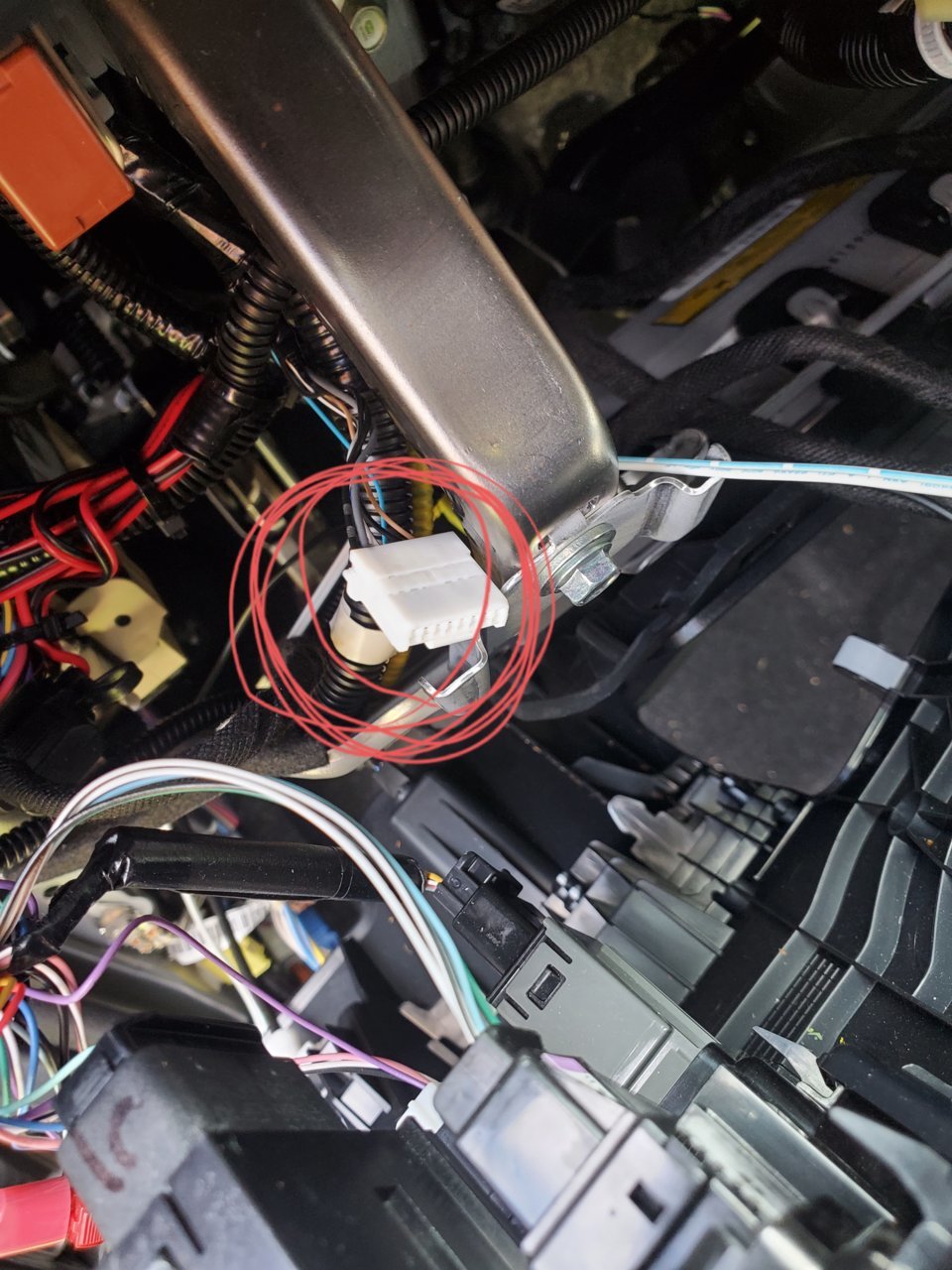

    I was adding a remote start to my new/used 2019 tundra and saw some connectors behind the dash. The white one was not connected to anything and the spliced in one looks a bit odd. Anyone know what these are all about?


    BLONGTX, May 30, 2020
    #1
  2. May 30, 2020 at 3:15 PM
    #2
    8675309yine

    #2
    8675309yine New Member

    Joined:
    May 29, 2020
    Member:
    #47275
    Messages:
    16
    Gender:
    Male
    First Name:
    Matthew
    Vehicle:
    2020 Tundra Crewmax SR5 Texas Edition, silver sky metallic
    are those behind the USB panel by chance? If so, I was told (but have not verified) one is for the glass break sensor and the other was for heated seats

    8675309yine, May 30, 2020
    #2
  3. May 30, 2020 at 3:25 PM
    #3
    BLONGTX

    #3
    BLONGTX [OP] New Member

    Joined:
    May 20, 2020
    Member:
    #46838
    Messages:
    78
    SAN ANTONIO
    Vehicle:
    2019 Crewmax 4x4
    Those were to the left of the steering wheel. Sorry I should have explained that.

    BLONGTX, May 30, 2020
    #3
