Cargo Light relay location

Discussion in '2.5 Gen Tundras (2014-2021)' started by Dave Mortensen, Jan 14, 2024.

  1. Jan 14, 2024 at 2:46 PM
    #1
    Dave Mortensen

    Dave Mortensen [OP] New Member

    Joined:
    Jan 13, 2024
    Member:
    #110172
    Messages:
    4
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2018 Tundra Crew Cab Max
    LED lighting
    I am trying to find this relay to replace it. Not in the relay box underneath the hood. Does anyone know it’s location?

  2. Jan 14, 2024 at 3:16 PM
    #2
    Tundra234

    Tundra234 New Member

    Joined:
    Nov 30, 2018
    Member:
    #22402
    Messages:
    18,048
    Gender:
    Male
    First Name:
    George
    Florida
    Vehicle:
    2020 Tundra DC SR5 Barcelona
    Alot of them
    Could it be the fuse?

  3. Jan 14, 2024 at 3:32 PM
    #3
    Dave Mortensen

    Dave Mortensen [OP] New Member

    Joined:
    Jan 13, 2024
    Member:
    #110172
    Messages:
    4
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2018 Tundra Crew Cab Max
    LED lighting
    Fuse is good. Tested it. Issue is the relay or the switch. There is a relay behind the switch mounted on the steering column frame. But not labeled.

  4. Jan 14, 2024 at 3:34 PM
    #4
    Tundra234

    Tundra234 New Member

    Joined:
    Nov 30, 2018
    Member:
    #22402
    Messages:
    18,048
    Gender:
    Male
    First Name:
    George
    Florida
    Vehicle:
    2020 Tundra DC SR5 Barcelona
    Alot of them
  5. Jan 14, 2024 at 4:09 PM
    #5
    Dave Mortensen

    Dave Mortensen [OP] New Member

    Joined:
    Jan 13, 2024
    Member:
    #110172
    Messages:
    4
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2018 Tundra Crew Cab Max
    LED lighting
    downloaded the schematic that only gives me the wiring and components but not where they are located or mounted in the vehicle. Yes it gives me the wires to test but if i can’t find the relay I can’t test the circuit.

  6. Jan 15, 2024 at 5:00 PM
    #6
    Dave Mortensen

    Dave Mortensen [OP] New Member

    Joined:
    Jan 13, 2024
    Member:
    #110172
    Messages:
    4
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2018 Tundra Crew Cab Max
    LED lighting

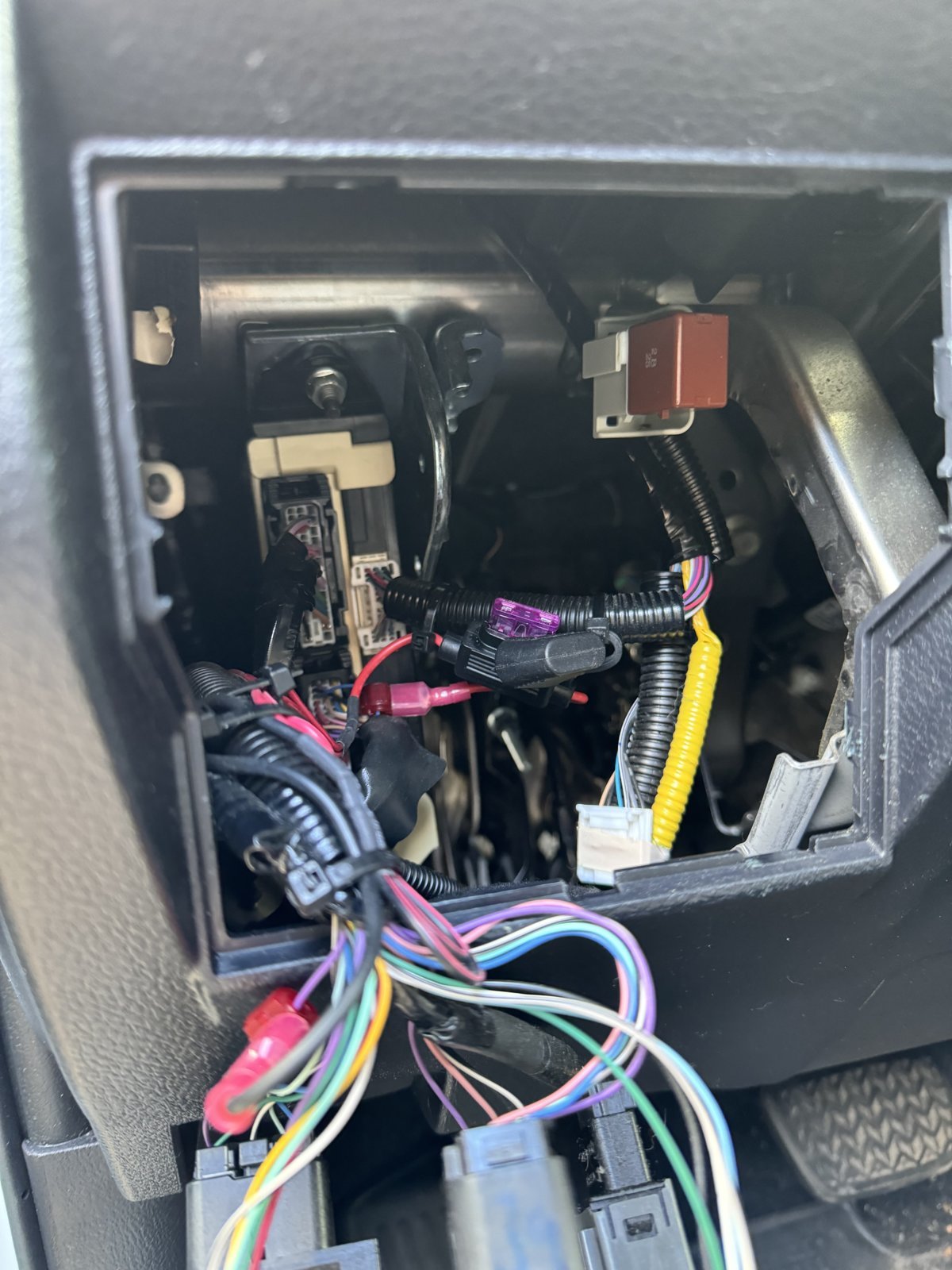

    I repaired my issue, relay and cargo switch are both working properly. I found a bad connection by whoever installed the original after market lights. I also found the relay location (picture below)
    The brown relay in the upper right corner behind the Cargo light switch panel.
    Thanks for all the inputs.
