Broken tensioner bolt in block

Discussion in '1st Gen Tundras (2000-2006)' started by Dunk, Nov 29, 2021.

  1. Nov 29, 2021 at 3:06 PM
    #1
    Dunk

    Dunk [OP] New Member

    Joined:
    Nov 23, 2021
    Member:
    #70974
    Messages:
    14
    Gender:
    Male
    Michigan
    Vehicle:
    2001 White TRD SR5 V8
    Hi everyone,

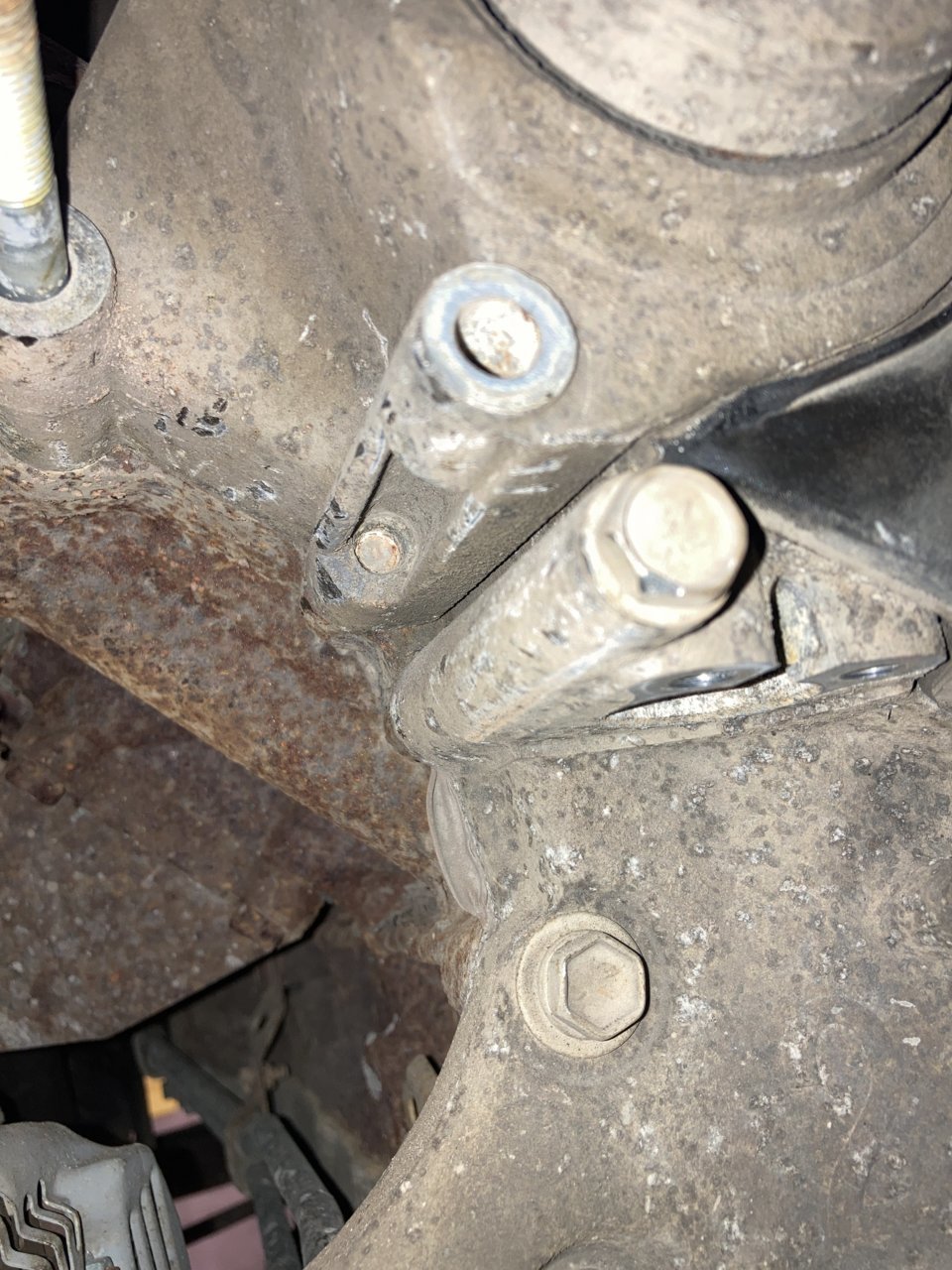

    I’m in the middle of swapping my timing belt. One of the bolts that holds the serpentine tensioner broke off inside the block. There’s not a lot of space and the angle is pretty tough so I’m unsure if drilling out is an option. Does anyone have any experience with this?

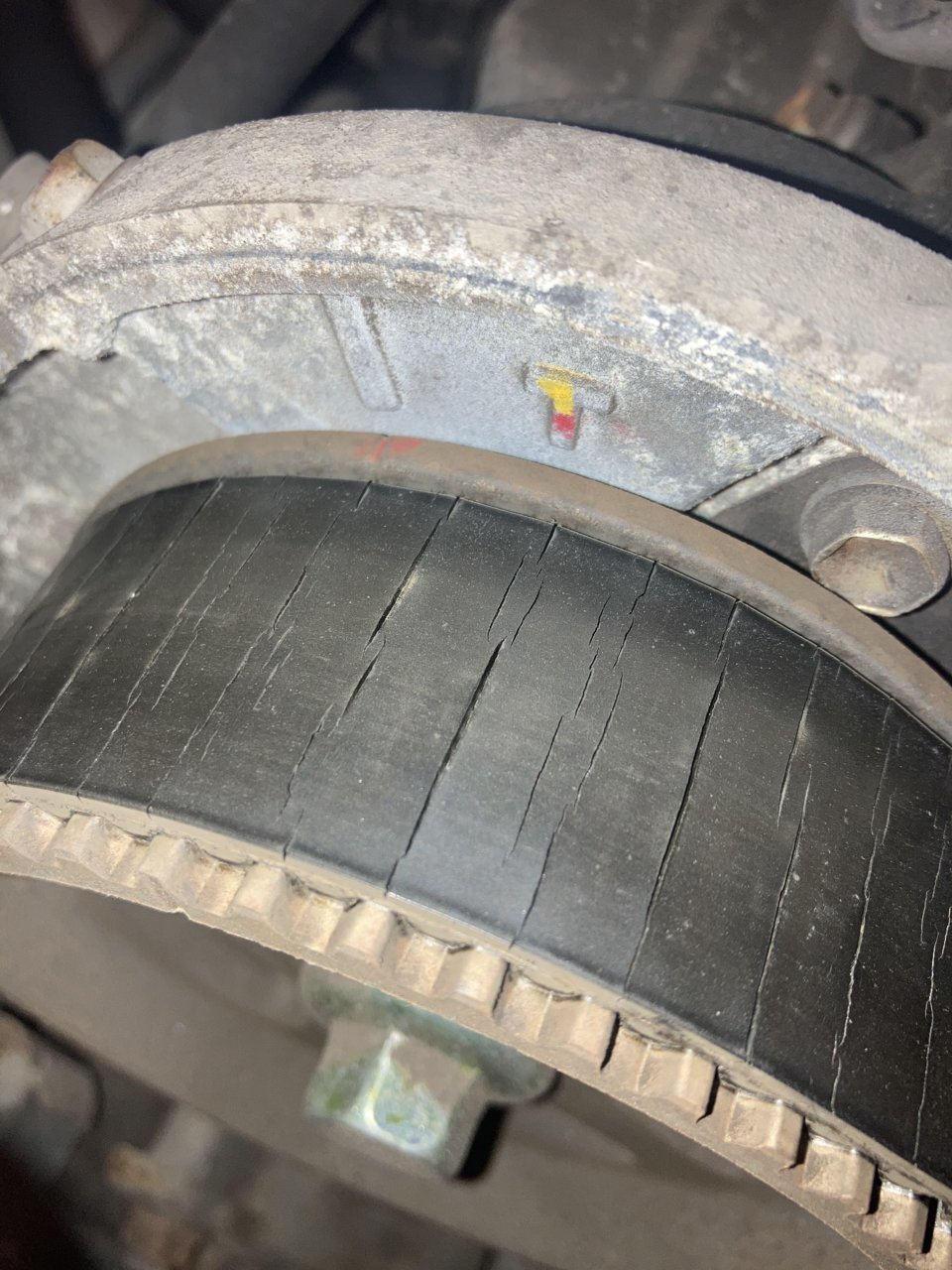

    Picture of my timing belt included for your entertainment.


    Attached Files:

  2. Nov 29, 2021 at 3:08 PM
    #2
    Jack McCarthy

    Jack McCarthy Navigating the luminiferous ether to see the light

    Joined:
    Nov 2, 2020
    Member:
    #54409
    Messages:
    2,977
    Gender:
    Male
    First Name:
    Bill
    North of Boston
    Vehicle:
    2002 Tundra AC SR5 V8 4x4
    Ouch! I'm always afraid of something like that happening to mine. I still have the original tensioner in there as well.

    Dunk [OP] likes this.
  3. Nov 29, 2021 at 3:28 PM
    #3
    Tundra2

    Tundra2 Zoinked

    Joined:
    Feb 10, 2019
    Member:
    #25875
    Messages:
    9,275
    Gender:
    Male
    First Name:
    Noah
    Western Kentucky
    Vehicle:
    '00 Tundra V8 SR5 '02 Tundra V6 SR5 '03 Corolla Virus
    Penetrant is your friend. Is this piece of bolt stopping you from removing the tensioner?

    If memory serves, that piece of bolt starts to thread into the block behind the tensioner. Once you have the remaining bolts out, you should be able to remove the tensioner.

    Once that's removed, get some wd-40 or Kroil or penetrant of your choice. Spray the bolt and let it sit. For added effect, tap it with a hammer LIGHTLY, BUT FIRMLY. This will help shock the threads.

    After you've let the penetrant work, I'd get a set of locking vise grips, or just regular vise grips to grab the stud, and try to twist it out.

    These are excellent. The teeth on these are "directional." They grip best one way versus the other. Exceptional tool.
    IRWIN Tools VISE-GRIP Tools GrooveLock Pliers, V-Jaw, 6-inch (4935351) https://www.amazon.com/dp/B0030XMFJI

  4. Nov 29, 2021 at 3:56 PM
    #4
    SouthWestGA

    SouthWestGA New Member

    Joined:
    Oct 1, 2018
    Member:
    #20074
    Messages:
    1,322
    Gender:
    Male
    Vehicle:
    2007 Tundra CrewMAX and 2008 Sequoia
    Also using a butane hand held torch can help if it’s not near anything fragile or important

    also don’t panic

    better to deal with a bad bolt

    than a broken timing belt

    SouthPaw, 2mchfun, bmf4069 and 5 others like this.
  5. Nov 29, 2021 at 7:36 PM
    #5
    Dunk

    Dunk [OP] New Member

    Joined:
    Nov 23, 2021
    Member:
    #70974
    Messages:
    14
    Gender:
    Male
    Michigan
    Vehicle:
    2001 White TRD SR5 V8
    Thanks for the advice. I’ve already tried pulling the tensioner and it didn’t budge. Maybe I forgot to loosen another bolt. I’ll see tomorrow and give an update.

    Punk1974 likes this.
  6. Nov 29, 2021 at 7:45 PM
    #6
    Dunk

    Dunk [OP] New Member

    Joined:
    Nov 23, 2021
    Member:
    #70974
    Messages:
    14
    Gender:
    Male
    Michigan
    Vehicle:
    2001 White TRD SR5 V8
    Thanks for your reply. I’ll heat it up with the torch tomorrow and see what happens. I feel like I’m drowning in work to do on this truck, so it’s hard not to panic sometimes. But, it’ll just be that much more satisfying when I have everything fixed!

    Jack McCarthy likes this.
  7. Nov 29, 2021 at 7:56 PM
    #7
    crewmaxlmt

    crewmaxlmt How dare you!

    Joined:
    Nov 12, 2020
    Member:
    #54795
    Messages:
    846
    Gender:
    Male
    First Name:
    scott
    PNW
    Vehicle:
    2020 Crewmax Limited
    That’s a tough one. Take your time and many breaks so that you don’t get frustrated. As others have said, penetrating oil, heat, and a good pair of directional pliers. If needed, get a rental so that you can take your time. If you proceed meticulously, you will succeed. If you act like me, you can just make it worse. Good luck.

    Tundratoofun and Dunk [OP] like this.
  8. Nov 30, 2021 at 5:32 PM
    #8
    Dunk

    Dunk [OP] New Member

    Joined:
    Nov 23, 2021
    Member:
    #70974
    Messages:
    14
    Gender:
    Male
    Michigan
    Vehicle:
    2001 White TRD SR5 V8
    Hi everyone,

    I managed to get the tensioner off. Not in one piece…
    It put up a couple hours worth of fighting with a hammer, torch, pry bar, and penetrating spray. So, I hit it with the air hammer. Maybe I got a little bit too aggressive. Oh well. I’ll get a new one.

    After I pulled the tensioner off, the bolt easily turned out with the torch and vice grips.

    Now, I’ve taken off my harmonic balancer, timing belt cover #1, and the timing belt. My harmonic balancer also was a bit of a mini-project because I had to drill out and tap new threads in the holes of my harmonic balancer.

    All I have left to remove now are the water pump and both pulleys. I tried to loosen a few of the bolts on the water pump but they were feeling pretty tight so I soaked them in penetrating spray for tomorrow. I never put much faith in penetrating spray in the past, but it seems like I tend to break a lot of bolts so I’ve been trying to use it more often.

    Before I put my timing belt on, how do I go about resetting my timing? I know this is an interference motor so I want to be careful. I followed service information and rotated my crankshaft (when belt was still on) to the 0 indicator. Then, after I took the belt off, I turned the crankshaft about 50 degrees clockwise as per service information to “avoid valves contacting pistons.” Additionally, I moved my left side (when viewed from front) camshaft sprocket slightly clockwise to aid in removing the belt as per service information. Everything seems a little out of whack right now so I just want to make sure I get it right.

  9. Nov 30, 2021 at 5:55 PM
    #9
    boostedtrdpro

    boostedtrdpro voided warranty

    Joined:
    Nov 23, 2017
    Member:
    #11123
    Messages:
    1,207
    Gender:
    Male
    First Name:
    Jeremy
    Colorado
    Vehicle:
    2019 SC TRD Pro CM 040 2020 Sequoia TRD Pro 040
    I’ve never done a Tundra timing belt but I’ve done tons of Hondas and Audis. There should be index marks on the crank, harmonic balancer, cams etc..just make sure those are all lined up right before you put the belt on, and make sure they don’t move while you’re installing the belt. Some cams have key holes in them to lock them in place with a center punch or something like that while you install the belt. Good luck my friend, and make sure and turn it over by hand at the crank several times and re-verify the timing marks are still aligned.

    NewImprovedRon and Dunk [OP] like this.
  10. Nov 30, 2021 at 5:56 PM
    #10
    SouthWestGA

    SouthWestGA New Member

    Joined:
    Oct 1, 2018
    Member:
    #20074
    Messages:
    1,322
    Gender:
    Male
    Vehicle:
    2007 Tundra CrewMAX and 2008 Sequoia
    Last edited: Nov 30, 2021
    tunyota likes this.
  11. Nov 30, 2021 at 5:59 PM
    #11
    Dunk

    Dunk [OP] New Member

    Joined:
    Nov 23, 2021
    Member:
    #70974
    Messages:
    14
    Gender:
    Male
    Michigan
    Vehicle:
    2001 White TRD SR5 V8
    How should I turn the sprockets so that they are on the timing marks? All my sprockets are clockwise of where the timing marks right now. Is it okay to turn them slowly counterclockwise so that they are on the marks or am I only able to rotate clockwise?

  12. Nov 30, 2021 at 6:04 PM
    #12
    boostedtrdpro

    boostedtrdpro voided warranty

    Joined:
    Nov 23, 2017
    Member:
    #11123
    Messages:
    1,207
    Gender:
    Male
    First Name:
    Jeremy
    Colorado
    Vehicle:
    2019 SC TRD Pro CM 040 2020 Sequoia TRD Pro 040
    It’s never a good idea to rotate the “rotating assembly” in any other direction than specified. That being said, the belt isn’t on so…it would still be putting pressure on the valves and cam lobes in a manner that it’s not used to. I would only rotate it clockwise as the manual states. You’ll find spots with lots of resistance then it’ll just roll over, and hopefully not past your marks. If it barely goes past, like less than 5 degrees, I’d think it would be fine to back it up counterclockwise a bit. Everything just must be where it belongs when you turn the key. Verify it 10 times.

  13. Nov 30, 2021 at 6:07 PM
    #13
    Dunk

    Dunk [OP] New Member

    Joined:
    Nov 23, 2021
    Member:
    #70974
    Messages:
    14
    Gender:
    Male
    Michigan
    Vehicle:
    2001 White TRD SR5 V8
    Do I have to slowly rotate all clockwise or can I do both cams if my crankshaft is in the right spot?

  14. Nov 30, 2021 at 6:09 PM
    #14
    boostedtrdpro

    boostedtrdpro voided warranty

    Joined:
    Nov 23, 2017
    Member:
    #11123
    Messages:
    1,207
    Gender:
    Male
    First Name:
    Jeremy
    Colorado
    Vehicle:
    2019 SC TRD Pro CM 040 2020 Sequoia TRD Pro 040
    The belt is not on, so moving the cams won’t affect the crank. Just line each shaft up with the index marks rotating clockwise and verify everything, both before and after you put on the belt. Then rotate it over several times by hand. Verifying index marks and piston 1 being at TDC.

  15. Nov 30, 2021 at 6:11 PM
    #15
    boostedtrdpro

    boostedtrdpro voided warranty

    Joined:
    Nov 23, 2017
    Member:
    #11123
    Messages:
    1,207
    Gender:
    Male
    First Name:
    Jeremy
    Colorado
    Vehicle:
    2019 SC TRD Pro CM 040 2020 Sequoia TRD Pro 040
    And if you haven’t already, pull the plugs. Makes things rotate easier.

  16. Nov 30, 2021 at 7:29 PM
    #16
    dbittle

    dbittle New Member

    Joined:
    Aug 10, 2020
    Member:
    #50632
    Messages:
    145
    Gender:
    Male
    Vehicle:
    2006 V8 Regular Cab
    Be careful. Since this is an interference engine, rotating any one part through almost a complete revolution all by itself to bring it back to the mark is a recipe for a bent valve. Especially don’t keep cranking on anything that feels like it’s binding. If one of the cams is a tooth too advanced, I think your best move is to back it up to where it needs to be. That’s what I do anyway.

    Sampson likes this.
  17. Nov 30, 2021 at 8:59 PM
    #17
    NickB_01TRD

    NickB_01TRD You don't need less cars, just more driveway.

    Joined:
    Jun 16, 2021
    Member:
    #64346
    Messages:
    772
    Gender:
    Male
    First Name:
    Nick
    KY
    Vehicle:
    01 Tundra SR5 TRD AC
    @Tundra2
    I seem to remember you had some issues with this part recently. Maybe you have some advice.

  18. Nov 30, 2021 at 10:15 PM
    #18
    Sampson

    Sampson New Member

    Joined:
    Sep 3, 2020
    Member:
    #51730
    Messages:
    41
    Gender:
    Male
    Vehicle:
    2001 Tundra SR5 V8 TRD 4x4
    Which direction did they rotate to begin with? Just undo that motion - that is the safest and most logical thing to do. If they turned clockwise a bit just turn them back counterclockwise. If you start making full revolutions I believe you run the risk of pressing a valve against a piston.

    If you haven't watched any videos of anyone doing this job yet I would suggest watching at least a few parts of a few of the videos in this playlist, if not all of them in their entirety.

  19. Dec 1, 2021 at 3:46 AM
    #19
    tvpierce

    tvpierce Formerly New Member

    Joined:
    May 6, 2019
    Member:
    #30129
    Messages:
    1,022
    Maine
    Vehicle:
    2000 Tundra AC
    ^^^This

    NewImprovedRon likes this.
  20. Dec 1, 2021 at 4:41 AM
    #20
    Punk1974

    Punk1974 former 2000 owner looking for a fg tunny project

    Joined:
    Nov 19, 2018
    Member:
    #21934
    Messages:
    293
    Gender:
    Male
    First Name:
    J.P.
    Vehicle:
    2019 Silver Limited CM TuRD
    Bak Flip MX4 Tonneau cover, Spray in Bedliner, Tube steps, stubby antenna, red rear sway bar, looking to get back into a first gen tunny
    they make a special sprocket tool that fits into and holds the cams. it also is used to turn them. one can use carpentry clamps in lieu for holding the cams in place if you don’t like them moving around. i’d not sweat it an just leave the cams rotated until its time to line them back up and then use the spock it tool or carp clamp. line up the belt points with your tensioner loosely in place so you don’t get hung up there trying to lip it over. get belt all lined up and in place and then tighten down your tensioner last. it will make sense once you get into it.

  21. Dec 7, 2021 at 3:19 PM
    #21
    boostedtrdpro

    boostedtrdpro voided warranty

    Joined:
    Nov 23, 2017
    Member:
    #11123
    Messages:
    1,207
    Gender:
    Male
    First Name:
    Jeremy
    Colorado
    Vehicle:
    2019 SC TRD Pro CM 040 2020 Sequoia TRD Pro 040
    Any updates? Is she running?

  22. Dec 7, 2021 at 6:17 PM
    #22
    Diablo169

    Diablo169 ROKRAPR

    Joined:
    Feb 24, 2021
    Member:
    #59576
    Messages:
    286
    Gender:
    Male
    First Name:
    Max
    Santa Cruz
    Vehicle:
    06 Double Cab 290k
    2” Lift, Bilstein 5100’s and 885’s, Rear 5100’s Icon 3 Leaf Pack and Firestone Air Bags with Daystar Cradles. Spider Trax 1.25” Wheel Spacers, Factory Wheels wrapped with Toyo 285/70r17 AT2’s.
    This is a pretty good lesson to research before you tear into something, and keep up with proper maintenance. That belt is just a few miles from snapping.

    There is no reason to rotate anything when doing a timing belt on these, line up the marks and it puts the cams in a neutral position. You don’t want the valves to contact the piston in any way or they can bend.

    boostedtrdpro and shifty` like this.
  23. Dec 8, 2021 at 5:47 AM
    #23
    Punk1974

    Punk1974 former 2000 owner looking for a fg tunny project

    Joined:
    Nov 19, 2018
    Member:
    #21934
    Messages:
    293
    Gender:
    Male
    First Name:
    J.P.
    Vehicle:
    2019 Silver Limited CM TuRD
    Bak Flip MX4 Tonneau cover, Spray in Bedliner, Tube steps, stubby antenna, red rear sway bar, looking to get back into a first gen tunny
    i thing the question was if their was damage if the cams turned?. answer is no speaking from experience having done a tb job the cams seem to want easily trigger spring off to one side or the other unless held in place. the bolt on the tensioner breaking was a unforseen situwasion. sometimes things happen which make the next steps seem harder but as long as you keep working through it you prevail. -J.P.

    dinosaur likes this.
  24. Dec 9, 2021 at 6:31 PM
    #24
    Dunk

    Dunk [OP] New Member

    Joined:
    Nov 23, 2021
    Member:
    #70974
    Messages:
    14
    Gender:
    Male
    Michigan
    Vehicle:
    2001 White TRD SR5 V8
    I bought the truck about a month ago. If I hadn’t done any research, I probably wouldn’t have even thought to change the belt. Also, I was following service information during my repair which told me to turn the sprockets so that the valves didn’t contact the pistons.

    boostedtrdpro and Diablo169 like this.
  25. Dec 9, 2021 at 6:35 PM
    #25
    Diablo169

    Diablo169 ROKRAPR

    Joined:
    Feb 24, 2021
    Member:
    #59576
    Messages:
    286
    Gender:
    Male
    First Name:
    Max
    Santa Cruz
    Vehicle:
    06 Double Cab 290k
    2” Lift, Bilstein 5100’s and 885’s, Rear 5100’s Icon 3 Leaf Pack and Firestone Air Bags with Daystar Cradles. Spider Trax 1.25” Wheel Spacers, Factory Wheels wrapped with Toyo 285/70r17 AT2’s.
    I’d say you caught that belt just in time.

    dbittle likes this.
