Belt tensioner and belt issue

First off the removal of the fan shroud and hoses nearby made access much easier to the tensioner. Removed 2 plastic covers, the air intake box and hose, then the PS pump and alternator. Then I proceeded to remove the top idler pulley at which time the belt came off too, the tensioner wouldn't turn CC to loosen it, someone had broken it when tightening the pulley nut.
Now armed with a new Gates belt, the routing diagram I wound the belt and pushed down the tensioner pulley and the belt won't go on. After checking the routing again I confirmed it to be correct. So, I tried to install the belt that I removed, still won't fit, its about 1/2" to 3/4" short to fitting. And I have a long, 4 or 5 inch bolt I can't find the hole for. It's one of the skinny ones, not thick like the alternator. Any help would be appreciated. Been working on vehicles for 30+ years and I am really stumped. TIA. DCMiller



Pics would help.

Meanwhile, tips on reinstalling the serpentine belt... There was discussion on what a "pain in the ass" it is to install. I haven't had any issues. I posted my tips on how to easily remove/install the belt on our V8s over here, if it helps, you want to try my method?

https://www.tundras.com/threads/1st-gen-lunch-table-general-discussion.60450/page-909#post-2613945

Actual steps to the numbers shown here are in that linked reply ^^

Also, what is the part number on your Gates belt?



Thanks for the pics. The Gates part is K060882. I did finally get the belt back on by removing the idler pulley on top and using the bolt to thread back into the block. It was hard since I had no slack. I'm still trying to figure out why it's short and the extra long skinny bolt left over. I use the truck for work everyday so it's all put back together, so I don't have any pics of a short belt.

****Edit******* Doing some digging on the net, I found 2 belts for this engine/model. Both Gates, K060882 88 5/16",

$27 K060908 Micro-V Serpentine Drive Belt

K060908, 91 3/16" that might solve my problem of too short. 2 inches sounds like a lot?



Yeah, that's a weird part number to me. I replaced mine with Gates HD (green belt) and it was GATES K060908HD (link).

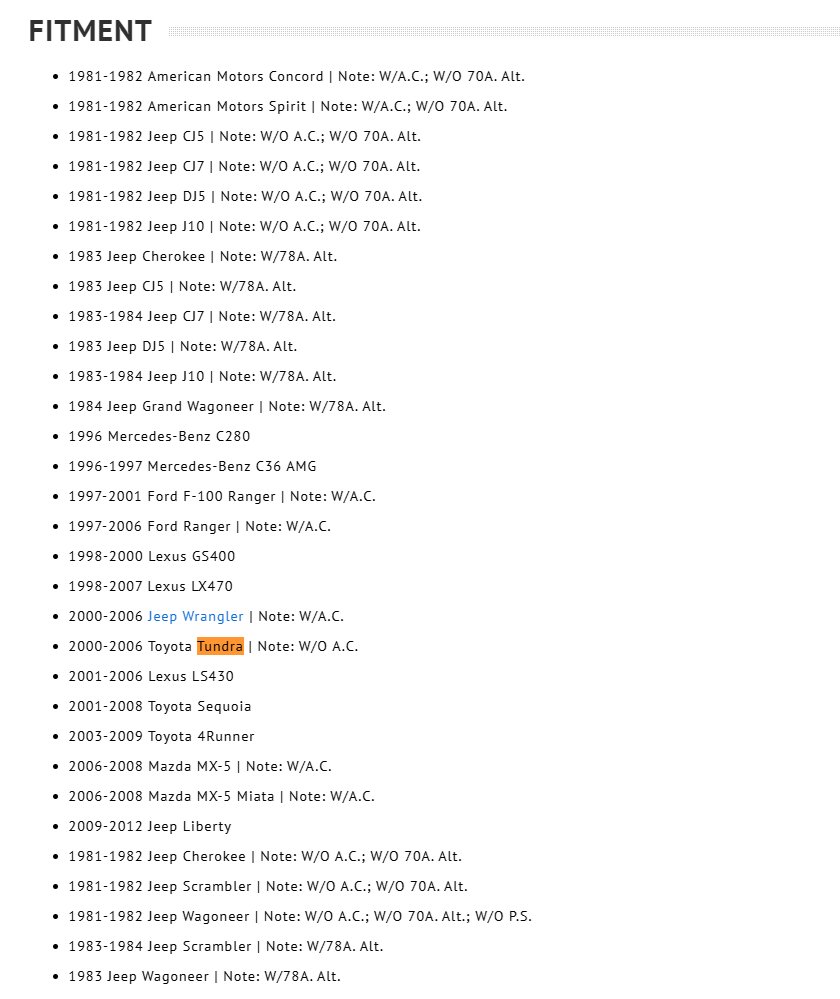

If your truck doesn't have A/C then you got the wrong belt. Here is the fitment for the belt you bought. This info is pulled directly from Gates' website here: https://partshawk.com/gates-k060882-serpentine-belt.html

Who/what told you that was the correct part number?

​



PS, normally you need to flex the tensioner to get it over the last pulley. That means putting a wrench back on the tensioner pulley and tucking it back.

You can probably check the exact belt length on your part number and see if it's the same length as the one I and others on here have used (just gave the part number). If they're identical length, maybe it's "compatible", but ... I dunno, it's a bit concerning to me that Gates doesn't list that as the correct part for your truck (unless you have the elusive no-A/C option).

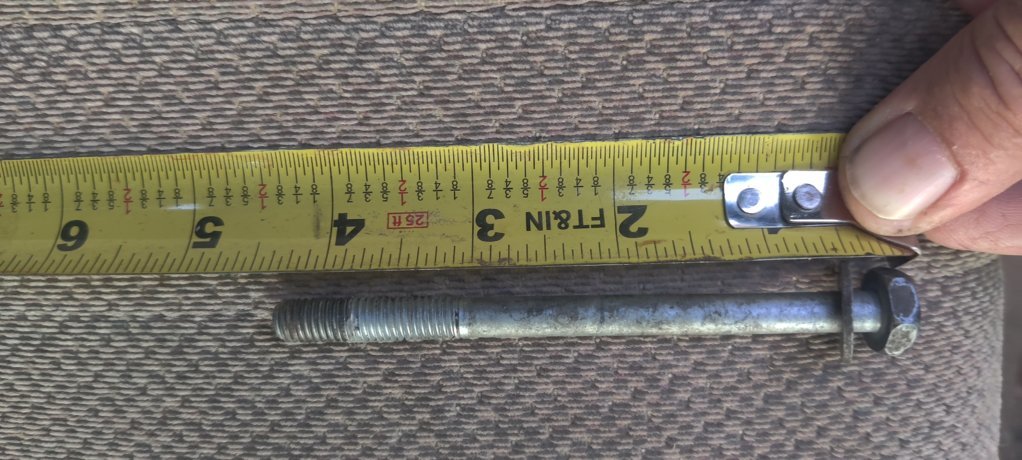

Oh, and where's the pic of the extra screw you ended up with?



@dcmille290 save you the homework. I couldn't help myself, came back to the computer b/c I was so damn curious.

Ok, so, the belt you bought is DEFINITELY for the 2UZ-FE without A/C or with a different accessory drive configuration.

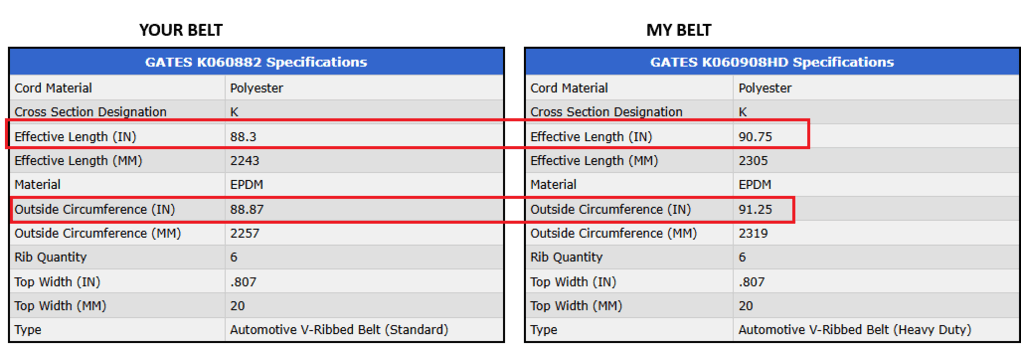

It's hard to put on versus OEM because the belt you got is 2½" shorter. I guess now I'm really curious: Where'd you get that part number?

​
