Anybody have a wiring schematic for the factory heated seats switch only with dual climate.

So I't trying to figure out if I got a dual climate control with just the heated seats switch only, that I could hook up the heated seats I'm getting to the dual climate with the heated switches only. This way it looks factory. Don't see why this would work besides maybe having to get a different wiring harness.

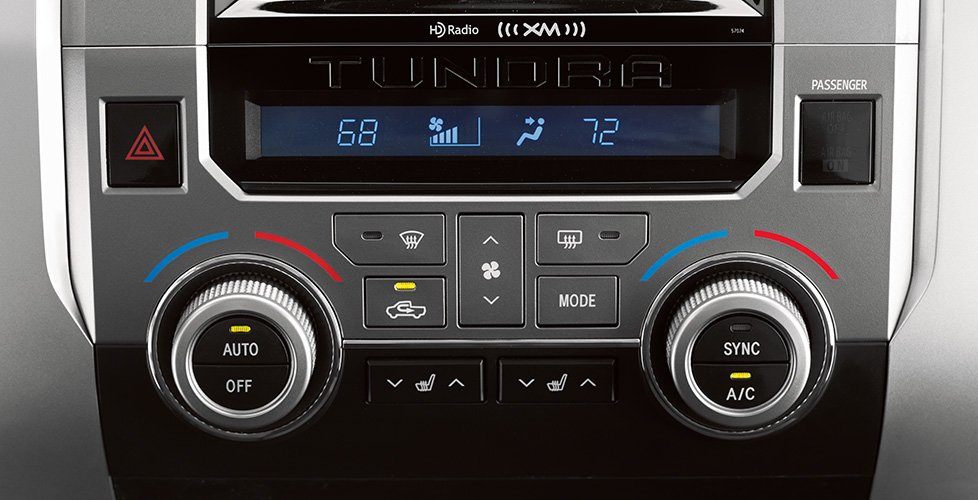

I can't figure out what the question your asking is. If the photo you included is of your dash it looks like you already have dual automatic climate control and individual heat switches for the seats.

If the issue is that's your dash but you don't have heated seats and want to add them I'd guess the wiring is already in place.



So I have the dual climate control but doesn’t have the heated seats switches. I was wondering if it’s possible to swap my dual climate without the heated seats switch for a dual climate control with the heated seats switch built in. Then I would use the heated seats switches that came with dual climate control that I’m swapping out for to control after market heat mats for seats.



You ever find your answer to this? Seems as Canadian models have the heated switch button, swapping the lower piece you have pictured and doing a little wiring might get it working for better heated seat control and free up a switch blank.



Seems this might help, heres wiring diagrams. https://www.tundras.com/threads/ultimate-tundra-wiring-diagrams-collection.81448/

and heres an ebay post with the view behind the unit. https://www.ebay.com/itm/304959870825





Seems a similar connection as the Canadian, means we may need to wire our button into a control module somewhere thats missing some pins.
