Adding Stock Tow Mirrors to SR5 Wiring Schematics

Hello all,

I just purchased a 2024 SR5 and got ahold of some stock Toyota tow mirrors with power extend and folding. I am trying to figure out the wiring coming off the mirror harness.

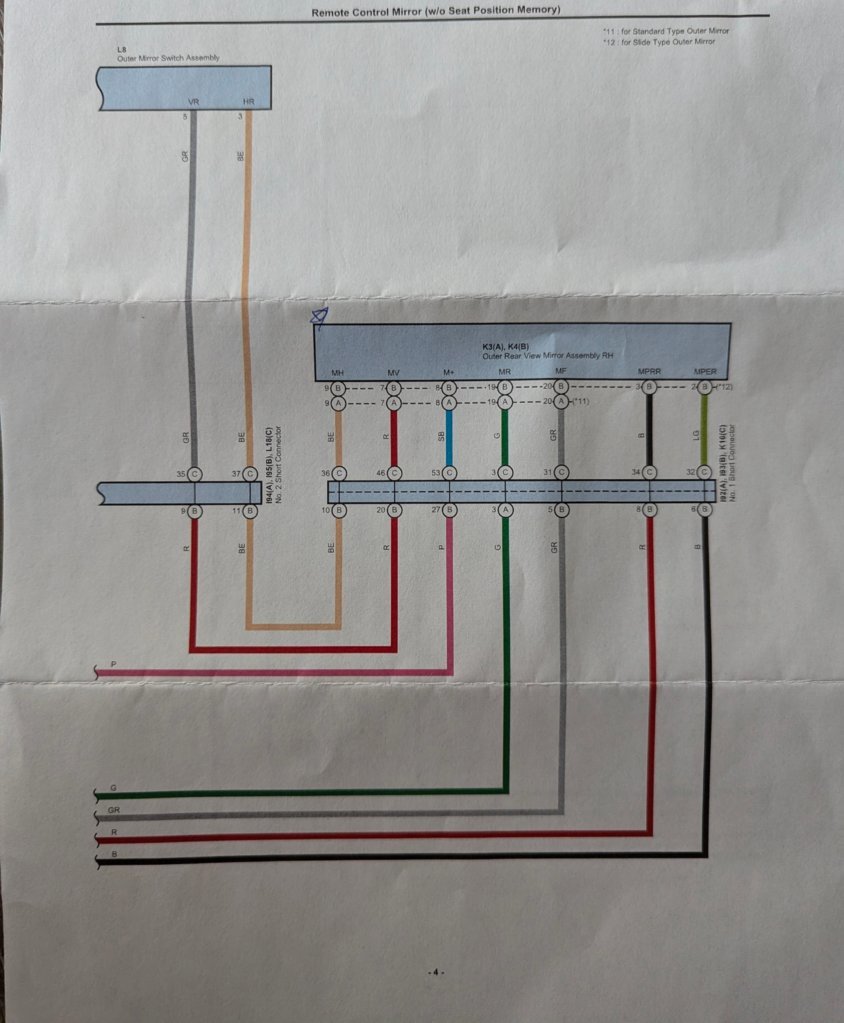

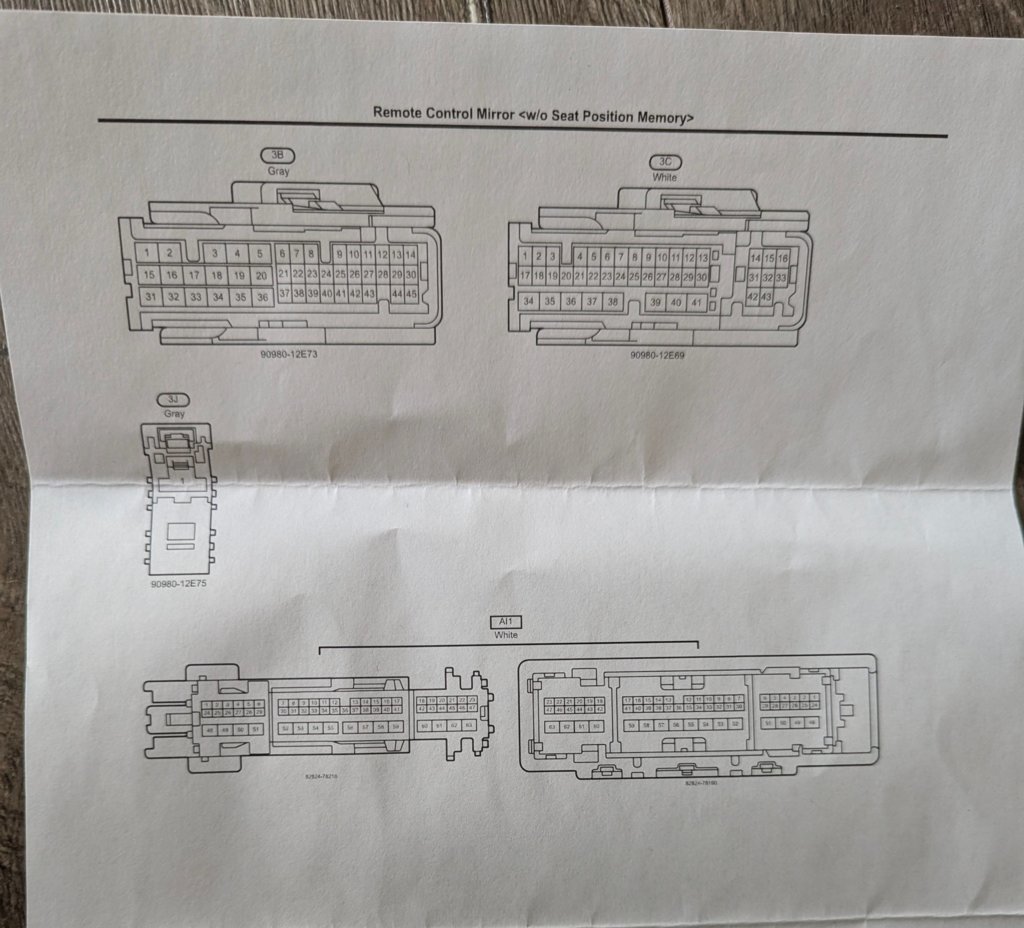

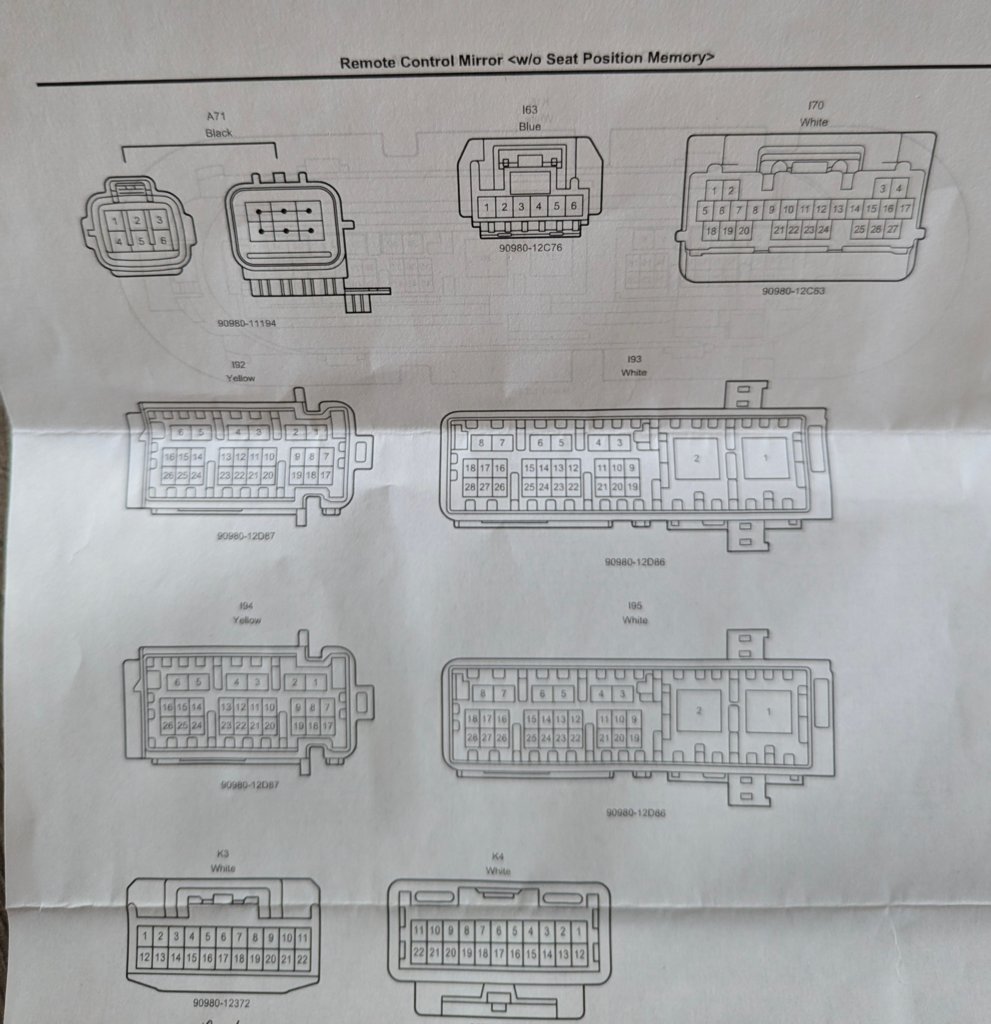

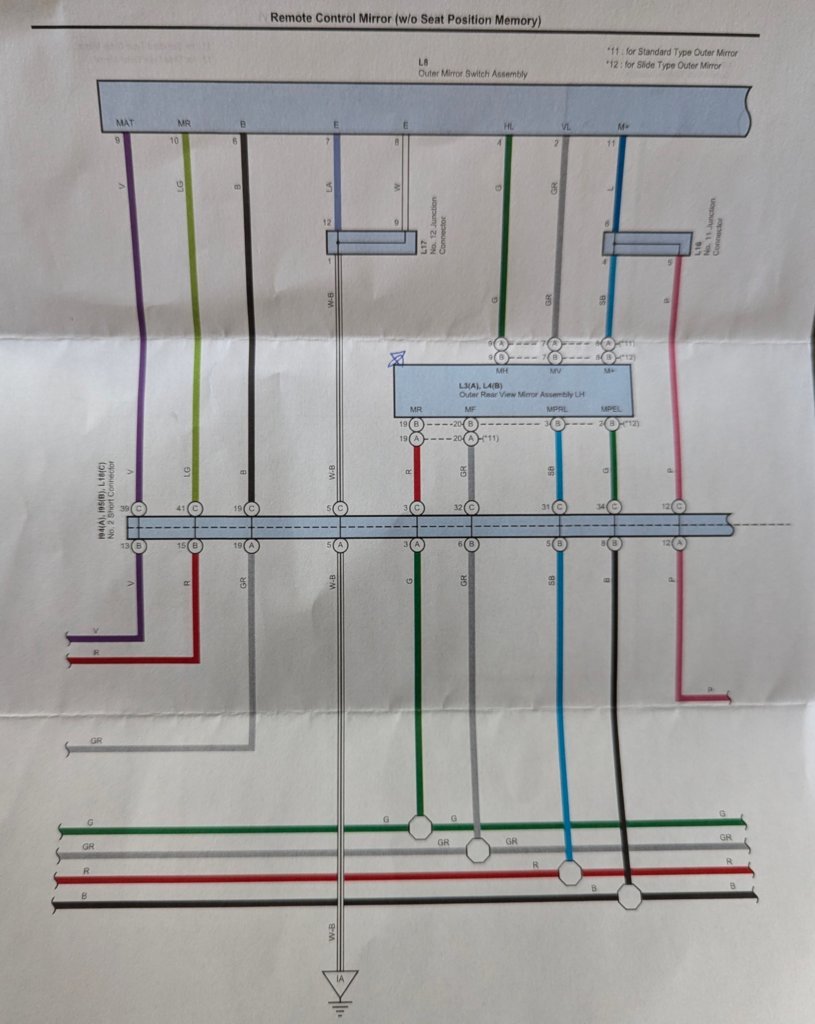

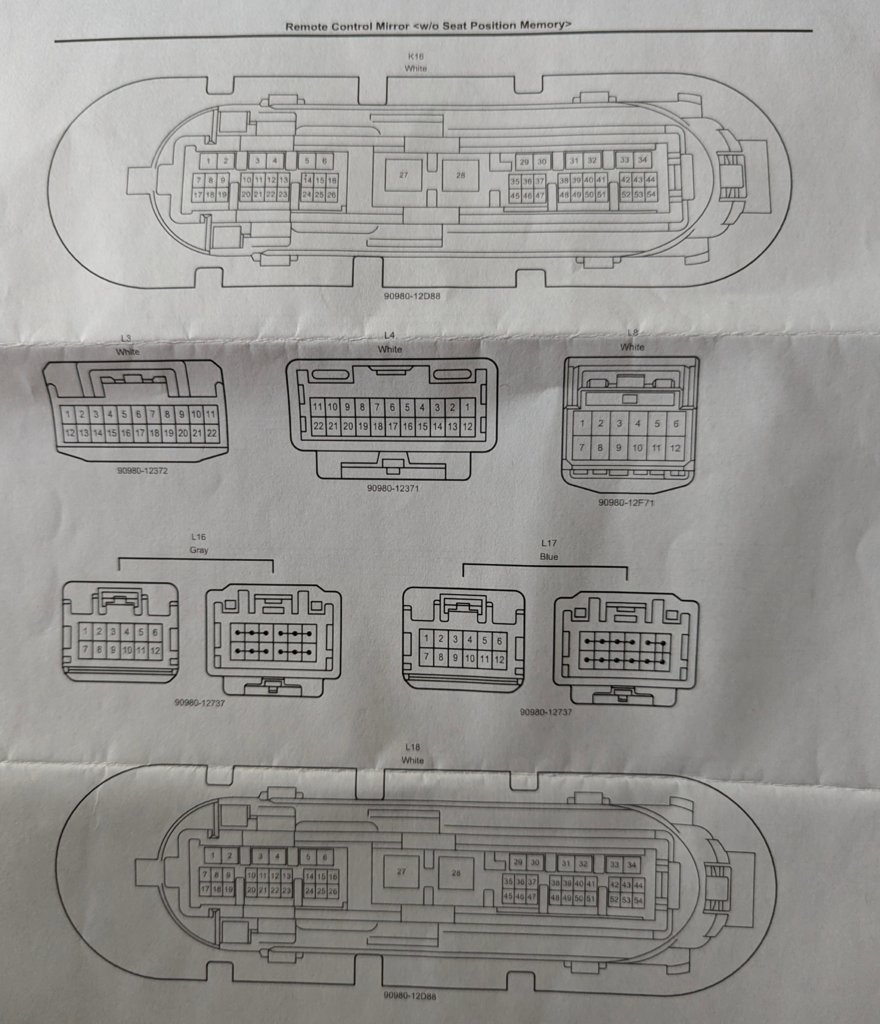

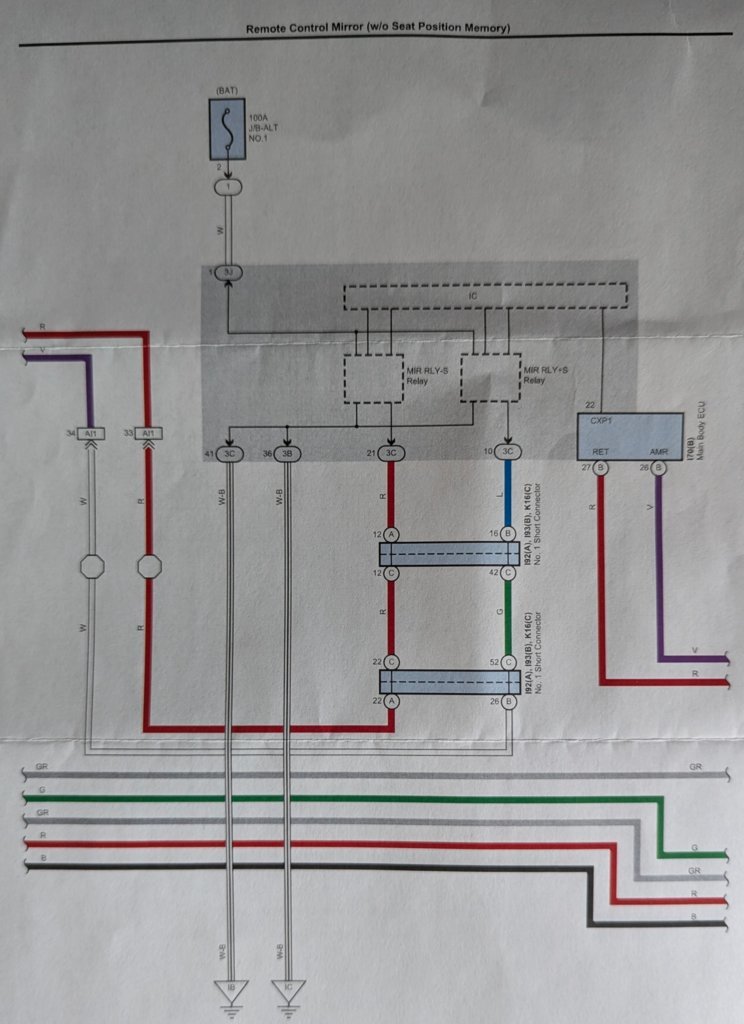

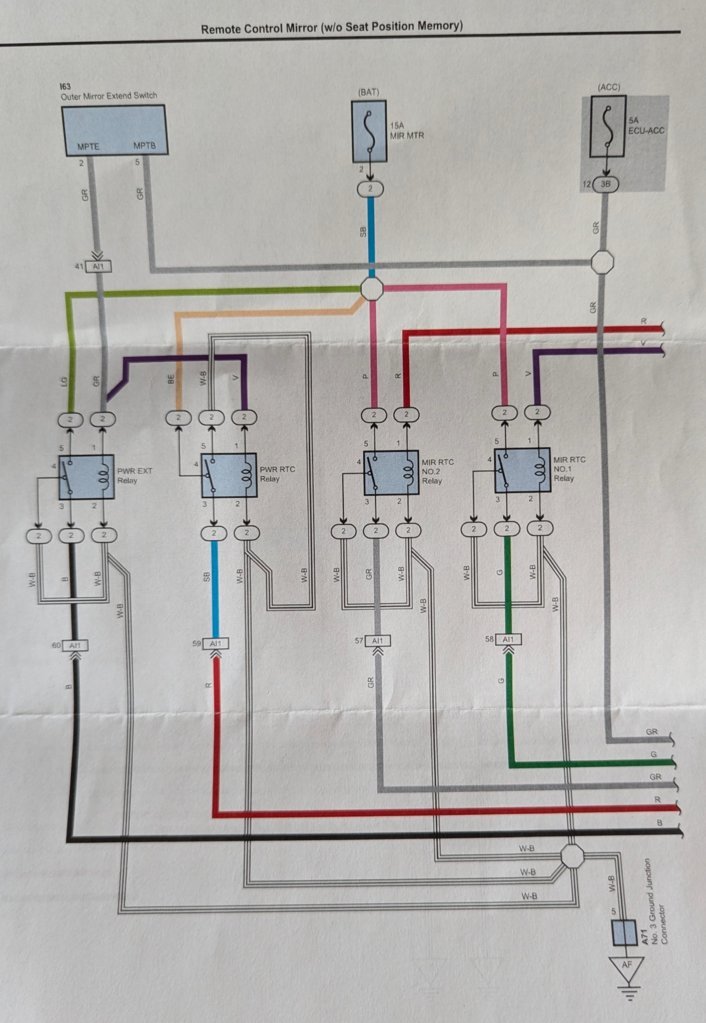

I am aware that the harness in the doors are completely different and this is not a simple plug and play process. I have however secured some wiring diagrams for the tow, mirrors without memory function, but I am not the greatest of figuring out what it all means.

Hopefully, this thread can help someone else wanting to accomplish the same, and also help me with figuring out the wiring coming from the stock tow mirrors.

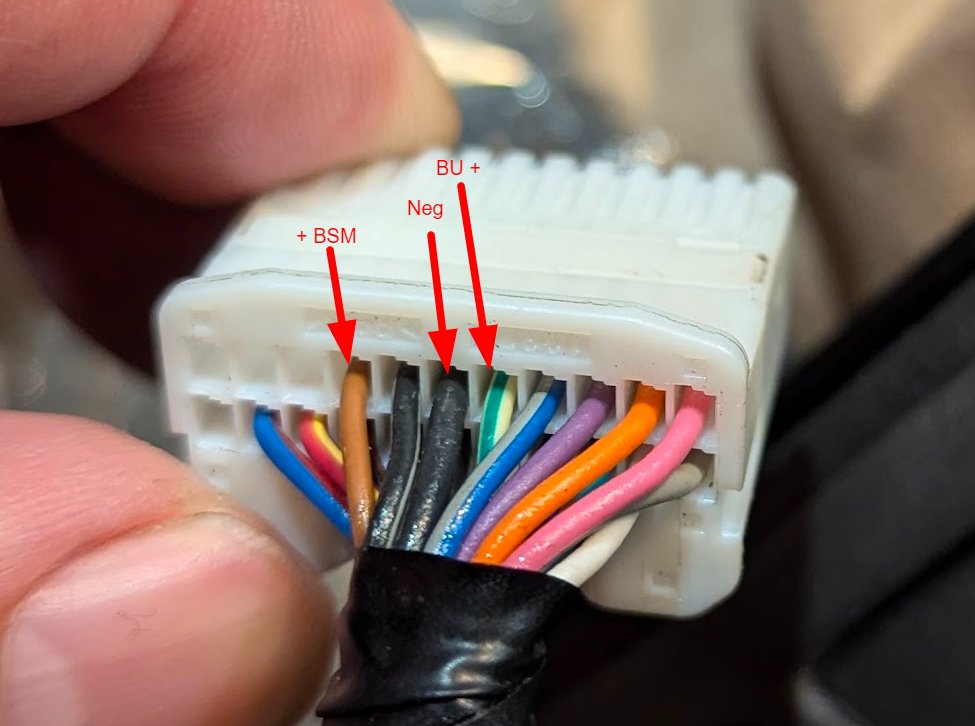

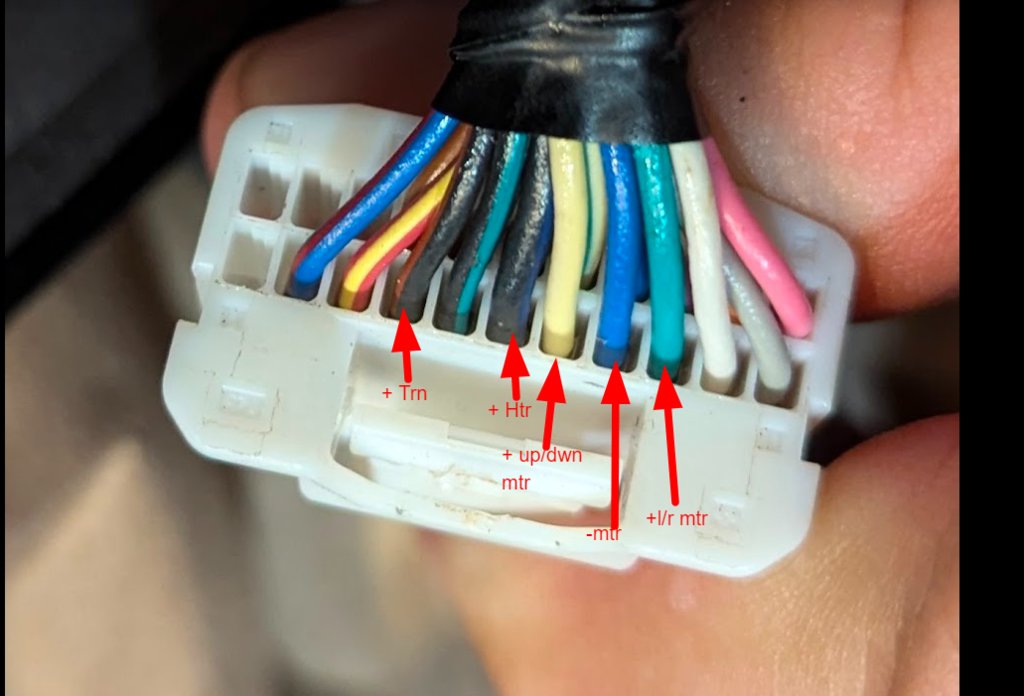

Below are a couple phots of the 22P coming off the Toyota tow mirrors. This is what I have been able to figure out so far using the manual and adapter plug that comes with an aftermarket set w/o power folding or power extend.


If anyone can help me figure out the remaining wires it would be much appreciated!



Hey- Did you get this wiring figured out? I have project coming up with the same challenge. Thanks!



In Case anyone has any questions about towing mirrors.
