3rd Gen Marker Light install issue

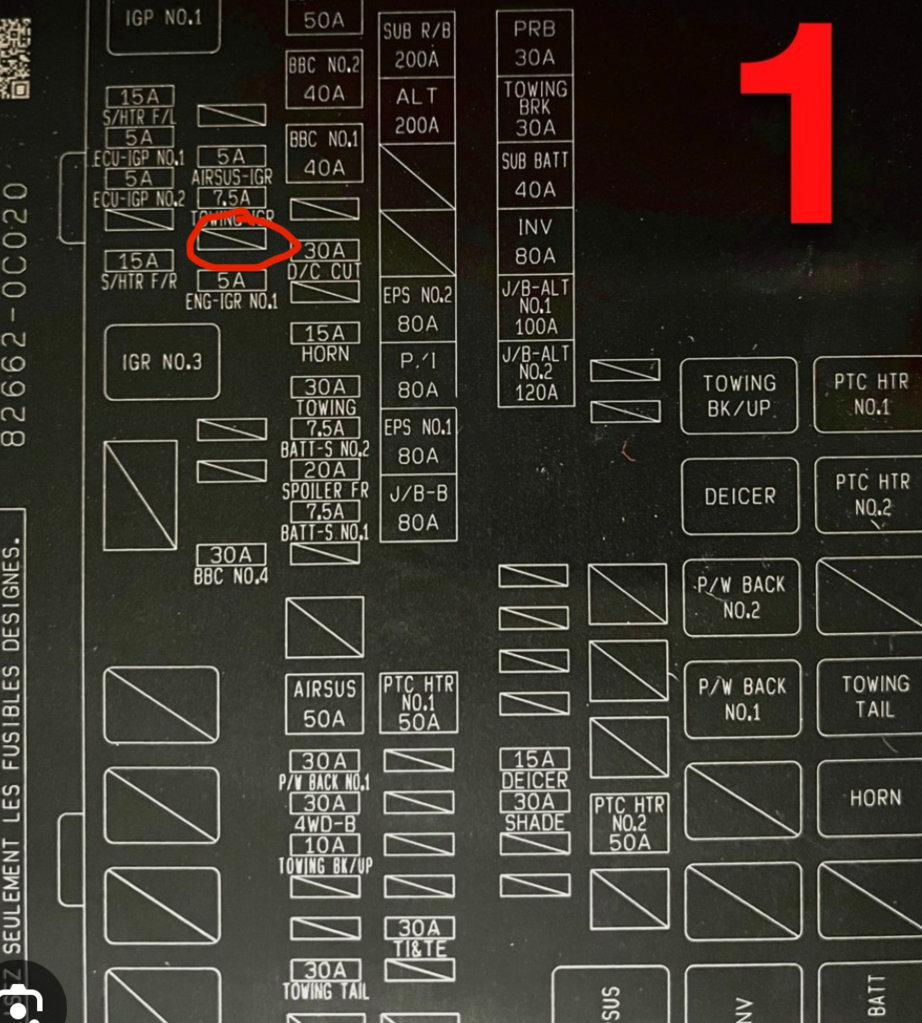

Hi. I just recently bought a Trd heritage grill with Markers Lights but I feel like I wired the lights incorrectly. Does anyone happen to have a picture of their fuse box with fuse tap. I added a 5 fuse to the tap annd inserted it in the blank shown in the picture. Please help.

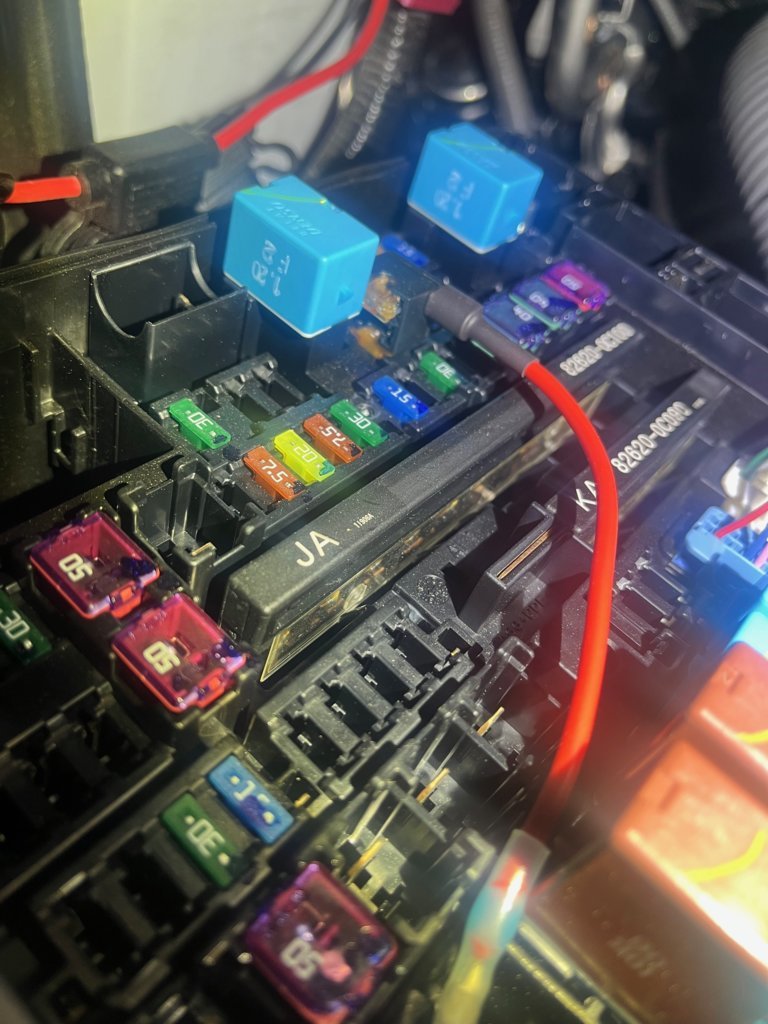

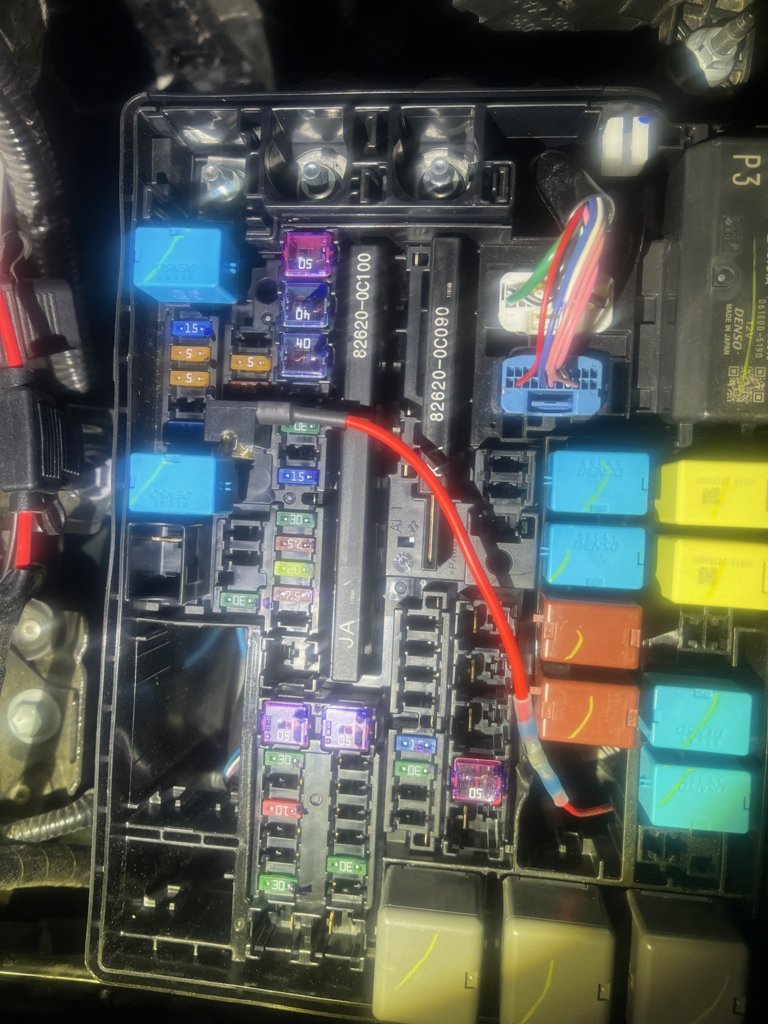

here's mine. everything works great.



Ok. So it looks like I’m in the right location and it also looks like your fuse tap has a empty slot at the upper location. Do you have a 5 fuse in the lower tap?



Might have been the angle. I think mine is set up just like yours (5A in the upper slot). Lights turn on with ignition which I know isn't OEM function but works for me just fine.



Ok. Thanks for the pictures. I must have some other issue with the lights. My truck being a hybrid, shouldn’t change anything should it?



Not sure honestly but I don't see why it wouldn't work unless you have an issue down near the lights. As long as you're grounded somewhere, I think this slot is a blank ignition slot for all versions.



Ok. Ill start by reconnecting my ground and if that doesn’t work, Ill pull apart my grill again and give it a once over…



Hybrid has nothing to do with it. I did have my lights installed like this originally on my hybrid.



Is the polarity correct where you connected to your lights? LED's typically can only go one way.



Move it two slots up to the 5A spot labeled "AIRSUS-IGR". Then the wire will run neatly around the jumpstart lug and not be in a bind.



Use a digital multimeter



I did mine to the IGR as per Rave instructions. Problem is I guess the truck will "cycle" every 6 hrs or so. Found out when I went out at 3 am and the marker lights were on then went off when the "cycle" ended. . Still have not figured where to wire it to.



Figure it out!!!

The harness I got from Rave, I assumed the Red wire was positive and the Black wire was negative but I guess that not always the case. I figured this out by connecting a seperate wire right to the marker light prongs and then a battery. I ended up just swapping my fuse tap wire orientation (red to black and black to red) and the lights came on. Thanks for all the input.
