2024 TUNDRA PLATINUM HV ALIGNMENT FACTORY SPECS

Discussion in 'Suspension' started by aleayala18, Aug 12, 2024.

  1. Aug 12, 2024 at 3:50 PM
    #1
    aleayala18

    #1
    aleayala18 [OP] New Member

    Joined:
    Dec 14, 2023
    Member:
    #108436
    Messages:
    15
    Gender:
    Male
    First Name:
    Alejandro
    Vehicle:
    2024 PLATINUM TUNDRA
    275/65R20 BF GOODRICH ALL TERRAINS
    Guys, Anyone here has the Factory specs to align the Truck? I{m down in Monterrey, Mexico and not even the dealer has them, hit a big rock and truck lost alignment.

    Would appreciate it if anyone had the Factory alignment specs so I can manually enter it to the machine.

    Thanks.

    aleayala18, Aug 12, 2024
    #1
  2. Aug 12, 2024 at 4:55 PM
    #2
    tcap23

    #2
    tcap23 New Member

    Joined:
    Apr 23, 2023
    Member:
    #95929
    Messages:
    57
    Gender:
    Male
    First Name:
    Patrick
    Vehicle:
    2023 Capstone
    [​IMG]

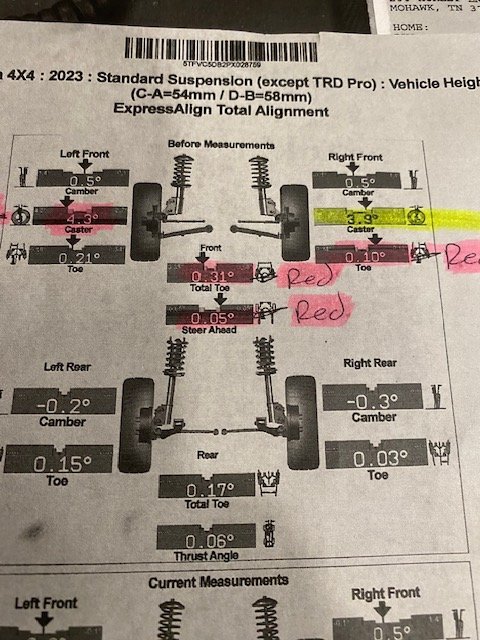

    This is from my alignment last week. My truck is a 23 Capstone. Done know if this helps or not.
    PT in Tennessee

    tcap23, Aug 12, 2024
    #2
  3. Aug 12, 2024 at 5:08 PM
    #3
    aleayala18

    #3
    aleayala18 [OP] New Member

    Joined:
    Dec 14, 2023
    Member:
    #108436
    Messages:
    15
    Gender:
    Male
    First Name:
    Alejandro
    Vehicle:
    2024 PLATINUM TUNDRA
    275/65R20 BF GOODRICH ALL TERRAINS

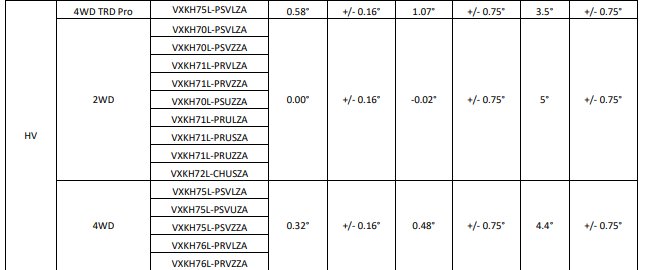

    So that BEFORE is what it should be? Someone sent me these from a service manual but still haven o idea. THANK YOU!

    ALIGNMENT SPECS TUNDRA 2022.png

    aleayala18, Aug 12, 2024
    #3
