2024 TRD Hybrid Grille Baja Designs S8 Backlight Installation

Hi guys,

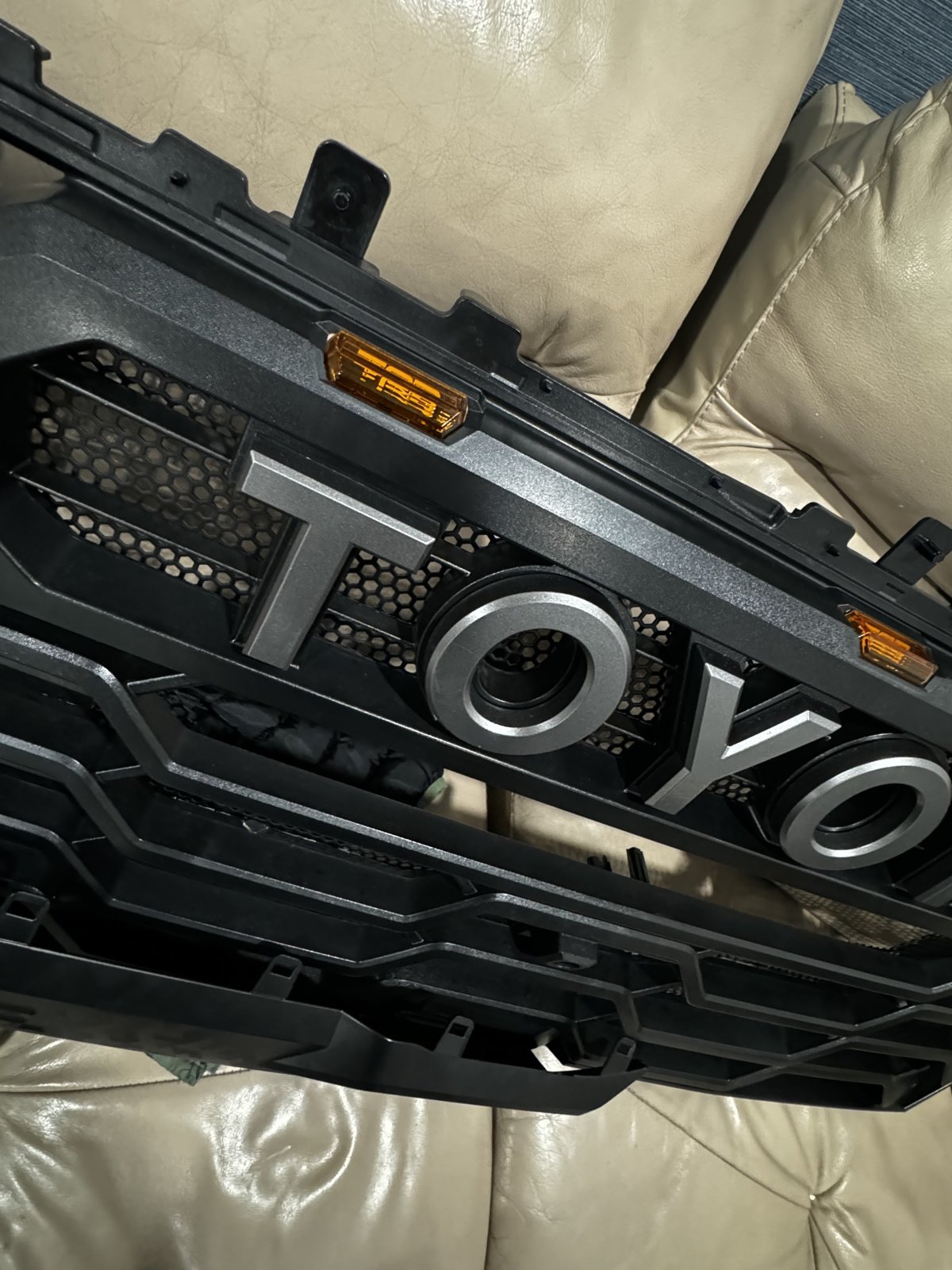

Here goes my first post. I just purchased a Baja Designs S8 light for my TRD grille and I’m having issues tapping into my backlight add-on. Can anyone provide detailed pictures of the install? Perhaps there’s a thread that I missed.

Thanks!



(

Hey @T337TundraRays,

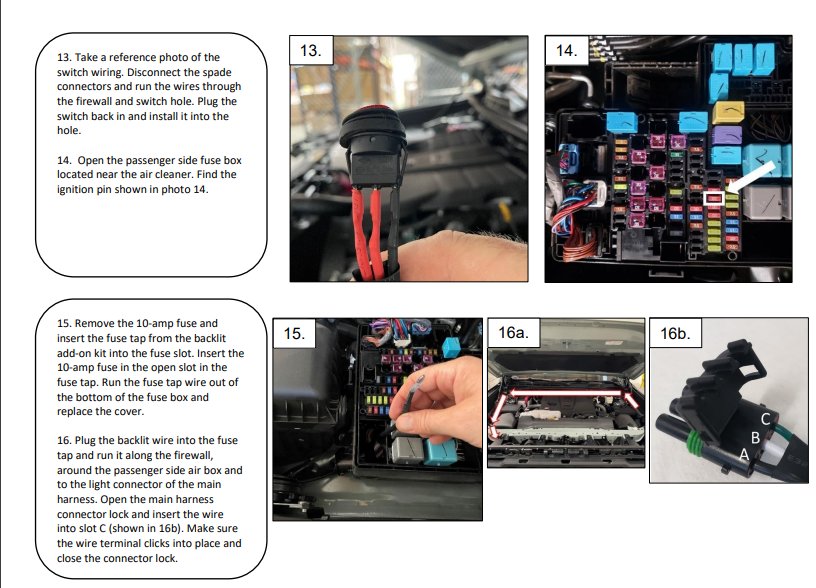

Thanks for being a support of Baja Designs! I will add out instructions with some step by step photos as well. Steps 14 - 16 will be how to use the fuse tap kit to get the backlight on the S8 to kick on. If you have any other questions about the install please feel free to reach out and I can help you out.



https://www.bajadesigns.com/wp-cont...undra-TRD-Pro-Light-Replacement-Kit-Rev-2.pdf

Best,
Bill

Bill Sonevongxay | Forum Sales & Support 
Email: Bill@bajadesigns.com Phone: (760)560-2252



Follow instructions provided by Bill. I have the kit on my truck and their instructions were spot on. Backlight works perfectly



Thank you so much

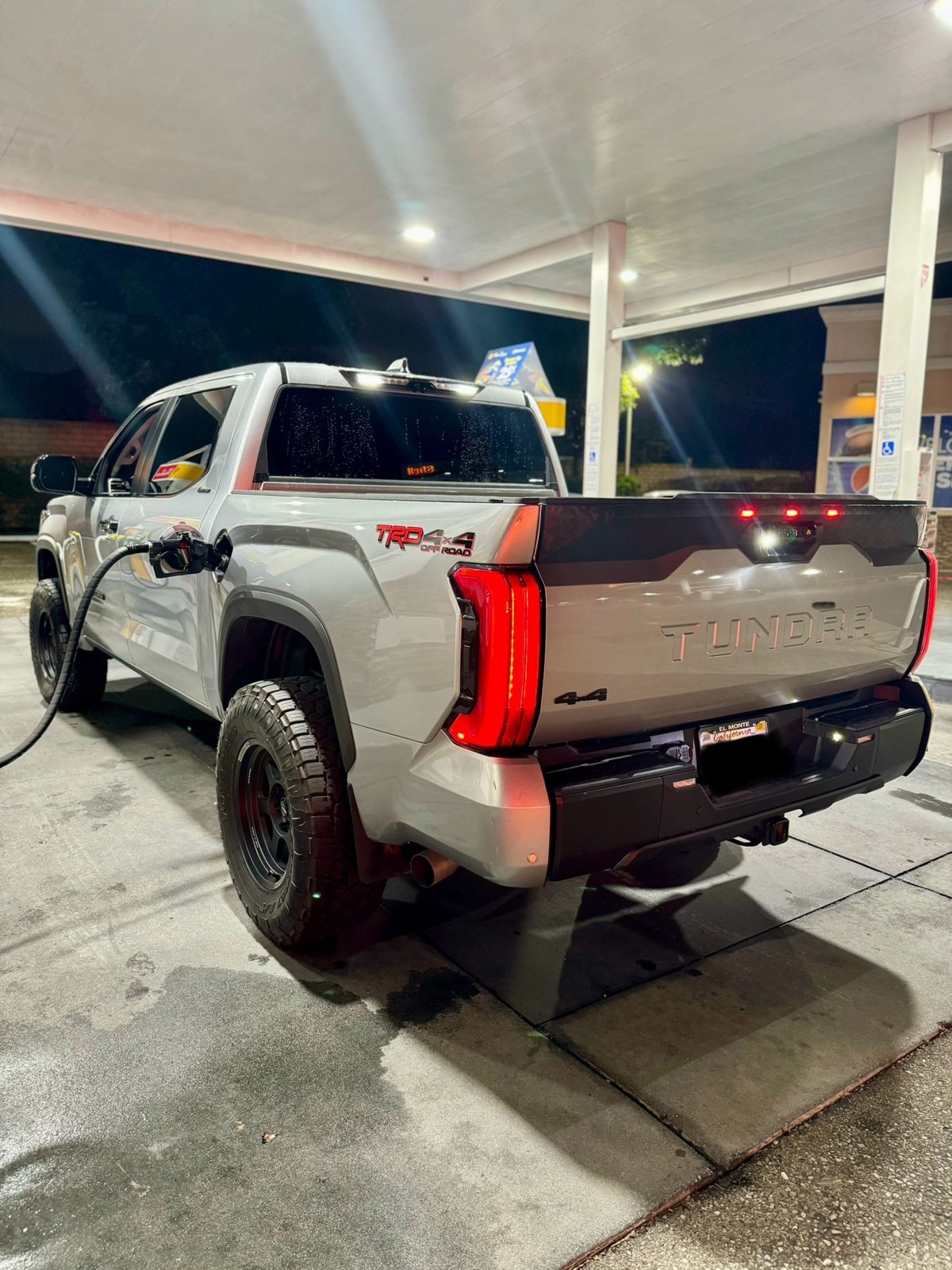

Nice lookin truck right there



[QUOTE="thomez, post: Thanks man more pics to come
