2023+ Sequoia Dobinsons Suspension Options

Hey everyone, here's an evolving list of all the suspension parts Dobinsons is/will be offering for the new 2023 Sequoia 3rd Gen 4x4 Models. I'll edit and add as more parts come around.
Each part number is a hot link to take you right to the details of that specific part number.

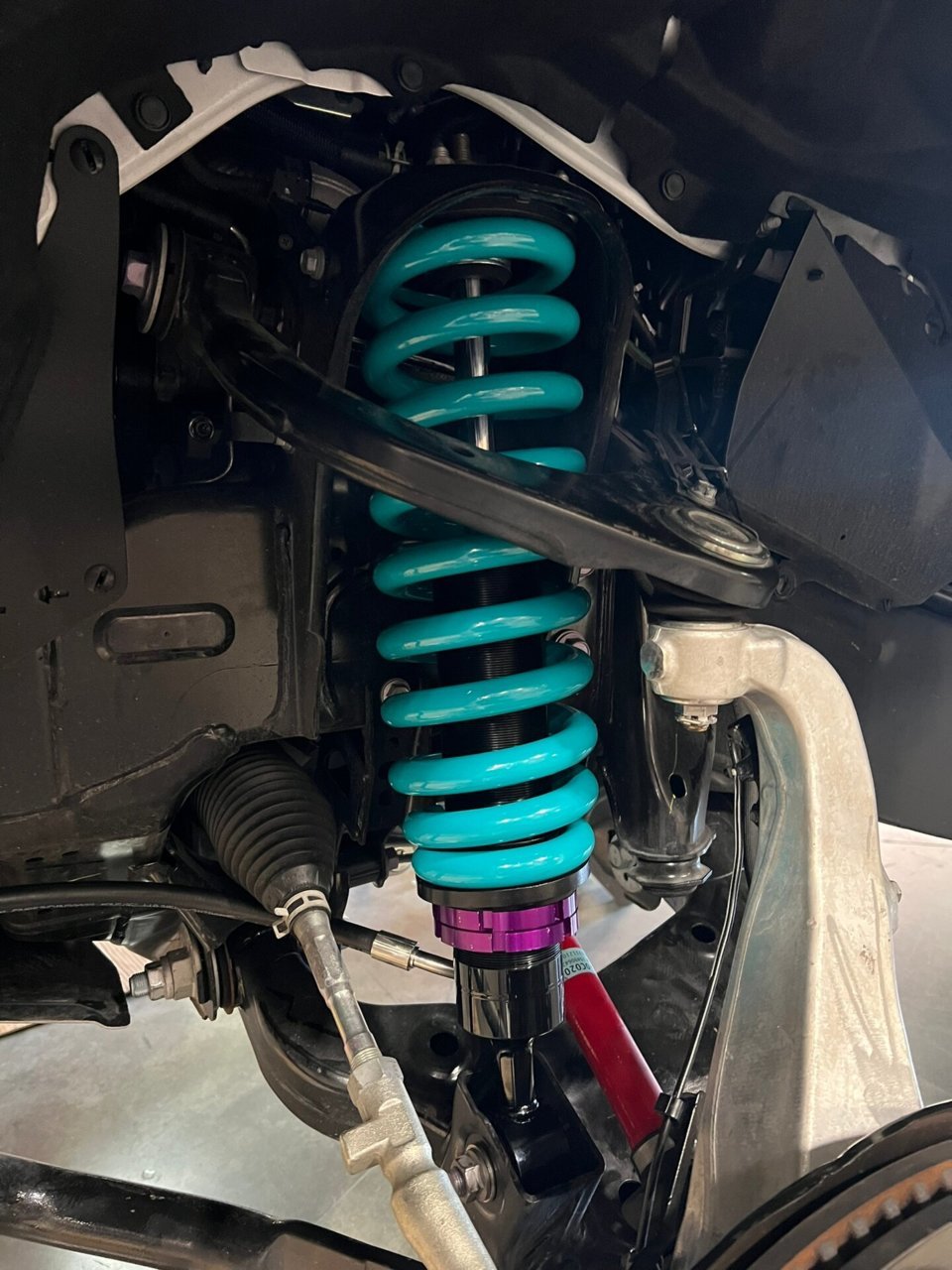

Front Struts
IMS59-60446 - 2.6" Body, adjustable height monotube for 2-3" of lift

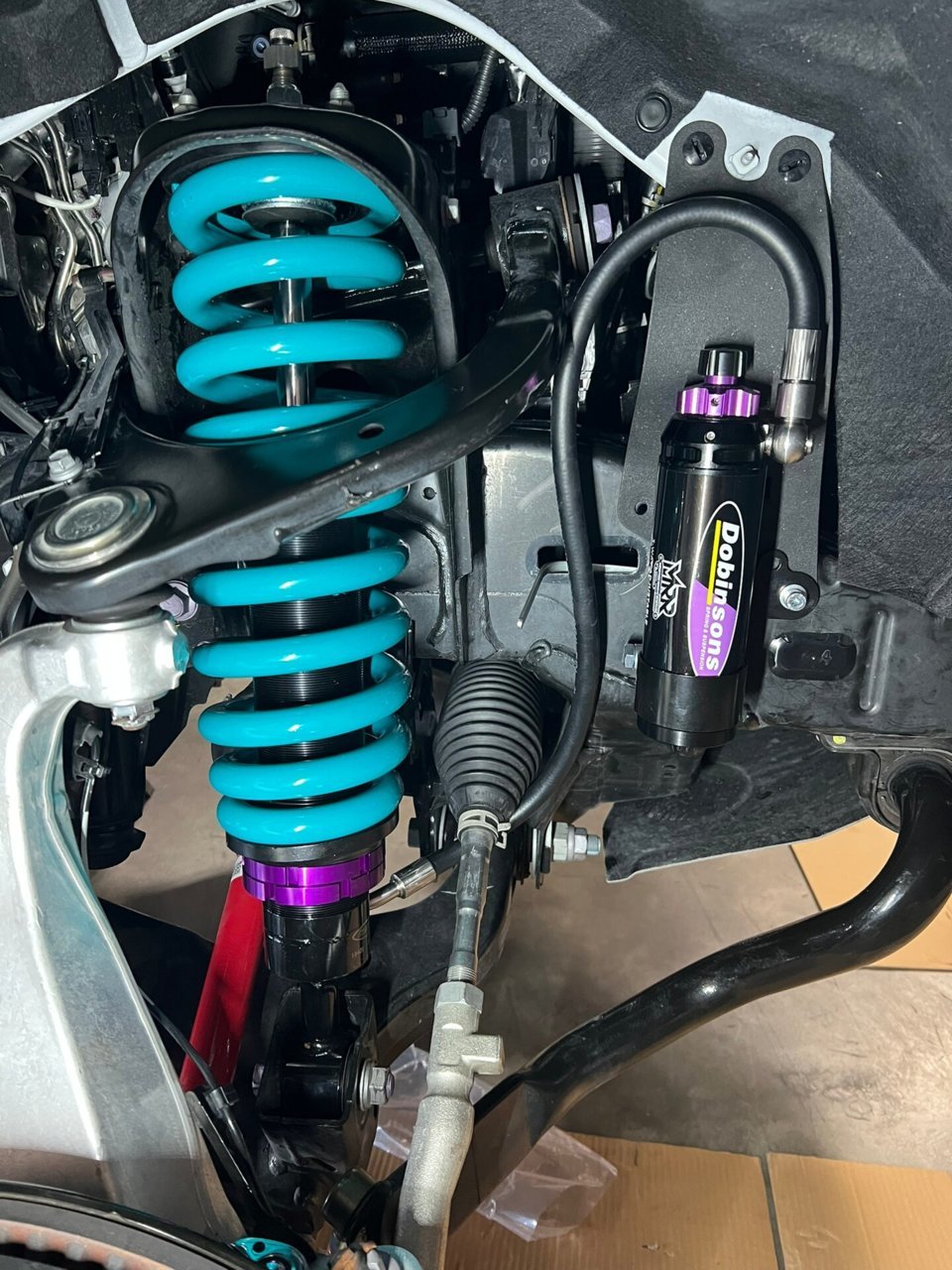

MRA59-A446 - 2.6" Body, 3-way adjustable valving (high and low speed compression and rebound adjustments), height adjustable monotube for 2-3" of lift

Rear Shocks
IMS59-60441 - 2.6" body for 1-3" of lift, monotube shocks
MRA59-A441 - 2.6" body for 1-3" of lift, 3-way adjustable valving (high and low speed compression and rebound adjustments) monotube shocks

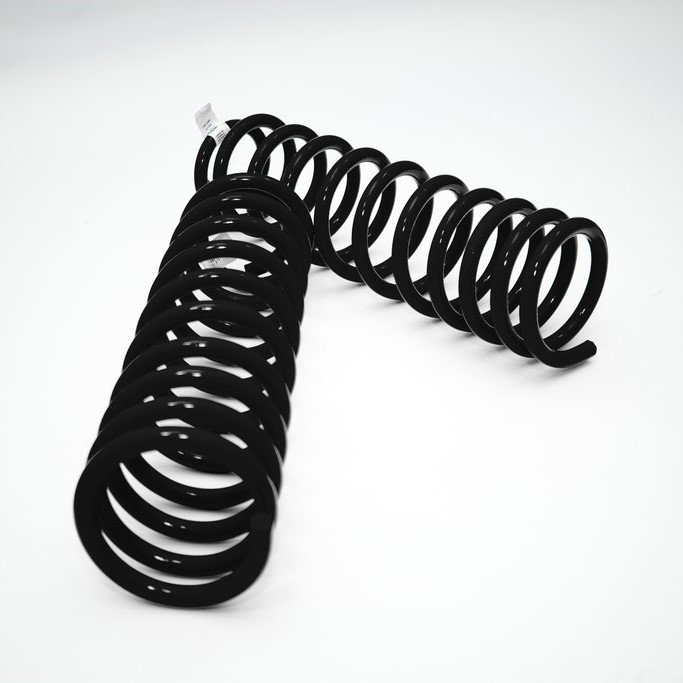

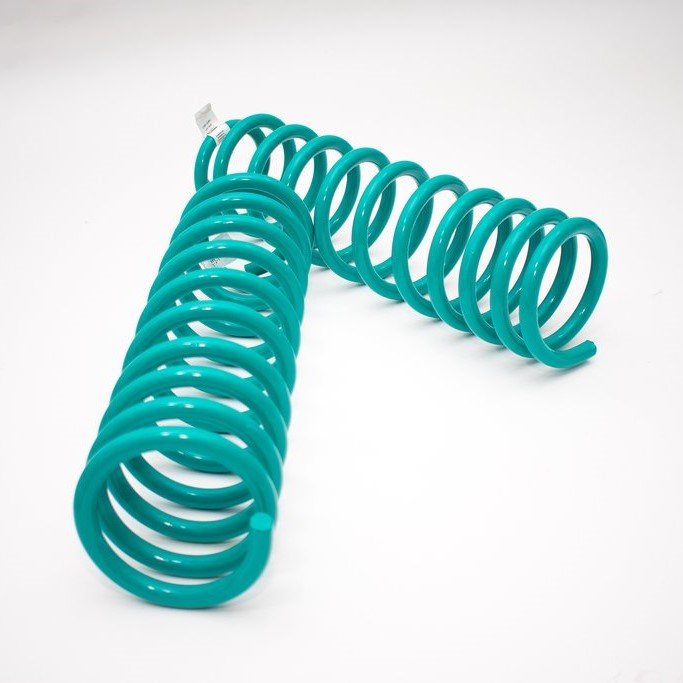

Front Coils - Offered in Teal, Black and Red
TRD Pro models yield 1" less lift than listed below, since they come lifted already from the factory. 3" lift requires aftermarket UCA's
C59-834 - 2" lift with 0-110lbs added front end weight
C59-836 - 2" lift with 110-220lbs added front end weight
C59-838 - 3" lift with 0-110lbs added front end weight
C59-840 - 3" lift with 110-220lbs added front end weight

Rear Coils - Offered in Teal, Black and Red
TRD Pro models yield 1" less lift than listed below, since they come lifted already from the factory
C59-817V - 1" Lift with stock weight
C59-819V - 2" Lift with stock weight
C59-821V - 3" Lift with stock weight, 2" Lift with 220-440lbs added weight
C59-823V - 3" Lift with 220-440lbs added weight
C59-851V - TRD PRO ONLY 3" Lift with stock weight
C59-853V - TRD PRO ONLY 3" Lift with 440lbs constant weight

Front UCA's
UCA59-222K - Billet Aluminum, OE-style sealed ball joints for a maintenance free life, OE-style high quality rubber bushings for maximum NVH dampening and longevity, No greasing or maintenance required at all, completely noise-free operation, Adjustable on-vehicle for quick and easy alignment, Adjustable Camber and Caster for perfecting the vehicle’s handling

Front Strut Mounts
SC59-014 - OE replacement strut mounts, allows you to order your front suspension completely assembled prior to shipping, and not needing to disassemble the original coilovers, and no special tools needed (safer). Includes new bushings and hardware

Rear Panhard Rod (track bar)
This is recommend with a 2" lift or more. It allows you to re-center the rear axle under the frame
PR59-1421 - Adjustable length, new OE style rubber bushings already installed

Front Bump Stops
For those people who will be hitting it hard offroad, out in the desert, or wherever they may bottom out, a set of upgraded bump stops should be strongly considered
BS59-560 - Includes multiple height shims to set the bump stop gap accordingly

Complete Lift Kit Builder Pages
These pages show all possible options on one page for you to build a complete kit, with either the IMS or the MRR shocks.
Dobinsons 2-3″ IMS 2023 Sequoia Lift Kit for 2023+
Dobinsons 2-3″ MRR 2023 Sequoia Lift Kit for 2023+
