2023 OEM Toyota Speaker Connector

Would anyone know the part number or where I could order the OEM speaker connector for the center dash speaker?



Bumping this up a bit in hopes someone may know.

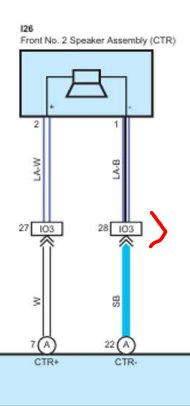

Bumping this up again. If I could get the connector pin style, that would be helpful as I could re-pin the connector.



JBL or non-JBL? Pics of the connector would help. If they're the same as the dash corners, Taco Tunes sells them in pairs. If not, pics of the male connector in your truck would help locate it's female counterpart, if at all possible. It might not be sourceable and only option would be cut either the male connector off and wire your new center directly to factory wiring, or cut the female connector off the removed factory center and use that to make a harness.

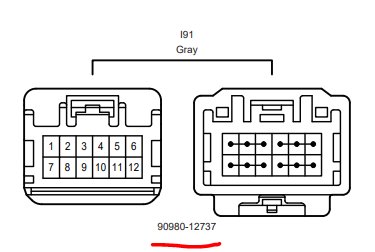

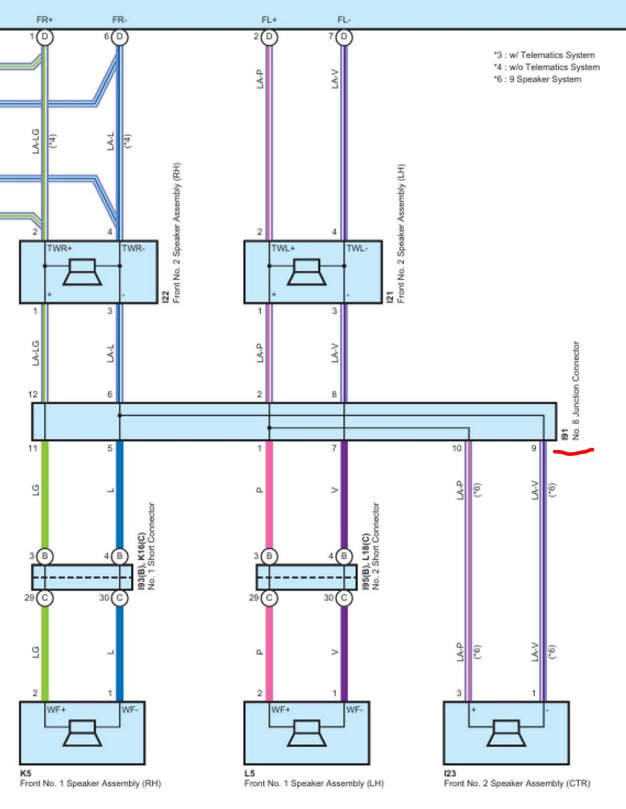

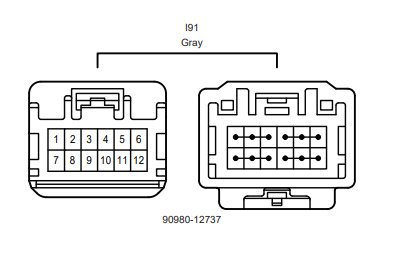

You can find all the connector types in the electrical wiring diagrams posted by Rainman_PNW here: Electrical | Toyota Tundra Forum
Open up the "big" PDF for your year, do a ctrl + F and type radio, once you find the radio wiring diagrams, keep scrolling and immediately after them (both non-jbl and JBL layouts will be in there at separate parts) you'll find black and white technical drawings off all the different connector types.



I appreciate the diagrams.

Its a JBL audio system in a 2023 tundra. I am looking to replace the factory male connections or at least re-pin it. Probably something that will have to be taken from a junked car as a pigtail or similar.
