2021 Tundra - Alarm install - Wiring Diagram is wrong

Wondering if anyone has installed an alarm on their 2021 Tundra yet? On the compustar instructions it asks to connect a wire to the DCM 12V (+) wire on the 56 pin harness. Well there is no 56 Pin harness. I am assuming there was for 2018-2020 and perhaps 2021 changed ? I have two white ecu plugs and neither is 56 pin and according to the instructions and photos its in the same area. But 2021 looks slightly different.



Even though there isn’t a cable on the 56 pin. Look on the other side of the connector to see if the cable is there. Or look at the ignition switch. I would always keep a meter handy

https://www.the12volt.com/installbay/forum_posts.asp?tid=144441



If you know what specific circuit you’re looking for, the EWD diagrams are all in the thread linked in my signature.



Which compustar system are you installing?

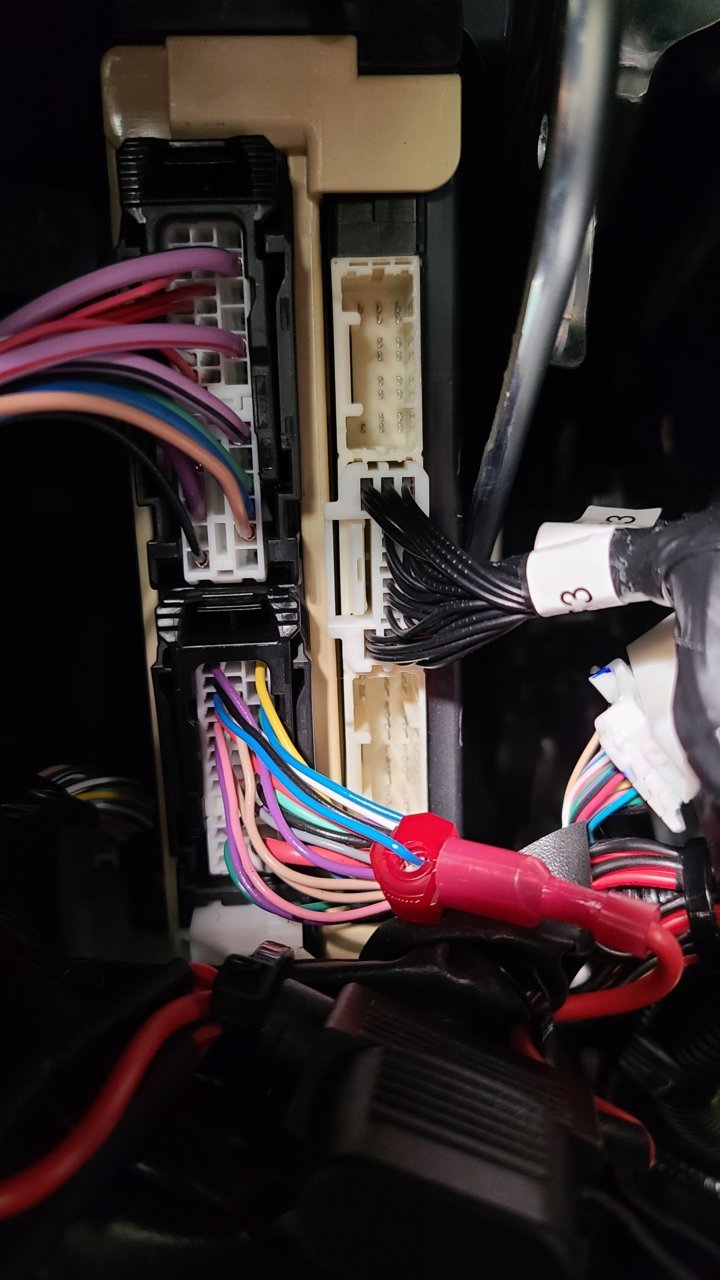

Thanks everyone. I searched compustar on the Tundra Facebook page and seen a couple people say they install them and I asked one member. He told me it was on the back of connection box. Remove all connecting harnesses on the front and remove 2 10mm nuts and take it out. There are the correct harnesses on the back and sure enough there was the red wire on pin 33!

@2020 dc - Compustar Pro T12



I am using the T12 2 way remote as well. What module are you using? I am using CM-DC3.



Also the DC3



Just need to figure out how to disable factory alarm now..
