2020 Towing Mirror Backup Light Help Please

Discussion in '2.5 Gen Tundras (2014-2021)' started by SwampyTundra, Jun 16, 2021.

  1. Jun 16, 2021 at 6:54 PM
    #1
    SwampyTundra

    SwampyTundra [OP] New Member

    Joined:
    Jun 16, 2021
    Member:
    #64379
    Messages:
    1
    Gender:
    Male
    2020 Cement Tundra Sr5 Crewmax
    Hello all, I have a 2020 Tundra Crewmax Sr5 and I replaced the stock mirrors with some GM style towing mirrors. I was trying to install the reverse spot lights by tapping the wire that comes out of the cargo light relay and goes to the bed cargo light.

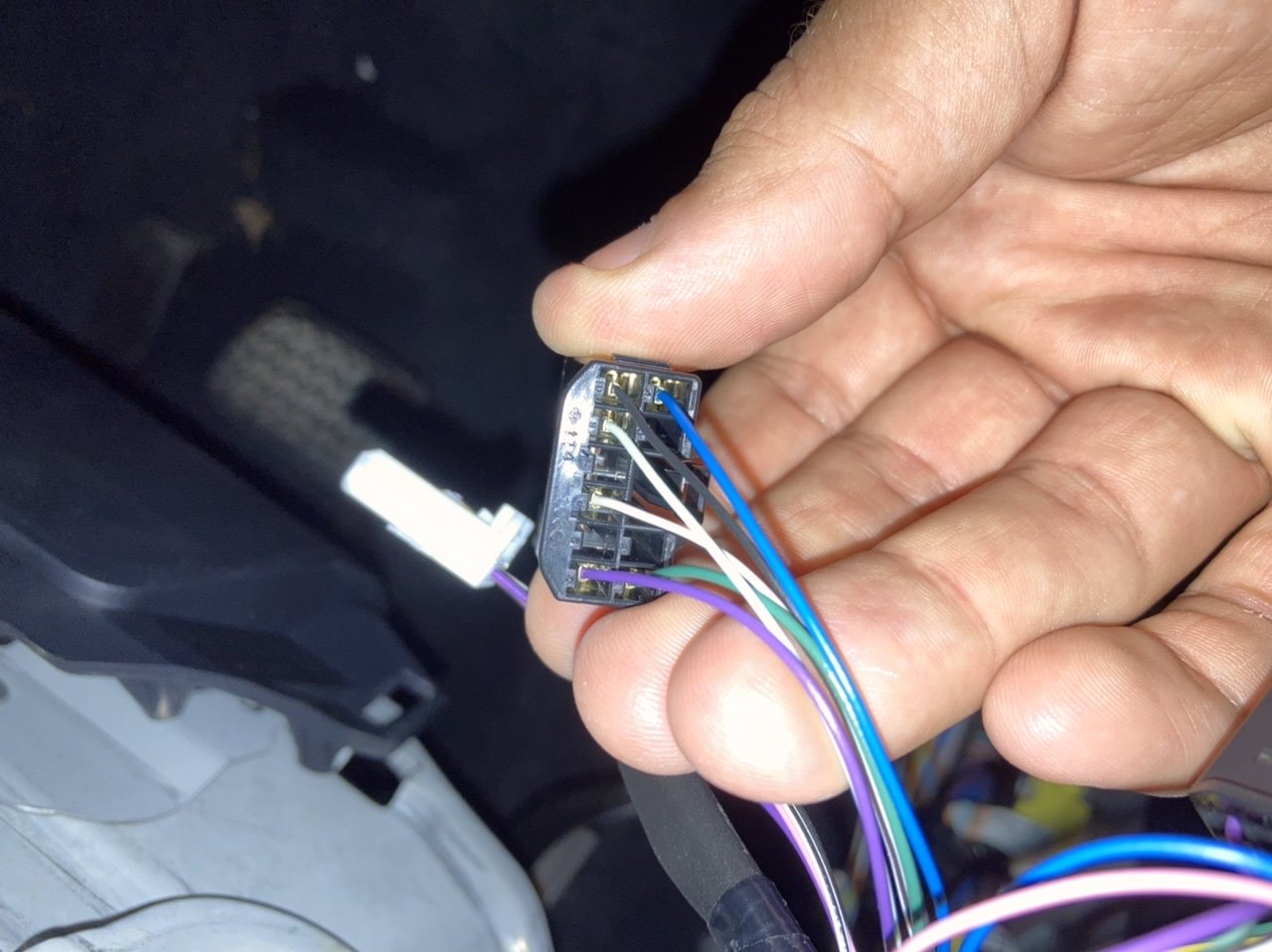

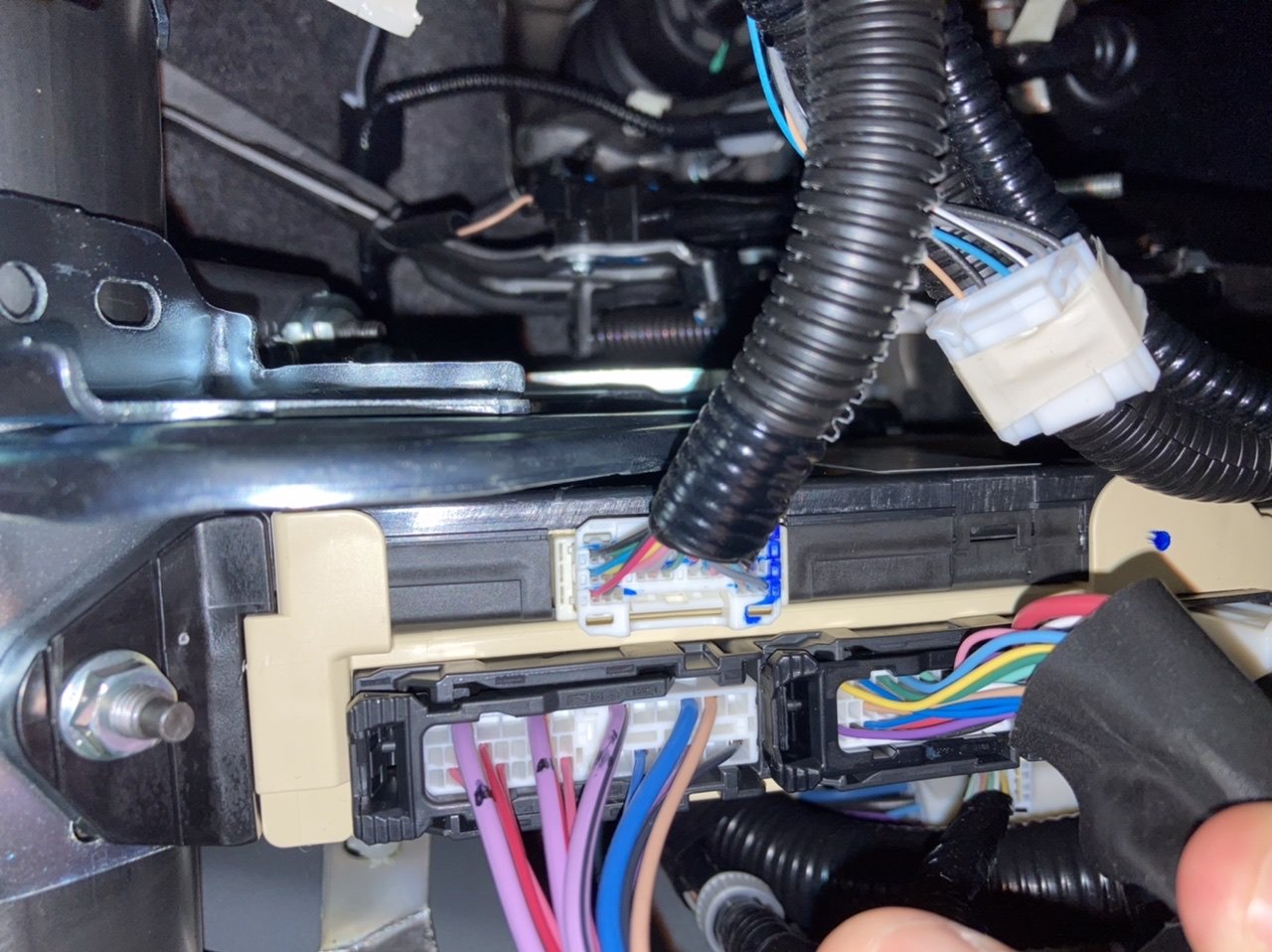

    My problem is that all the instructions I found show a different ECU harness setup for 58BE3266-0427-4284-804A-2E95121D7577.jpg BE13F950-3799-42EA-A2E2-2908A0454DDE.jpg older third gen tundras under the drivers side front. I am not sure which wire to tap for the cargo lights. Here are pictures of what my ECU looks like and what the back of my Cargo light on off door switch looks like.
    Please help me find their right wire to tap!

    Thanks in advance for your help!

  2. Jun 16, 2021 at 7:17 PM
    #2
    TucsonTundra1794

    TucsonTundra1794 ASCM #6-11 I'll buy if you're willing to ship

    Joined:
    Mar 8, 2021
    Member:
    #60155
    Messages:
    2,944
    Gender:
    Male
    First Name:
    Anthony
    Tucson, AZ
    Vehicle:
    2023 1794 Edition TRD Package
    I don't have an exact answer for you but you could try pulling the cargo light and looking at the color of the wires. That would narrow it down a bit

  3. Jun 17, 2021 at 7:34 AM
    #3
    CaptainMcJedi

    CaptainMcJedi New Member

    Joined:
    Mar 19, 2021
    Member:
    #60642
    Messages:
    58
    Durham, NC
    Vehicle:
    19 Tundra Sport
    I'd try a volt meter at the switch and see which wire gets power when it's switched on.

  4. Jun 17, 2021 at 9:23 AM
    #4
    2mchfun

    2mchfun Cool story, but did your new TTV6 tow a shuttle?

    Joined:
    Dec 31, 2020
    Member:
    #56879
    Messages:
    6,491
    Gender:
    Male
    First Name:
    Dan
    Vehicle:
    2021 White 4x4 CM Trail Ed. 2018 White 4x4 4Runner SR5 Premium
    Seat covers, dash mat, ext. Trans. Cooler, sumo springs, oem pwr fld tow mirrors
    Have my auxillary reverse lamps on their own circuit so I can use them to prepare a trailer, launch or load my boat, etc.
