2018 tundra headlights-ihacker

Discussion in 'Lighting' started by Talltundra412, Oct 26, 2018.

  1. Oct 26, 2018 at 2:41 AM
    #1
    Talltundra412

    Talltundra412 [OP] New Member

    Joined:
    Oct 26, 2018
    Member:
    #20970
    Messages:
    2
    Vehicle:
    Tundra limited 9” lift
    Full kicker system, 9” lift ,35x12.50 tires, 2018 headlights, led bar in hood bulge
    ihacker if you could contact me I screwed myself on my harness a friend thought he was cleaning up wires from old hid headlights and threw out the plugs for the turn signal flashing. The rears work fine. The front if u put signals on they both flash at normal speed no hyper flash. I need whatever plug will stop this PLEASE!

    dcsleeper408 likes this.
  2. Oct 26, 2018 at 3:18 AM
    #2
    dcsleeper408

    dcsleeper408 BASTRDS

    Joined:
    Nov 10, 2015
    Member:
    #2081
    Messages:
    4,947
    Gender:
    Male
    First Name:
    mark
    San Jose CA
    Vehicle:
    2015 TRD PRO
    That sucks. Hope @iHacker can get everything situated.

  3. Oct 26, 2018 at 3:23 AM
    #3
    Talltundra412

    Talltundra412 [OP] New Member

    Joined:
    Oct 26, 2018
    Member:
    #20970
    Messages:
    2
    Vehicle:
    Tundra limited 9” lift
    Full kicker system, 9” lift ,35x12.50 tires, 2018 headlights, led bar in hood bulge
    It was just a couple plugs. The harness I got from him was dead on target. Worked great but had to take my fabfours bumper off to access headlights and when back together he thought he was helping me out cleaning up wires. Wish I had another way to contact him think the shipping invoice said retrofit wharehouse or something can’t remember been like a year

  4. Oct 26, 2018 at 4:21 PM
    #4
    iHacker

    iHacker SW TRD PRO

    Joined:
    Mar 19, 2016
    Member:
    #2962
    Messages:
    1,266
    Gender:
    Male
    First Name:
    Mario
    AR
    Vehicle:
    TRD PRO Super White CM
    2019 TRD PRO LED Headlights, 2019 TRD PRO Rigid LED Fog lights, All LED Interior, LED Cargo Lights, Bed LED Lights, Undercover Flex, Husky Weather beater floormats, FORTIN EVO ONE remote start, TDR Cold Air Intake, Tundra tail gate inserts, Pop & Lock...
    Hello buddy,

    I been checking in my records and probably the harness you are using is from a different source, if you mentioned Retrofit Wholesale is from eledobleu, but definitely the turn signal can be skipped if you rewire the plug

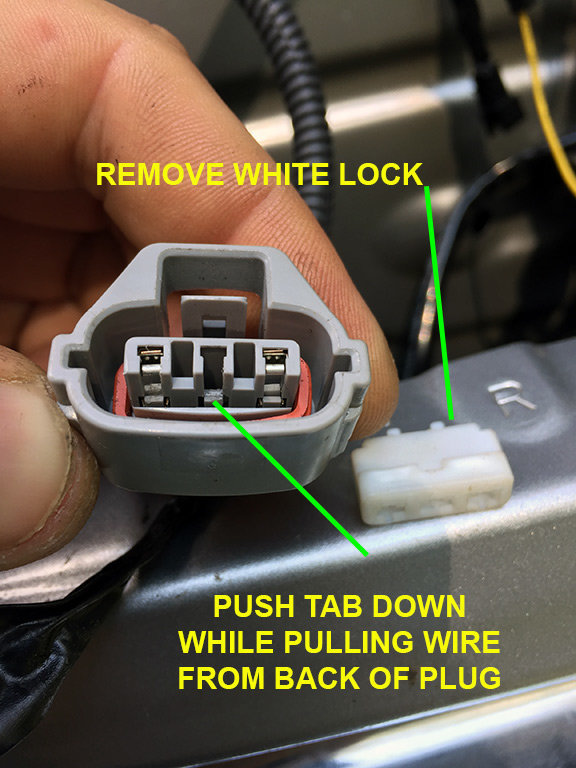

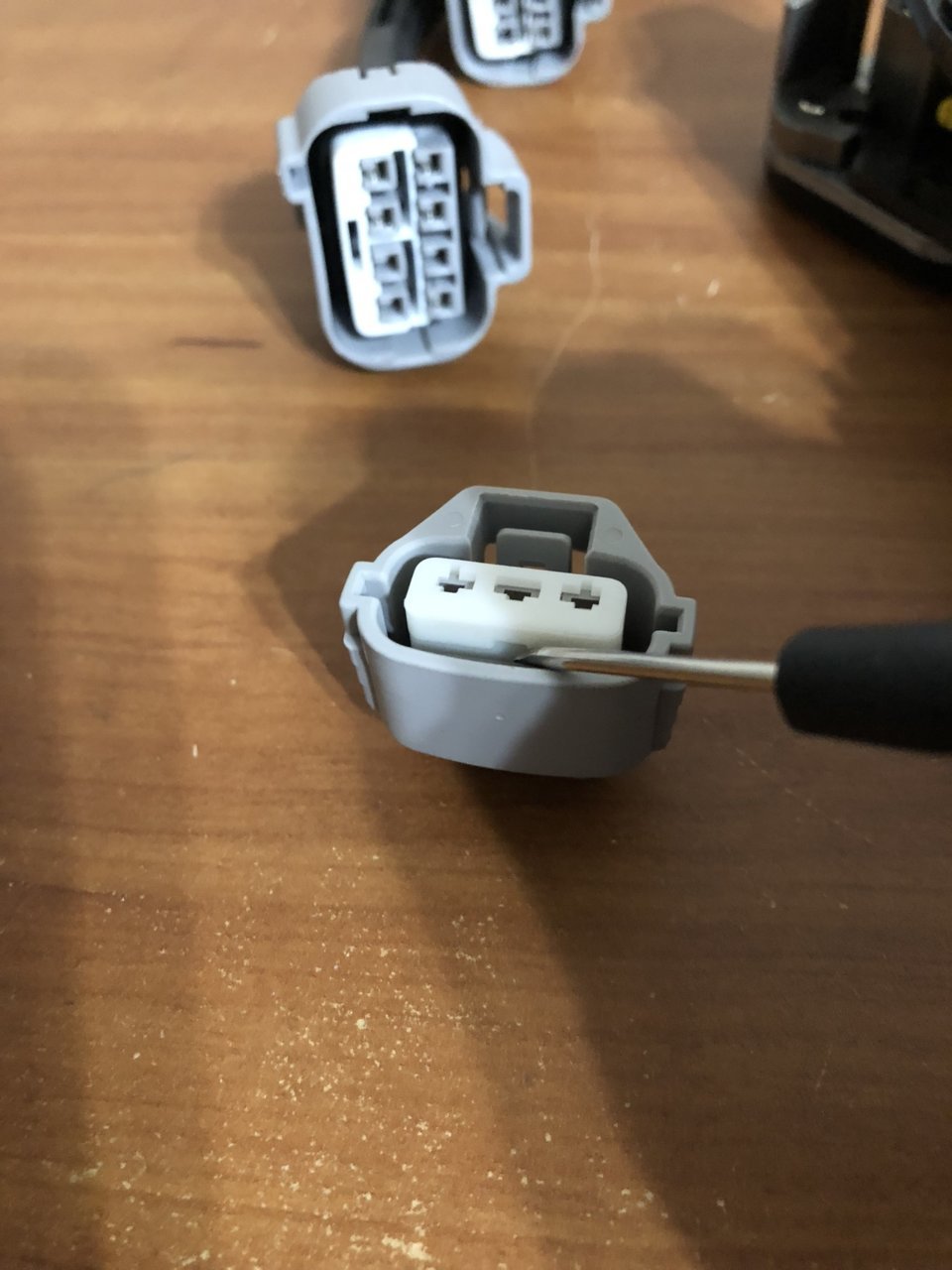

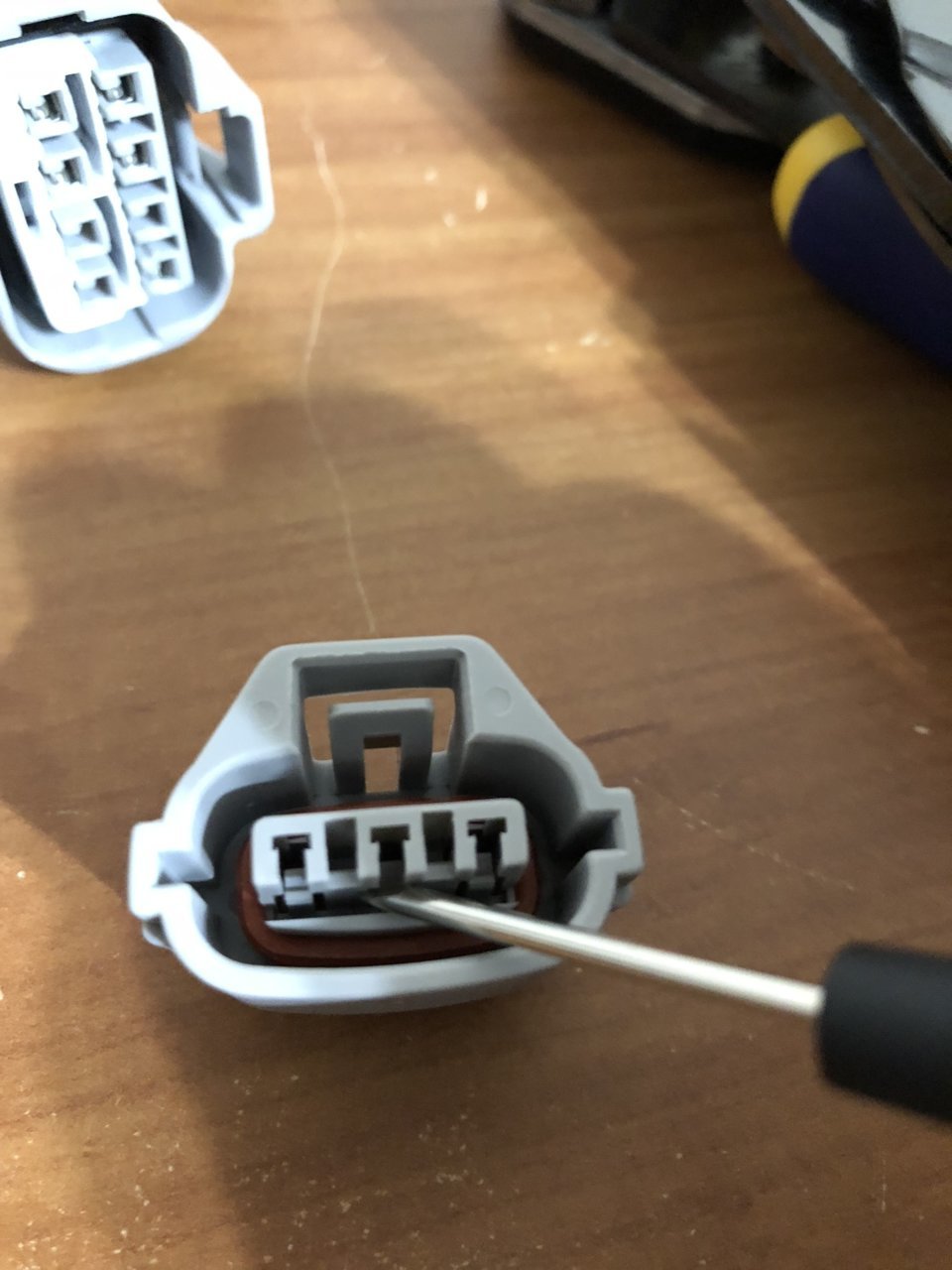

    Move the center white wire to the left outer location and if your truck is a SR5 or any with Amber DRL you also have a violet wire take this one completely out of ply and cover with tape.

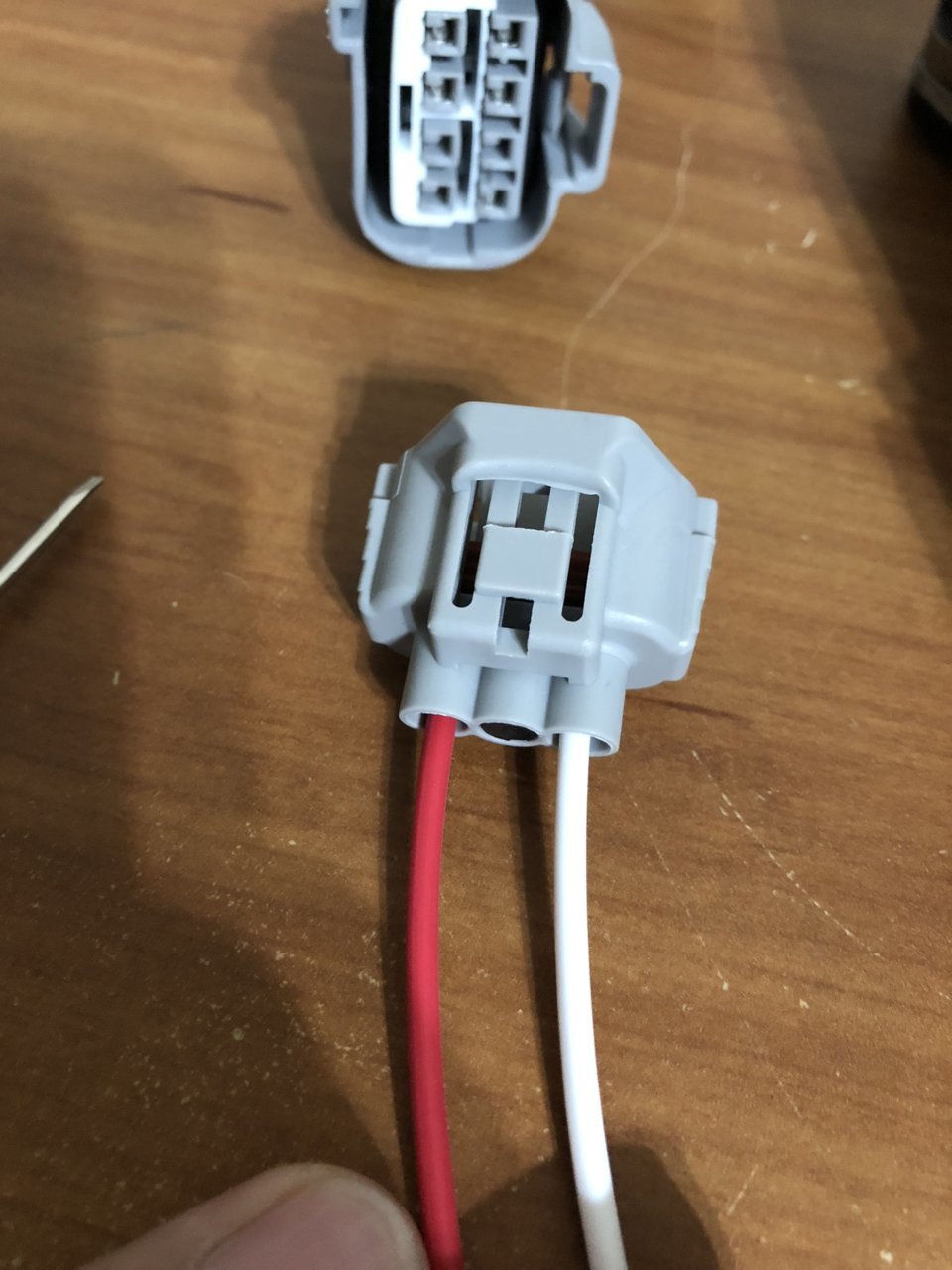

    You have to go from this

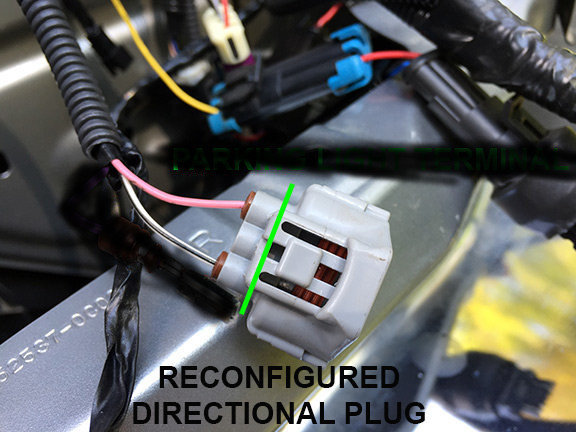

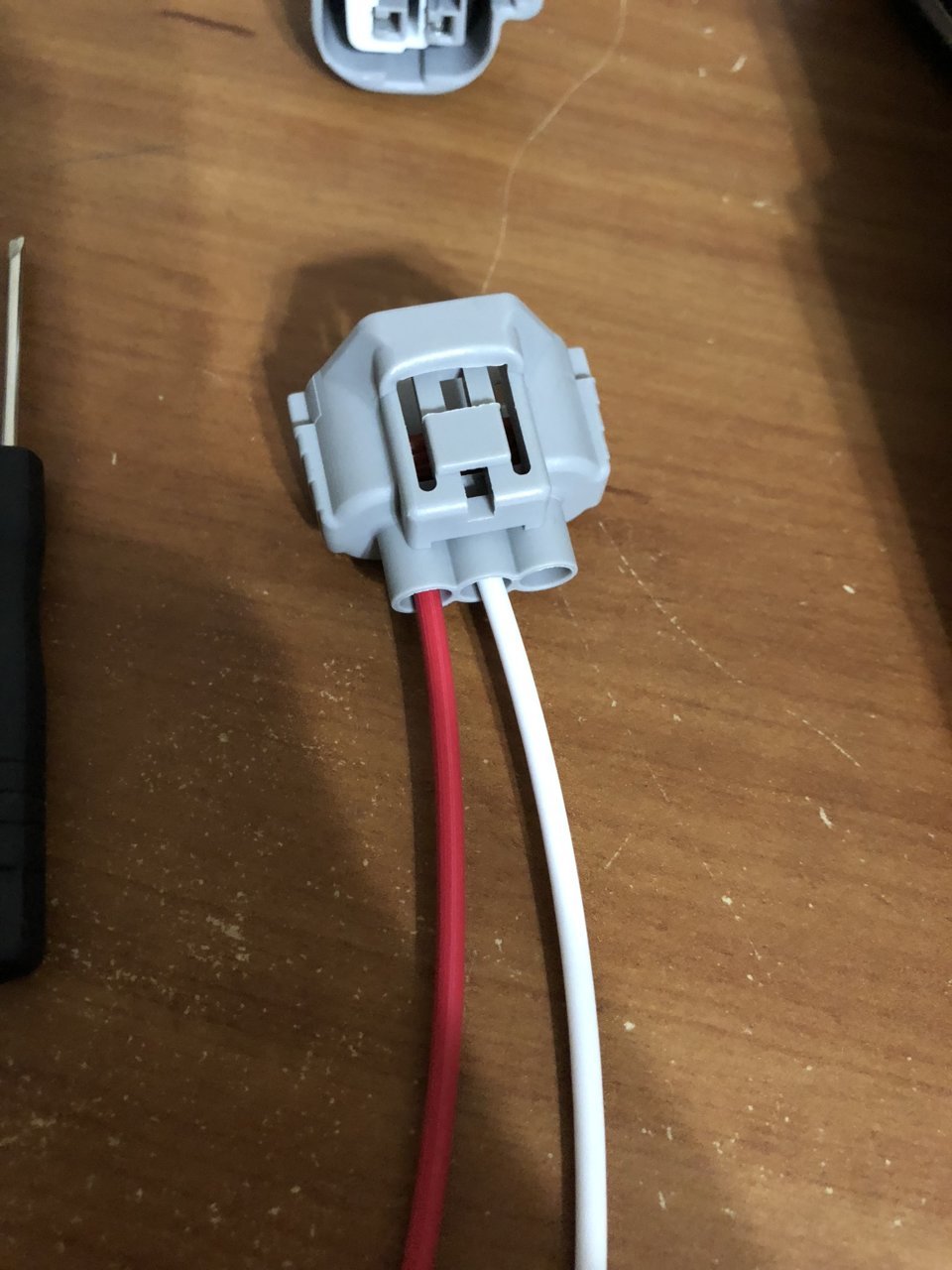

    To this


    Last edited: Oct 26, 2018
    TheBeast and Y0TA PR0 like this.
  5. Oct 26, 2018 at 4:28 PM
    #5
    Y0TA PR0

    Y0TA PR0 Oil & Gas

    Joined:
    Jan 24, 2016
    Member:
    #2519
    Messages:
    24,462
    Gender:
    Male
    First Name:
    Rafael
    Alberta, Canada
    Vehicle:
    2017 TRD PRO
    WELCOME

  6. Oct 26, 2018 at 4:47 PM
    #6
    831Tun

    831Tun heartless Bastrd

    Joined:
    Jun 7, 2016
    Member:
    #3549
    Messages:
    11,597
    Gender:
    Male
    First Name:
    Warren
    Santa Cruz
    Vehicle:
    '16 CM limited
    TC long travel. Deaver 420 SU leaf packs.
    Welcome from Ca.

  7. Oct 26, 2018 at 4:53 PM
    #7
    TXRailRoadBandit73

    TXRailRoadBandit73 YOTAS,RAILROADIN',RÖKnRÖLLN',BEER,MAX/GEMMA

    Joined:
    May 30, 2016
    Member:
    #3487
    Messages:
    50,708
    Gender:
    Male
    First Name:
    Adam
    The 956, TEXAS
    None yet
    Welcome from Texas, I wanna see this 9" lift :popcorn:

  8. Oct 26, 2018 at 5:12 PM
    #8
    iHacker

    iHacker SW TRD PRO

    Joined:
    Mar 19, 2016
    Member:
    #2962
    Messages:
    1,266
    Gender:
    Male
    First Name:
    Mario
    AR
    Vehicle:
    TRD PRO Super White CM
    2019 TRD PRO LED Headlights, 2019 TRD PRO Rigid LED Fog lights, All LED Interior, LED Cargo Lights, Bed LED Lights, Undercover Flex, Husky Weather beater floormats, FORTIN EVO ONE remote start, TDR Cold Air Intake, Tundra tail gate inserts, Pop & Lock...
    ^ Me too
