2018 Tow Haul button/switch wiring

Discussion in '2.5 Gen Tundras (2014-2021)' started by Jim LE 1301, Dec 11, 2020.

  1. Dec 11, 2020 at 5:03 PM
    #1
    Jim LE 1301

    Jim LE 1301 [OP] Camaro Lover, SSEM # 11,TTC#179

    Joined:
    Apr 29, 2018
    Member:
    #14884
    Messages:
    29,531
    Gender:
    Male
    First Name:
    Jim
    Hudson Valley, New York
    Vehicle:
    2018 MGM Tundra TRD Sport Double Cab
    Does anyone know what the wires on the back of the 2018 Tow Haul switch are? I am going to change my switch and I need to know which wires to connect to the new switch.

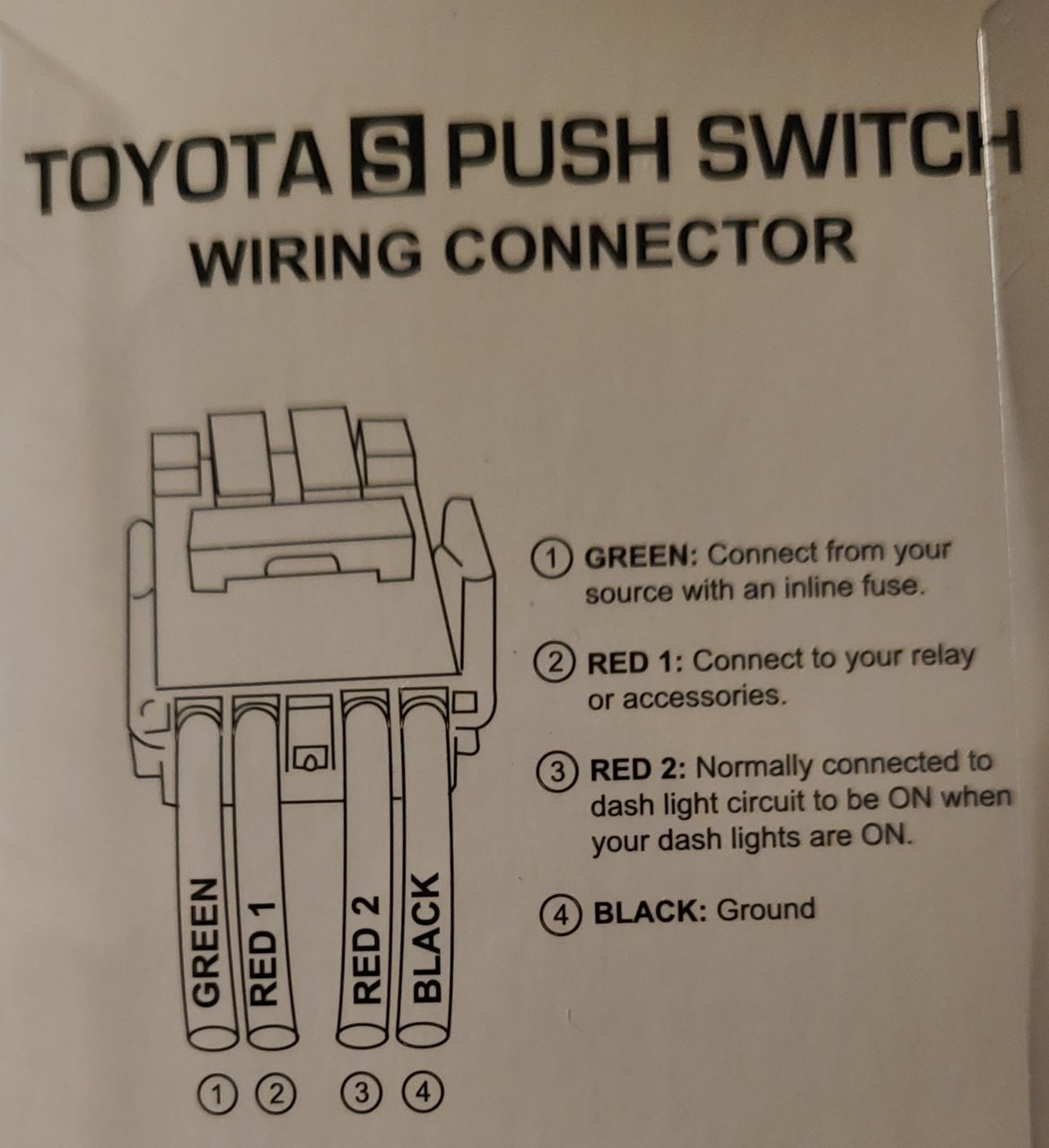

    Here is a picture of the new wiring/plug.

    @NewImprovedRon figured you are the guy with the answer. ;)

    THANKS IN ADVANCE


    NewImprovedRon likes this.
  2. Dec 11, 2020 at 6:46 PM
    #2
    RainMan_PNW

    RainMan_PNW "Oz" SSEM #82 RGBA #4 Unofficial Forum Treasurer Vendor?

    Joined:
    Oct 27, 2020
    Member:
    #54134
    Messages:
    16,771
    Gender:
    Male
    First Name:
    Casey
    Clark County, WA
    Vehicle:
    2021 Lunar Rock TRD Pro CM
    Check the build link in my signature.
    I’ve got EWD for a 2015 on my computer... I can pull it up later tonight if you don’t get an answer earlier

  3. Dec 11, 2020 at 8:14 PM
    #3
    Jim LE 1301

    Jim LE 1301 [OP] Camaro Lover, SSEM # 11,TTC#179

    Joined:
    Apr 29, 2018
    Member:
    #14884
    Messages:
    29,531
    Gender:
    Male
    First Name:
    Jim
    Hudson Valley, New York
    Vehicle:
    2018 MGM Tundra TRD Sport Double Cab
    :hattip:

  4. Dec 11, 2020 at 9:34 PM
    #4
    RainMan_PNW

    RainMan_PNW "Oz" SSEM #82 RGBA #4 Unofficial Forum Treasurer Vendor?

    Joined:
    Oct 27, 2020
    Member:
    #54134
    Messages:
    16,771
    Gender:
    Male
    First Name:
    Casey
    Clark County, WA
    Vehicle:
    2021 Lunar Rock TRD Pro CM
    Check the build link in my signature.
    OK - on the 2015 EWD (I wouldn't expect 2018 to be much different except specifically concerning the added sensors for adaptive cruise, etc.):

    Connector is J23

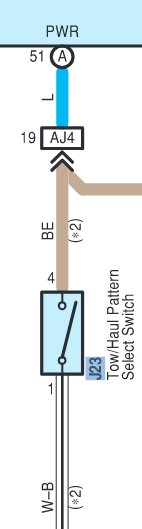

    From the Engine Control and Transmission EWD:
    Pin 1 is ground (white wire, black stripe)
    Pin 4 is power from Engine Control Module (tan/brown wire)

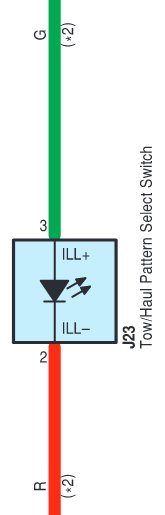

    From the Illumination and Taillight EWD:
    Pin 2 is Illumination (-) (red wire), which eventually feeds back to the combination meter (gage cluster).
    Pin 3 is Illumination (+) (green wire), which sources from the tail light relay and 7.5A "Panel" fuse
    So near as I can tell, Pin 5 should be empty.

    Full PDFs of each are attached if you want to dig deeper.


    Attached Files:

    Jim LE 1301[OP] likes this.
  5. Dec 12, 2020 at 4:54 AM
    #5
    timsp8

    timsp8 Former Tundra owner for 13 years

    Joined:
    May 11, 2018
    Member:
    #15231
    Messages:
    3,540
    Gender:
    Male
    First Name:
    Tim
    NY
    Vehicle:
    2018 Tundra Limited Crewmax - Traded In
    Why are you changing the switch? Putting in a supercharged switch?

  6. Dec 12, 2020 at 5:07 AM
    #6
    Jim LE 1301

    Jim LE 1301 [OP] Camaro Lover, SSEM # 11,TTC#179

    Joined:
    Apr 29, 2018
    Member:
    #14884
    Messages:
    29,531
    Gender:
    Male
    First Name:
    Jim
    Hudson Valley, New York
    Vehicle:
    2018 MGM Tundra TRD Sport Double Cab
    :hattip: Thanks Casey.

    RainMan_PNW[QUOTED] likes this.
  7. Dec 12, 2020 at 5:08 AM
    #7
    Jim LE 1301

    Jim LE 1301 [OP] Camaro Lover, SSEM # 11,TTC#179

    Joined:
    Apr 29, 2018
    Member:
    #14884
    Messages:
    29,531
    Gender:
    Male
    First Name:
    Jim
    Hudson Valley, New York
    Vehicle:
    2018 MGM Tundra TRD Sport Double Cab
    :monocle:

  8. Dec 12, 2020 at 10:53 AM
    #8
    Jim LE 1301

    Jim LE 1301 [OP] Camaro Lover, SSEM # 11,TTC#179

    Joined:
    Apr 29, 2018
    Member:
    #14884
    Messages:
    29,531
    Gender:
    Male
    First Name:
    Jim
    Hudson Valley, New York
    Vehicle:
    2018 MGM Tundra TRD Sport Double Cab
    :thumbsup:
    Supposed to be nice tomorrow, if I don't have a honey do list I will do it then.

    NewImprovedRon likes this.
  9. Dec 31, 2020 at 7:30 AM
    #9
    14srAKH

    14srAKH New Member

    Joined:
    Mar 23, 2020
    Member:
    #44237
    Messages:
    54
    Gender:
    Male
    First Name:
    Adam
    Vehicle:
    2014 tundra sr white
    Wheels, center console swap, tinted windows,
    I've searched to no avail. Is there a way to add tow/haul?
    I have an sr which did not come with tow haul switch. Has anyone done this?
