2017 TRD 4X4 5.7L - Integration Relay Location?

I'm having issues with the drivers door lock opening electronically. NOT the actuator - changed that already. It locks just fine but ignores the unlock signal - 2nd push opens all other doors but driver's stays locked. I am figuring it is the integration relay Part#826410C030 (82641-0C030) but I cannot find the blasted thing to check it out.

Anyone have a picture or diagram of where it is hidden?

Thanks!



if you search the part number on a toyota parts website it will often bring up an exploded view of the parts, diagram if you will. I know sparksparts also has a chat feature for assistance on their site to help find parts, location, etc.



Been there, done that. No joy. It's clearly a secret right up there with the location of the Ark of the Covenant....

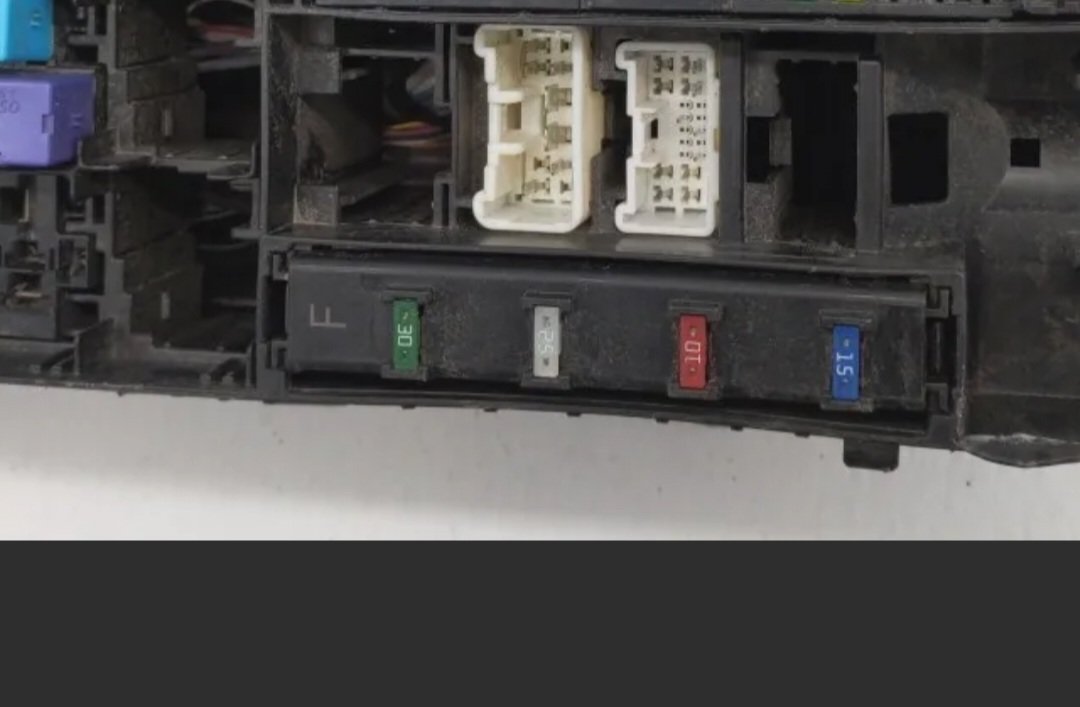

I'm bumping this because it's unanswered and I'm trying to sort out a bizarre issue and looking at my integration relay myself. It's actually in the fuse box. It has 3 plugs in it on the bottom. You have to pry the end tabs on the end to remove it, pull it upwards with pliers, then get the plugs off underneath. It has 4 mini fuses on it. It is the block marked F in this image.
