2017 Toyota Tundra Crew Max 4x4 - 5.7L - Upper Control Arm Leaking

Discussion in 'Suspension' started by jayhawknavy02, Dec 8, 2023.

  1. Dec 8, 2023 at 11:04 AM
    #1
    jayhawknavy02

    jayhawknavy02 [OP] New Member

    Joined:
    Sep 4, 2020
    Member:
    #51773
    Messages:
    90
    Gender:
    Male
    SOCAL
    Vehicle:
    2017 Tundra 5.7L SR5 Crew Max TRD Off Road 4x4
    Dirty Deeds 10” exhaust TRD Accelerator OTT Tune Sony XAV-9000ES Head Unit AJT Interior Upgrades
    Good Afternoon,

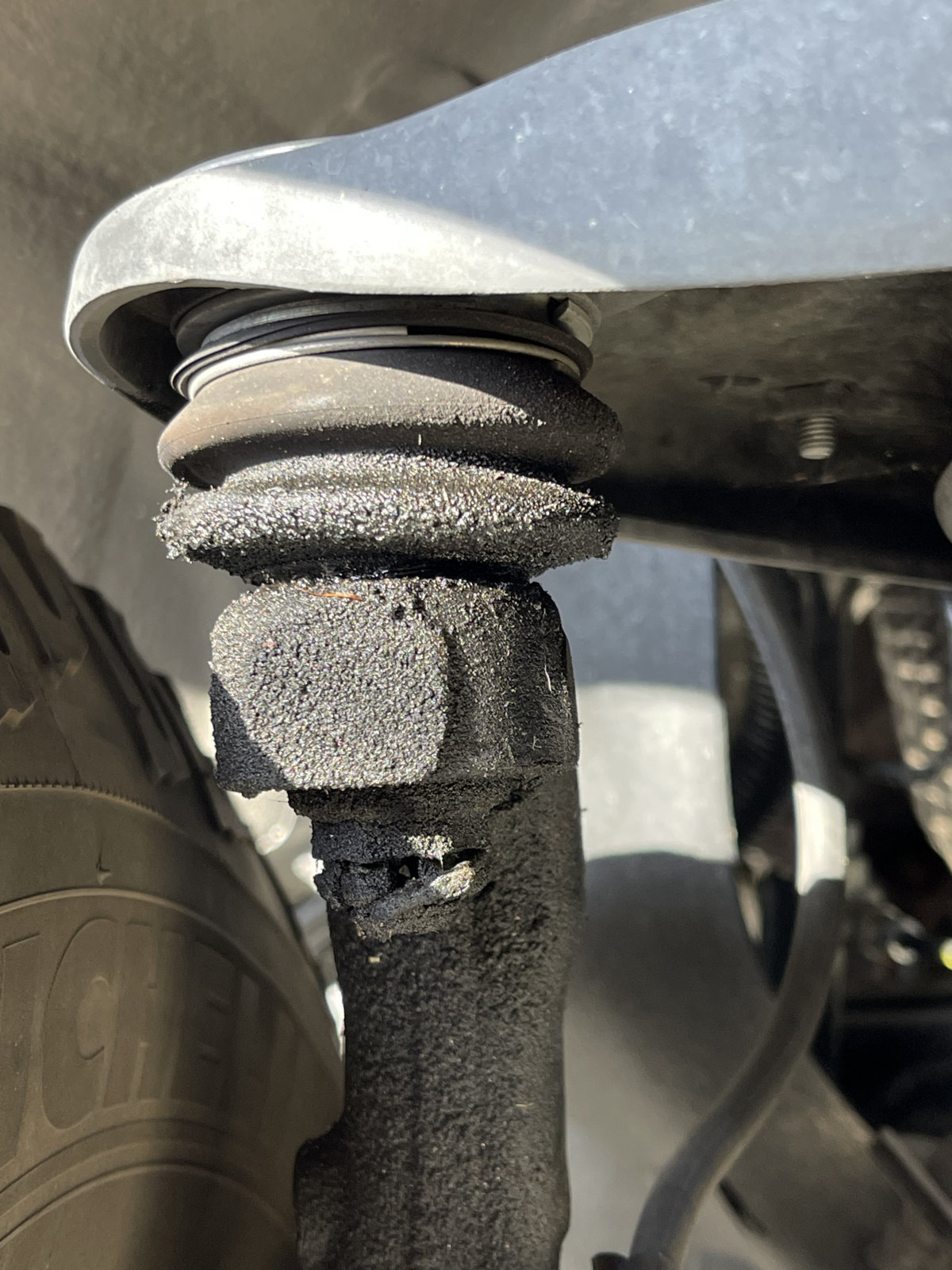

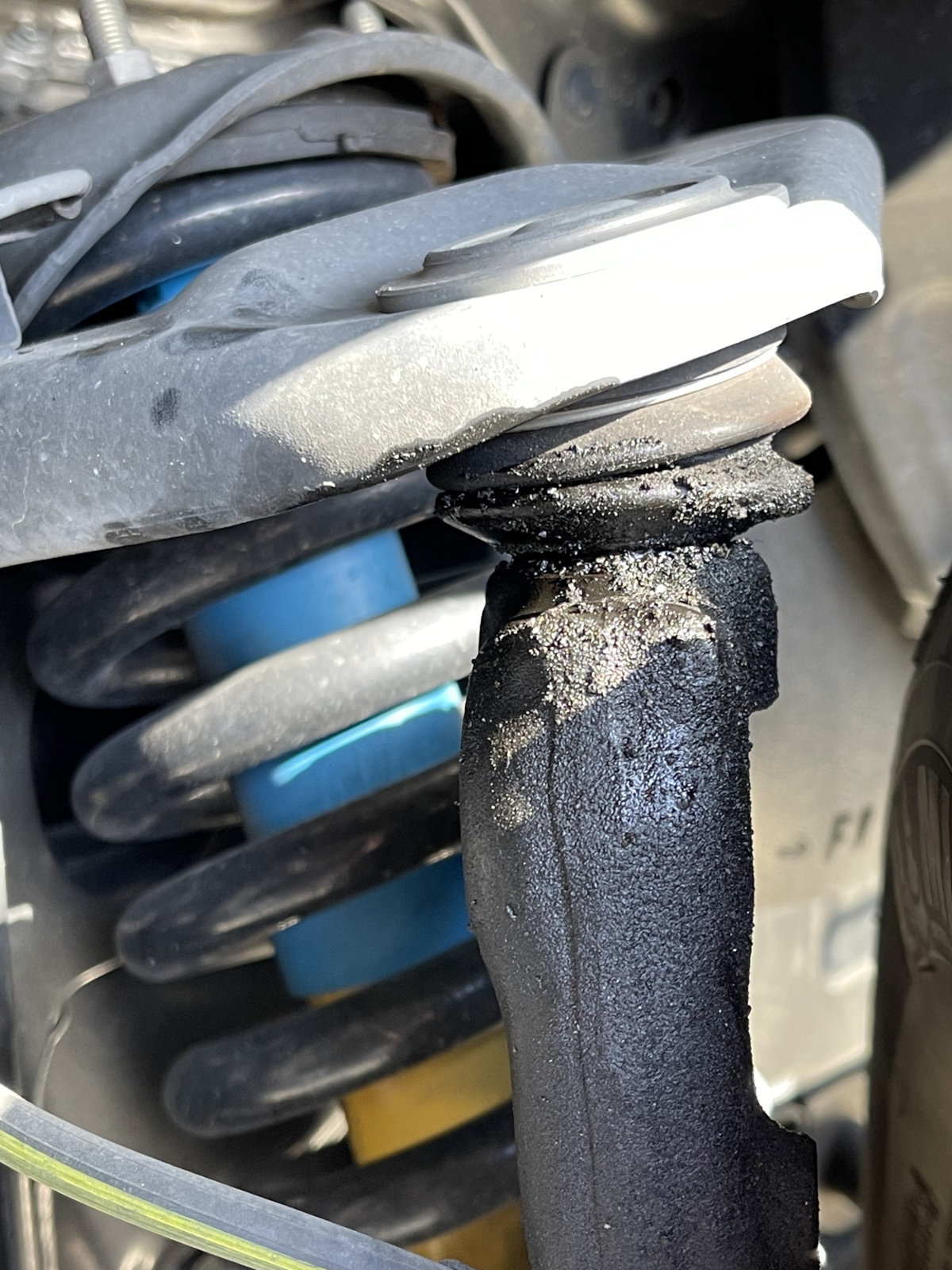

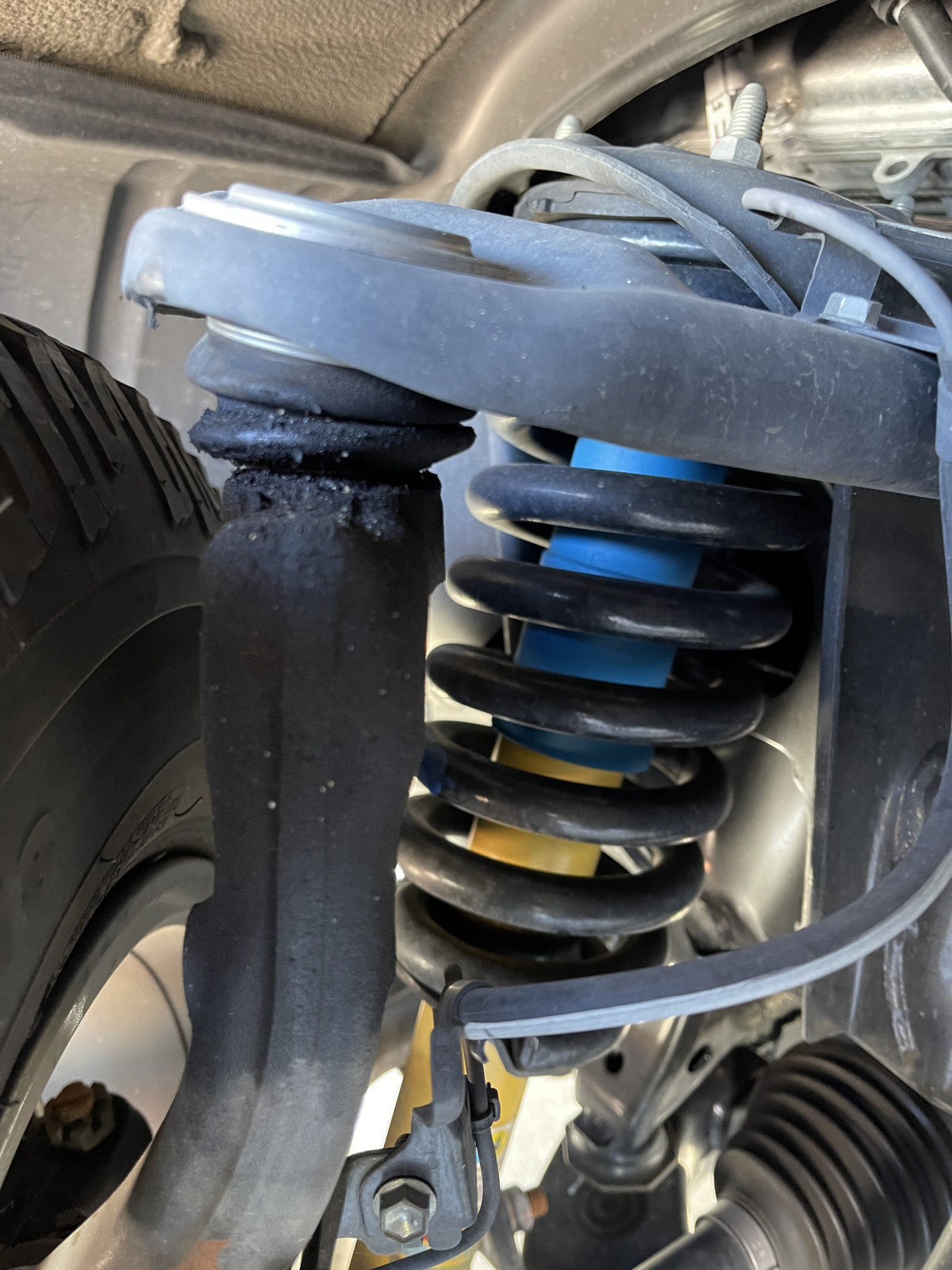

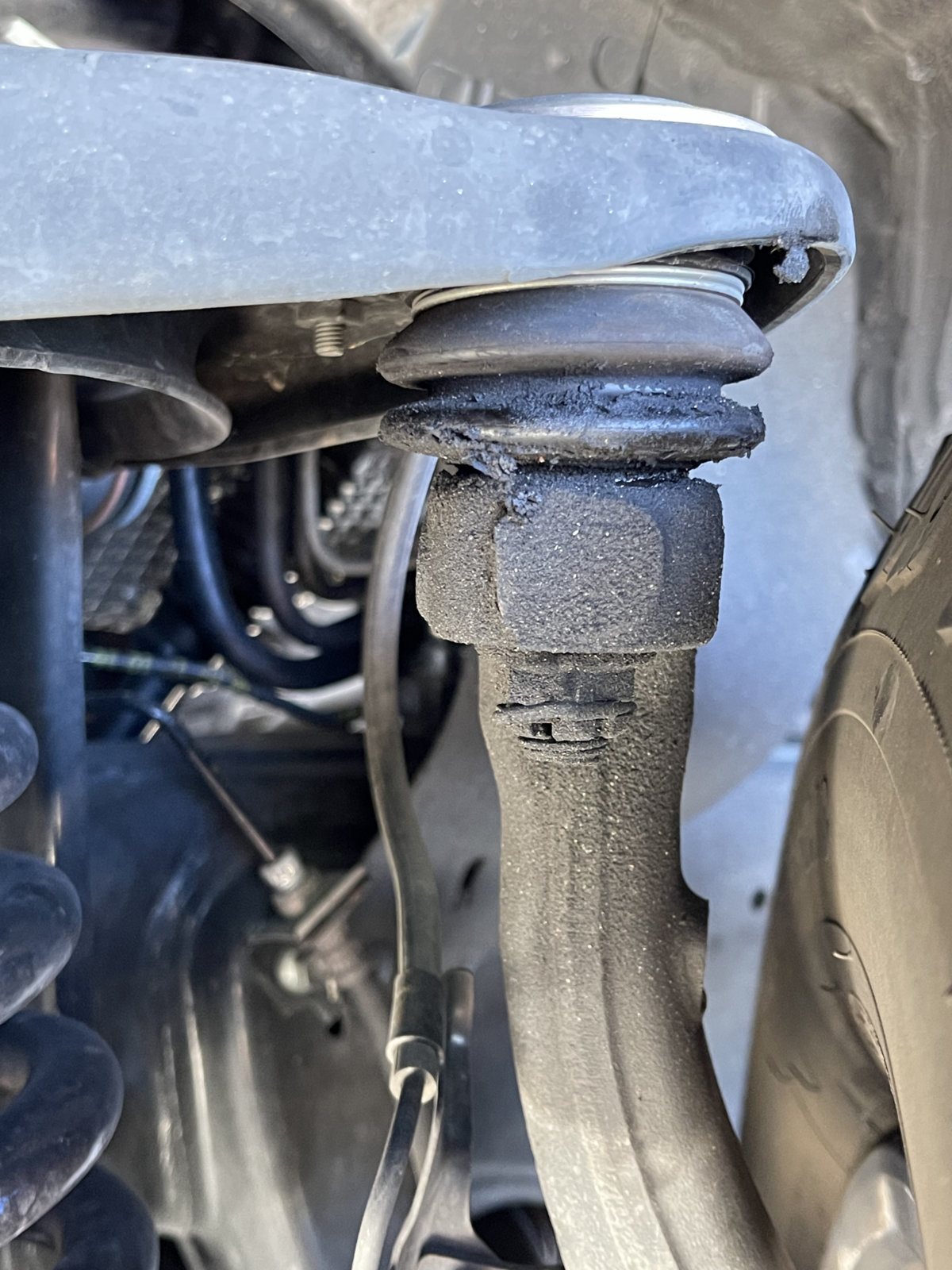

    Going through a divorce and money is tight. I was checking out my 2017 Toyota Tundra Crew Max 4x4 5.7L SR5 (which I'm hoping to not have to sell) and noticed that both Upper Control Arm bushings look like they're leaking. Not sure it's overspray from the U-joint because I don't see grease other places, but I'll leave that to the experts based on the photos of the left and right side.

    I do not have any aftermarket tires and/or lift kit. Totally stock. Photos are below before I wiped off the boots. I didn't see any tears when I checked.

    Is this normal and good to go?
    If not can I replace the grease or do I need new UCAs or some more troubleshooting I can do?

    Thank in advance,
    Not something I need at the moment.


    Attached Files:

    Last edited: Dec 8, 2023
  2. Dec 9, 2023 at 7:38 AM
    #2
    fallen0

    fallen0 New Member

    Joined:
    Apr 5, 2023
    Member:
    #95003
    Messages:
    133
    Gender:
    Male
    Minnesota
    Vehicle:
    2017 Tundra TSS OFF-ROAD, 2020 Mazda CX-5, 1997 Mazda Miata
    That is grease from the ball joint boot. While not ideal, it could be driven on for a while longer. You will ultimately need to replace the ball joint.

    My Subaru has the same issue. Leaky front lower ball joint boots. Still drives perfectly fine but I know one day they'll pop.
