2017 Non JBL Dash Center Speaker Wiring

Discussion in 'Audio & Video' started by tubal, Feb 20, 2019.

Post Reply

Feb 20, 2019 at 5:52 PM

#1

#1
tubal [OP] New Member

Joined:

Oct 30, 2018

Member:

#21137

Messages:

32

Gender:

Male

SLC, UT

Hi all,

I'm looking at swapping out my dash speakers, and had a question on the wiring on the center speaker.

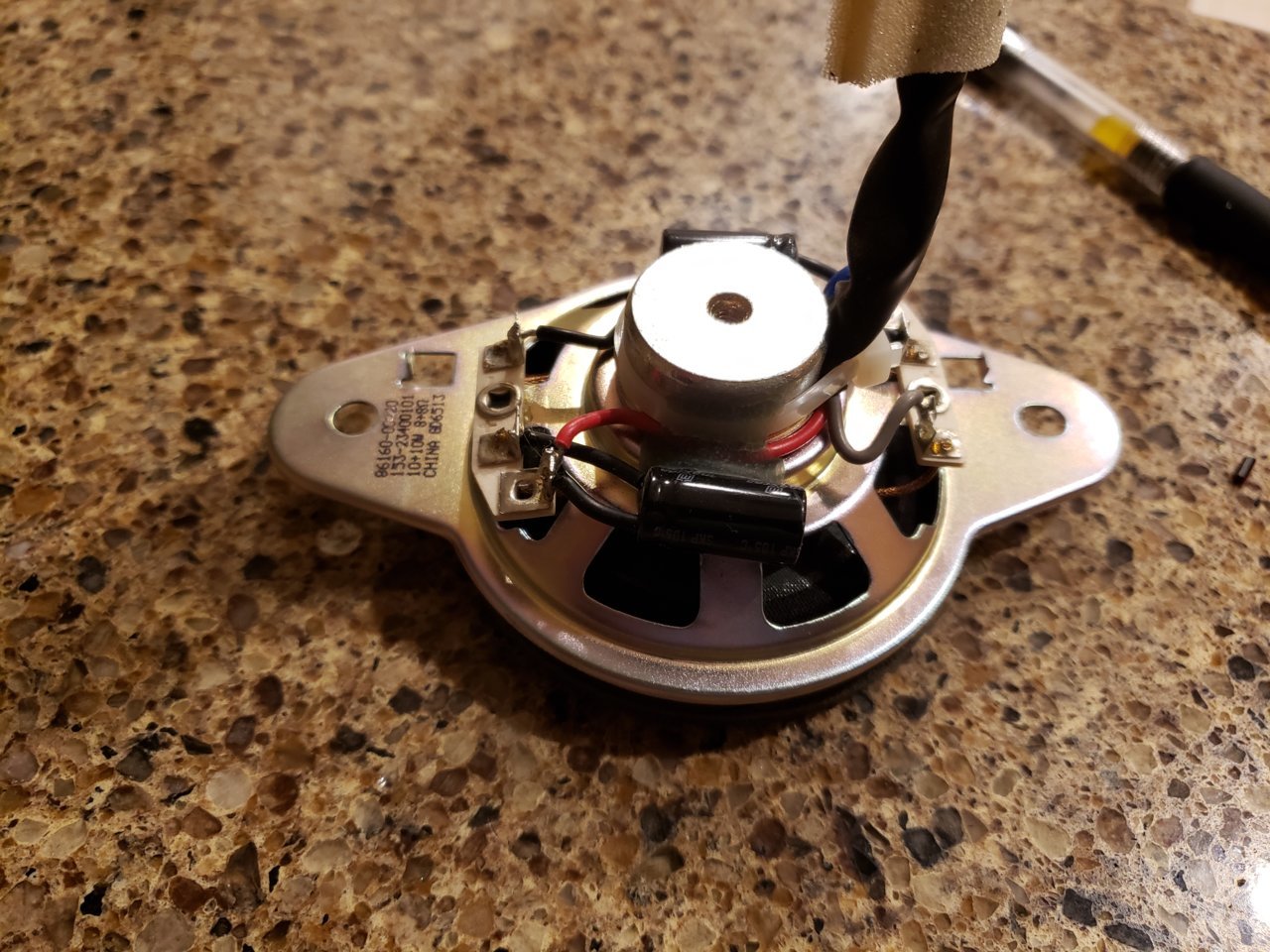

I pulled my center speaker out and it's got 4 wires going to it. 2 on each side of the speaker.

Can anyone help me with the wiring if I'm just going to a regular 3.5" speaker?

There is a red and black wire going to one side of the speaker, and a blue and grey wire going to the other side.

tubal, Feb 20, 2019

#1

Feb 20, 2019 at 6:11 PM

#2

#2
styx New Member

Joined:

Nov 21, 2016

Member:

#5297

Messages:

40

Gender:

Male

First Name:

Larry

Knoxville, TN

Vehicle:

2017 SR5 DC TRD Offroad Magnetic Grey

Raptor OEM Nerf Bars Leer Hard Tonnaeu Weathertech Vents Driver assist handle

It is a dual voice coil speaker. It is connected to both the left and right channels. You will have better stereo separation if you just unplug it and not replace it.

styx, Feb 20, 2019

#2

Feb 20, 2019 at 6:14 PM

#3

#3
tubal [OP] New Member

Joined:

Oct 30, 2018

Member:

#21137

Messages:

32

Gender:

Male

SLC, UT

Awesome. Thanks.
