2016 tundra Catalytic converter oxygen sensor Bank1 sensor2 wiring colors

Discussion in '2.5 Gen Tundras (2014-2021)' started by trantundra, Mar 24, 2021.

Post Reply

Mar 24, 2021 at 10:19 AM

#1

#1
trantundra [OP] New Member

Joined:

Apr 25, 2016

Member:

#3224

Messages:

4

Hi Guys,
Thieves took both of my 2016 Tundra catalytic converters and cut the oxygen wiring sensor.

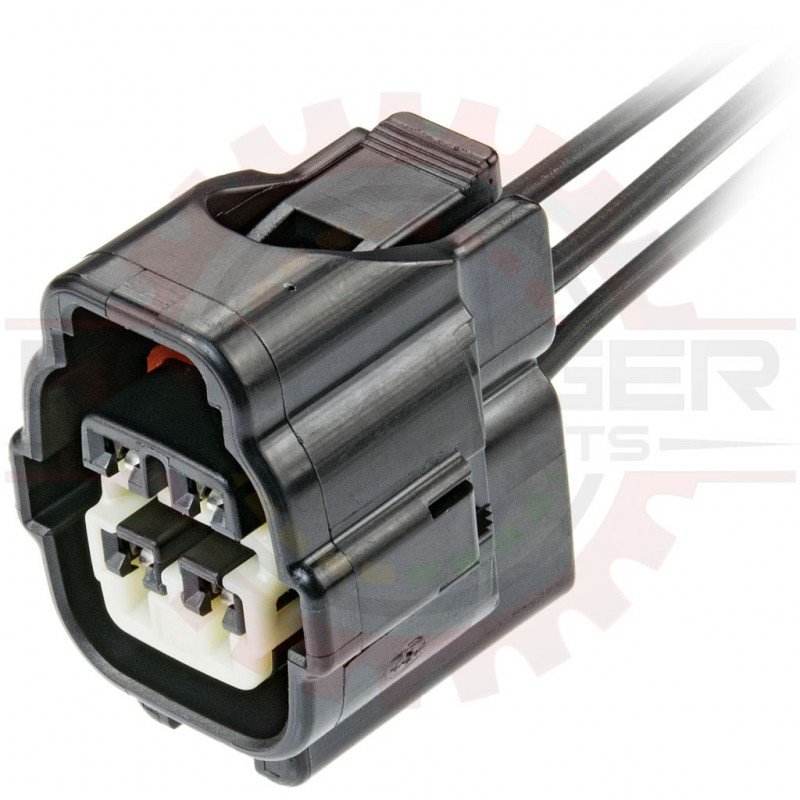

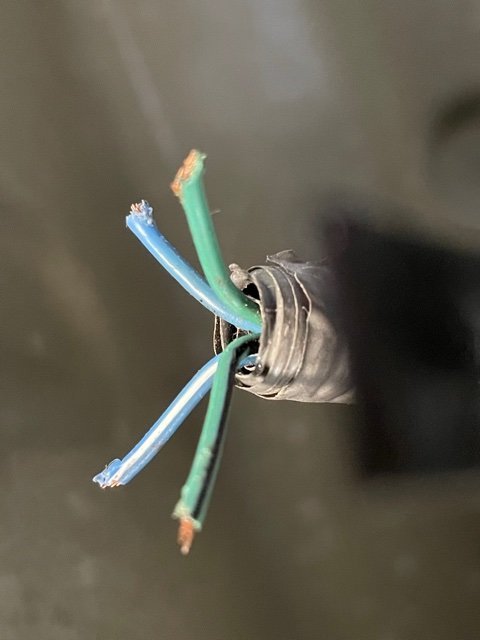

I need help to identify oxygen sensor wiring color of bank1 sensor2. OEM wiring has 4 wires Green, green/black, blue and blue/white. I brought a male plug all wires has same color as black, does anyones has knowledge of this wiring colors.
Thanks for your help!

trantundra, Mar 24, 2021

#1

Mar 24, 2021 at 11:32 AM

#2

#2
blackdemon_tt Battery Slayer

Joined:

Feb 27, 2020

Member:

#43241

Messages:

3,058

Gender:

Male

Vehicle:

2007 5.7l Tundra DC SR5 long bed 2wd

TRD Sway Bar, Roll covers USA bed cover

Hope this helps

https://www.yotatech.com/how-tos/a/toyota-tundra-how-to-replace-oxygen-o2-sensors-415383
https://youtu.be/CiOVORhfepg

blackdemon_tt, Mar 24, 2021
