2015 tundra Alternator plug

Discussion in '2.5 Gen Tundras (2014-2021)' started by Rose2015, Jan 8, 2023.

  1. Jan 8, 2023 at 4:47 PM
    #1
    Rose2015

    #1
    Rose2015 [OP] New Member

    Joined:
    Jan 8, 2023
    Member:
    #89986
    Messages:
    1
    Gender:
    Male
    First Name:
    James
    Started changing out my Alternator that went bad. When I was unplugging the connector my hand slip and Accidentally pull the wires out. Which color goes to which and what is a easy way to fix this.

    Rose2015, Jan 8, 2023
    #1
  2. Jan 8, 2023 at 5:06 PM
    #2
    Jeff_5_7

    #2
    Jeff_5_7 New Member

    Joined:
    Feb 20, 2021
    Member:
    #59378
    Messages:
    1,433
    Gender:
    Male
    First Name:
    Jeff
    Houston Tx Area
    Vehicle:
    2007 RCSB 2014+ TRD Pro Conversion 5.7 4x4
    Full 2014+ Conversion Regular Cab Short Bed 4X4 2019 TRD Pro Grill, 2014+ Front End Swap 2014+ Interior/Dash Swap with TRD Pro Leather Seats, 2014+ Bed Swap with TRD Pro Stamping SOS 2/4 Drop Kit
    I assume you mean the 4 pin connector? You should be able to "take apart" or "disassemble" the connector to slide the wires/terminals back in. IF the wires pulled out of the terminals, and the terminals are still in the connector it will be much harder to fix.

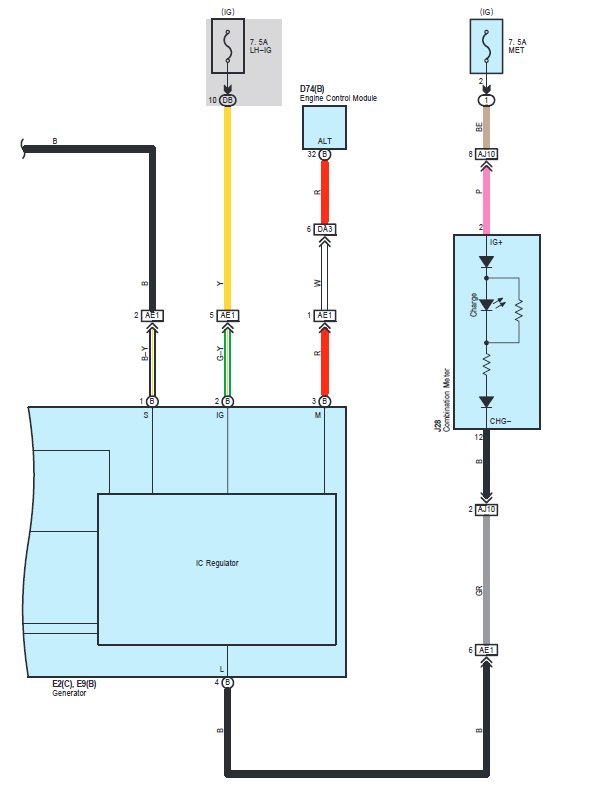

    Pin #1 Black/Yellow, to battery
    Pin #2 Green/Yellow, power in from fuse
    Pin #3 Red, Signal wire to ECM
    Pin #4 Black, Signal wire to Insturment Cluster



    Jeff_5_7, Jan 8, 2023
    #2
    EDDO likes this.
