2014 Blue Ribbon TRD Off Road Limited - TRD Supercharged!

Discussion in '2.5 Gen Builds (2014-2021)' started by busy13b, Dec 21, 2020.

  1. Dec 21, 2020 at 9:52 PM
    #1
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    Current State of Affairs:
    [​IMG]

    [​IMG]

    [​IMG]


    Performance:
    =================================
    • TRD Supercharger
    • TRD catback
    • Orange Virus tuning dongle (currently running factory TRD map)


    Protection:
    =================================
    • Chassis Unlimited front bumper, painted corners
    • Hooke Road rear bumper, painted corners
    • TRD front skid plate
    • P&P Engineering sliders (to be installed)

    Suspension:
    =================================
    • Bilstein B8 5100 f+r shocks
    • TRD rear sway bar
    • OEM Sequoia front sway bar
    • American Racing AR933 Intake wheels + Nitto Terra Grappler G2 275/65R20 tires


    Exterior:
    =================================
    • OEM LED headlights
    • Spyder LED tail lights
    • TRD Front skid plate
    • TRD front grille
    • Black badging
    • Bushwacker Fender Flares, painted
    • Shorty antenna
    • Front camera
    • Painted door handles


    Interior:
    =================================
    • OEM driver side A-pillar grab handle
    • OEM Toyota Corolla ('14) steering wheel w/ paddle shifters hooked up!!
    • OEM Toyota Highlander shift knob
    • OEM console wireless phone charger
    • JL Audio Sub Enclosure with two Infinity REF1000S
    • Infinity REF9632IX in front doors
    • JBL Club 65226.5 in rear doors
    • Tech12volts Center Dash Tweeters and Side Dash Midrange Speakers
    • Dash switch: front/rear cameras
    • Dash switch: (2-in-1) for front LED bar/spot Lights
    • Hyperteh 730119 Speedometer Calibrator to compensate for tire size

    Last edited: Jan 19, 2022
  2. Dec 21, 2020 at 9:57 PM
    #2
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    Been registered here for a little over a year, but mainly a lurker. A move halfway across the country last summer prompted me to sell my trusty Tacoma and move into more towing capability with a Tundra!


    It's been a wonderful upgrade over the Tacoma, which was wonderful in it's own right:

    [​IMG]



    Prior TRD-supercharged Trail Teams 6-speed FJ owner as well:
    [​IMG]



    And here we are, the way I picked her up (2014, Blue Ribbon TRD Offroad with the Limited package) Let the BUILD BEGIN!
    [​IMG]

    BlueRibbon4x4 likes this.
  3. Dec 21, 2020 at 10:19 PM
    #3
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    More stock pictures:

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Dec 21, 2020
    BlueRibbon4x4 likes this.
  4. Dec 21, 2020 at 10:19 PM
    #4
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    First thing I did was add 20" TRD Sport wheels (they had the darker spoke insert coloring) and OEM-style black running boards:

    [​IMG]


    [​IMG]

    Last edited: Dec 13, 2021
    BlueRibbon4x4 likes this.
  5. Dec 21, 2020 at 10:21 PM
    #5
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    NEXT UP: TRD rear sway bar:

    [​IMG]

    [​IMG]

    Last edited: Dec 14, 2021
    BlueRibbon4x4 likes this.
  6. Dec 13, 2021 at 12:23 PM
    #6
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    Next was the TRD grille:

    [​IMG]

    BlueRibbon4x4 likes this.
  7. Dec 13, 2021 at 3:17 PM
    #7
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad

    Thank you!

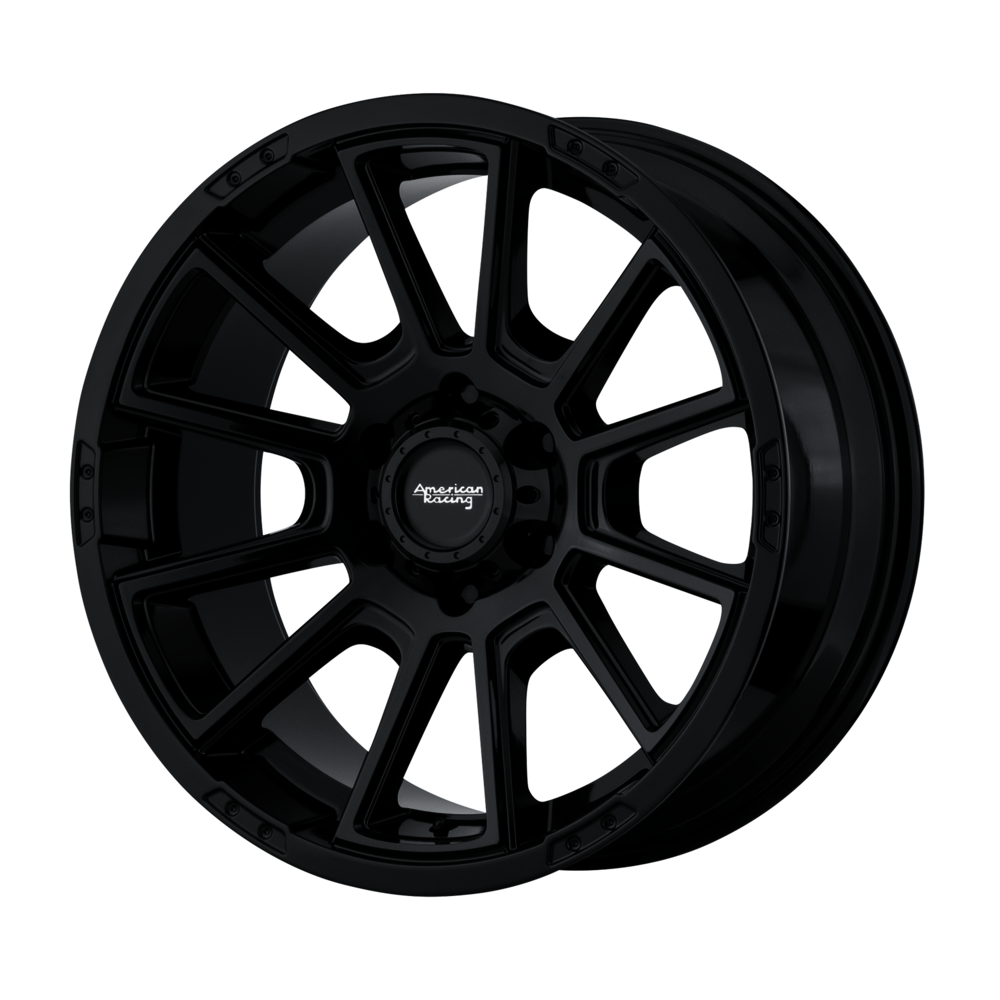

    They are the American Racing AR933 Intake wheels, in 20x9, +18mm offset:

    [​IMG]

    I got them specifically because they resemble the stock "off-road package" wheels, yet with a more aggressive stance. My entire build philosophy is "OEM+"

  8. Dec 14, 2021 at 9:51 AM
    #8
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    Fitting the Bushwacker fender flares and wheels
    ==============================

    Before:

    [​IMG]

    After:
    [​IMG]

    BlueRibbon4x4 likes this.
  9. Dec 14, 2021 at 9:53 AM
    #9
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    JL Audio Sub Enclosure:
    [​IMG]

    BlueRibbon4x4 likes this.
  10. Dec 14, 2021 at 10:09 AM
    #10
    Bikeric

    Bikeric New Member

    Joined:
    Dec 29, 2020
    Member:
    #56779
    Messages:
    399
    Gender:
    Male
    First Name:
    Eric
    Vehicle:
    2007 DC 5.7
    Blown Engine.....
    Is that an MR2? If so, I wonder if it's my old girl....
    [​IMG]

  11. Dec 14, 2021 at 10:47 AM
    #11
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    Wow, what a FANTASTIC looking MR2!! My favorite color by far! The Volk wheels look great! What all had you done to her?

    No, that car on the trailer is my 1994 RX-7, shortly after I got it, when it still had the old school RE Amemiya Ad Facer front. It's been since removed and brought back to stock. :)

    Originally:
    [​IMG]

    kuokoa likes this.
  12. Dec 14, 2021 at 10:56 AM
    #12
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    OEM Toyota Corolla steering wheel, Highlander shift knob and Tundra center console charger:
    [​IMG]

    BlueRibbon4x4, TTracer and biebs96 like this.
  13. Dec 14, 2021 at 11:05 AM
    #13
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    The Corolla steering wheel is a GREAT upgrade for several reasons:
    • Slightly smaller diameter
    • All functions remain the same as stock - button for button match
      • In particular, the volume controls are now much easier to access, instead of that awkward move your hand has to make with the stock button placement

    • Steering wheel control backlighting is same color as the Tundra
    [​IMG]
    [​IMG]

    [​IMG]
    [​IMG]

    Some basic wiring is required in order to add functionality to the paddle shifters, but it's quite simple.

    Last edited: Feb 15, 2022
    BlueRibbon4x4 and TTracer like this.
  14. Dec 14, 2021 at 11:15 AM
    #14
    biebs96

    biebs96 my other truck is a big brown truck

    Joined:
    Jul 30, 2019
    Member:
    #33915
    Messages:
    2,229
    Gender:
    Male
    PA
    Vehicle:
    2017 Sunset Bronze TRD Crewmax 4x4
    I love the Corolla steering wheel idea. Was everything else plug and play? I’d assume then just running wires to the console shifter for the paddles?

    I bet this forum would love to see a write up and photos of that!

    ForceV4 likes this.
  15. Dec 14, 2021 at 11:41 AM
    #15
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    One of these days, I'll try and get an actual tutorial written. It's a relatively simple procedure that requires running a few new wires, and tapping into existing wires.

    I got the idea from here (second gen procedure) and the basics are the same with some minor differences since 2nd and 2.5 gen clockspring plugs are different:

    • Pop off the rear plastic covers of both steering wheels.
    • Unplug the Tundra button harness (two connectors)
    • Unplug the Corolla button harness (two connectors)
    • Plug in your Tundra harness to the Corolla wheel
    • Since the Tundra clockspring does not come pre-wired for the additional paddle wires, you have to do the following:
      • De-pin the three wires from the paddle shifters plug in the steering wheel.
        • Three wires coming from the paddles are ground, shift up, shift down
          • Ground wire gets grounded anywhere on the steering wheel metal structure
          • Add the Shift Up pin to an open slot of your clock spring plug
          • Add Shift Down pin to another other open slot of your clock spring.
    • Taking off the lower cover of the steering column
      • On the right side, under the ignition, you expose the "output" plug of the clock-spring.
        • Add two new pigtail wires (only two open slots) (Toyota part number 82998-12870 or 82998-12860)
    • Run those wires under your dash to the center console area, where transmission wiring is.
      • Tap into the Shift Up wire using your favorite electrical wire tap/connector.
      • Tap into the Shift Down wire using your favorite electrical wire tap/connector.

    Last edited: Jan 10, 2022
  16. Jan 8, 2022 at 10:15 PM
    #16
    TTracer

    TTracer New Member

    Joined:
    Dec 23, 2020
    Member:
    #56570
    Messages:
    22
    Gender:
    Male
    First Name:
    Daniel
    California
    Vehicle:
    2014 black tundra LT
    -Long travel -King Shocks all around with valving -paddle shifters -cutting brake with wilwood brakes -dap tune - custom front bumper -switch pros - gps - race radio -custom 3rd brake light - ultra wheel-
  17. Jan 12, 2022 at 12:23 AM
    #17
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    Nice work @TTracer - looks like you were able to retrofit paddle shifters to the stock steering wheel! Did you have any issues wiring them up?

    TTracer likes this.
  18. Jan 12, 2022 at 4:39 AM
    #18
    YouFallWeHaul

    YouFallWeHaul New Member

    Joined:
    Dec 28, 2021
    Member:
    #72360
    Messages:
    17
    Gender:
    Male
    Vehicle:
    2010 Marine Blue DC 4x4
    Does your setup use the Tundra airbag unit? Does that fit in the Corolla wheel?

    I am not sure if I am overthinking this but I would wonder if the Corolla airbag is the same size/shape to be effective in a Tundra.

  19. Jan 12, 2022 at 8:37 AM
    #19
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad

    It's the Corolla airbag - Tundra's airbag is a different EXTERNAL size and wouldn't fit in the Corolla steering wheel frame.

    You're overthinking it - Corollas drivers are the same size/shape as Tundra drivers. :)

  20. Jan 12, 2022 at 8:58 AM
    #20
    bigblue14

    bigblue14 New Member

    Joined:
    Jul 21, 2018
    Member:
    #17242
    Messages:
    385
    Gender:
    Male
    First Name:
    Craig
    Vehicle:
    2014 Blue Platinum 4x4
    TRD Exhaust TRD Rear Sway Bar Factory Towing Mirrors Hawk LTS Pads w/ Centric Rotors ESP Underseat Storage
    Nice but more RX-7 pictures please! I had an 87 Turbo II and regret parting with it. There were a few missed opportunities to get a 3rd gen!

  21. Jan 12, 2022 at 5:49 PM
    #21
    TTracer

    TTracer New Member

    Joined:
    Dec 23, 2020
    Member:
    #56570
    Messages:
    22
    Gender:
    Male
    First Name:
    Daniel
    California
    Vehicle:
    2014 black tundra LT
    -Long travel -King Shocks all around with valving -paddle shifters -cutting brake with wilwood brakes -dap tune - custom front bumper -switch pros - gps - race radio -custom 3rd brake light - ultra wheel-
    No problem just took time

  22. Jan 13, 2022 at 3:58 PM
    #22
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    Gotta love the 7s!! How long did you own your TII? In many ways, I think the TIIs are perhaps most under appreciated out of all the generations.

    As nice MKIV Supras are well into 6-figure territory these days, it's been nice to see RX-7s starting to get some love by the collector market as well!

    I really don't have a lot of good pictures, but this how she looked when I initially got the car:
    [​IMG]

    And now:

    [​IMG] [​IMG]
    [​IMG]

    GAknight, Toondra and TTracer like this.
  23. Jan 16, 2022 at 1:20 PM
    #23
    W3agle

    W3agle New Member

    Joined:
    Apr 24, 2021
    Member:
    #62253
    Messages:
    258
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2016 White Tundra SR5 TRD Off-Road
    I would love to do this. Any tips on ensuring the Corolla steering wheel will be compatible with my tundra?

  24. Jan 19, 2022 at 1:07 AM
    #24
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    Make sure you get a steering wheel from a 2014-2019 Corolla, and that it has all the buttons you see in the pictures here. I believe the low-spec cars did not have leather wrapped wheels, or as many functions.

  25. Jan 21, 2022 at 8:56 AM
    #25
    W3agle

    W3agle New Member

    Joined:
    Apr 24, 2021
    Member:
    #62253
    Messages:
    258
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2016 White Tundra SR5 TRD Off-Road
    Just ordered a 2016 Corolla steering wheel off ebay w/ paddle shifter! Excited to try this mod while I'm installing my auto headlights :D

  26. Jan 29, 2022 at 1:41 PM
    #26
    W3agle

    W3agle New Member

    Joined:
    Apr 24, 2021
    Member:
    #62253
    Messages:
    258
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2016 White Tundra SR5 TRD Off-Road
    Alright I've been planning this out. I have the steering wheel and everything. I've read the post you linked. A couple questions if anyone can help me out...

    On the right side, under the ignition how do I know which pin is for shift up vs. shift down? @busy13b states I'll only have two pins open, and sounds like just plug them into either. I think that was just a detail they skimmed over in this abbreviated summary. Because when I get over to the transmission wiring I need to know which wire I'm splicing into. The other post states pretty clearly that:
    • splice the wire from pin 10 of the spiral cable into the light green wire coming out of pin 1 of the transmission shifter connector
    • splice the wire from pin 9 of the spiral cable into the yellow wire coming out of pin 2 of the transmission shifter connector
    I'm sure the proper way for me to do this is to find the wiring diagrams, but I haven't even begun to look into that.

    The 2nd gen procedure also seems a little different than what busyb did here. If I'm reading correctly, the corolla steering wheel had a separate connector for the paddle shifters. And we're popping those wires out of that connector and putting the shift up/down into the clock spring inside the steering wheel. Based on these instructions it seems to not matter which pin you plug into. The link to the second gen procedure skips by that discussion altogether. Makes it sound like the 2nd gen had the connectors already for the paddle shifters or something.

    Either way, I'll be taking it apart tomorrow to get eyes on everything and maybe I'll solve my problems. Will follow up!

  27. Feb 1, 2022 at 7:28 AM
    #27
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad

    Ultimately, the paddles work this way: when you pull back the paddle, you are actually sending a ground signal to the transmission wiring. The "up shift" and down shift" transmission wires have a 12v switched signal on by default. So when you pull the "up shift" paddle, it grounds the "up shift wire," thereby signaling the transmission ECU to make the up shift.

    So to install, think of it this way:

    The focus is the three wires for the paddle shifters.

    The ground wire is easy, since that gets grounded to the steering wheel itself.

    Next, you are simply running the other two wires all the way down to the transmission area, where you ultimately tap into the "up shift" and down shift" wires. In order to get there, you are first going into the clock spring plug at the steering wheel, then out the clock spring output (under the steering column) and then to the shifter area.

    Check continuity at your clock spring steering wheel pin to under the steering column pin, so you know that you have the pins matched up correctly.

    I promise, I'll get some pictures taken and respond back with wire colors to make it easier to follow.

  28. Feb 15, 2022 at 5:34 PM
    #28
    busy13b

    busy13b [OP] New Member

    Joined:
    Jul 5, 2019
    Member:
    #32826
    Messages:
    61
    Gender:
    Male
    Vehicle:
    2014 Tundra Double Cab Limited TRD Offroad
    W3agle likes this.

Products Discussed in

To Top
