2008 Tundra flip down monitor Connector questions

Discussion in '2nd Gen Tundras (2007-2013)' started by rsttoole, Apr 25, 2021.

Post Reply

Apr 25, 2021 at 10:42 AM

#1

#1
rsttoole [OP] New Member

Joined:

Feb 17, 2020

Member:

#42760

Messages:

17

Gender:

Male

First Name:

Randy

Boise

Vehicle:

2008 Tundra Limited

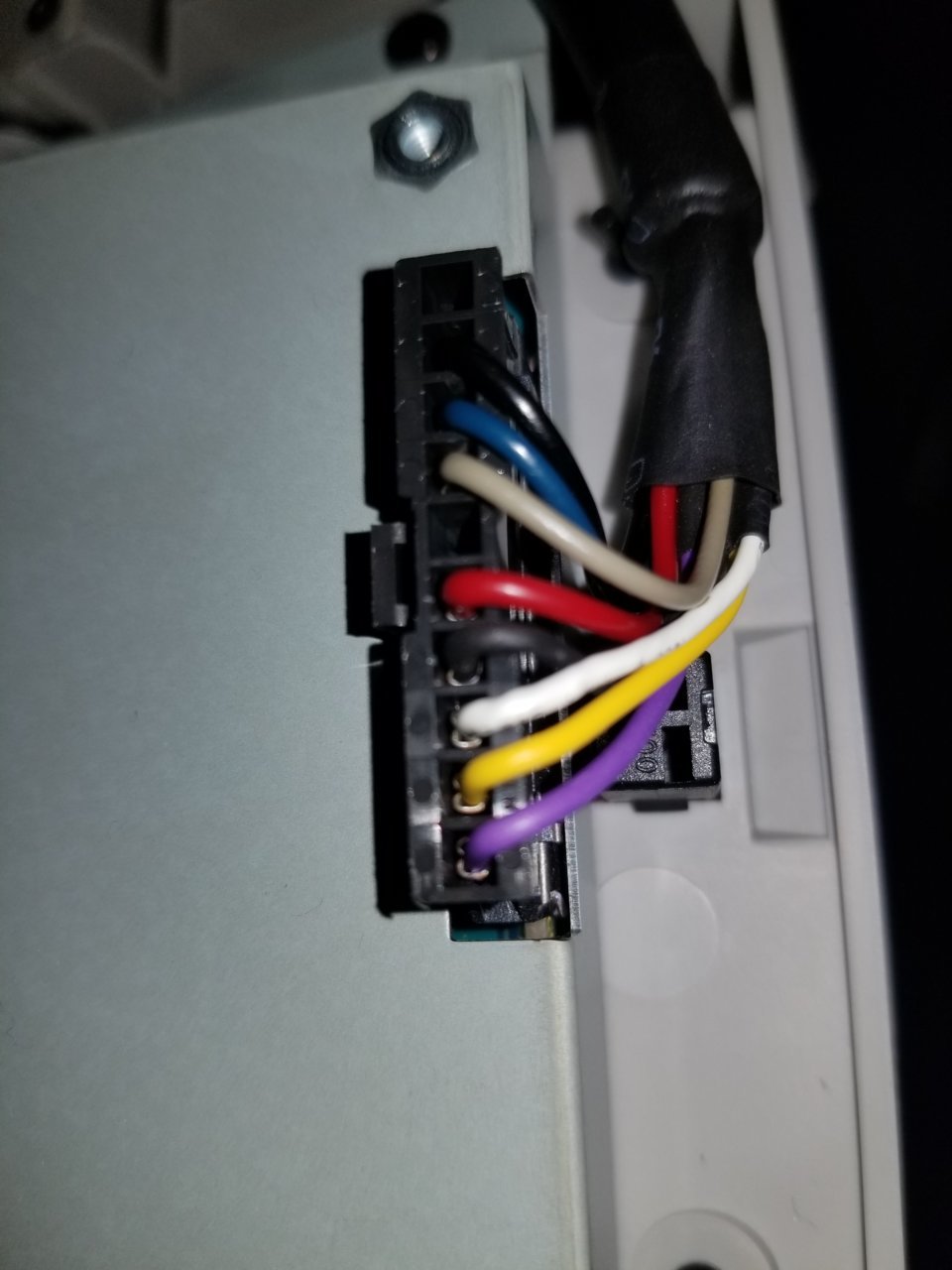

I am getting ready to install an after market HU with a built in display for the back up camera. I currently have the small flip down monitor. I opened it up today and took a picture of the connector. I cant find a picture or diagram that matches the wiring I have. Can anyone tell me wires all are? I want to tap into the correct wires to run the feed down to the new HU.

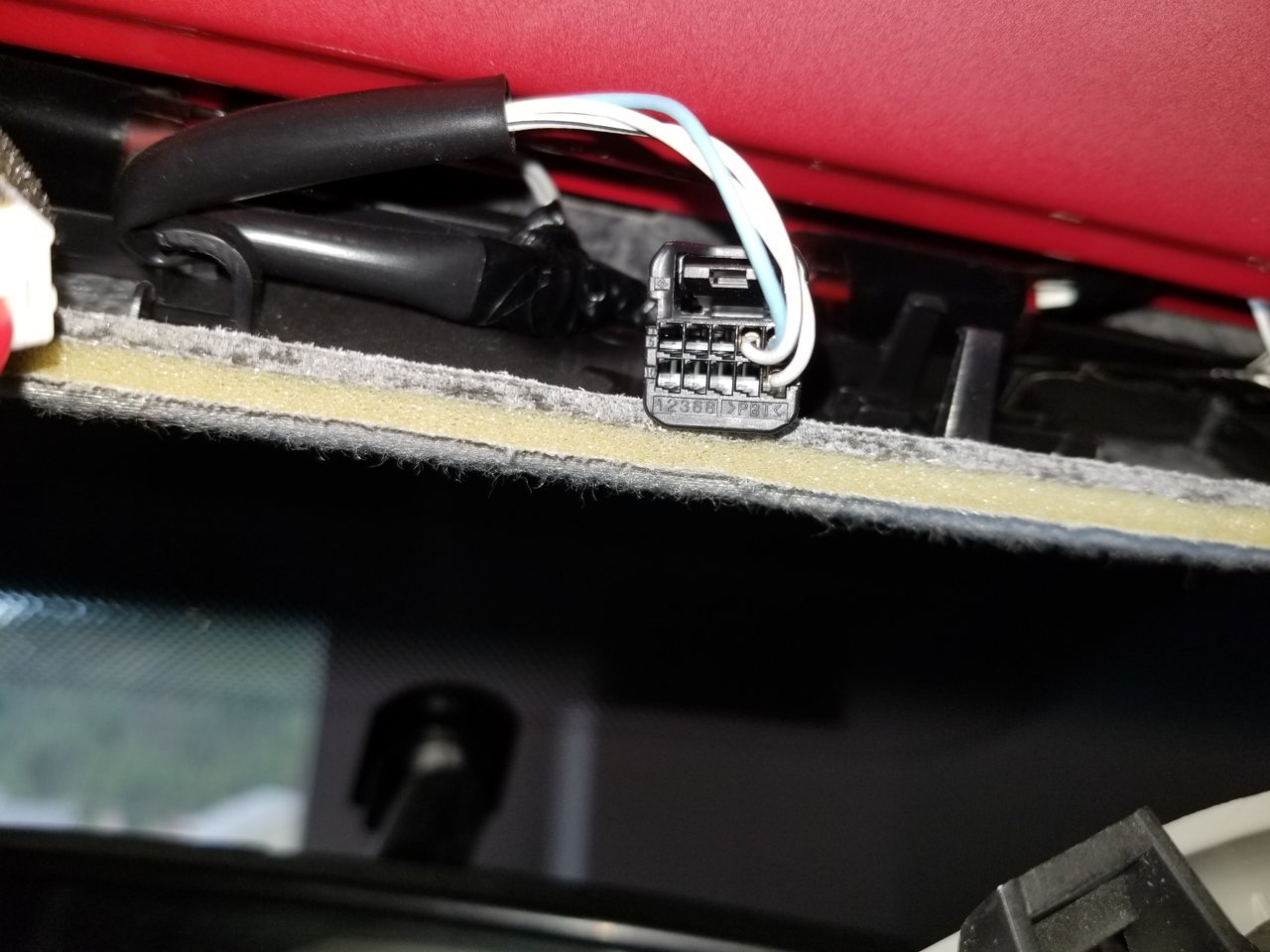

I also found an unused plug that has three wires in in (second picture) Anyone know what this plug may be used for? Maybe something like a home link mirror maybe?

I did locate the blue reverse signal wire behind the passenger side kick panel

rsttoole, Apr 25, 2021
