2007 to 2016 (3rd Gen) Front End Conversion on my RCSB

Discussion in '2nd Gen Tundras (2007-2013)' started by Jeff_5_7, Mar 22, 2021.

  1. Mar 22, 2021 at 11:30 AM
    #1
    Jeff_5_7

    Jeff_5_7 [OP] New Member

    Joined:
    Feb 20, 2021
    Member:
    #59378
    Messages:
    1,390
    Gender:
    Male
    First Name:
    Jeff
    Houston Tx Area
    Vehicle:
    2007 RCSB 2014+ TRD Pro Conversion 5.7 4x4
    Full 2014+ Conversion Regular Cab Short Bed 4X4 2019 TRD Pro Grill, 2014+ Front End Swap 2014+ Interior/Dash Swap with TRD Pro Leather Seats, 2014+ Bed Swap with TRD Pro Stamping SOS 2/4 Drop Kit
    So I converted the front end of my 2007 RCSB to the newer 3rd gen style over the weekend. I have gotten quite a few questions, so I decided to type this up to share my experience.

    First here are some before and after photos of my truck. I added the white hood bulge and white 2019 TRD Pro grill from Sparks. To say I love the look would be an understatement. It came out even better than I had envisioned.

    RF Corner.jpg Front.jpg LF Corner.jpg Right Side.jpg

  2. Mar 22, 2021 at 11:30 AM
    #2
    Jeff_5_7

    Jeff_5_7 [OP] New Member

    Joined:
    Feb 20, 2021
    Member:
    #59378
    Messages:
    1,390
    Gender:
    Male
    First Name:
    Jeff
    Houston Tx Area
    Vehicle:
    2007 RCSB 2014+ TRD Pro Conversion 5.7 4x4
    Full 2014+ Conversion Regular Cab Short Bed 4X4 2019 TRD Pro Grill, 2014+ Front End Swap 2014+ Interior/Dash Swap with TRD Pro Leather Seats, 2014+ Bed Swap with TRD Pro Stamping SOS 2/4 Drop Kit
    As far as the process:

    So far this is one of the best write ups I have seen: For parts I bought and entire 2016 Front clip so I that I knew I would have everything need and them some.File_003.jpg

    1) Hood is a direct bolt on. I used the 2016 hinges just because I had them, but my old ones would have worked also

    2) Fenders, 95% direct bolt on. You must add a standoff bracket at the hole nearest the headlight. I drilled mine into place and secured it with machine screws with nylon locking nuts. All the other bolt locations lined up fine EXCEPT the middle on the top of the fender. Mine is just an empty hole at the moment on both sides.File_006.jpg

    3) Grill/Radiator Support was straight forward. The biggest thing is you need to remove and replace the “wing” brackets on the core support that tie in the fender, headlight, filler panel together. I drilled out the spot welds on mine and used machine screws again to secure it.
    File_007.jpg File_008.jpg File_009.jpg

    4) Headlights/Filler Panels. Direct bolt if you swapped of the new retainer brackets that go along the bottom of the grill.

    5) Front Bumper I bought a 2016 TRD Pro pull of bumper from marketplace. It directly bolted to the 4 studs at the front my frame rails. 8 bolts total and the front bumper was done.


    Issues so far.

    I had to remove my factory transmission cooler. The grill will not fit over it and no way I was going to cut a brand new TRD Pro grill.

    Wiring, all the connectors on the headlights and fog lights are slightly different. I am working on swapping and repining them all over so my truck will have a 2007 harness with the 2016 connectors for the lights.

    Hood latch, the 2007 hood latch works perfectly fine except now I do not have a safety catch. The 07-13 style trucks have the release lever at the bottom of the grill. The 2014+ ones have the release lever built into the latch up top. The new latch will not directly bolt on the older core support without some cutting.

    Last edited: Mar 22, 2021
    Wynnded, bleach, Skew12 and 3 others like this.
  3. Mar 22, 2021 at 11:39 AM
    #3
    blackdemon_tt

    blackdemon_tt Battery Slayer

    Joined:
    Feb 27, 2020
    Member:
    #43241
    Messages:
    2,715
    Gender:
    Male
    Vehicle:
    2007 5.7l Tundra DC SR5 long bed 2wd
    TRD Sway Bar, Roll covers USA bed cover
    Damn, that thing looks good..... I've thought of this for my bedsides, since my old snow chains made quick work of them...... might as well follow your lead and upgrade.

  4. Mar 22, 2021 at 11:42 AM
    #4
    Jeff_5_7

    Jeff_5_7 [OP] New Member

    Joined:
    Feb 20, 2021
    Member:
    #59378
    Messages:
    1,390
    Gender:
    Male
    First Name:
    Jeff
    Houston Tx Area
    Vehicle:
    2007 RCSB 2014+ TRD Pro Conversion 5.7 4x4
    Full 2014+ Conversion Regular Cab Short Bed 4X4 2019 TRD Pro Grill, 2014+ Front End Swap 2014+ Interior/Dash Swap with TRD Pro Leather Seats, 2014+ Bed Swap with TRD Pro Stamping SOS 2/4 Drop Kit
    I am in the process of buying a 2014+ 6.5 Foot bed off of a double cab. It is my understanding it will basically bolt in place, then with taillights and a rear bumper I will have a 2014+ RCSB all the way around. I have my eyes on a TRD Pro Stamped bed (the dream) its just so expensive to get it shipped to me.

    Bed swap is coming soon hopefully. Then a full respray to make everything a nice new matching white.

  5. Mar 22, 2021 at 11:43 AM
    #5
    Jrharvey02

    Jrharvey02 New Member

    Joined:
    Sep 25, 2018
    Member:
    #19822
    Messages:
    1,114
    Gender:
    Male
    Colorado
    Vehicle:
    2010 Tundra CM 5.7 Platinum Dark Black
    Nice work. And you inadvertently figured out why they removed the transmission cooler from the 3rd gens! Double nice work!

  6. Mar 22, 2021 at 11:45 AM
    #6
    Jeff_5_7

    Jeff_5_7 [OP] New Member

    Joined:
    Feb 20, 2021
    Member:
    #59378
    Messages:
    1,390
    Gender:
    Male
    First Name:
    Jeff
    Houston Tx Area
    Vehicle:
    2007 RCSB 2014+ TRD Pro Conversion 5.7 4x4
    Full 2014+ Conversion Regular Cab Short Bed 4X4 2019 TRD Pro Grill, 2014+ Front End Swap 2014+ Interior/Dash Swap with TRD Pro Leather Seats, 2014+ Bed Swap with TRD Pro Stamping SOS 2/4 Drop Kit
    My research shows that the 2007-2010 trucks (mine) have the small external rectangle transmission cooler. Rumors are this was done away with in 2010 and that became integrated into the radiator.

    My old style external one (you can see in the photo above) was in the way of the new grill.

    Jrharvey02[QUOTED] likes this.
  7. Mar 22, 2021 at 12:22 PM
    #7
    Rex Kramer

    Rex Kramer Vinyl Spinner

    Joined:
    Apr 9, 2017
    Member:
    #7181
    Messages:
    6,614
    Gender:
    Male
    Georgia
    Vehicle:
    2002 4.7L RCLB 4X4 2007 5.7L RCSB 4X2
    Looking good!

    Location?

    The bed is the worst part of my 2007 RCSB, what condition is your original bed in?

  8. Mar 22, 2021 at 12:24 PM
    #8
    WSDMetal

    WSDMetal Motorsports Fabrication & Design

    Joined:
    Feb 22, 2021
    Member:
    #59470
    Messages:
    141
    Gender:
    Male
    Huntington Beach
    Looks great!

  9. Mar 22, 2021 at 12:27 PM
    #9
    Jeff_5_7

    Jeff_5_7 [OP] New Member

    Joined:
    Feb 20, 2021
    Member:
    #59378
    Messages:
    1,390
    Gender:
    Male
    First Name:
    Jeff
    Houston Tx Area
    Vehicle:
    2007 RCSB 2014+ TRD Pro Conversion 5.7 4x4
    Full 2014+ Conversion Regular Cab Short Bed 4X4 2019 TRD Pro Grill, 2014+ Front End Swap 2014+ Interior/Dash Swap with TRD Pro Leather Seats, 2014+ Bed Swap with TRD Pro Stamping SOS 2/4 Drop Kit
    I am in Texas, around Houston area. My original bed is straight with no major dings or dents. It has a spray in bed liner also. The paint is kind of dull and dirty. It could use a good white respray to shine nice again. The previous owner had a bed cover on it that rub a line in the top of the tailgate where the paint is now gone.

    1.jpg 2.jpg 3.jpg 4.jpg

    Rex Kramer[QUOTED] likes this.
  10. Mar 22, 2021 at 6:07 PM
    #10
    Half Assed

    Half Assed me ne frego

    Joined:
    Jul 6, 2020
    Member:
    #48947
    Messages:
    854
    Heartland Florida
    Vehicle:
    10 crewmax
    I dont care much for the 3rd gen styling, but it does look way better on a single cab. Nice work.

    Wynnded likes this.
  11. Mar 22, 2021 at 8:37 PM
    #11
    Jwood562

    Jwood562 New Member

    Joined:
    May 29, 2019
    Member:
    #31174
    Messages:
    888
    Gender:
    Male
    Vehicle:
    2013 Tundra 4x4
    3" Suspension lift 18" method roost 35x12.5x18 ridge grapplers 2020 sequoia LED headlights
    Wow very well done! I’m not a huge fan of the 3rd gen front end but I can appreciate the work and craftsmanship.

    now I think the bed swap would be awesome!

    I can confirm that the transcooler was moved to lower in front of the radiator on my 2013

  12. Apr 1, 2021 at 7:00 PM
    #12
    Retroboy1989

    Retroboy1989 'Course it's 4x4!

    Joined:
    Mar 9, 2021
    Member:
    #60209
    Messages:
    1,054
    Gender:
    Male
    Northern Utah
    Vehicle:
    2012 DC 4x4 5.7 SR5 TRD OR Barcelona
    Snug top 20" TRD Sport wheels 275/60R20 Tires Additional Trans Cooler
    What did you do with your tow mirrors? :D

  13. Apr 1, 2021 at 7:07 PM
    #13
    bleach

    bleach MEME Fiend

    Joined:
    Jan 19, 2020
    Member:
    #41465
    Messages:
    1,405
    Gender:
    Male
    First Name:
    DJ
    Battle Ground, WA
    Vehicle:
    1991 White Xtra-cab SR5 4X4 V6 5 speed 148K
    I like the look of the "3rd" gen better than the 2nd gen. The old bed doesn't look too odd with the newer front end and that's only because I'm well aware of the differences. Anyone else might not really notice.

  14. Apr 1, 2021 at 7:10 PM
    #14
    Jeff_5_7

    Jeff_5_7 [OP] New Member

    Joined:
    Feb 20, 2021
    Member:
    #59378
    Messages:
    1,390
    Gender:
    Male
    First Name:
    Jeff
    Houston Tx Area
    Vehicle:
    2007 RCSB 2014+ TRD Pro Conversion 5.7 4x4
    Full 2014+ Conversion Regular Cab Short Bed 4X4 2019 TRD Pro Grill, 2014+ Front End Swap 2014+ Interior/Dash Swap with TRD Pro Leather Seats, 2014+ Bed Swap with TRD Pro Stamping SOS 2/4 Drop Kit
    Sold to a local guy two weeks ago... sorry

  15. Apr 1, 2021 at 7:16 PM
    #15
    Tundra234

    Tundra234 New Member

    Joined:
    Nov 30, 2018
    Member:
    #22402
    Messages:
    16,752
    Gender:
    Male
    First Name:
    George
    Florida
    Vehicle:
    2020 Tundra DC SR5 Barcelona
    Alot of them
    Damn that looks nice! :thumbsup:

  16. Jun 19, 2022 at 11:28 AM
    #16
    Blang805

    Blang805 New Member

    Joined:
    Jul 10, 2020
    Member:
    #49135
    Messages:
    383
    Gender:
    Male
    First Name:
    Brian
    Central Coast California
    Vehicle:
    2010 CrewMax Platinum 4x4
    Build in Signature
    Rumor is true, my 2010 has the trans cooler built into the top of the radiator.

    Jeff_5_7[QUOTED][OP] likes this.
  17. Jun 19, 2022 at 11:32 AM
    #17
    e30cabrio

    e30cabrio I'm e30cabrio, I'm a modaholic

    Joined:
    Oct 20, 2017
    Member:
    #10410
    Messages:
    5,077
    Gender:
    Male
    West Valley, Phoenix, Az.
    Vehicle:
    Boosted 2013 Sequoia TRD FAUX
    Maggy, Dobinsons, TRD PRO conversion, 18+ lights & cluster too much more to list
    Maybe crewmax still got it in 2010?

    Screen Shot 2022-06-19 at 11.31.27 AM.jpg

  18. Jun 19, 2022 at 11:37 AM
    #18
    Blang805

    Blang805 New Member

    Joined:
    Jul 10, 2020
    Member:
    #49135
    Messages:
    383
    Gender:
    Male
    First Name:
    Brian
    Central Coast California
    Vehicle:
    2010 CrewMax Platinum 4x4
    Build in Signature
    You can see where the transmission lines come in and out and how the fins on the top of the radiator are smaller vs the others.

    This is on a 2010 CM Platinum with a build date of 1/10. Maybe there was a running change. I know starting 1/10 there was a different "radiator support" for the Tundra. It was also a running change during production.


    Last edited: Jun 19, 2022
  19. Jun 19, 2022 at 11:43 AM
    #19
    Retroboy1989

    Retroboy1989 'Course it's 4x4!

    Joined:
    Mar 9, 2021
    Member:
    #60209
    Messages:
    1,054
    Gender:
    Male
    Northern Utah
    Vehicle:
    2012 DC 4x4 5.7 SR5 TRD OR Barcelona
    Snug top 20" TRD Sport wheels 275/60R20 Tires Additional Trans Cooler
    This is the factory setup on my '12. I added an additional aftermarket cooler downstream of the factory cooler.


    Blang805[QUOTED] likes this.
  20. Jun 19, 2022 at 11:46 AM
    #20
    Wahayes

    Wahayes Older I get the wiser I realize my dad was

    Joined:
    Sep 23, 2019
    Member:
    #36539
    Messages:
    1,745
    Gender:
    Male
    First Name:
    Will
    Vehicle:
    2017 tundra limited
    325/60r20 falken at3w, 2.25 dobinsons ,20x9 +20 fuel torque wheels, leer xr100, bmc
    I love these swaps. If I was still single I'd have one only 4x4 woth 37s

  21. Jul 10, 2024 at 6:39 AM
    #21
    grayscale

    grayscale New Member

    Joined:
    Dec 2, 2023
    Member:
    #107840
    Messages:
    76
    Gender:
    Male
    DFW
    Vehicle:
    2013 Tundra CM TSS 4X4 5.7FFV
    Did you ever do the bed or anything else?

  22. Jul 10, 2024 at 10:48 AM
    #22
    Jeff_5_7

    Jeff_5_7 [OP] New Member

    Joined:
    Feb 20, 2021
    Member:
    #59378
    Messages:
    1,390
    Gender:
    Male
    First Name:
    Jeff
    Houston Tx Area
    Vehicle:
    2007 RCSB 2014+ TRD Pro Conversion 5.7 4x4
    Full 2014+ Conversion Regular Cab Short Bed 4X4 2019 TRD Pro Grill, 2014+ Front End Swap 2014+ Interior/Dash Swap with TRD Pro Leather Seats, 2014+ Bed Swap with TRD Pro Stamping SOS 2/4 Drop Kit

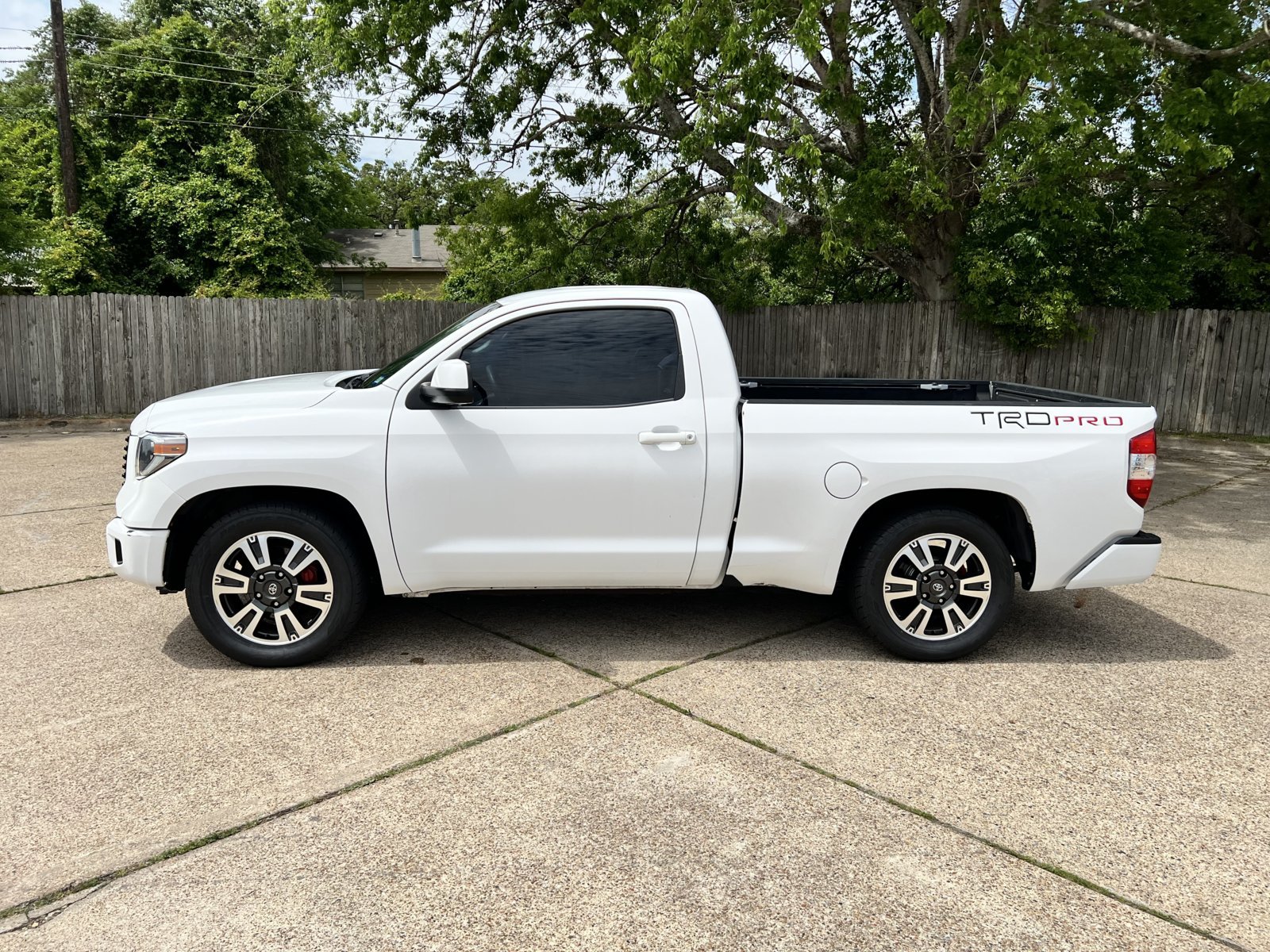

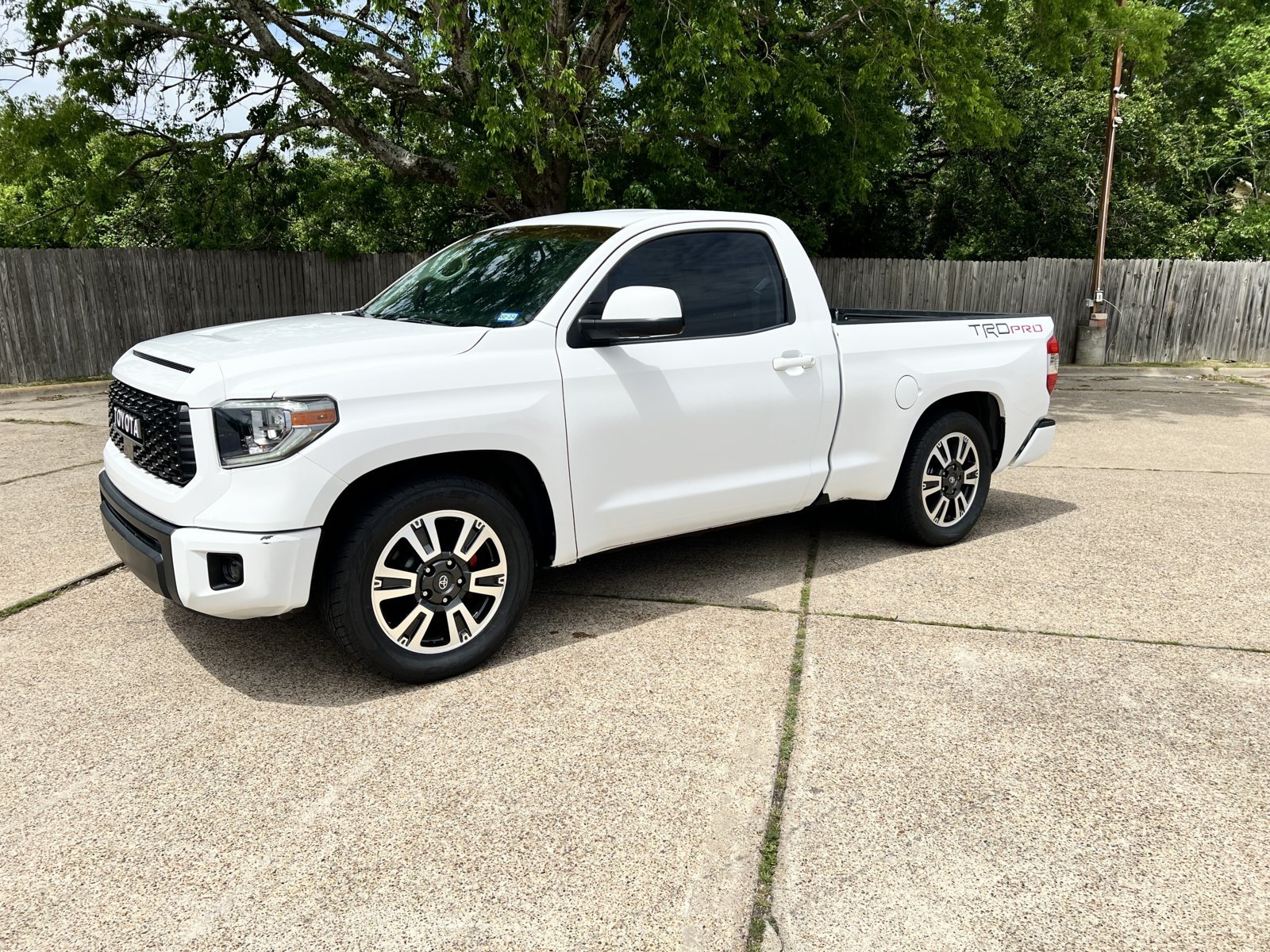

    Yes, I ended up buying the expensive TRD Pro bed. It bolted right on. Had to do some wiring for the tailights and get a new rear bumper. Truck is a 2007
    IMG_8547.jpg IMG_8548.jpg

    Blang805 and Wynnded like this.
