2007 Dome Light Wiring Help

Discussion in '2nd Gen Tundras (2007-2013)' started by winboys, Dec 17, 2023.

  1. Dec 17, 2023 at 5:20 AM
    #1
    winboys

    winboys [OP] New Member

    Joined:
    Dec 16, 2023
    Member:
    #108529
    Messages:
    1
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    2007 Toyota Tundra 4x4
    After 10 years finally decided to fix my dome light situation. Same problem as a lot of others with jacked up contact points pulling the old bulb out. Beyond repair. What I want to do is add an aftermarket surface mount light that will operate in its place. As much as I have poured over these forums, I cant figure out which wires to tap into from the ceiling. Any suggestions, ideas?

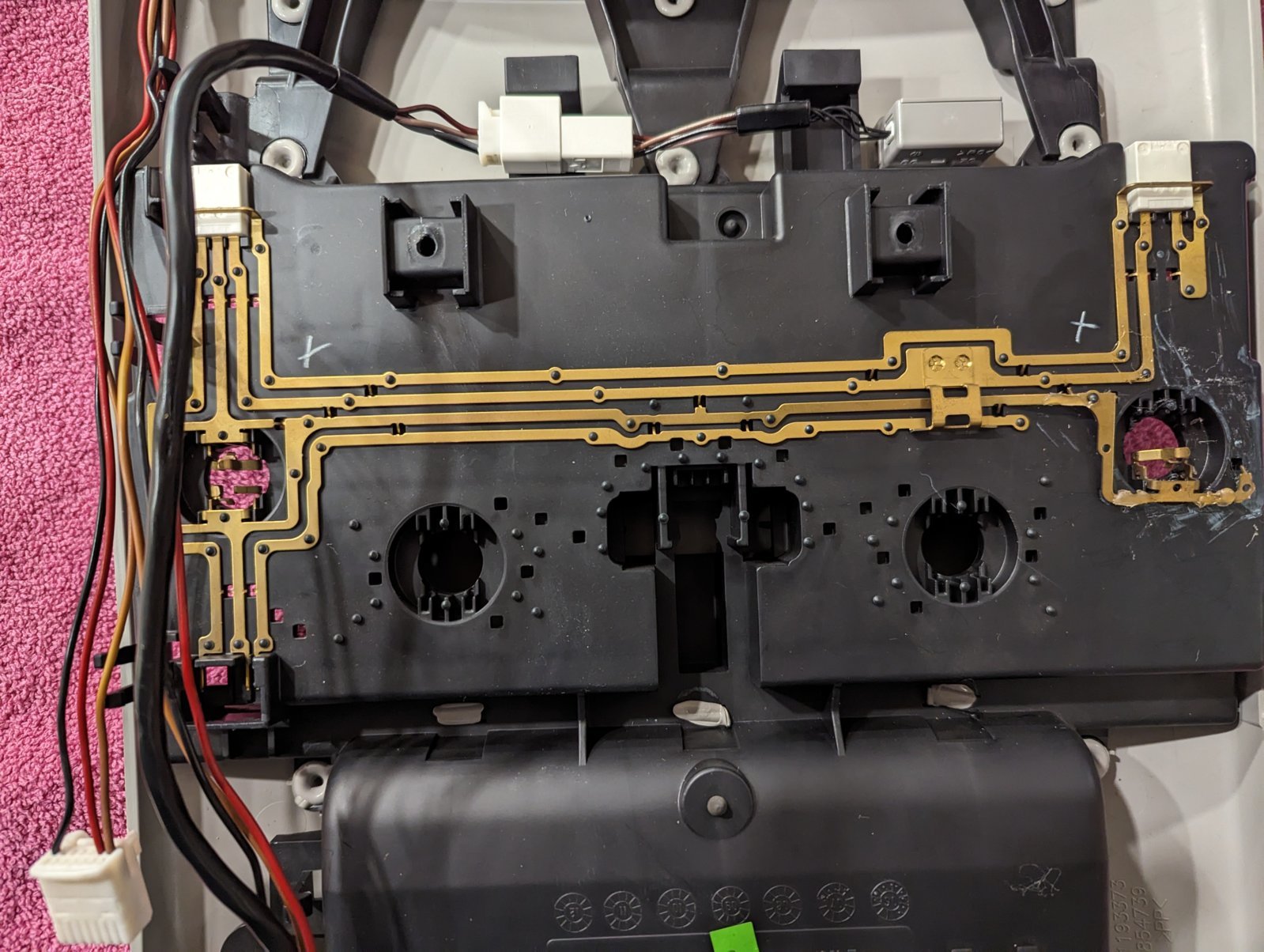

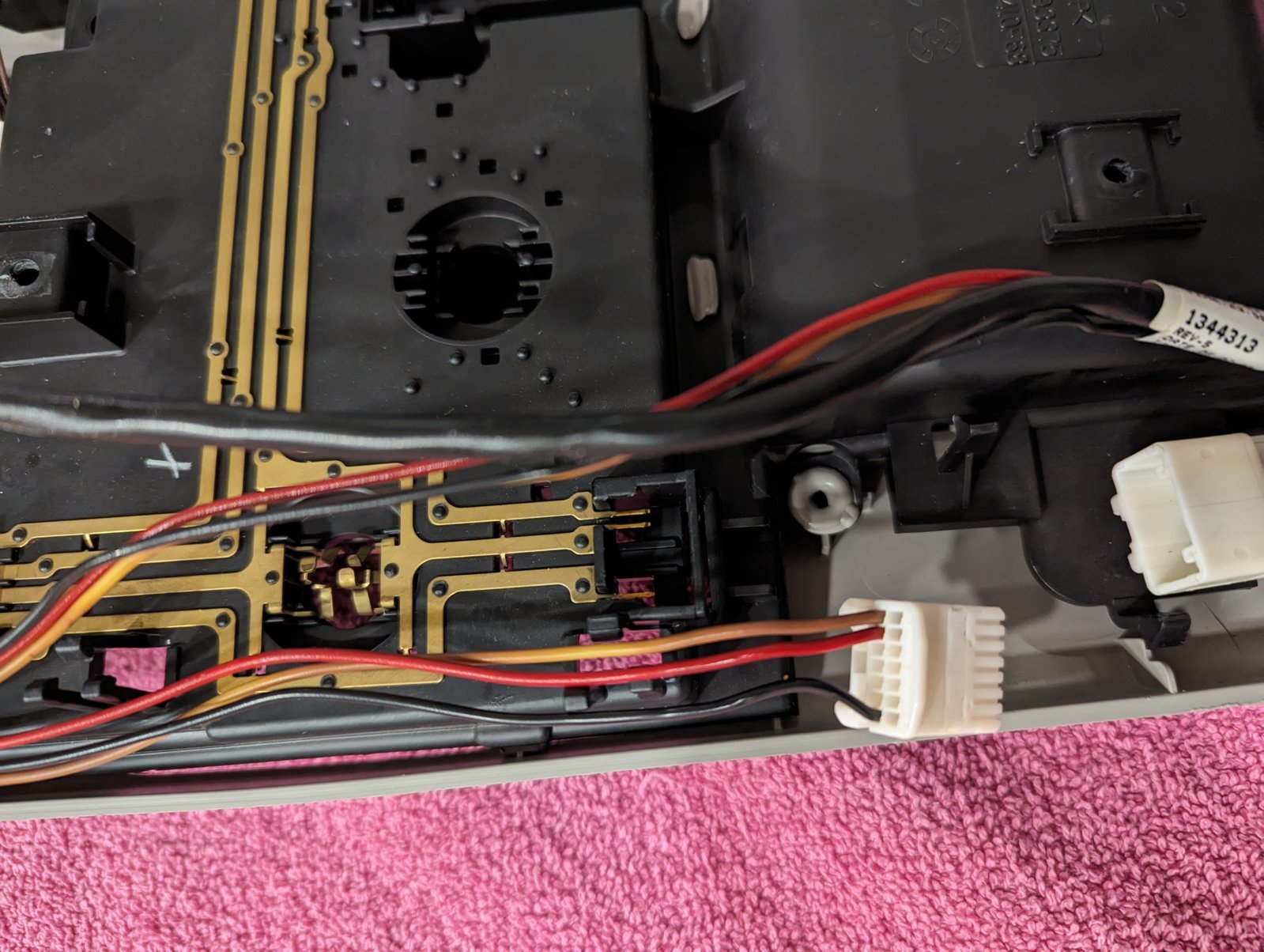

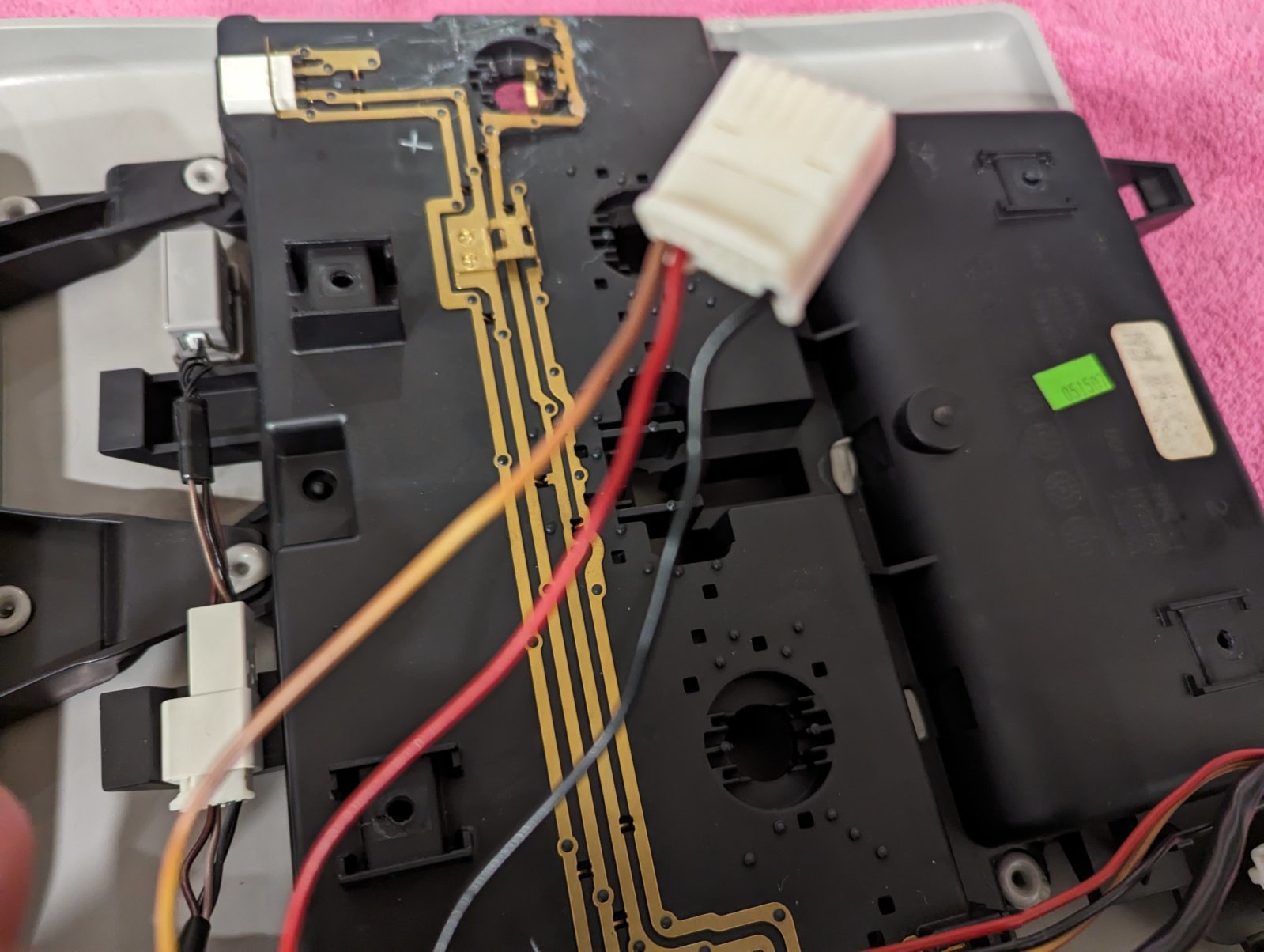

    I am thinking tap to red for power, brown for ground, which leaves black wire untapped. Correct? See pics attached...

    Thanks in advance


  2. Dec 17, 2023 at 4:06 PM
    #2
    PhotoNerd

    PhotoNerd New Member

    Joined:
    Apr 6, 2021
    Member:
    #61465
    Messages:
    419
    Gender:
    Male
    First Name:
    Tony
    Waterford, CT
    Vehicle:
    2008 Salsa Red Tundra DC SR5 4x4
    Chrome delete, Sequioa grill, bed lights, LED + head, fog & tail lights, Dynamat throughout, front & rear cameras, Pheonix PX6 13" head unit, 8" subwoofer, JBL speaker upgrades, tonneau cover, custom shifter, steering wheel cover
    I've been thinking of doing this so if you figure it out share your results. I assume one wire is constant power (since you can turn the light on by pressing it) and another is the courtesy lights that come on when the doors open. And ground is probably black.

    I'd just cut and strip them and hook up a voltmeter to check different scenarios.
