2005 Double Cab 4x4 Daily Driver (warning: pic heavy, little OT)

Discussion in '1st Gen Builds (2000-2006)' started by 912, Sep 21, 2020.

  1. Jul 25, 2022 at 10:26 AM
    #181
    Kimosabe

    Kimosabe Slacker

    Joined:
    Jul 28, 2020
    Member:
    #50004
    Messages:
    764
    Gender:
    Male
    First Name:
    Chris
    Sun Valley, Idaho
    Vehicle:
    03 Tundra AC TRD
    Congrats on the new addition and some solid upgrades. Truck is looking good.

    912[OP] likes this.
  2. Jul 25, 2022 at 10:31 AM
    #182
    Junior 88

    Junior 88 New Member

    Joined:
    May 21, 2022
    Member:
    #78650
    Messages:
    95
    Gender:
    Male
    First Name:
    Junior
    Florida
    Vehicle:
    18 tundra Sr5
    7inch bds on 35s

    912[QUOTED][OP] likes this.
  3. Jul 26, 2022 at 3:01 AM
    #183
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    Thanks! It's exponentially more work than one kid, which I didn't anticipate. But thankfully my wife did and she's doing an amazing job raising us (myself included). :bowdown:

    Kimosabe[QUOTED] and sn_85 like this.
  4. Dec 20, 2022 at 11:50 PM
    #184
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL

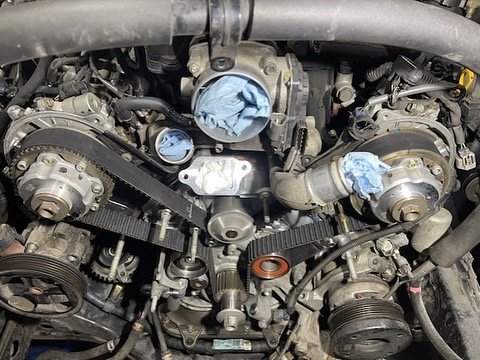

    Recently replaced the timing belt, water pump, belt tensioners, idler puller, fan clutch, radiator, hoses and thermostat. Good for another 100k miles!

    3B1B548A-486B-4576-8A1D-13EFA82C2AA0.jpg 3EFED8BA-79D3-4A0A-95D8-DBB7AA6F8B1D.jpg 0485984C-ABF8-4C3A-84DB-4243A0930E34.jpg 003E540D-F310-4F1B-9F15-3AB8F6E309BE.jpg


    Attached Files:

    Last edited: Dec 21, 2022
    FirstGenVol and MacNhangin like this.
  5. Dec 21, 2022 at 12:22 AM
    #185
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    Also replaced both axles with OEM remans.

    4662A47A-8ACE-46FA-8C70-5250DF1D273D.jpg C57BC60C-CD15-4543-99FE-D2628179EBE1.jpg

  6. Dec 21, 2022 at 12:27 AM
    #186
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
  7. Dec 21, 2022 at 12:55 AM
    #187
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    I also recently finished installing speakers in the front and rear doors. I have the base audio system with no amp. It sounded pretty darn good after I upgraded the HU and added a JL Stealthbox, but recently blew one or two of the door speakers. With the help of @shifty` (thank you!!), I decided on JBL Club series. Well worth the money. These sound great!

    For the rear doors, I installed:

    JBL Club 622 (https://www.crutchfield.com/p_109CL622/JBL-Club-622.html)
    Metra 72-8104 wiring adapters (https://www.crutchfield.com/p_120728104/Metra-72-8104-Speaker-Wiring-Harnesses.html)
    Scosche SAT6 brackets (https://www.crutchfield.com/p_142SAT6/Scosche-SAT6-Speaker-Mounting-Brackets.html)
    I sealed the back of the brackets with butyl tape (https://smile.amazon.com/dp/B0155KELRW?ref=ppx_yo2ov_dt_b_product_details&th=1)
    I foamed the back of the speakers (https://smile.amazon.com/dp/B08L7YB7QT?ref=ppx_yo2ov_dt_b_product_details&th=1)
    Noico 80 mil sound deadener (https://smile.amazon.com/gp/product/B00URUIKAK?ie=UTF8)


    For the front doors:

    JBL Club 602C (https://www.crutchfield.com/p_109CL602C/JBL-Club-602C.html)
    Metra 82-8153 brackets for the woofers (https://www.crutchfield.com/p_120828153/Metra-82-8153-Speaker-Mounting-Brackets.html)
    Tweeters on stock mounts
    Same butyl rope, foam, and deadener as above
    For the crossovers, I stuck them on with butyl then screwed them down.

    No rattles at all, sounds fantastic!

    IMG_5139.jpg IMG_5144.jpg IMG_5160.jpg IMG_5164.jpg IMG_5165.jpg

    Last edited: Dec 31, 2022
    JasonC. and standard like this.
  8. Jan 21, 2023 at 12:01 AM
    #188
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    Frustratingly, I opted not to replace my front diff oil seals while replacing CV axles recently and subsequently developed both a passenger side leak and the driver's side needed bearing vibes. Even more frustratingly, one of the OEM remaned inner boots spit a little grease and revealed a tiny compromise in the boot where the ribs were touching (in less than 1000 miles)! :frusty:

    So I bought Porsche 930 inner boots and clamps from Kartek, a bushing sleeve to replace the drivers side needle bearing from ECGS, and a couple OEM oil seals. I also hit up @FrenchToasty who kindly sent his tool kit. Now that it's done, I wish I'd done this earlier. The CVs are so much better now!

    A few pics of the front diff seals and bearing replacement:


    Driver's side old seal and needle bearing:


    Unlike others I've seen, all my needles were still accounted for in the race:


    Stuff a rag or bag into the diff housing so you don't lose the tool into the housing:


    ECGS clamshell bushing sleeve tapped in easily with @FrenchToasty tool:

    https://eastcoastgearsupply.com/i-1...amshell-bushingeliminates-needle-bearing.html


    New OEM seal gently tapped in with he PVC:


    Looking at the needle bearing, I could see where the axle was actually making contact with the race in between the needles. I suppose the needles had worn down significantly after 210k miles:

    IMG_5833.HEIC.jpg IMG_5834.HEIC.jpg

    Old passenger side seal. Should have replaced it in the first place:


    Bearing on the passenger side is pretty bomber:


    New OEM seal for the passenger side:


    Overall, this is an easy job. I found this video among others to be helpful:

    https://www.youtube.com/watch?v=Pp-5wcnpLJE&list=LL&index=3

    Last edited: Jan 21, 2023
    cran2 and FrenchToasty like this.
  9. Jan 21, 2023 at 2:14 AM
    #189
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    Rebooting CV joints is also a much easier job than I'd always thought it was. In hindsight, I should've rebooted the original axles and skipped buying the remanned axles altogether. Hindsight is 20/20 I guess.

    Parts used:
    2 x EMPI "Bates-style" Porsche 930 inner CV boots from Kartek: https://www.kartek.com/mm5/merchant.mvc?Screen=PROD&Store_Code=KT&Product_Code=MRB-869306

    2 x Norma 900-110mm narrow hose/boot clamp with rolled edges, also from Kartek: https://www.kartek.com/parts/norma-...t-axle-boot-or-hose-clamps-9mm-2364-wide.html

    4 x 1"-2" hose clamps

    Valvoline Synthetic grease with moly

    I found this video to be helpful, along with some others I'd watched before I started: https://www.youtube.com/watch?v=yQJSquWYDLQ&list=LL&index=2&t=525s

    Basic order of operations to reboot:
    1. cut the inner boots off
    2. wipe out enough grease to see the lock ring holding the inner CV joint to the axle
    3. remove the axle
    4. put the new 930 boot on the axle
    5. insert the axle back into the CV
    6. pack the CV with grease
    7. pull the new 930 inner boot down over the flange and tighten the clamp
    8. clamp the axle side with a smaller hose clamp
    9. remove the inside clamp on the outer CV boot
    10. extend the boot so the ribs no longer touch when flexed
    11. tighten with a new small hose clamp
    12. debated alternating sides on the worm drive but ultimately lined them up bc that's how the OEM was - so far no vibes
    Pics, because that's what this thread is mostly about:

    Toyota inner boot on the truck after a month :/

    Stock inner boot on truck

    Toyota outer boot on the truck before adjusting

    OEM axle after removal (1 month old)

    OEM axle after bellows fixed

    OEM inner boot cut off and grease scooped out to expose lock ring

    Rebooting and packing with grease

    new 930 boot installed before stretching the outer boot

    Rebooted the inner joint with the 930 boot plus extended and reclamped the inside of the OEM outer boot.

    OEM inner boot vs 930 inner boot

    beautiful. Ready to reinstall

    The 930 boot looks so good under the truck. No bellows making contact

    outer bellows after adjustment

    Last edited: Jan 22, 2023
  10. Jan 21, 2023 at 2:41 AM
    #190
    NickB_01TRD

    NickB_01TRD You don't need less cars, just more driveway.

    Joined:
    Jun 16, 2021
    Member:
    #64346
    Messages:
    2,189
    Gender:
    Male
    First Name:
    Nick
    KY
    Vehicle:
    01 Tundra V8 4X4 AC SR5 TRD
    Be on the lookout for leaks here. Had to do mine twice

    912[QUOTED][OP] likes this.
  11. Jan 22, 2023 at 12:37 AM
    #191
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    Been 200 miles, so far so good :fingers crossed:

  12. Jan 22, 2023 at 10:27 AM
    #192
    gagecalman

    gagecalman New Member

    Joined:
    Nov 15, 2022
    Member:
    #86774
    Messages:
    42
    Gender:
    Male
    First Name:
    Jim
    Maryland
    Vehicle:
    2006 Tundra DC SR5 4WD
    Awesome journey you're taking us on!
    Are the seals the same for both sides? I see them both in your pic but only the p/n 90311-47013.
    Did you get them from ECGS?
    Thanks!

    912[QUOTED][OP] likes this.
  13. Jan 22, 2023 at 12:17 PM
    #193
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    They are not the same part number. The number you see on the post is the passenger side, which I procured at the local dealer. The drivers side seal came from ECGS when I ordered the sleeve bushing. I don’t have that p/n handy, but it’s easily found on other similar posts. If you can’t find it PM me and I’ll help you out a bit later - I just don’t have time to search at the moment. Anyway, if you’re planning to do tackle this - do it! It makes a big difference in reliability of the CVs, and drivability with the bearing replacement. And it’s really not difficult.

  14. Jan 22, 2023 at 6:07 PM
    #194
    gagecalman

    gagecalman New Member

    Joined:
    Nov 15, 2022
    Member:
    #86774
    Messages:
    42
    Gender:
    Male
    First Name:
    Jim
    Maryland
    Vehicle:
    2006 Tundra DC SR5 4WD
    Thanks for the reply.
    I plan on replacing my boots. Getting a little cracked where they clamp but haven't torn yet. I'm keeping my original axles because they only have 77K miles.
    So you didn't replace the outer boots?

    912[QUOTED][OP] likes this.
  15. Jan 23, 2023 at 4:12 AM
    #195
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    The outer boots tend to fair a lot better than the inners. And mine are brand new OEM boots on the axles I installed a month ago…

  16. Jan 23, 2023 at 5:34 AM
    #196
    gagecalman

    gagecalman New Member

    Joined:
    Nov 15, 2022
    Member:
    #86774
    Messages:
    42
    Gender:
    Male
    First Name:
    Jim
    Maryland
    Vehicle:
    2006 Tundra DC SR5 4WD
    I forgot that you just put on OEM remans. Brain fart.
    That inner OEM boot looks terrible.

    Their instructions for the EMPI boot states that you are supposed to use a part of the old boot. It doesn't look like you had to. Did it just clamp on the CV joint?

    912[QUOTED][OP] likes this.
  17. Jan 23, 2023 at 1:08 PM
    #197
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    Yeah, there are some axles that have the tri-lobe design. I believe they are found on 4runners and Tacomas, maybe some earlier Tundras. The tri-lobed design requires the old boot to be trimmed to be used on the flange. In my case, the original OEM CVs, the interim car quest CVs, and the new OEM remanned CVs had a round flange and didn't need the old boot to be used. The 930 boot clamps directly to the flange.

    Here's the lobed design from a Taco (actually this one looks like its quad-lobed or square). But you can see how the old inner boot would need to be used to adapt the round kartek 930 boots:

    Screen Shot 2023-01-23 at 4.05.19 PM.jpg

    Old lobed boot inside the round 930 boot:


    And here's how mine looked (round):


    TX-TRD1stGEN likes this.
  18. Jan 23, 2023 at 1:12 PM
    #198
    gagecalman

    gagecalman New Member

    Joined:
    Nov 15, 2022
    Member:
    #86774
    Messages:
    42
    Gender:
    Male
    First Name:
    Jim
    Maryland
    Vehicle:
    2006 Tundra DC SR5 4WD
    Perfect!
    Mine is a 2006 DC so they should be like yours.
    Thanks again for the great info.

    912[OP] likes this.
  19. Jan 23, 2023 at 1:28 PM
    #199
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    My pleasure man, no problem. Good luck. P.m. me if you have any more Qs if I can help!

  20. Apr 8, 2023 at 9:51 AM
    #200
    Northboundtundra

    Northboundtundra Northboundtundra

    Joined:
    Oct 19, 2019
    Member:
    #37551
    Messages:
    17
    Vehicle:
    1st gen v8 Tundra with manual transmission conversion
    Manual transmission and transfer case converted with lift, sliders, RTT rack, offset wheels and mud tires
    Sorry if this question seems obvious, but did you need to change your airbag when you upgraded to the steering wheel with controls? Or are you still running the original airbag and clockspring that your truck came with? Great information about the controls upgrade. I'm really hoping to be able to follow suit with my 2001 AC.

    912[QUOTED][OP] likes this.
  21. Apr 9, 2023 at 9:11 AM
    #201
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    I did not change the clock spring, but I did replace the airbag. It isn't necessary to change the airbag itself, but the airbag cover needs to be changed to accommodate the switches. Because the cover is riveted in place, I opted to replace the cover and airbag together. To do this on a 2001, I'd probably look for a complete wheel with airbag and switches and clockspring from another vehicle to swap into yours. Unfortunately I don't know any specifics about he earlier Tundras, so I'm not sure what to recommend. Going to be great upgrade, though - good luck!

  22. Jul 18, 2023 at 11:55 PM
    #202
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    We've been mostly out of town in Maine for the summer. My wife and kids have taken the whole summer off and I've been commuting every other week for work. Haven't done much to the truck lately.

    But it was oil change time while I was home, and it's been REALLY hot and humid down here in SWFL, so I wanted to get to done as quickly as possible. Figured it was a good excuse to get a Fumoto valve. Nice piece of kit, definitely recommend! I got the shortest one to maximize ground clearance. Slightly lower than the stock plug, but doesn't come anywhere close to hanging below the crossmember. Might remove it if/when I get back out West and do some real wheeling.

    https://www.amazon.com/dp/B085RBL4KW?ref=ppx_yo2ov_dt_b_product_details

    IMG_1497.jpg IMG_1498.HEIC.jpg IMG_1505.jpg

    dirtnsmores, FirstGenVol and Kimosabe like this.
  23. Sep 25, 2023 at 7:42 AM
    #203
    dirtnsmores

    dirtnsmores New Member

    Joined:
    Sep 30, 2021
    Member:
    #68770
    Messages:
    355
    Gender:
    Male
    Southern CA
    Vehicle:
    2006 DC 4WD TRD OFFROAD
    Bilstein 6112/5100s, JBA UCAs
    This build thread is great! Just picked up my 06 double cab. it has around 182k miles and is in solid condition with plenty of maintenance records. needs timing belt job done... currently looking for quotes around southern california. needs new door speakers... it has the stock JBL head unit and speakers... i'm thinking i just replace the speakers myself and eventually replace the head unit with something more... modern. also just ordered the westin bed mat that you have on your truck since it seems to be a perfect fit.

    i'll be following this thread and also starting my own to help me document everything i do to it.

    912[OP] likes this.
  24. Sep 28, 2023 at 1:36 AM
    #204
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    Thanks man, welcome to the DC life!

  25. Oct 5, 2023 at 8:18 AM
    #205
    txagg

    txagg New Member

    Joined:
    Sep 18, 2020
    Member:
    #52448
    Messages:
    949
    Gender:
    Male
    First Name:
    Matt
    Central Texas
    Vehicle:
    2000 4x4 TRD Tundra access cab
    Stone cold stock
    @912 You tired of this truck yet? Let me know when you are!

    912[OP] likes this.
  26. Nov 1, 2023 at 10:30 AM
    #206
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    Picture time! Updated a few small things recently, now that my family is back in FL full time with me.

    First up, I sold my full-size projector retrofits and got some Nilight smoked housings and corners. I added the CO Light LED mini projectors and love the setup. The light output isn't anywhere near the full-size retrofits with 55W HIDs, but its way better than traditional halogen. Plus I like the look a lot more. Not to mention, my Diode Dynamics SS3 Pro fog lights do most of the lighting anyway.

    IMG_4004.jpg IMG_4056.jpg IMG_4636.jpg IMG_4637.jpg

    I also took off my fender flares (smaller than OEM and unique to the XSP package) and am having them resprayed and cleared. The clear coat started to bubble and peel in a few spots.



    Lastly, I decided to put my Weathertech window visors back in and added an AVS Buglector II up front. I actually really like the look! Install was simple and its a nice fit.

    IMG_4798.jpg IMG_4791.jpg IMG_4793.jpg IMG_4795.jpg IMG_4796.jpg IMG_4410.jpg

    Last edited: Nov 1, 2023
    txagg likes this.
  27. Nov 3, 2023 at 9:38 AM
    #207
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    Where the flares make contact with the body, there is definitely a noticeable mark. No rust or bare metal, but you can see the line. Perhaps a pro could buff it out, but it’s there. Just a warning to anyone wanting to deflare.

    Yesterday I had the opportunity to take the kids to the diy brushless car wash on a gorgeous day and spent 20 minutes spraying the old girl. Not too shabby for 18 years and 4 months old with 220k miles!

    IMG_4844.jpg IMG_4842.jpg IMG_4845.jpg

    JMGmanAZ and txagg like this.
  28. Nov 3, 2023 at 7:28 PM
    #208
    TXTundraGuy23

    TXTundraGuy23 New Member

    Joined:
    Apr 7, 2023
    Member:
    #95139
    Messages:
    175
    Gender:
    Male
    Dallas
    Vehicle:
    2004 DC 4.7L 4WD
    @912 Love this build thread! You’re my truck role model since I’ve got dang near the exact same truck except 2004 (missed out on the vvti). I’ve got two questions for you:

    1) Are you still on the 8/6 setting with the 6112s and have the icon AAL in the back with the 5160s? And did you leave the overload spring if so?

    2) You said you used 2x of the 1’x5’ 3M rolls to wrap the back bumper. Was there a seam somewhere? Why did you use two?

    912[OP] likes this.
  29. Nov 3, 2023 at 8:04 PM
    #209
    PsyGuy

    PsyGuy New Member

    Joined:
    Feb 14, 2023
    Member:
    #92068
    Messages:
    50
    Awesome to see a fellow Arizonite on here. Your build looks great so far! I’m jealous of the camper shell you posted. They seem to be difficult to find out here

    912[OP] likes this.
  30. Nov 4, 2023 at 5:14 AM
    #210
    912

    912 [OP] @best_gen_tundra

    Joined:
    Feb 15, 2017
    Member:
    #6393
    Messages:
    448
    Gender:
    Male
    First Name:
    Brian
    SWFL
    Thanks man! Yes, same suspension set up and settings. And yes, overload spring is still in the pack. As far as the vinyl, I used one roll for the rear bumper and one for the front and mirrors I think. I didn’t originally think there a was a seam but looking back at the pics there is a seam by the license plate. I’ll add some pics of the rear bumper with the roll loosely positioned with magnets to get an idea of size.

    IMG_4978.jpg IMG_4980.jpg IMG_4983.jpg

    Last edited: Nov 4, 2023

Products Discussed in

To Top
