2002 Toyota Tundra 3.4 l 2wd wire issue

Discussion in '1st Gen Tundras (2000-2006)' started by LilRock87, Mar 22, 2022.

  1. Mar 22, 2022 at 6:25 PM
    #1
    LilRock87

    LilRock87 [OP] New Member

    Joined:
    Mar 22, 2022
    Member:
    #76202
    Messages:
    2
    Gender:
    Male
    First Name:
    Neil
    Vehicle:
    2002 Tundra 3.4l 2wd

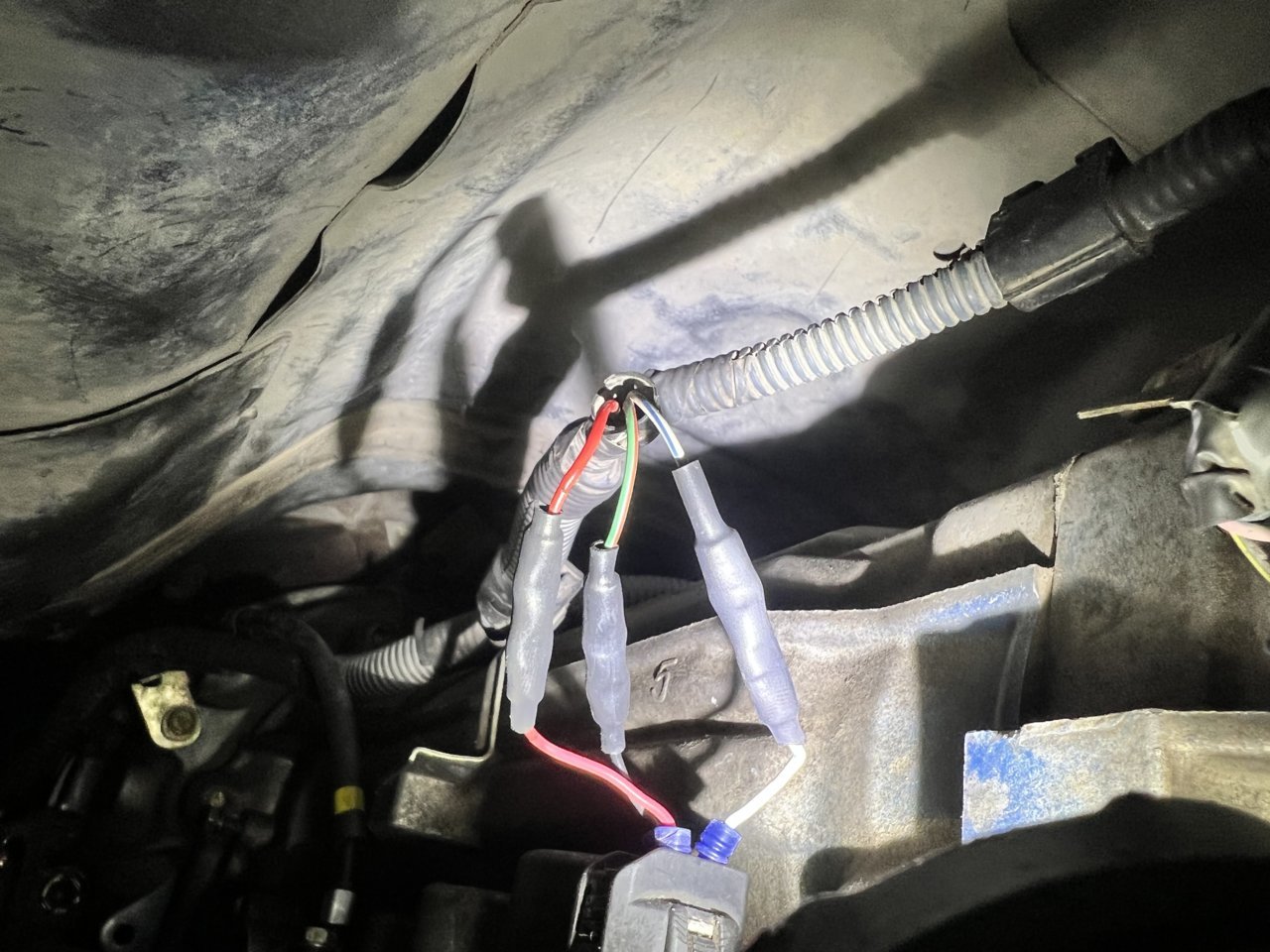

    So recently replacing transmisson I forgot to unplug one connections wires got rip out of prongs unsure which one goes where I have red/green, red, and white/blue wire and this connection on transmission which relay to solenoids inside can someone help me which one go where


  2. Mar 22, 2022 at 6:28 PM
    #2
    LilRock87

    LilRock87 [OP] New Member

    Joined:
    Mar 22, 2022
    Member:
    #76202
    Messages:
    2
    Gender:
    Male
    First Name:
    Neil
    Vehicle:
    2002 Tundra 3.4l 2wd
    I thought I may have had it figured out but it’s not shifting right so I’m back to square 1

  3. Mar 23, 2022 at 4:38 AM
    #3
    BubbaW

    BubbaW Blessed 2 B above Ground

    Joined:
    Aug 19, 2019
    Member:
    #34845
    Messages:
    3,822
    First Name:
    Bubba
    Where Eagles Nest
    Vehicle:
    04 DC LTD 4X4 4.7 V8
    T150 Lover

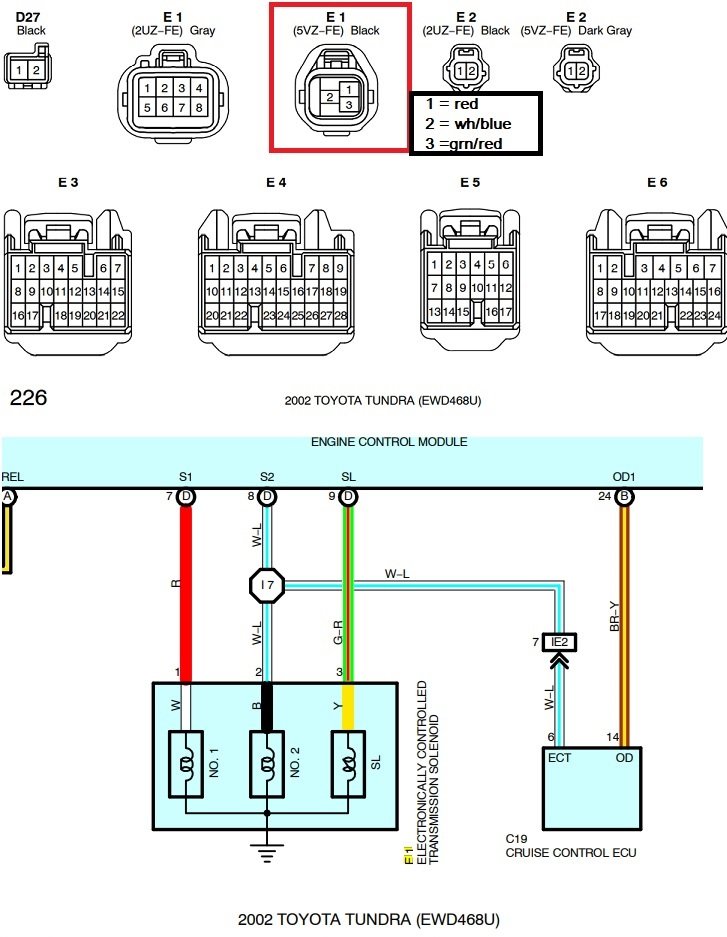

    The E 1 connector shown below is looking into the end of the connector of solenoid. Once finished, I would recommend attempting to protect the open ends where the blue insulators are. Somewhat guessing, but from your pic, it appears red is right and swapping W-BL with Grn-Red would work.


    Last edited: Mar 23, 2022
    dbittle likes this.
