Tundra led headlight adjust?

Discussion in '2.5 Gen Tundras (2014-2021)' started by Handbanana, Jun 27, 2020.

  1. Jun 27, 2020 at 11:49 AM
    #1
    Handbanana

    Handbanana [OP] New Member

    Joined:
    May 8, 2020
    Member:
    #46175
    Messages:
    177
    Gender:
    Male
    Vehicle:
    2018 TSS CM 4x4
    Trd sway front Trd sway rear Trd shift knob Nitto ridge grapplers OEM LED FOGS

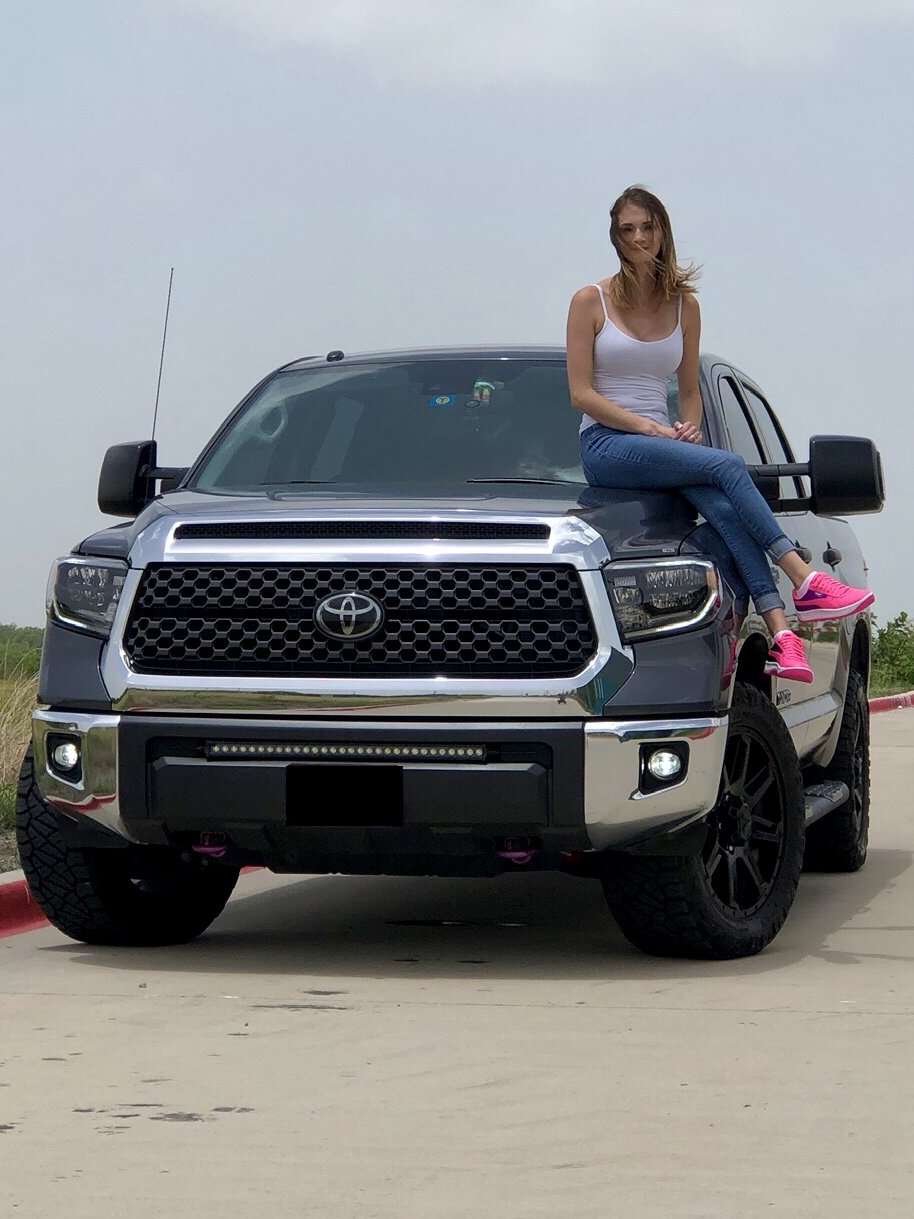

    I have the new led trd pro headlights on the wife’s tundra and one of them is aimed way too high. I installed them straight out of the box so I was hoping they were close to what I need. Has anyone adjusted these or know how to adjust them. Sorry for the dumb question. I’m also aware of the adjuster button inside the truck but one light is good the other is to high.


    Attached Files:

    Last edited: Jun 30, 2020
  2. Jun 27, 2020 at 11:53 AM
    #2
    Makoy339

    Makoy339 Simplicity = Reliability !!!

    Joined:
    Jun 22, 2018
    Member:
    #16360
    Messages:
    520
    Gender:
    Male
    Vehicle:
    Super White TRD
    TRD parts
    Last edited: Jun 27, 2020
    panicman and Handbanana[OP] like this.
  3. Jun 27, 2020 at 3:18 PM
    #3
    JohnLakeman

    JohnLakeman Burning Internet Daylight

    Joined:
    Feb 21, 2019
    Member:
    #26430
    Messages:
    3,008
    Gender:
    Male
    Outside of Weird, TX
    Vehicle:
    2017 MGM DC TSS 4.6L
    TRD Pro grille, 2018 LED Headlights, Undercover Flex bed cover, Neoprene seat covers, Bed/tailgate mats, Power tailgate lock, auto headlights, illuminated key switch
    @Makoy339 has it right...way down deep in @iHacker thread, look for this:

    One more thing...


    Some users noticed their headlights arrived aimed incorrectly, compare your new headlights heigh with the marks we placed in the wall in step 1, keep your leveling system in 0 and do the required adjustments,


    Each headlight have a channel reaching the leveling system motor gears, and you can rotate the gears as needed UP/DOWN just turning gears with a long Phillips screw driver.

    [Photograph of adjustment]

    Then this:

    If for any reason you forgot to mark your stock headlights heigh follow this video to correctly AIM your headlights from scratch.

    https://www.youtube.com/watch?v=GWvSWBlAwnI

  4. Jun 27, 2020 at 3:25 PM
    #4
    Handbanana

    Handbanana [OP] New Member

    Joined:
    May 8, 2020
    Member:
    #46175
    Messages:
    177
    Gender:
    Male
    Vehicle:
    2018 TSS CM 4x4
    Trd sway front Trd sway rear Trd shift knob Nitto ridge grapplers OEM LED FOGS
    Thanks I’m going to fix it tonight when it’s dark
