Rear Turn Signal Resistor Harness

Discussion in '2.5 Gen Tundras (2014-2021)' started by pman9003, Jan 17, 2021.

  1. Jan 17, 2021 at 5:31 PM
    #1
    pman9003

    pman9003 [OP] New Member

    Joined:
    May 13, 2020
    Member:
    #46504
    Messages:
    160
    Gender:
    Male
    ATL
    Vehicle:
    2020 Platinum 4x4
    Posting this up for anyone that has the same OCD as me when it comes to vehicle wiring.

    Unlike the front turn signals, there aren't any LED bulbs (to my knowledge) that integrate a resistor for the rear turn signal bulbs. In other words, for the rear turn signals you must use a resistor in order to prevent hyperflash.

    Now the problem I have with adding resistors is typically installation requires a scotchlok connector or t-tap connector. Personally I hate both of these solutions because they damage the insulation on the factory harness and are generally just not that great.

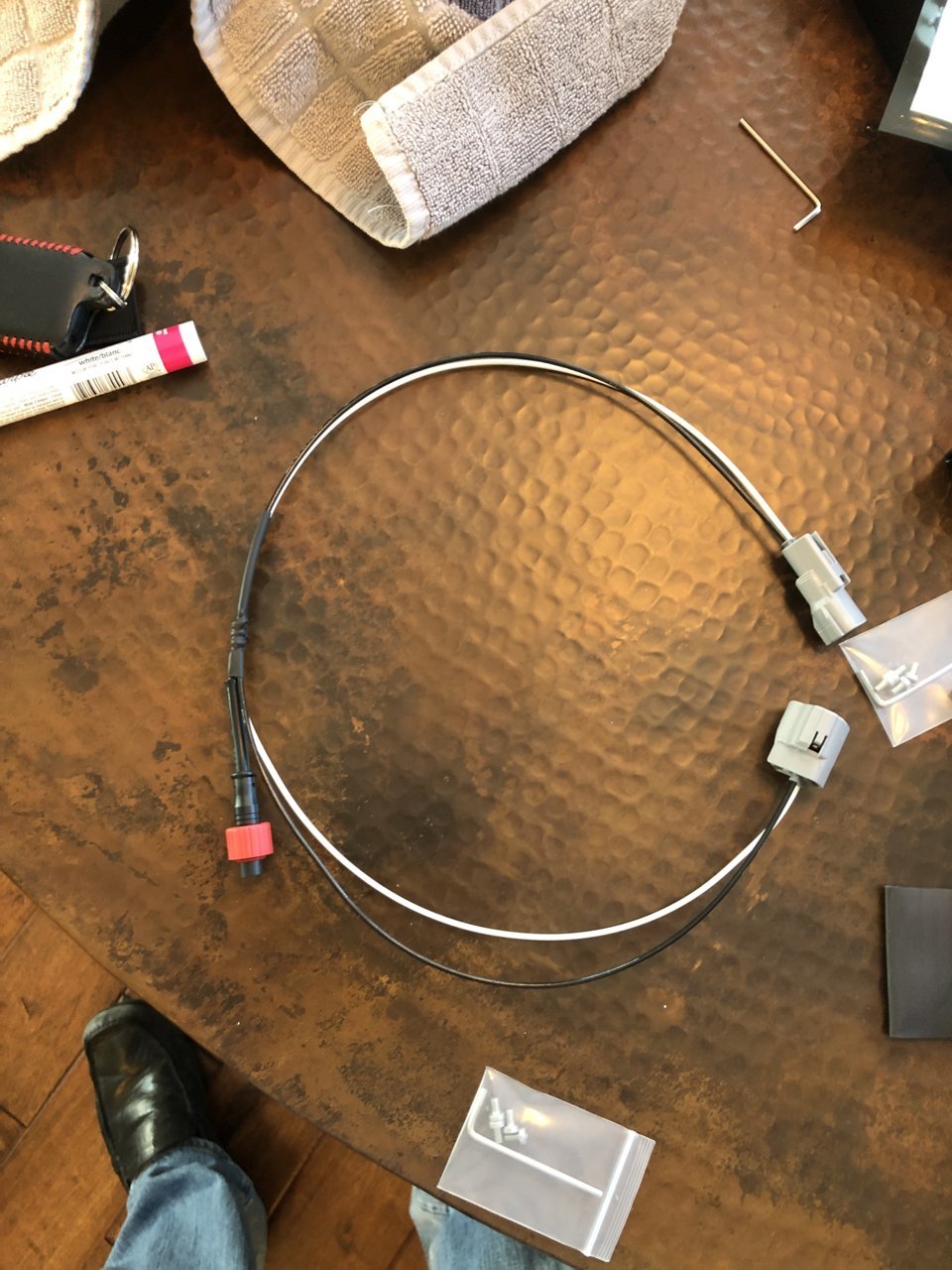

    So I built a "patch harness" that allows me to connect a VLED VLR-6 without doing any permanent changes to the truck's wiring. The picture is of the almost finished harness, I am terrible about remembering to take pictures once I start working on something. Last step was adding some looming to protect the wires. Basically this plugs in between the taillight and the harness on the truck to add the resistor without any cutting, splicing, etc. Some of you may think this is unnecessary, but for it was well worth the minimal cost and time to preserve the integrity of the factory wiring.

    For anyone interested in doing something similar. Please be aware that this requires some skill in soldering or a $400+ crimp tool. Obviously, you can use any resistor you like and there are different ways of incorporating it into the patch harness. I ended up making mine like this based on the components I had on hand from a VLED order.

    https://www.corsa-technic.com/item.php?item_id=747
    https://www.corsa-technic.com/item.php?item_id=1044
    https://www.corsa-technic.com/item.php?item_id=429


    Attached Files:

    831Tun, junior and matictundra like this.
  2. Jan 17, 2021 at 5:43 PM
    #2
    Tundra234

    Tundra234 New Member

    Joined:
    Nov 30, 2018
    Member:
    #22402
    Messages:
    16,055
    Gender:
    Male
    First Name:
    George
    Florida
    Vehicle:
    2020 Tundra DC SR5 Barcelona
    Alot of them

    I wish I knew this a couple of months ago when I installed mine. I'm not fond of those crimping splices either.

  3. Feb 1, 2021 at 2:00 PM
    #3
    NuTundra18

    NuTundra18 New Member

    Joined:
    Jan 1, 2020
    Member:
    #40578
    Messages:
    133
    Gender:
    Male
    First Name:
    Jimmy
    Florida
    Vehicle:
    2020 TRD Pro CM - MGM
    Toyota OEM Hard Flip Tonneau, Predator Steps, Driver Grab Handle, Console Sage, Spray Berliner.

    This is exactly what I wanted to do. Do you mind sharing with me what your order looked like so I can see each part number for wires, seals etc. Thanks so much.

  4. Feb 1, 2021 at 2:08 PM
    #4
    RainMan_PNW

    RainMan_PNW SSEM #82 RGBA #4 “That Guy” Vendor

    Joined:
    Oct 27, 2020
    Member:
    #54134
    Messages:
    14,885
    Gender:
    Male
    First Name:
    Casey
    Clark County, WA
    Vehicle:
    2021 Lunar Rock TRD Pro CM
    Check the build link in my signature.
    I have been considering doing the exact same thing, but just hadn't gone far enough to sort out what connectors I needed yet. So thank you for that!
    I've got a crimping tool that cost way less than $400 for doing these terminals.
    Now I've got to decide what to use for resistors - the cheap ones that came with my Auxito front signal bulbs (that I didn't need to use), or buy a set of the VLED ones. The VLED ones come with the disconnect plug, but I could also build one of those using these connectors just as easily...

    Last edited: Feb 1, 2021
  5. Feb 1, 2021 at 2:15 PM
    #5
    matictundra

    matictundra New Member

    Joined:
    Jul 20, 2017
    Member:
    #8654
    Messages:
    676
    Gender:
    Male
    First Name:
    Franco
    AZ
    Vehicle:
    2017 Red Tundra SR5 4x4 CM
    3"/1.5" Lift (Fox 2.5 DSC all around, JBA UCA's and Toytec Shackles at 1.5") Front and Rear TRD Sway Bars Nitto Ridge Grappler 37x12.5R18 w/ Brz 18x9 +25mm Methods MR701 Wheels AFE Dry Filter with TRD Flow Acc Dirty Deed No Muffler Exhaust Nitro 5.29 Gears RCI Engine, Trany/Trans-Case and Fuel Skid Plates Relocated Rear Diff Breather | Rear Brake Line Extension Jomax ABS Sensor Armor Colored Matched Front Bulge and TRD Pro Grill Assy Modded ADD Stealth Fighter Front Bumper Custom High Clearance Rear Bumper with Modded Tow Receiver Behind Plate and Chopped Rear Fender Custom Bed Stiffeners 2019 TRD PRO LED Headlights w/ Ihacker Harness | BD 40" ARC AMB/WHT DC OnX6 BD 10" Onx6 in the Grill (2X) Rago Low-Profile Ditch and Extended Brkt with Daul BD Squadron Pros - AMB & WHT AMB LED Chase Light (Cargo) | Dual BD Squadron Sports in Rear Bumper Prinsu Roof Rack with a Pair of BD S1 For the Sides and Rear Mictunning C2 Rock Lights, 2 per wheel, and Toyota style switch 2X 55" Quick Light Whips with Toyota style switch Switch Pros SP-9100 with Custom Switch Mount, Custom Engine and Roof Terminal Junction Boxes 12K Lbs Smittybilt Winch with wireless remote and Factor 55 FlatLink E Amp Power Step EVO-One Remote Start Limo Tint (All Around) | De-Badged LED Interior lights with Front / Rear Interior Footwell LED Blue LED Lit Lock/Window Switch Mod AJT Full Chrome Delete Kit w/ 3R3 Painted SHCS Toyota LED Bed Lights Leather Perforated Wrapped Steering Wheel Black TRD Shift Knob ESP Long Box BakFlip MX4 Bed Cover Thinkware Q800Pro Dashcam (Front & Rear) Rago Dashmount w/ Ram Phone Holder
    How much for a set and ship to 85286?

  6. Feb 1, 2021 at 2:27 PM
    #6
    NuTundra18

    NuTundra18 New Member

    Joined:
    Jan 1, 2020
    Member:
    #40578
    Messages:
    133
    Gender:
    Male
    First Name:
    Jimmy
    Florida
    Vehicle:
    2020 TRD Pro CM - MGM
    Toyota OEM Hard Flip Tonneau, Predator Steps, Driver Grab Handle, Console Sage, Spray Berliner.
    I just ordered everything up for $28 shipped from CORSA-Technic. I also ordered the VLED resistors for $30 for (2) 6 ohm with duo-tap connectors which will cut off the ends of duo-tap and solder in place. I already have their red LED 921 bulbs. I will let everyone know how it goes.

  7. Feb 1, 2021 at 3:29 PM
    #7
    Mallcrl

    Mallcrl New Member

    Joined:
    Dec 27, 2020
    Member:
    #56690
    Messages:
    269
    Gender:
    Male
    First Name:
    Anand
    Maryland
    Vehicle:
    '21 DC SR5 SX
    Interesting... What year is your truck?

    So I went with the Diode Dynamics XP80 LEDs for all the rear lighting (stop/tail, turn, and reverse) as well as front turn signals on my '21; and didn't have to add resistors. For comparison, on my girlfriend's '21 Tacoma, we used the same bulbs and did have to add resistors.

  8. Feb 1, 2021 at 5:31 PM
    #8
    Oats87

    Oats87 Dirt Rider

    Joined:
    Aug 19, 2019
    Member:
    #34879
    Messages:
    213
    Gender:
    Male
    First Name:
    Chris
    Sunnyvale, CA
    Vehicle:
    A Non-Toyota
    Nice. I made a harness very similar to this back when I installed VLEDs in the truck, after figuring out that replacing the wiring harness to the rear tail lights meant replacing the harness all the way back up to the front (basically requires removing the bed and cab from the frame)

  9. Feb 1, 2021 at 5:38 PM
    #9
    thomasbus337

    thomasbus337 New Member

    Joined:
    Sep 2, 2017
    Member:
    #9396
    Messages:
    648
    Gender:
    Male
    Vehicle:
    2020 TRD Sport DC
    I made the same harnesses last June. I avoid hacking oem wires whenever possible

    rockmup likes this.
  10. Feb 3, 2021 at 8:42 PM
    #10
    pman9003

    pman9003 [OP] New Member

    Joined:
    May 13, 2020
    Member:
    #46504
    Messages:
    160
    Gender:
    Male
    ATL
    Vehicle:
    2020 Platinum 4x4
    The connectors include the pins and boots. You just have to select the right size based on the gauge of wire you are using. I used 16AWG so I went with the middle size for the pins and boots.

    Any resistor sold for correcting hyperflash should be good. I think the VLR-6 I used is 25W, which is common for these applications. As far as connecting it to the harness, I wouldn't say the connector helps any. You could easily solder it into the middle of the harness or use butt splice connectors.

    Yeah, the only crimp tools I have wouldn't work. The $400 tool is what they recommend for these, but I am sure there are others that would work, I just didn't care enough to find one and buy it. I'll have to get a nice one eventually for working on my track car.

    I am not planning on making these to sell. Sorry.

    It should work fine for you, just make sure you confirm the polarity before putting the taillight housing back in place. If you have any questions, post them up.

    Mine is a '20 Platinum. I would guess that the bulbs you are using had enough resistance to properly load the circuit in your Tundra. I am using the VLEDs linked below and had hyperflash without the resistors.

    https://www.vleds.com/shop-bulb-numbers/921-led/921-6-r.html

  11. Feb 3, 2021 at 8:54 PM
    #11
    RainMan_PNW

    RainMan_PNW SSEM #82 RGBA #4 “That Guy” Vendor

    Joined:
    Oct 27, 2020
    Member:
    #54134
    Messages:
    14,885
    Gender:
    Male
    First Name:
    Casey
    Clark County, WA
    Vehicle:
    2021 Lunar Rock TRD Pro CM
    Check the build link in my signature.
    I’ve got the connectors coming. I think I’ll just solder the resistors I have right into the harness for simplicity.

    The crimper I have is the Hozan P-706 shown here:
    https://www.amazon.com/Hozan-P-706-Open-Barrel-Crimper/dp/B002TKG11G

  12. Feb 3, 2021 at 8:55 PM
    #12
    pman9003

    pman9003 [OP] New Member

    Joined:
    May 13, 2020
    Member:
    #46504
    Messages:
    160
    Gender:
    Male
    ATL
    Vehicle:
    2020 Platinum 4x4
    Let me know how that crimper you have works for these. I'm curious as its a different design from what you typically see.

  13. Feb 3, 2021 at 9:10 PM
    #13
    RainMan_PNW

    RainMan_PNW SSEM #82 RGBA #4 “That Guy” Vendor

    Joined:
    Oct 27, 2020
    Member:
    #54134
    Messages:
    14,885
    Gender:
    Male
    First Name:
    Casey
    Clark County, WA
    Vehicle:
    2021 Lunar Rock TRD Pro CM
    Check the build link in my signature.
    I’ve been using it for doing connectors like these since 2015. I just did my OEM LED bed lights using it on the same style of connectors (Yazaki 090 waterproof) to modify the harness that came with them to tap in an extra switch in the bed and route that down to the same plug as the one light.

    It takes a little finesse to get used to doing the really small connectors (22 and 24 AWG like the AMP 025 connectors), but it’s got separate round “crimp” spots for different insulation sizes and those work great on the waterproof seals too.

    rockmup likes this.
  14. Feb 3, 2021 at 9:26 PM
    #14
    pman9003

    pman9003 [OP] New Member

    Joined:
    May 13, 2020
    Member:
    #46504
    Messages:
    160
    Gender:
    Male
    ATL
    Vehicle:
    2020 Platinum 4x4
    Well I just ordered one....

    Thanks for the recommendation!

    RainMan_PNW[QUOTED] likes this.
  15. Feb 4, 2021 at 4:47 AM
    #15
    NuTundra18

    NuTundra18 New Member

    Joined:
    Jan 1, 2020
    Member:
    #40578
    Messages:
    133
    Gender:
    Male
    First Name:
    Jimmy
    Florida
    Vehicle:
    2020 TRD Pro CM - MGM
    Toyota OEM Hard Flip Tonneau, Predator Steps, Driver Grab Handle, Console Sage, Spray Berliner.

    Thank you. When you say polarity, isn’t it just a two wire harness which will allow the resistor wires be installed in either order? Or did you mean to line the wires in the pins correctly in each side? Thanks for your help.

  16. Feb 4, 2021 at 6:38 AM
    #16
    RainMan_PNW

    RainMan_PNW SSEM #82 RGBA #4 “That Guy” Vendor

    Joined:
    Oct 27, 2020
    Member:
    #54134
    Messages:
    14,885
    Gender:
    Male
    First Name:
    Casey
    Clark County, WA
    Vehicle:
    2021 Lunar Rock TRD Pro CM
    Check the build link in my signature.
    Most of the LED bulbs have polarity. If you put it into the bulb socket and it doesn’t work like it should, pull it out and turn it 180 and then test it. It’s best to do that before you actually put the whole taillight assembly back into the truck.

  17. Feb 4, 2021 at 6:42 AM
    #17
    NuTundra18

    NuTundra18 New Member

    Joined:
    Jan 1, 2020
    Member:
    #40578
    Messages:
    133
    Gender:
    Male
    First Name:
    Jimmy
    Florida
    Vehicle:
    2020 TRD Pro CM - MGM
    Toyota OEM Hard Flip Tonneau, Predator Steps, Driver Grab Handle, Console Sage, Spray Berliner.
    ahh, completely makes sense, thank you!

    RainMan_PNW[QUOTED] likes this.
  18. Feb 19, 2021 at 11:53 PM
    #18
    2020 dc

    2020 dc New Member

    Joined:
    Jan 17, 2020
    Member:
    #41327
    Messages:
    233
    Gender:
    Male
    Vehicle:
    2020 tundra dc sr
    Do you have a link for the rear turn signal bulb?

  19. Feb 20, 2021 at 12:57 AM
    #19
    831Tun

    831Tun heartless Bastrd

    Joined:
    Jun 7, 2016
    Member:
    #3549
    Messages:
    11,577
    Gender:
    Male
    First Name:
    Warren
    Santa Cruz
    Vehicle:
    '16 CM limited
    TC long travel. Deaver 420 SU leaf packs.
    Thanks for posting. Nice to know where to find those connectors as I'm planning on making tail lights soon..... maybe.

  20. Feb 21, 2021 at 6:14 AM
    #20
    Mallcrl

    Mallcrl New Member

    Joined:
    Dec 27, 2020
    Member:
    #56690
    Messages:
    269
    Gender:
    Male
    First Name:
    Anand
    Maryland
    Vehicle:
    '21 DC SR5 SX
  21. Feb 21, 2021 at 1:11 PM
    #21
    Mallcrl

    Mallcrl New Member

    Joined:
    Dec 27, 2020
    Member:
    #56690
    Messages:
    269
    Gender:
    Male
    First Name:
    Anand
    Maryland
    Vehicle:
    '21 DC SR5 SX
    Ironically enough, this morning I had the hyperflash, only on one side, and only for about 10-15 total flashes, then back to normal...

  22. Feb 21, 2021 at 1:17 PM
    #22
    Sundog

    Sundog Zoom Zoom

    Joined:
    Oct 30, 2019
    Member:
    #38050
    Messages:
    1,119
    Gender:
    Male
    First Name:
    Mike
    MNSP
    Vehicle:
    2014 Red CM Tundra
    Great info here

  23. Feb 25, 2021 at 10:35 AM
    #23
    pman9003

    pman9003 [OP] New Member

    Joined:
    May 13, 2020
    Member:
    #46504
    Messages:
    160
    Gender:
    Male
    ATL
    Vehicle:
    2020 Platinum 4x4
    Was that with the LED bulb? I have had this happen on my 100 series with halogen bulb that was nearing the end of its life. With an LED the only thing I could think of is it was cold, thus lowering the resistance. After 10-15 flashes the temperature went up enough to raise the resistance enough for the truck to not have hyperflash. Another possibility would be a slightly loose connection.

  24. Feb 25, 2021 at 11:16 AM
    #24
    Mallcrl

    Mallcrl New Member

    Joined:
    Dec 27, 2020
    Member:
    #56690
    Messages:
    269
    Gender:
    Male
    First Name:
    Anand
    Maryland
    Vehicle:
    '21 DC SR5 SX
    It was with the LED, and it definitely wasn't the coldest temps I've used a turn signal, nor was it the first set of flashes... Either way, I'm chalking it up to an anomaly or slightly loose connection
