My subwoofer build for my 17 CrewMax

Discussion in 'Audio & Video' started by 1999cutiger, May 31, 2020.

  1. May 31, 2020 at 2:10 PM
    #1
    1999cutiger

    1999cutiger [OP] Top Flow Lifestyle

    Joined:
    Jan 1, 2018
    Member:
    #11880
    Messages:
    316
    Gender:
    Male
    Vehicle:
    2017 Toyota Tundra SR5 4x4
    RBP 67R AK-8 20x9 wheels General Grabber ATX 275/60/20
    Hey guys. It seems no matter how old I get, I never lose my love for car audio. Given the fact I drive my truck a lot for my work, I decided to build a custom dual subwoofer enclosure to enjoy. I will do my best to take more pictures and post as my project proceeds.

    I will be using a pair of 8” Focal P20F subs and a JL Audio RD500/1 amp.

    Nothing super fancy. I am looking to achieve sound quality not spl. The amp will be mounted on the center panel of the enclosure.

    Here is what I have so far using 3/4” mdf and a 3/4” plywood plate for the amp. Glued, screwed, and mostly sanded.

    I have not test fit the enclosure yet, but I measured many times and I’m really hoping I chose wisely. The total width is 50”, height is 9” and the depth is 5.75”. Each sub enclosure is 20” wide.

    My target internal sealed air volume was 0.35 cubic feet per Focal specs. This configuration will get me 0.34 cubic feet...close enough.


    Last edited: May 31, 2020
    Rica25, Darkness and Mountun Goat like this.
  2. May 31, 2020 at 3:10 PM
    #2
    Mnorris1206

    Mnorris1206 Super white is fast as f***

    Joined:
    Dec 24, 2018
    Member:
    #23448
    Messages:
    2,509
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    08 tundra
    6" lift kit 35" tires with cold air intake and exhaust
    I'm almost 38 now and I'm right there with ya car audio is one thing I'm missing right now. Your project is looking good. Cant wait to see the finnished product !

    ekinnee, Rica25 and Darkness like this.
  3. Jun 1, 2020 at 9:48 AM
    #3
    1999cutiger

    1999cutiger [OP] Top Flow Lifestyle

    Joined:
    Jan 1, 2018
    Member:
    #11880
    Messages:
    316
    Gender:
    Male
    Vehicle:
    2017 Toyota Tundra SR5 4x4
    RBP 67R AK-8 20x9 wheels General Grabber ATX 275/60/20
    I’m 44 so I gotcha by a few years.

  4. Jun 1, 2020 at 12:07 PM
    #4
    Toyotoholic

    Toyotoholic -4Life-

    Joined:
    May 17, 2017
    Member:
    #7754
    Messages:
    1,904
    Gender:
    Male
    First Name:
    Jmz
    Vehicle:
    17' MGM
    Pro suspension, sways
    Cool
    I like custom enclosures. But I have to say, any custom builds I did, I ALWAYS test fit the pieces before I screwed and glued, to ensure I was getting as much volume as possible from the enclosure, then work back to the volume of the specific driver. To get accurate volume, fill the box with sand and then dump into a measurable container. Sandbox sand is clean and easy. I'm looking forward to seeing how it works out for you.
    I'm 48 and put about 250hours into my audio build and tuning over the last 2 years. You're never too old for pure music enjoyment! Good luck and I hope it fits!

    Rica25 and Darkness like this.
  5. Jun 2, 2020 at 11:38 AM
    #5
    1999cutiger

    1999cutiger [OP] Top Flow Lifestyle

    Joined:
    Jan 1, 2018
    Member:
    #11880
    Messages:
    316
    Gender:
    Male
    Vehicle:
    2017 Toyota Tundra SR5 4x4
    RBP 67R AK-8 20x9 wheels General Grabber ATX 275/60/20
    New goodies showed up today...


  6. Jun 2, 2020 at 12:45 PM
    #6
    SandyTRD

    SandyTRD New Member

    Joined:
    May 1, 2018
    Member:
    #14960
    Messages:
    96
    Gender:
    Male
    First Name:
    Jim
    Vehicle:
    ‘16 Pro
    Dented bumper
    I’m 51 and agree that good, loud sound is mandatory.

    Rica25, Snaz, smslavin and 4 others like this.
  7. Jun 2, 2020 at 2:09 PM
    #7
    dumbassdave

    dumbassdave Member

    Joined:
    Jun 3, 2016
    Member:
    #3517
    Messages:
    333
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2016 Crewmax Limited
    Does it fit??? There is one really big seat bracket sticking into the space where your box is going. My heart was racing when I was putting my box in. Tight back there!

    Rica25 and fighthedude like this.
  8. Jun 2, 2020 at 2:15 PM
    #8
    1999cutiger

    1999cutiger [OP] Top Flow Lifestyle

    Joined:
    Jan 1, 2018
    Member:
    #11880
    Messages:
    316
    Gender:
    Male
    Vehicle:
    2017 Toyota Tundra SR5 4x4
    RBP 67R AK-8 20x9 wheels General Grabber ATX 275/60/20

    Rica25, AircareTundra and Darkness like this.
  9. Jun 2, 2020 at 2:17 PM
    #9
    1999cutiger

    1999cutiger [OP] Top Flow Lifestyle

    Joined:
    Jan 1, 2018
    Member:
    #11880
    Messages:
    316
    Gender:
    Male
    Vehicle:
    2017 Toyota Tundra SR5 4x4
    RBP 67R AK-8 20x9 wheels General Grabber ATX 275/60/20
    I have not had time to pull the seats out yet to test fit. Will do it this weekend for sure. I wasn’t that nervous until you posted...damnit.

    Lol

    Rica25 likes this.
  10. Jun 2, 2020 at 2:20 PM
    #10
    dumbassdave

    dumbassdave Member

    Joined:
    Jun 3, 2016
    Member:
    #3517
    Messages:
    333
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2016 Crewmax Limited
    Rica25 and Darkness like this.
  11. Jun 2, 2020 at 8:53 PM
    #11
    MJoeP

    MJoeP New Member

    Joined:
    Oct 29, 2019
    Member:
    #37987
    Messages:
    233
    Gender:
    Male
    First Name:
    Joe
    Texas
    Vehicle:
    2016 Tundra 1794
    2016 Tundra 1794 DiamondBack ATV Tonneau Cover 7" BDS Lift 20" Fuel Krank Wheels 37X13.50X20 Toyo Open Country M/T
    I'm 54 and can't hear a word he said, but my sound system rocks!

  12. Jun 3, 2020 at 5:10 AM
    #12
    SandyTRD

    SandyTRD New Member

    Joined:
    May 1, 2018
    Member:
    #14960
    Messages:
    96
    Gender:
    Male
    First Name:
    Jim
    Vehicle:
    ‘16 Pro
    Dented bumper
    I need it loud to overwhelm the tinnitus!

    Boyd8019, 1lowlife, Rica25 and 3 others like this.
  13. Jun 3, 2020 at 11:38 AM
    #13
    MJoeP

    MJoeP New Member

    Joined:
    Oct 29, 2019
    Member:
    #37987
    Messages:
    233
    Gender:
    Male
    First Name:
    Joe
    Texas
    Vehicle:
    2016 Tundra 1794
    2016 Tundra 1794 DiamondBack ATV Tonneau Cover 7" BDS Lift 20" Fuel Krank Wheels 37X13.50X20 Toyo Open Country M/T
    I hear that.

  14. Jun 3, 2020 at 7:08 PM
    #14
    1999cutiger

    1999cutiger [OP] Top Flow Lifestyle

    Joined:
    Jan 1, 2018
    Member:
    #11880
    Messages:
    316
    Gender:
    Male
    Vehicle:
    2017 Toyota Tundra SR5 4x4
    RBP 67R AK-8 20x9 wheels General Grabber ATX 275/60/20
    Well...the fit of this box is a miserable failure.
    It’s too wide and too deep. I’m really disappointed but it’s back to the drawing board. Will update after the next attempt.

    Rica25 likes this.
  15. Jun 3, 2020 at 7:19 PM
    #15
    dumbassdave

    dumbassdave Member

    Joined:
    Jun 3, 2016
    Member:
    #3517
    Messages:
    333
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2016 Crewmax Limited
    Well, shit. That sucks. If I can find any of the dimensions I used, I'll post them.

  16. Jun 3, 2020 at 7:39 PM
    #16
    jwatt

    jwatt I heart men

    Joined:
    Jan 10, 2020
    Member:
    #40985
    Messages:
    1,301
    Gender:
    Male
    First Name:
    Jack
    Oregon
    Vehicle:
    Salsa Red 2007 Tundra DC @91k.
    7" BDS Coilover Suspension Lift/BDS UCAs/XB LED Headlights/Nitto trail Grappler tires on Black Rhyno Armory wheels

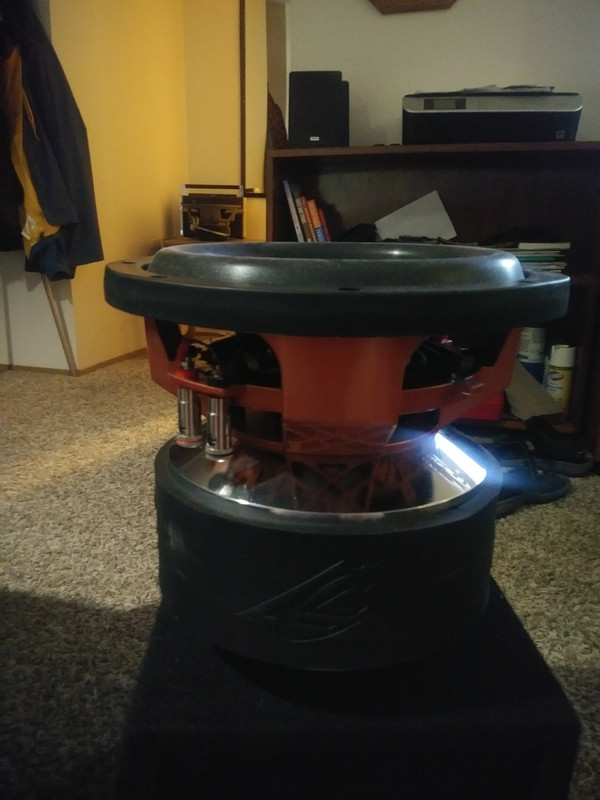

    I totally understand you re dilemma. I had high hopes for a 10" Cresendo Contralto I bought a long time ago. My DC had no place for it though. Although it takes a small sealed box I ultimately pulled out the 66% section of the back seat to accommodate it, and all the rest of the stuff I have. I don t have a family, and never use the back seats anyway, and now I have loads of room to go crazy:D
    In the end it s all about the sound.
    [​IMG]
    [​IMG]

    Rica25 likes this.
  17. Jun 3, 2020 at 7:40 PM
    #17
    Bigolbaddy

    Bigolbaddy New Member

    Joined:
    Oct 3, 2019
    Member:
    #36961
    Messages:
    214
    Gender:
    Male
    First Name:
    Ben
    Fort Worth
    Vehicle:
    2020 MGM 1794
    I was doing the same thing and those stupid seat brackets ate my lunch. Let me tell you, I measure MANY times and still got it wrong. I gave up and bought a box from James.

    Rica25 likes this.
  18. Jun 3, 2020 at 8:04 PM
    #18
    dumbassdave

    dumbassdave Member

    Joined:
    Jun 3, 2016
    Member:
    #3517
    Messages:
    333
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2016 Crewmax Limited
    I just did my best to measure my box. Can't go taking out car seats and truck seats.

    The base is 7". The top is 3". And the back is 13". You can ask Pythagoras Trigonometry how long the slanted front side is. Think right triangle with the top cut off.

    The driver side edge of my box is about 1/8" in from the widest part of the seat mount.

    I recall that the notch for the middle bracket of the seat made it have to sit there. Measure where that middle bracket is, and make it quite a bit wider, so you can move it around a bit more about than I can. I think I made my notch 1" deep. And I think it was 0.5" from the bottom and 6" tall. I'd go 4" wide.

    Just so you know, at these dimensions my box is held tightly by the seat. I have clearance for my sub because it is in the middle of the driver side back seat. Along other places, you would not have clearance.

    I have a shallow mount mtx 12" sub.

  19. Jun 3, 2020 at 10:13 PM
    #19
    Windsor

    Windsor New Member

    Joined:
    Jul 8, 2018
    Member:
    #16847
    Messages:
    812
    Gender:
    Male
    First Name:
    Chris
    Oregon
    Vehicle:
    2008 Tundra Crewmax 5.7L
    Seat covers, SnugTop.
    2008 CM. Single CVT 8, amp mounted under the seat. Using stock HU with Kicker LOC. Since this picture, I moved the FE behind the DS rear seat and pushed the box toward the PS.
    20190427_121849.jpg 20190504_081432.jpg

    Rica25 likes this.
  20. Jun 4, 2020 at 5:22 AM
    #20
    1999cutiger

    1999cutiger [OP] Top Flow Lifestyle

    Joined:
    Jan 1, 2018
    Member:
    #11880
    Messages:
    316
    Gender:
    Male
    Vehicle:
    2017 Toyota Tundra SR5 4x4
    RBP 67R AK-8 20x9 wheels General Grabber ATX 275/60/20
    Thanks so much for all of your help guys. This is a picture of approximately what I am trying to accomplish.

    I watched this guys video on you tube and I believe he says these boxes are 4.6" deep. They appear to be about 15" wide and about 10" high (he's using 10"s)

    I'm hoping if I stick to these numbers they will fit using 8" subs...which would make my boxes about 9" tall instead of his 10".

    I realize the wedge shape box will fit better but I am trying to do this project on my own and I don't have the skills to make precise angle cuts.

    Thoughts?


    Rica25 likes this.
  21. Jun 4, 2020 at 5:35 AM
    #21
    Kwikfish

    Kwikfish Get your poop in a group!

    Joined:
    Feb 15, 2018
    Member:
    #12927
    Messages:
    307
    Gender:
    Male
    First Name:
    Brian
    Tri cities,WA
    Vehicle:
    16 CM SSM
    If you have a skills you can cut the angles just fine,clamp a straight edge and your good to go

    Rica25 and smslavin like this.
  22. Jun 4, 2020 at 6:31 AM
    #22
    dumbassdave

    dumbassdave Member

    Joined:
    Jun 3, 2016
    Member:
    #3517
    Messages:
    333
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2016 Crewmax Limited
    I tried to do a box that wouldn't have angles to keep it simpler too. I just run out of space back there so quickly, I couldn't get it to work. Not with my 12" sub anyways. Maybe with 10s that are not too deep it will work, certainly looks good in that picture as long as seats go back in.

    Rica25 likes this.
  23. Jun 4, 2020 at 6:34 AM
    #23
    dumbassdave

    dumbassdave Member

    Joined:
    Jun 3, 2016
    Member:
    #3517
    Messages:
    333
    Gender:
    Male
    First Name:
    Dave
    Vehicle:
    2016 Crewmax Limited
    While you have the seats out, may as well lay down some dynamat. Nice area to learn on.

    Rica25 likes this.
  24. Jun 4, 2020 at 9:50 AM
    #24
    Bigolbaddy

    Bigolbaddy New Member

    Joined:
    Oct 3, 2019
    Member:
    #36961
    Messages:
    214
    Gender:
    Male
    First Name:
    Ben
    Fort Worth
    Vehicle:
    2020 MGM 1794
    making those cuts isnt as hard as it might seem, but you will need to do some trigonometry (I googled cause I haven’t done trig since junior year of hs) for the angle of the cuts. Once I had the angles I could figure the cu ft. To make the cuts I clamped a straight edge on the mdf and used my circular saw.

    where I went wrong was not factoring the width of the board (3/4) so I was 1.5 inches to big. It is better to be as shallow as possible for your sub depth and wider than deep and narrow.

    As a PS-

    I bought a box from James and he took the specs of my sub (Infinity Reference 10”) and amp and we went with a enclosed box with the sub on the 2 ohm setting so I get some bump and protect my amp. Box come today and I am pretty excited.

    Rica25 likes this.
  25. Jun 4, 2020 at 10:44 AM
    #25
    Kojack

    Kojack New Member

    Joined:
    Dec 20, 2019
    Member:
    #40107
    Messages:
    236
    Gender:
    Male
    First Name:
    MIke
    Black Mountain, NC
    Vehicle:
    2017 Tundra XSP CrewMax
    Will the box you made work under the rear seat if you have a CrewMax?
    Just a thought that may make your like easy if you can remove some of the carpet and foam and place it there
    Mike

    Rica25 likes this.
  26. Jun 4, 2020 at 1:50 PM
    #26
    1999cutiger

    1999cutiger [OP] Top Flow Lifestyle

    Joined:
    Jan 1, 2018
    Member:
    #11880
    Messages:
    316
    Gender:
    Male
    Vehicle:
    2017 Toyota Tundra SR5 4x4
    RBP 67R AK-8 20x9 wheels General Grabber ATX 275/60/20
    I'm afraid not...it's just too deep.

    Rica25 likes this.
  27. Jun 4, 2020 at 1:57 PM
    #27
    Mgmtundra

    Mgmtundra MGM Crew

    Joined:
    Oct 1, 2018
    Member:
    #20047
    Messages:
    140
    Gender:
    Male
    Did they cut something out of the back seat? Maybe they avoided the seat supports. There hardly 4” of room from what I’ve seen.

    Rica25 likes this.
  28. Jun 4, 2020 at 2:33 PM
    #28
    1999cutiger

    1999cutiger [OP] Top Flow Lifestyle

    Joined:
    Jan 1, 2018
    Member:
    #11880
    Messages:
    316
    Gender:
    Male
    Vehicle:
    2017 Toyota Tundra SR5 4x4
    RBP 67R AK-8 20x9 wheels General Grabber ATX 275/60/20
    There was no mention of cutting from the area where the subs sit. I’m pretty sure he said the boxes are 4.6” deep.

    Rica25 likes this.
  29. Jun 4, 2020 at 3:04 PM
    #29
    1999cutiger

    1999cutiger [OP] Top Flow Lifestyle

    Joined:
    Jan 1, 2018
    Member:
    #11880
    Messages:
    316
    Gender:
    Male
    Vehicle:
    2017 Toyota Tundra SR5 4x4
    RBP 67R AK-8 20x9 wheels General Grabber ATX 275/60/20
    Here is a picture of the passenger side rear seat in place with the box installed. The box is 5.75” deep and 9” tall.

    With 2.75” shallow mount 8” subs and a 4” deep box it should work.


    Rica25 and getwiser88 like this.
  30. Jun 5, 2020 at 10:29 AM
    #30
    Mgmtundra

    Mgmtundra MGM Crew

    Joined:
    Oct 1, 2018
    Member:
    #20047
    Messages:
    140
    Gender:
    Male
    Looks close maybe cut out the factory padding on the back wall?

    Rica25, Twinky and smslavin like this.

Products Discussed in

To Top
