Installing Sub to stock stereo - my install

Discussion in 'Audio & Video' started by csuviper, May 28, 2015.

Page 1 of 2
  1. May 28, 2015 at 11:02 PM
    #1
    csuviper

    #1
    csuviper [OP] Moderator Staff Member

    Joined:
    Jan 6, 2014
    Member:
    #38
    Messages:
    17,261
    Gender:
    Male
    First Name:
    Brian
    Broomfield, CO
    Vehicle:
    2019 TRD Sport CM 5.7L 4X4
    Some Mods :) See build thread for details
    So i decided to document my install. Made the install take a little longer but might give others ideas about how to go about their own install.

    Line Output Converter: AudioControl LC2I 2-Channel Line Out Converter and Subwoofer Control
    Sub: Sony Xplode XS-L1035
    Sub Enclosure: Custom built by myself using 3/4" thick MDFB
    Amp: MTX Audio
    Wire Kit:
    Alphasonik AAK8G Premium 8-Gauge Complete Car Amplifier Installation Kit Hyper-Flex Power, Ground, Speaker Wire RCA Cable - Exceeds AWG (American Wire Gauge) Standard Element Certified Amp Install Kit
    Lightning Audio by Rockford Fosgate 8 Gauge Amplifier Installation Wiring Amp Kit
    Add a fuse holder:
    $8 Nilight GA0007 1 2Pin Way 16AWG Waterproof Wire 1.5mm Series Terminal Connector-5 Pack
    Bussmann BP/HHH ATM Add-A-Fuse
    Base control knob: ACR-1 Remote Level Control installed in switch blank curtsy of @TruckyTruck

    Concept drawing of the sub box.
    Tundra Sub Box 1.jpg Tundra Sub Box 2.jpg

    Using the table saw to cut the MDF.

    Drawing the hole for the sub. Used a drill bit, cardboard and pencil.

    Started the main hole using a whole saw and then moved to a saber saw to complete. Finished off with sander.

    Progress of the enclosure.

    Enclosure screwed together.

    Completed custom sub enclosure with sub installed. Nothing fancy but it does the job. It is painted with Rustoleum truck bed liner.

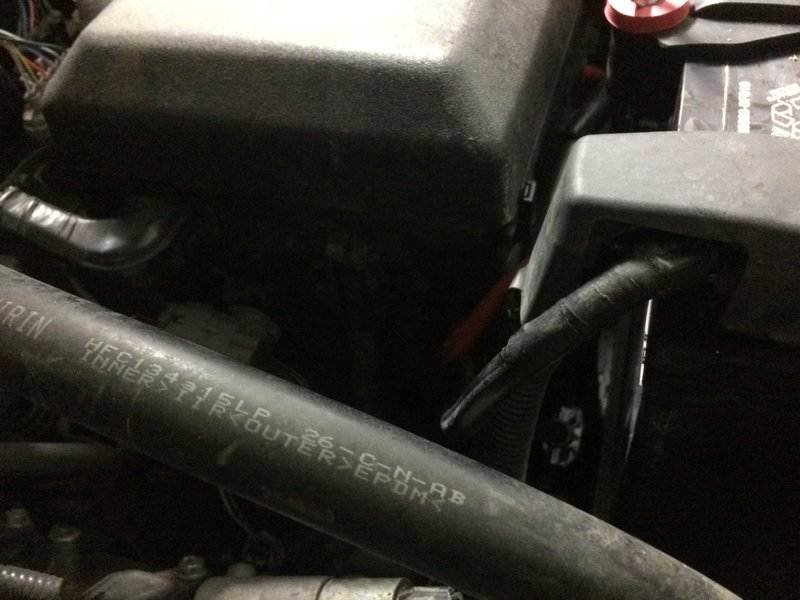

    Chose to place the fuse for the amp in the engine compartment fuse box. Drilled two small holes and used grommets to seal it up with the wire. These were the two locations that made sense that i could get a drill to without removing the fuse box and wireclips.

    Close up of the fuse siting in the fuse box




    Chose to put the LOC in the space under the cup holders. Had to drill a hole in the side where the storage space is to feed all the wires through.

    Close up of the hole with wires to the LOC

    Chose to run the power, accessory and RCA cables from the stereo to the amp in the wire runners under the plastic panel by the door. Not sure what they are actually called.

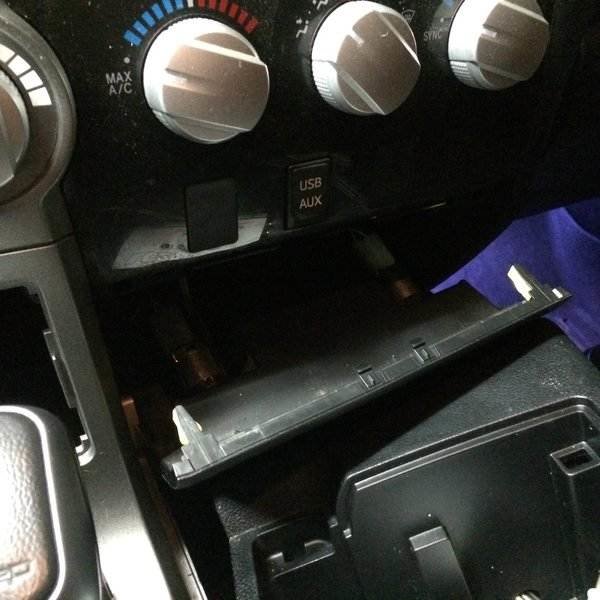

    To get to the stereo you have to remove the cup holders, the center console single cup holder/storage piece, cig ligher section and A/C controls before finding the 4 bolts that need to be removed for the stereo.

    Closer pic of the stero showing the bolts to be removed.

    An add a line fuse holder was used to provide accessory power to the amp. This plugs into either an open slot or an occupied slot. The add a line fuse holder has two spots for fuses. One as a replacement of the existing fuse and one for the new wire that you can connect to.

    Add a line fuse holder installed (bottom of pic with 10A fuse sideways)

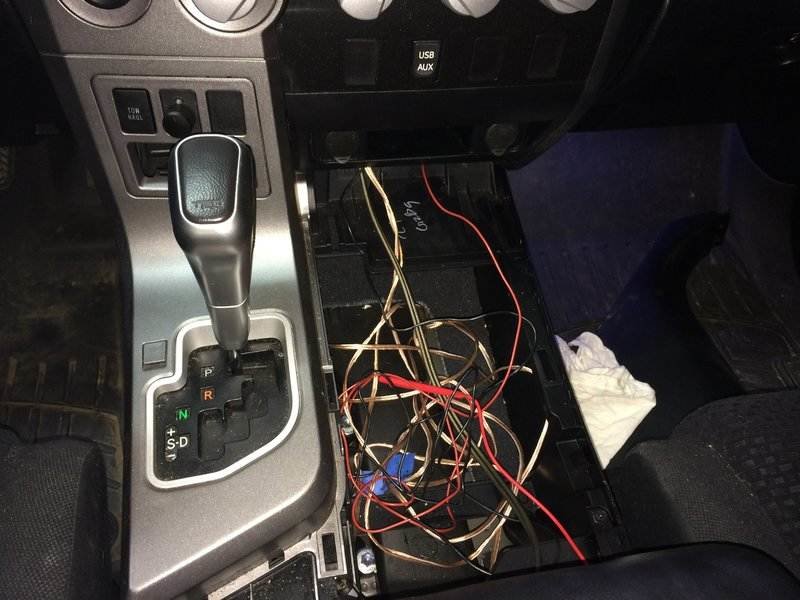

    LOC in position. Wires not cleaned up yet.

    Removed the rear seat to be able to run the amp wiring under the carpet.

    Connection of power and ground for the LOC to the cig lighter accessory outlet.

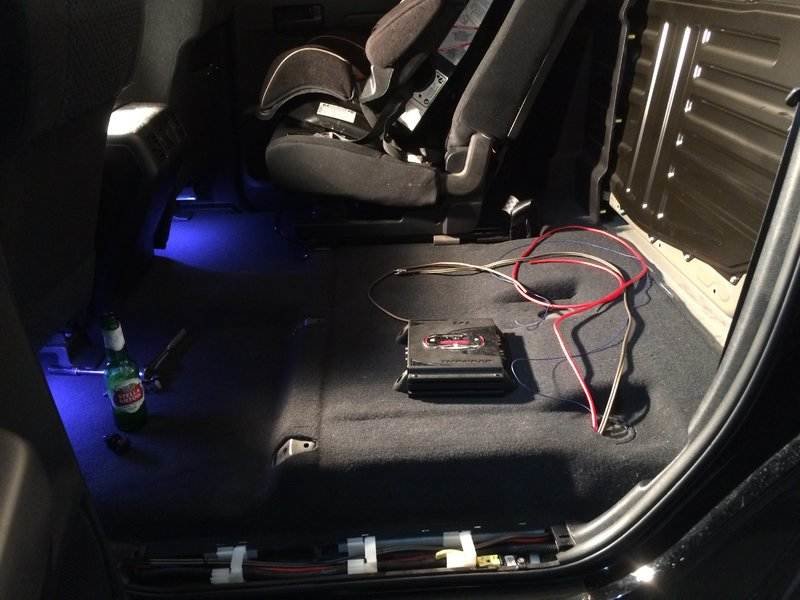

    Amp in position under the seat and wires pulled under the carpet.

    Base adjustment knob installed in the switch blank (provided to my by @TruckyTruck from his previous install)

    The ground connection point that i chose was next to the rear seat belt piller. It is the ground point for the rear window motor.

    Close up of the ground connection.

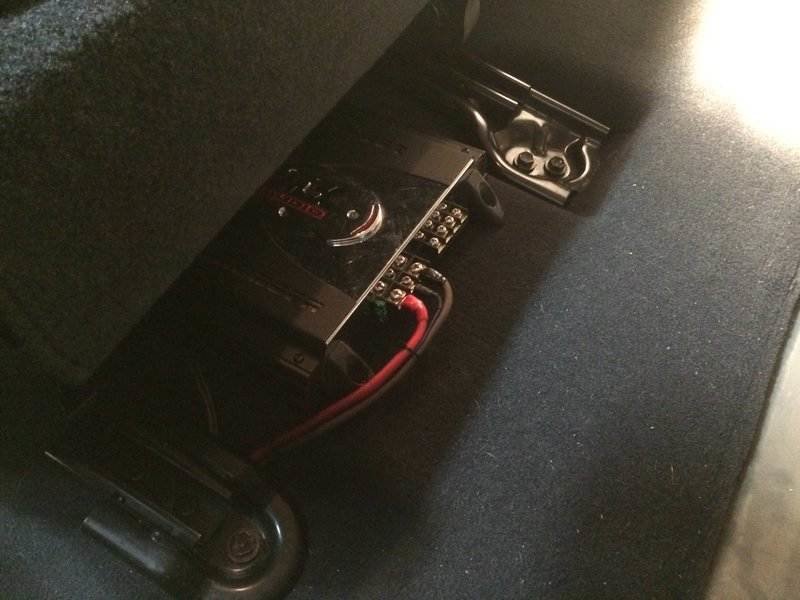

    Amp in position and wired up.

    Close up of the wires pulled through the carpet.

    Amp in position and seat installed.

    Removing the center console single cup holder and storage section. Just pull up and it pops off.

    Completed look at the battery. No wires show for the amp install.
    While i was doing the install i decided to clean up the battery terminals and replace the rusted and acid covered battery hold down with an aftermarket rubber hold down that i found at Advance Auto. Snug fit. Just need to trim the supports down.
