Inspect your Transmission Crossmember

Discussion in '1st Gen Tundras (2000-2006)' started by 2006Tundra, Sep 16, 2020.

  1. Sep 16, 2020 at 6:53 AM
    #1
    2006Tundra

    2006Tundra [OP] New Member

    Joined:
    Jun 27, 2017
    Member:
    #8299
    Messages:
    96
    Gender:
    Male
    Lakewood, CA
    Vehicle:
    06 Double Cab SR5 Toyota Tundra

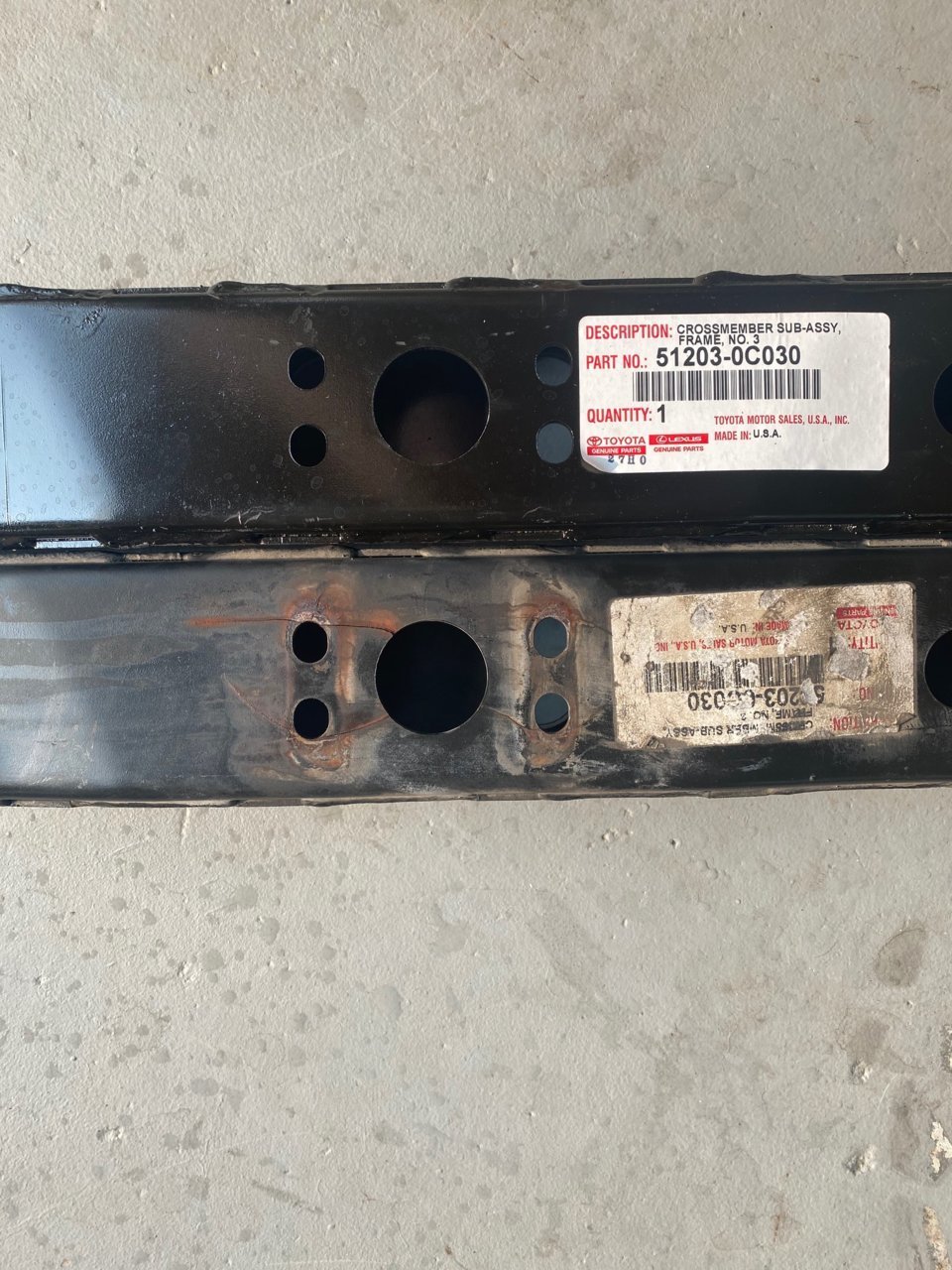

    Transmission Crossmember Fractures

    For several weeks I kept hearing a ticking noise every time I got on and off the gas. This past Saturday, I finally got around to searched for the issue. I thought maybe it was my transmission mount (new one was installed about a year ago) that was loose, checked the bolts and they were tight. As I was inspecting the crossmember I found several large fractures in it! So I called the dealer and bought a new one with new transmission mount bolts.
    This project took me about 30-45 mins from removing the old and installing the new with the mount.

    Anyone else having this issue?

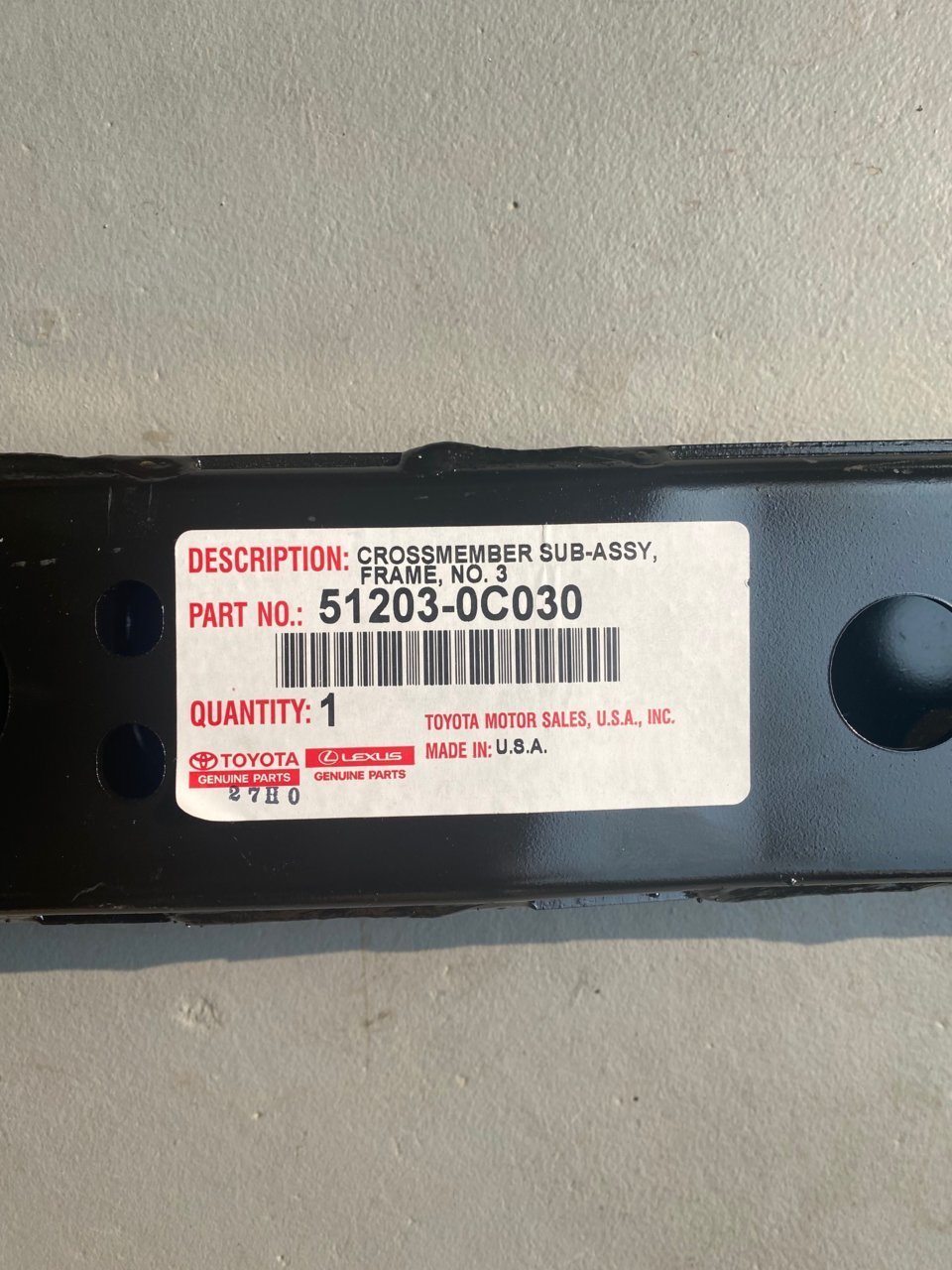

    Part Numbers:
    • Crossmember 51203-0C030
    Bolts for mount and crossmember:
    • 90119-A0031
    • 90080-11387

    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Stuck in the '00s and speedtre like this.
  2. Sep 16, 2020 at 6:57 AM
    #2
    FirstGenVol

    FirstGenVol Allergic to Darkness....

    Joined:
    Dec 13, 2018
    Member:
    #22934
    Messages:
    5,317
    First Name:
    Erik
    TN
    Vehicle:
    2002 SR5 4x4 AC
    Too many
    Am I the only one that can't see the pictures? I'm kinda surprised it only took 45 minutes to replace a crossmember though. That is impressive.

    Darkness, omgboost and speedtre like this.
  3. Sep 16, 2020 at 6:58 AM
    #3
    timsp8

    timsp8 Member

    Joined:
    May 11, 2018
    Member:
    #15231
    Messages:
    1,532
    Gender:
    Male
    First Name:
    Tim
    NY
    Vehicle:
    2018 Tundra Limited Crewmax
    No pictures.

  4. Sep 16, 2020 at 7:05 AM
    #4
    2006Tundra

    2006Tundra [OP] New Member

    Joined:
    Jun 27, 2017
    Member:
    #8299
    Messages:
    96
    Gender:
    Male
    Lakewood, CA
    Vehicle:
    06 Double Cab SR5 Toyota Tundra
    No pictures!? ok stand by...

    speedtre likes this.
  5. Sep 16, 2020 at 7:11 AM
    #5
    2006Tundra

    2006Tundra [OP] New Member

    Joined:
    Jun 27, 2017
    Member:
    #8299
    Messages:
    96
    Gender:
    Male
    Lakewood, CA
    Vehicle:
    06 Double Cab SR5 Toyota Tundra
    Can you see them now?

    thumbnail (1).jpg

    Darkness and omgboost like this.
  6. Sep 16, 2020 at 7:15 AM
    #6
    2006Tundra

    2006Tundra [OP] New Member

    Joined:
    Jun 27, 2017
    Member:
    #8299
    Messages:
    96
    Gender:
    Male
    Lakewood, CA
    Vehicle:
    06 Double Cab SR5 Toyota Tundra
    It's only 4 bolts for the cross member and 4 bolts for the trans mount. Support the trans with the jack and the crossmember slides right out.

    Darkness, bmf4069 and SouthPaw like this.
  7. Sep 16, 2020 at 7:15 AM
    #7
    azTony

    azTony New Member

    Joined:
    Sep 16, 2017
    Member:
    #9693
    Messages:
    1,024
    Gender:
    Male
    First Name:
    Tony
    Sun Lakes, AZ
    Vehicle:
    *** OV Tune Order #4481 *** ECU 0CN21 ***
    2018 Tundra Platimun with Icon Stage 9 w/3.0 and billet UCA, Harrop Elockers, 5.29 on 35’s
    This is a quick replacement with hardly anything in the way. Support tranny with a Jack, a few bolts to remove, swap in the new with tranny mount already attached and button it back up.

    @OP
    Good catch! Interested in seeing if anyone else has had this issue

    bmf4069 and 2006Tundra [OP] like this.
  8. Sep 16, 2020 at 8:08 AM
    #8
    FirstGenVol

    FirstGenVol Allergic to Darkness....

    Joined:
    Dec 13, 2018
    Member:
    #22934
    Messages:
    5,317
    First Name:
    Erik
    TN
    Vehicle:
    2002 SR5 4x4 AC
    Too many

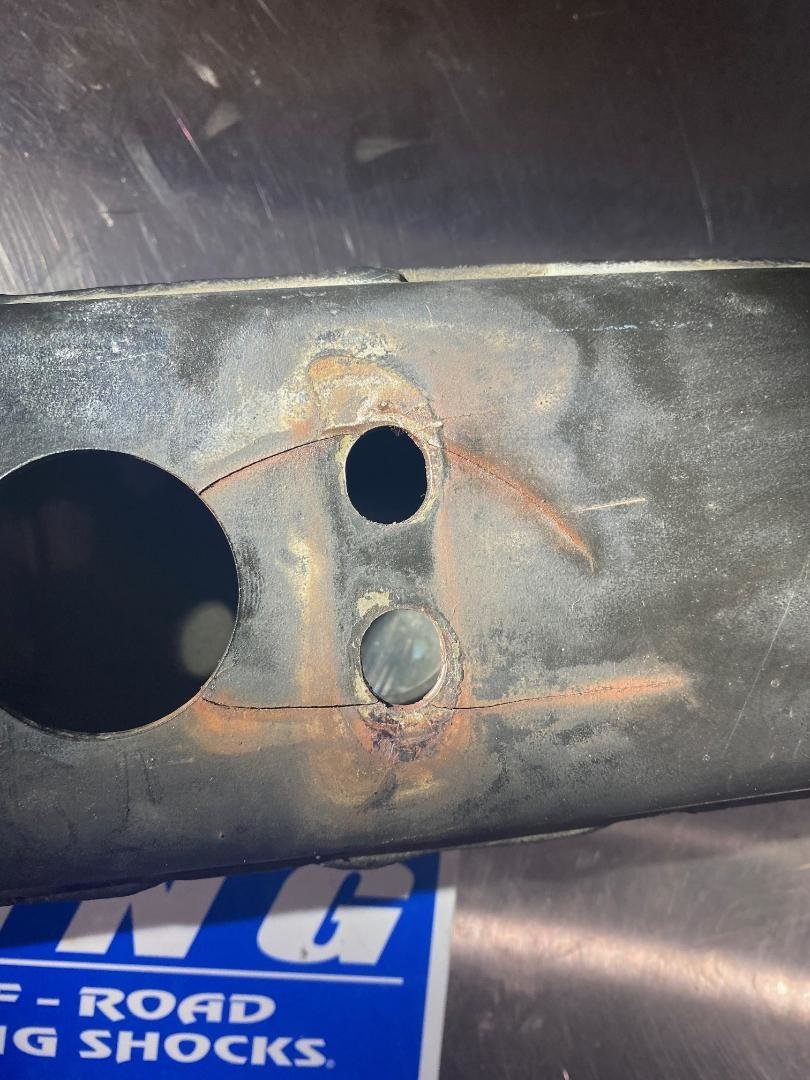

    Those definitely look like cracks. Are they all the way through? That's wild and I've never heard of anyone else reporting this. It's probably a really good thing you caught it.

  9. Sep 16, 2020 at 8:42 AM
    #9
    2006Tundra

    2006Tundra [OP] New Member

    Joined:
    Jun 27, 2017
    Member:
    #8299
    Messages:
    96
    Gender:
    Male
    Lakewood, CA
    Vehicle:
    06 Double Cab SR5 Toyota Tundra
    Yeah, all the way through. When I push down on the metal, you can see it flex.

  10. Sep 16, 2020 at 8:52 AM
    #10
    KNABORES

    KNABORES New Member

    Joined:
    Jan 1, 2020
    Member:
    #40572
    Messages:
    237
    Gender:
    Male
    Vehicle:
    2000 Limited TRD Access cab
    Bilstein 5100's 16x8 589's with 265/75/16 and 1.25" spacers Flowmaster 50 series over the axle dump Westin bull bar with 20" LED Pioneer touchscreen with backup camera Full interior and dash LED conversion Trailer brake controller with 7 pin Bedliner coat bumpers trim and tool box
    Any chance the mount replacement is related to this? What was the failure of the old mount? Just old? or did it break?

  11. Sep 16, 2020 at 9:28 AM
    #11
    NWPirate

    NWPirate New Pirate

    Joined:
    Dec 24, 2019
    Member:
    #40251
    Messages:
    199
    Gender:
    Male
    No not Seattle, WA
    Vehicle:
    17 Silver SR5 TRD CM. 04 Sequoia Phantom Gray Limited
    Nice catch!
    :popcorn:

  12. Sep 16, 2020 at 9:29 AM
    #12
    2006Tundra

    2006Tundra [OP] New Member

    Joined:
    Jun 27, 2017
    Member:
    #8299
    Messages:
    96
    Gender:
    Male
    Lakewood, CA
    Vehicle:
    06 Double Cab SR5 Toyota Tundra
    Short answer, no, I don't think that the mount caused it. I think that the bolts lost its torque and started backing out.

    Now thinking about it. I thought it was the mount that was worn. So I bought a new one and when I was replacing it, I noticed that the bolts to the crossmember and old mount where loose. So most likely that the torque of the drivetrain putting upward pressure on the crossmember stressed the metal and it cracked. When I installed the new mount and torque the bolts, it held tight and that's when I stopped hearing the ticking noise.
    Fast forward to a couple of weeks ago, I heard the noise again. That's when I found that the crossmember when cracked.

  13. Sep 16, 2020 at 10:28 AM
    #13
    KNABORES

    KNABORES New Member

    Joined:
    Jan 1, 2020
    Member:
    #40572
    Messages:
    237
    Gender:
    Male
    Vehicle:
    2000 Limited TRD Access cab
    Bilstein 5100's 16x8 589's with 265/75/16 and 1.25" spacers Flowmaster 50 series over the axle dump Westin bull bar with 20" LED Pioneer touchscreen with backup camera Full interior and dash LED conversion Trailer brake controller with 7 pin Bedliner coat bumpers trim and tool box
    Makes sense

  14. Sep 16, 2020 at 11:19 AM
    #14
    Professional Hand Model

    Professional Hand Model A.K.A ‘Golden Hands’

    Joined:
    Apr 29, 2018
    Member:
    #14878
    Messages:
    10,465
    Gender:
    Male
    First Name:
    Fred
    ‘Somewhere’... a State of Mind
    Vehicle:
    2002 Tundra SR5 4WD 4.7L AC Silver Metallica
    Hand Protectors
    Good eye and diagnosis!

  15. Sep 16, 2020 at 11:26 AM
    #15
    bmf4069

    bmf4069 Yup, that's car parts in a dishwasher

    Joined:
    Sep 1, 2018
    Member:
    #18880
    Messages:
    2,477
    Gender:
    Male
    TX
    Vehicle:
    02 AC sr5 4wd v8
    This makes me wonder if it's related to the bolts backing out on some of our other members....

  16. Sep 16, 2020 at 11:27 AM
    #16
    bmf4069

    bmf4069 Yup, that's car parts in a dishwasher

    Joined:
    Sep 1, 2018
    Member:
    #18880
    Messages:
    2,477
    Gender:
    Male
    TX
    Vehicle:
    02 AC sr5 4wd v8
    Also, I can't help myself....

    :redxfall:

  17. Sep 16, 2020 at 1:20 PM
    #17
    2006Tundra

    2006Tundra [OP] New Member

    Joined:
    Jun 27, 2017
    Member:
    #8299
    Messages:
    96
    Gender:
    Male
    Lakewood, CA
    Vehicle:
    06 Double Cab SR5 Toyota Tundra
    I'm willing to bet after after 14 years it lost it's factory torque. I loaded the bolts with blue thread locker and torque them to 22 lbs/ft.


    Further researching this issue, Sequoia guys are having this same issue. and found a TSB (Toyota Service Bulletin)


    Attached Files:

  18. Sep 16, 2020 at 1:27 PM
    #18
    FirstGenVol

    FirstGenVol Allergic to Darkness....

    Joined:
    Dec 13, 2018
    Member:
    #22934
    Messages:
    5,317
    First Name:
    Erik
    TN
    Vehicle:
    2002 SR5 4x4 AC
    Too many
    I'm just glad you're able to replace that crossmember so easily. I don't think the ones towards the back are that easy, if at all.

  19. Sep 16, 2020 at 1:56 PM
    #19
    2006Tundra

    2006Tundra [OP] New Member

    Joined:
    Jun 27, 2017
    Member:
    #8299
    Messages:
    96
    Gender:
    Male
    Lakewood, CA
    Vehicle:
    06 Double Cab SR5 Toyota Tundra
    Towards the back? It's just 4 bolts that go into the trans, 4 bolts that bolt through the crossmember and into the trans mount and 4 bolts that get bolted into the frame. The biggest worry is that you need to support your trans with a jack. Once you support the trans. Zip zip with an impact and the cross member slides out.

    I wish I did a "How To" because I can't find any videos on Youtube to help people out with this specific problem. I did find videos on how to replace the trans mount but once you take that off, You're halfway there.

  20. Sep 16, 2020 at 1:59 PM
    #20
    Professional Hand Model

    Professional Hand Model A.K.A ‘Golden Hands’

    Joined:
    Apr 29, 2018
    Member:
    #14878
    Messages:
    10,465
    Gender:
    Male
    First Name:
    Fred
    ‘Somewhere’... a State of Mind
    Vehicle:
    2002 Tundra SR5 4WD 4.7L AC Silver Metallica
    Hand Protectors
    I went out and crawled under to check the 02 frame cross member. Looks solid with no cracks. Seems to be a clear/white bushing in the middle. The 4 holding bolts are tight.

    Some 05-06 2wd models seem to be the ones that lose their mounting bolts.

  21. Sep 16, 2020 at 1:59 PM
    #21
    FirstGenVol

    FirstGenVol Allergic to Darkness....

    Joined:
    Dec 13, 2018
    Member:
    #22934
    Messages:
    5,317
    First Name:
    Erik
    TN
    Vehicle:
    2002 SR5 4x4 AC
    Too many
    I meant the crossmembers towards the back of the truck. I don't know if those can be individually replaced, at least not easily.

  22. Sep 16, 2020 at 2:10 PM
    #22
    2006Tundra

    2006Tundra [OP] New Member

    Joined:
    Jun 27, 2017
    Member:
    #8299
    Messages:
    96
    Gender:
    Male
    Lakewood, CA
    Vehicle:
    06 Double Cab SR5 Toyota Tundra

    You only need to take 1 crossmember out and it’s the only one that supports the trans.


    cavalry bear likes this.
  23. Sep 16, 2020 at 2:12 PM
    #23
    FirstGenVol

    FirstGenVol Allergic to Darkness....

    Joined:
    Dec 13, 2018
    Member:
    #22934
    Messages:
    5,317
    First Name:
    Erik
    TN
    Vehicle:
    2002 SR5 4x4 AC
    Too many
    You're not understanding what I'm saying. I was saying I'm thankful the transmission crossmember you replaced was easy because had this happen to one of the other crossmembers towards the back of the truck, it wouldn't have been an easy replacement.

  24. Sep 16, 2020 at 2:12 PM
    #24
    2006Tundra

    2006Tundra [OP] New Member

    Joined:
    Jun 27, 2017
    Member:
    #8299
    Messages:
    96
    Gender:
    Male
    Lakewood, CA
    Vehicle:
    06 Double Cab SR5 Toyota Tundra
    Must be nice! Hopefully I don't have to deal with this issue again.

  25. Sep 16, 2020 at 2:13 PM
    #25
    2006Tundra

    2006Tundra [OP] New Member

    Joined:
    Jun 27, 2017
    Member:
    #8299
    Messages:
    96
    Gender:
    Male
    Lakewood, CA
    Vehicle:
    06 Double Cab SR5 Toyota Tundra
    Understood. Yeah, I haven't inspected the other crossmembers. Hopefully they're all good.

  26. Sep 16, 2020 at 2:38 PM
    #26
    rock climber

    rock climber New Member

    Joined:
    Oct 7, 2019
    Member:
    #37106
    Messages:
    423
    Gender:
    Male
    Colorado
    Vehicle:
    2001 Sequoia 4X4, 2006 Tundra Double Cab 4X4
    Is your truck 2wd?

  27. Sep 16, 2020 at 2:45 PM
    #27
    2006Tundra

    2006Tundra [OP] New Member

    Joined:
    Jun 27, 2017
    Member:
    #8299
    Messages:
    96
    Gender:
    Male
    Lakewood, CA
    Vehicle:
    06 Double Cab SR5 Toyota Tundra
    2wd

  28. Sep 16, 2020 at 5:30 PM
    #28
    N84434

    N84434 In the Frozen Tundra

    Joined:
    Jan 22, 2020
    Member:
    #41580
    Messages:
    267
    Gender:
    Male
    First Name:
    Jim
    Milwaukee WI.
    Vehicle:
    2001 Limited TRD
    Short answer is no. They're a real pain to remove. #3 (forward end of fuel tank) Was a bugger to remove when I pulled it out to clean up the rust and repaint it. I had to twist it slightly to get it out and the same when reinstalling it. #4 (aft end of tank) I didn't even try because it's tied in at 4 different points with 12 big rivets. It's the X crossmember where the Spare tire hangs.

    I bought a clean used trans crossmember for 75.00 and it came with mounting hardware. The trans mount was almost 50.00 IIR..

  29. Sep 17, 2020 at 9:08 AM
    #29
    Pucks18

    Pucks18 Panic mode

    Joined:
    Jan 21, 2020
    Member:
    #41548
    Messages:
    762
    Gender:
    Male
    Vehicle:
    2001 Tundra 4x4 Limited trd
    After purchasing my torque wrench I can confirm I have over tightened literally everything my entire life. With my 3/4 torque wrench 22 ft/lbs feels like I could un thread the bolt by hand. Obviously not but 22ft lbs does not sound right for a crossmember!

  30. Sep 17, 2020 at 9:13 AM
    #30
    2006Tundra

    2006Tundra [OP] New Member

    Joined:
    Jun 27, 2017
    Member:
    #8299
    Messages:
    96
    Gender:
    Male
    Lakewood, CA
    Vehicle:
    06 Double Cab SR5 Toyota Tundra
    Yeah, 22 seems pretty light but I was going off what the TSB said. Blue Loctite should hold ... :fingerscrossed:
