Help Needed: Fender liner clip

Discussion in '2.5 Gen Tundras (2014-2021)' started by Tundra_Protege1128, Jan 23, 2021.

  1. Jan 23, 2021 at 11:24 AM
    #1
    Tundra_Protege1128

    Tundra_Protege1128 [OP] New Member

    Joined:
    Sep 14, 2019
    Member:
    #36099
    Messages:
    12
    Gender:
    Male
    First Name:
    Anthony

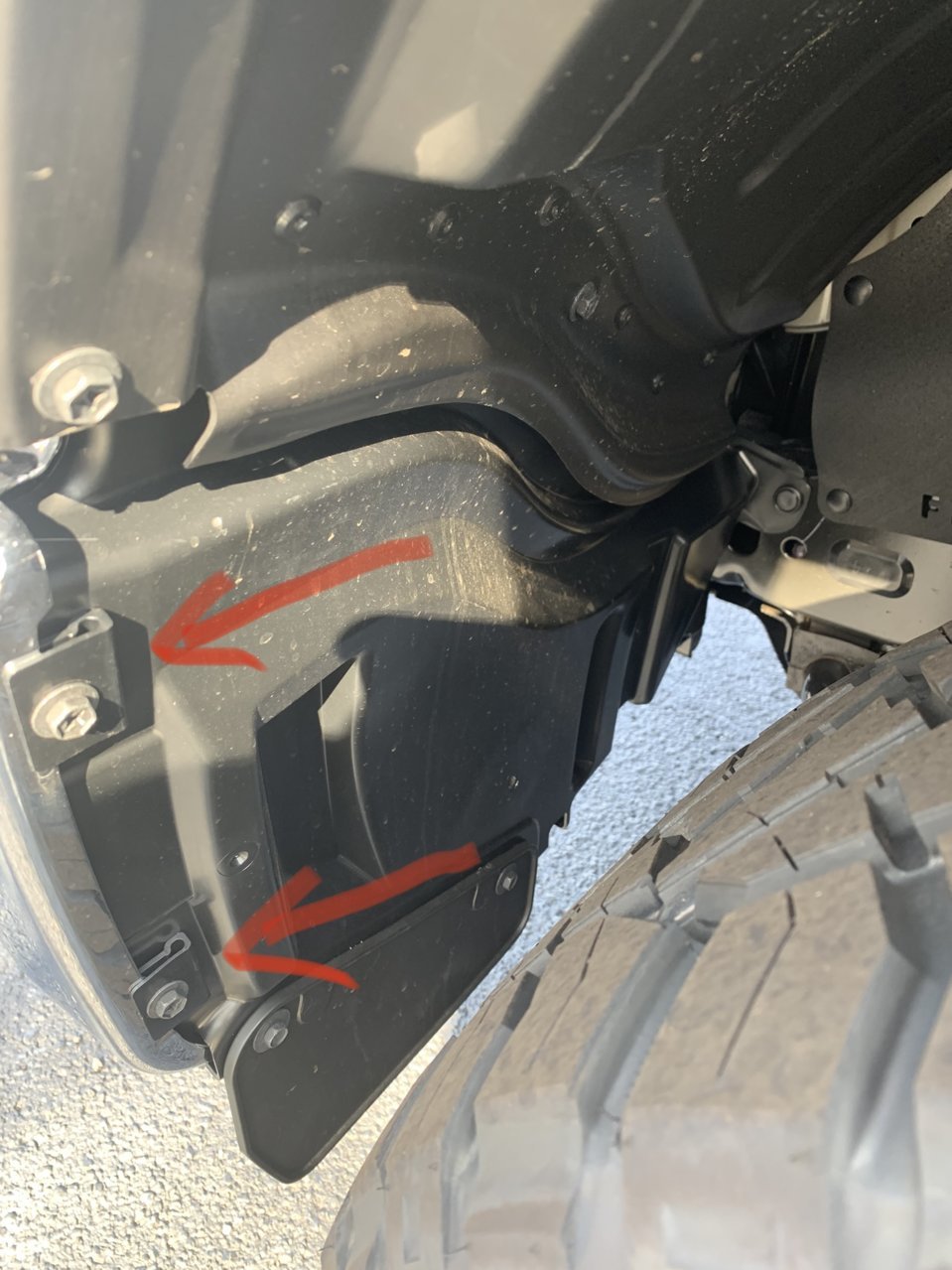

    Can anyone ID this clip/part number. I need it for the replacement fender liners I purchased. Thanks!


  2. Jan 23, 2021 at 12:05 PM
    #2
    1lowlife

    1lowlife Toxic prick and pavement princess..

    Joined:
    May 4, 2016
    Member:
    #3296
    Messages:
    11,036
    First Name:
    DADA
    THE GREAT STATE OF TEXAS
    Vehicle:
    2014 MGM DC SR5
    First time I pulled mine I broke both of them..
    I can't remember what the trick was to getting them off in 1 piece....

    NewImprovedRon likes this.
  3. Jan 24, 2021 at 7:03 PM
    #3
    Tundra_Protege1128

    Tundra_Protege1128 [OP] New Member

    Joined:
    Sep 14, 2019
    Member:
    #36099
    Messages:
    12
    Gender:
    Male
    First Name:
    Anthony
    Perfect. Thanks for the help.

    NewImprovedRon likes this.
  4. May 12, 2024 at 6:20 AM
    #4
    jjim94

    jjim94 New Member

    Joined:
    May 12, 2024
    Member:
    #116732
    Messages:
    1
    Gender:
    Male
    Any update on this? Just broke mine

  5. May 23, 2025 at 7:10 PM
    #5
    Dukeandtheland

    Dukeandtheland New Member

    Joined:
    Mar 19, 2025
    Member:
    #132141
    Messages:
    11
    Gender:
    Male
    First Name:
    Duke
    Vehicle:
    2021 1794 TRD Offroad
    Magnuson supercharger, chrome delete, TRD PRO grille, Alpine 10 Speaker, RetraxPRO Tonneau, LED lightbars...
    If you have the 14-21 offorad package, the part numbers are:
    left
    53883-0C050
    right
    53882-0C060

    If you don't have the off road package, you likely have the one with the clips, insead of screws. These can easily be found by searching:

    "Front Fender Seal "

    The part numbers will be slighly different but very close.

    Sparks have the correct info called out. Toyota website does not indicate this and I had to do hours of searching just to verify this annoying litte crappy PcsOfSht !

    panicman likes this.
  6. May 28, 2025 at 9:50 PM
    #6
    Dukeandtheland

    Dukeandtheland New Member

    Joined:
    Mar 19, 2025
    Member:
    #132141
    Messages:
    11
    Gender:
    Male
    First Name:
    Duke
    Vehicle:
    2021 1794 TRD Offroad
    Magnuson supercharger, chrome delete, TRD PRO grille, Alpine 10 Speaker, RetraxPRO Tonneau, LED lightbars...
    Correction -

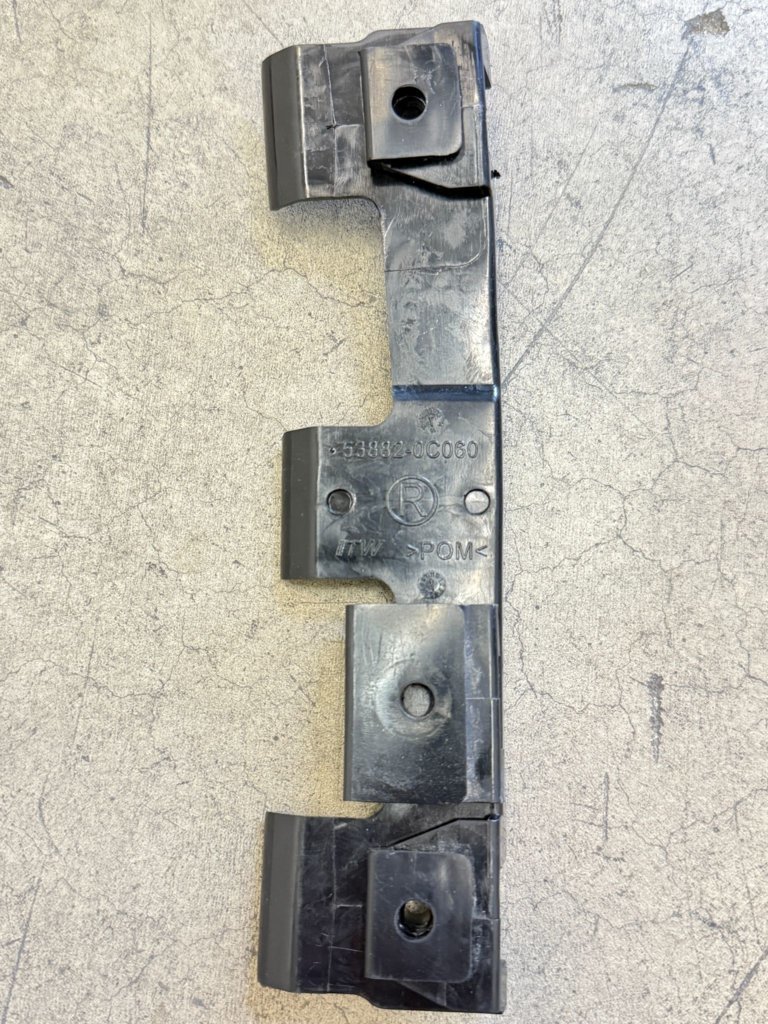

    The original part numbers from my 2021 1794 with OR package, are actually
    Left
    53883-0C040
    Right
    53882-0C050

    When reading directly off the broken pieces.

    It is quite confusing when ordering the right ones.

  7. May 29, 2025 at 1:55 AM
    #7
    therealjonwick

    therealjonwick New Member

    Joined:
    Jul 30, 2023
    Member:
    #101209
    Messages:
    548
    Gender:
    Male
    First Name:
    JR
    Vehicle:
    2019 OR
    Mine totally broke when I changed my fog lights. Need to replace my worn bezels soon so need to take them off again. Hopefully I can finagle them back on without replacing. Thanks for the part numbers! I have an SR5 OR and mine look like the ones OP posted.

  8. May 30, 2025 at 12:48 PM
    #8
    Dukeandtheland

    Dukeandtheland New Member

    Joined:
    Mar 19, 2025
    Member:
    #132141
    Messages:
    11
    Gender:
    Male
    First Name:
    Duke
    Vehicle:
    2021 1794 TRD Offroad
    Magnuson supercharger, chrome delete, TRD PRO grille, Alpine 10 Speaker, RetraxPRO Tonneau, LED lightbars...

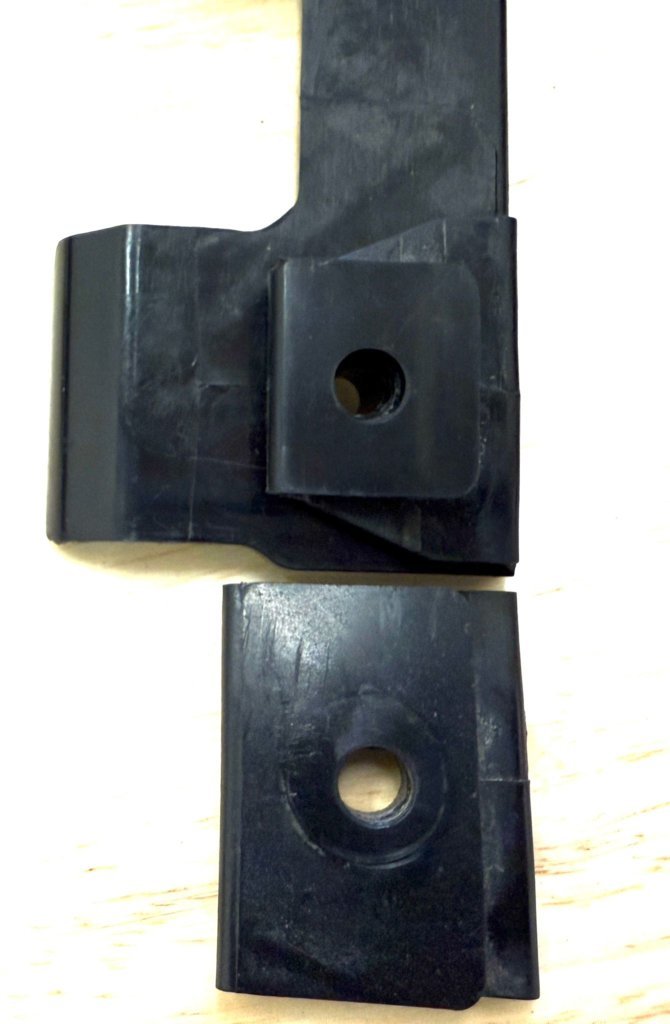

    For anyone that's interested, here is a comparison (the broken bigger tab was placed against the wrong, new fender seal with smaller tabs). The smaller tab version will NOT fit because the holes on the bumper caps will NOT line up! They look very deceivingly similar and will lead you to believe they will work.

  9. May 30, 2025 at 1:05 PM
    #9
    1lowlife

    1lowlife Toxic prick and pavement princess..

    Joined:
    May 4, 2016
    Member:
    #3296
    Messages:
    11,036
    First Name:
    DADA
    THE GREAT STATE OF TEXAS
    Vehicle:
    2014 MGM DC SR5

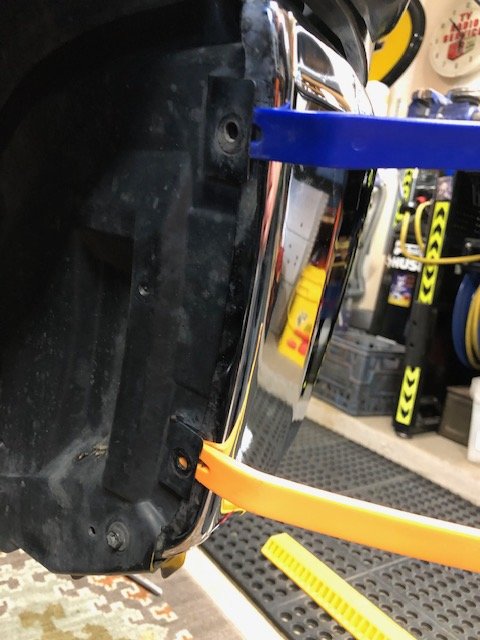

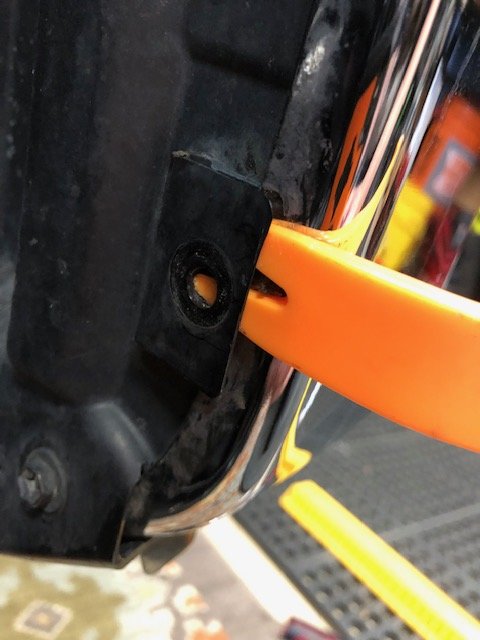

    For reference, it helps to 'release' the clips when removing that part.
    Be gentle with it, don't force it.


    0d01ceb7-d3e0-454f-baa8-d7b765bab42a_7ba9e81a9b0d9eff4afa86245a763e730fa33e0e.pngc6f330bc-96ea-44d8-9b5a-99b0b320ab53_0f80fe28230ba347fc80ccdbbc4a85f08e7f3680.png

  10. May 30, 2025 at 1:07 PM
    #10
    Dukeandtheland

    Dukeandtheland New Member

    Joined:
    Mar 19, 2025
    Member:
    #132141
    Messages:
    11
    Gender:
    Male
    First Name:
    Duke
    Vehicle:
    2021 1794 TRD Offroad
    Magnuson supercharger, chrome delete, TRD PRO grille, Alpine 10 Speaker, RetraxPRO Tonneau, LED lightbars...

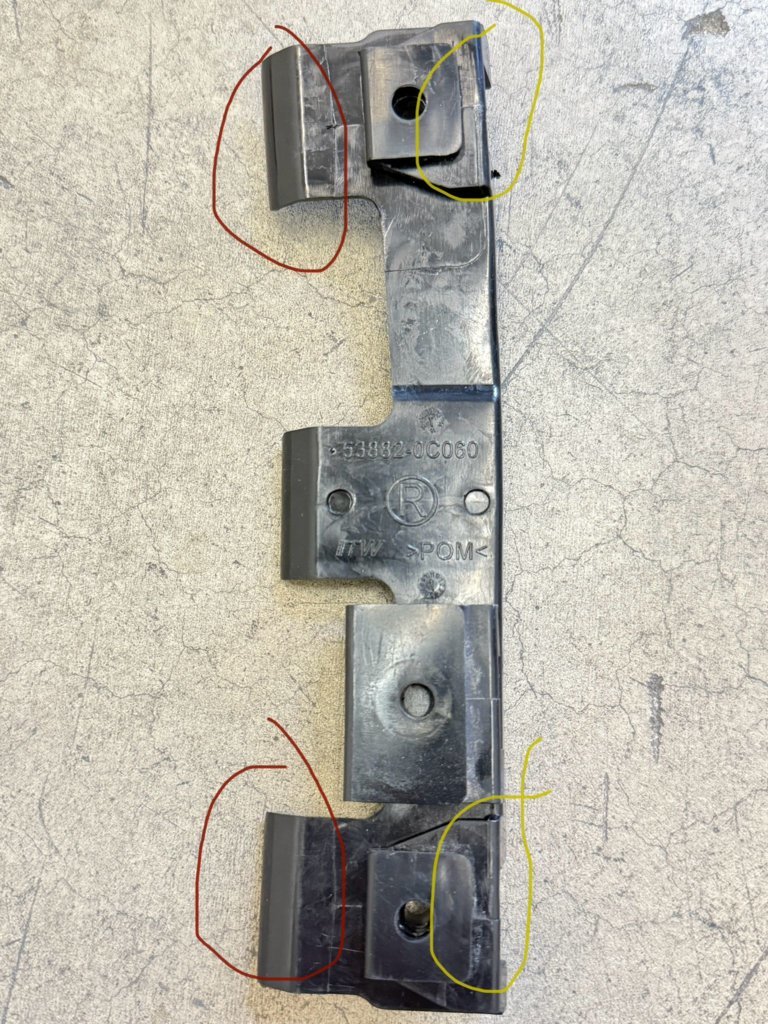

    This part of "fender seal" is secured to the fender liner by the back tabs - circled in red, and secured to the front bumper cap, by the front tabs, circled in yellow.
    The yellow edge is very fragile and will break if being pushed directly. I fount it is easier to get the liner off by prying up the front tab gently and wiggle it out. What you are really doing is to pry up the the screw holes which are indent to fit each other; once they are pried up, the whole thing will slide away. The back tabs are meant to keep this fender seal on the fender liner, so try not to separate it from the liner.

    1lowlife likes this.
