Extra 4" cable with Maestro RR - what is it? [SOLVED]

Discussion in 'Audio & Video' started by BrakeDust, Apr 12, 2021.

  1. Apr 12, 2021 at 4:52 PM
    #1
    BrakeDust

    BrakeDust [OP] New Member

    Joined:
    Jan 25, 2021
    Member:
    #58113
    Messages:
    718
    Gender:
    Male
    Hill Country, TX
    Vehicle:
    2021 CM SR5 4x4 Magnetic
    Anyone know what this is? It's not in the Maestro diagram, nor is it in their "do not use" list. One side fits into the Maestro, the other side doesn't seem to have a counterpart in the Toyota OEM cables. 2021 SR5, non-JBL.

    Thanks
    [​IMG]

  2. Apr 12, 2021 at 5:12 PM
    #2
    Tundra234

    Tundra234 New Member

    Joined:
    Nov 30, 2018
    Member:
    #22402
    Messages:
    16,058
    Gender:
    Male
    First Name:
    George
    Florida
    Vehicle:
    2020 Tundra DC SR5 Barcelona
    Alot of them
    It had something to do with the front speakers I believe. You don't need it. I just threw it in a bag with the other cables that weren't needed. Everything pretty much goes through that data cable.
    Another thing that I noticed as well is no matter which selection you make to flash the module (amp, without amp, etc), the wiring diagrams all seem to be the same. You do not need to run the cable to the OBD port either.

    Last edited: Apr 12, 2021
  3. Apr 12, 2021 at 5:29 PM
    #3
    TRDFerguson

    TRDFerguson SSEM #99/RGBA #8-ish?/It’s a funny name.

    Joined:
    Oct 18, 2018
    Member:
    #20730
    Messages:
    9,116
    Gender:
    Male
    First Name:
    Jake
    Southeast Greater Basin, AZ
    Vehicle:
    2018 MGM CrüeMax
    Do you still get TPMS and factory option controls then?

  4. Apr 12, 2021 at 5:33 PM
    #4
    Tundra234

    Tundra234 New Member

    Joined:
    Nov 30, 2018
    Member:
    #22402
    Messages:
    16,058
    Gender:
    Male
    First Name:
    George
    Florida
    Vehicle:
    2020 Tundra DC SR5 Barcelona
    Alot of them
    Yes, it is all through the data cable. All of the wiring in the box is like an "all in one" kit. Some vehicles will use them, some will not.

  5. Apr 12, 2021 at 5:49 PM
    #5
    BrakeDust

    BrakeDust [OP] New Member

    Joined:
    Jan 25, 2021
    Member:
    #58113
    Messages:
    718
    Gender:
    Male
    Hill Country, TX
    Vehicle:
    2021 CM SR5 4x4 Magnetic
    Thanks!!

    There's also a couple plugs on the maestro harness that look identical to each other, possibly one for each side of the unit. Per the diagram it appears only one needs to be connected. One is brown, other is black. I'm thinking I should just plug in everything that fits. Is that safe?

  6. Apr 12, 2021 at 5:57 PM
    #6
    Tundra234

    Tundra234 New Member

    Joined:
    Nov 30, 2018
    Member:
    #22402
    Messages:
    16,058
    Gender:
    Male
    First Name:
    George
    Florida
    Vehicle:
    2020 Tundra DC SR5 Barcelona
    Alot of them
    Usb retention adapter is available now....just ordered one.

    https://www.crutchfield.com/p_794USBTO3/iDatalink-UTO3-Adapter.html

  7. Apr 12, 2021 at 5:58 PM
    #7
    Tundra234

    Tundra234 New Member

    Joined:
    Nov 30, 2018
    Member:
    #22402
    Messages:
    16,058
    Gender:
    Male
    First Name:
    George
    Florida
    Vehicle:
    2020 Tundra DC SR5 Barcelona
    Alot of them
    Let me grab my bag so that you can see what is not used.

  8. Apr 12, 2021 at 6:07 PM
    #8
    Tundra234

    Tundra234 New Member

    Joined:
    Nov 30, 2018
    Member:
    #22402
    Messages:
    16,058
    Gender:
    Male
    First Name:
    George
    Florida
    Vehicle:
    2020 Tundra DC SR5 Barcelona
    Alot of them

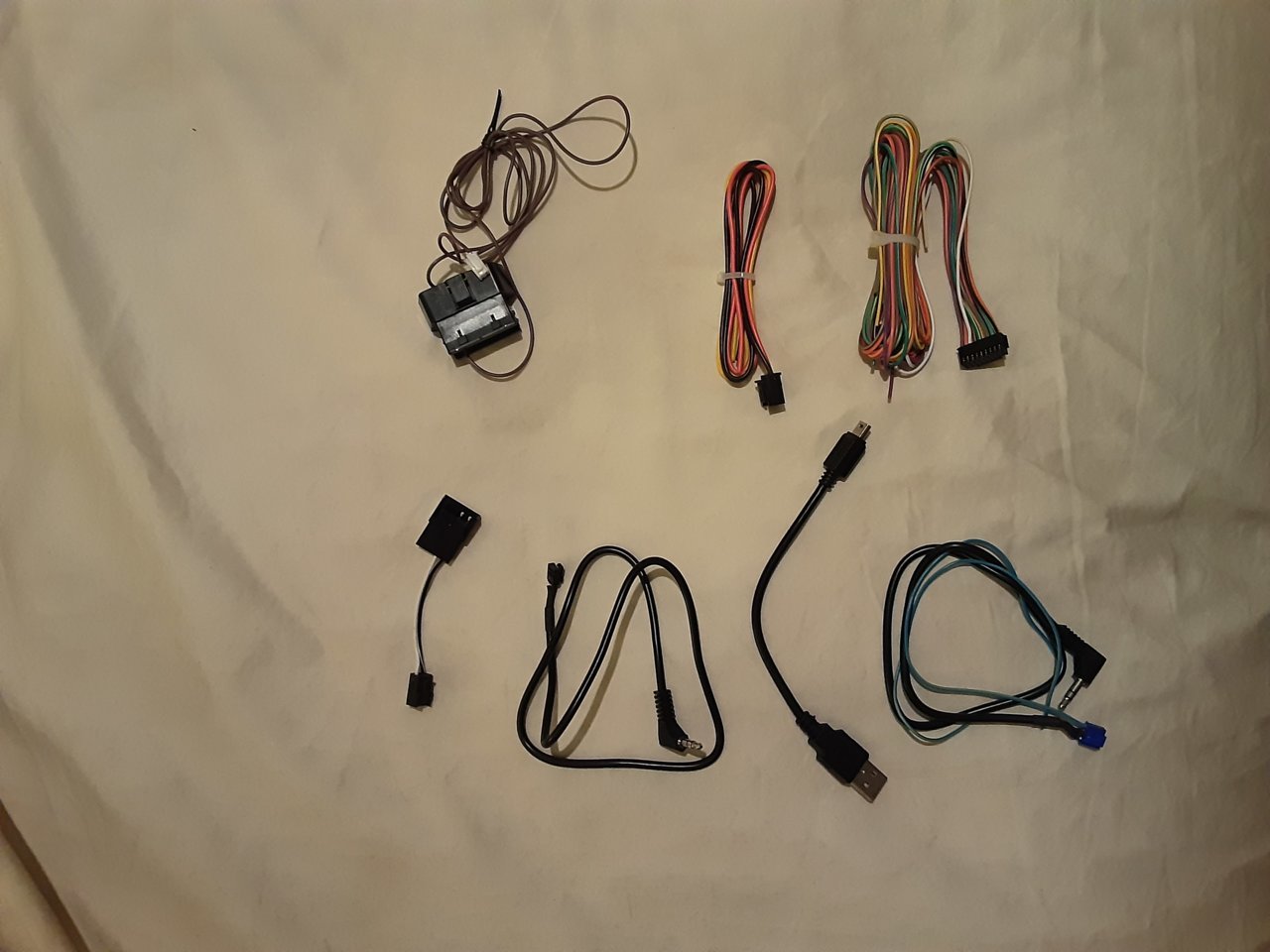

    Here is everything that was not used when I installed mine.


  9. Apr 12, 2021 at 6:34 PM
    #9
    TRDFerguson

    TRDFerguson SSEM #99/RGBA #8-ish?/It’s a funny name.

    Joined:
    Oct 18, 2018
    Member:
    #20730
    Messages:
    9,116
    Gender:
    Male
    First Name:
    Jake
    Southeast Greater Basin, AZ
    Vehicle:
    2018 MGM CrüeMax
    Interesting, looks like you 2020+ guys have a slight change to the wiring diagram vs 2014-2019:

  10. Apr 12, 2021 at 6:38 PM
    #10
    Tundra234

    Tundra234 New Member

    Joined:
    Nov 30, 2018
    Member:
    #22402
    Messages:
    16,058
    Gender:
    Male
    First Name:
    George
    Florida
    Vehicle:
    2020 Tundra DC SR5 Barcelona
    Alot of them
    Yep. The 2020 doesn't even use the OBD cable.
