Do I need a new gauge cluster?

Discussion in '1st Gen Tundras (2000-2006)' started by matkes77, Jun 9, 2025.

  1. Jun 9, 2025 at 7:19 PM
    #1
    matkes77

    matkes77 [OP] New Member

    Joined:
    Apr 30, 2025
    Member:
    #134257
    Messages:
    54
    Gender:
    Male
    Vehicle:
    2002 4.7L AC 4x4
    Tonight I went to do an LED upgrade on the instrument cluster lights. Just the main ones that are T10 and the one T5 for the main backlight. I was also replacing the drive and the one below it. The drive light circuit appears to be bad because the bulbs work in the other spot I replaced but not the drive spot. None of the lights work for the main backlight areas. I know LEDs are polarity specific and I switched them multiple times trying to get something to light up but none of them do. How do I get a new instrument cluster and does that mess up the mileage etc or can that be programmed?

  2. Jun 9, 2025 at 8:41 PM
    #2
    matkes77

    matkes77 [OP] New Member

    Joined:
    Apr 30, 2025
    Member:
    #134257
    Messages:
    54
    Gender:
    Male
    Vehicle:
    2002 4.7L AC 4x4
    Can the circuit be replaced?

  3. Jun 10, 2025 at 6:40 AM
    #3
    The Black Mamba

    The Black Mamba A pure specimen of TX Black Snek

    Joined:
    Sep 6, 2023
    Member:
    #103472
    Messages:
    4,539
    First Name:
    Snek
    DFW
    Vehicle:
    Black 00 SR5 AC 5VZ PreRunner
    Imma keep it stock
    Ebay, salvage yard, private seller parts truck. Here's the kicker, they are NOT all interchangeable! You'll need to use a cluster with the same part number as yours!

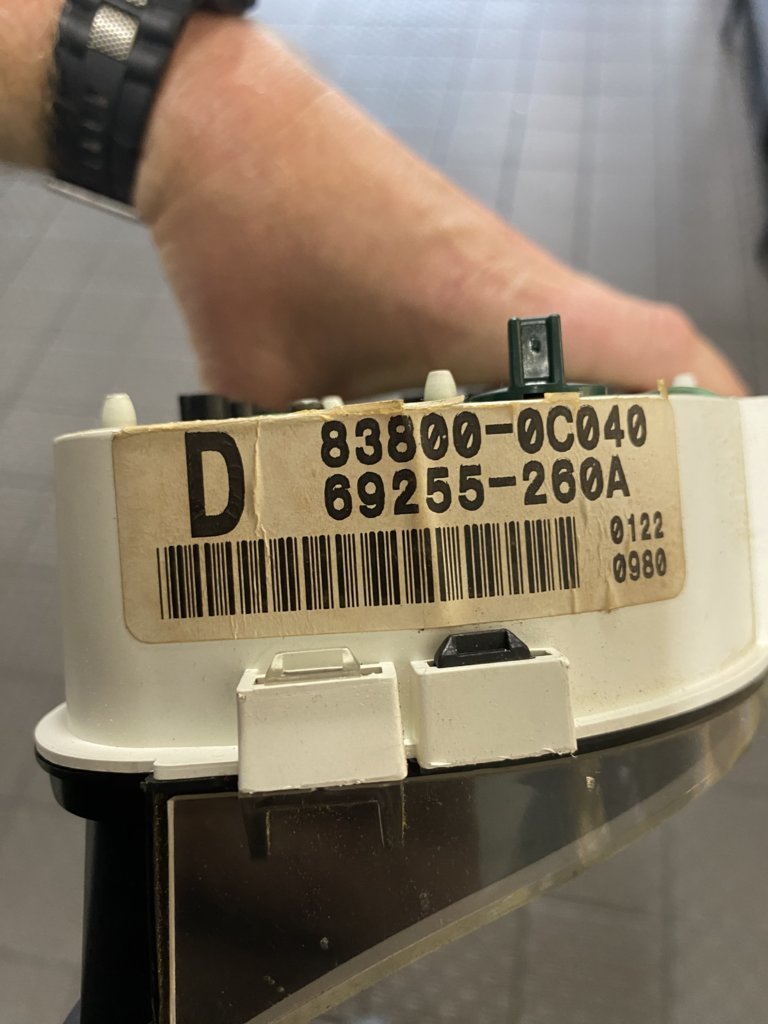

    Here is mine for reference only:


    Yes. The milage is stored in the cluster

    No, but the display can be swapped. https://www.tundras.com/threads/tacoed-tundra-project.130491/page-5#post-3350713

    Probably

    This site contains affiliate links for which the site may be compensated.
    #3
    matkes77[QUOTED][OP] likes this.
  4. Jun 10, 2025 at 7:56 AM
    #4
    matkes77

    matkes77 [OP] New Member

    Joined:
    Apr 30, 2025
    Member:
    #134257
    Messages:
    54
    Gender:
    Male
    Vehicle:
    2002 4.7L AC 4x4
    I need to slow my roll on coming here for help I guess, LOL. I always forget to check fuses and found one in position 25 that is blown. The diagram does mention instrument panel lights so I'm crossing my fingers its EZ fix. I'm going to buy some fuses on my lunch today to see if that changes anything.

    The Black Mamba and shifty` like this.
  5. Jun 10, 2025 at 8:32 AM
    #5
    BubbaW

    BubbaW Blessed 2 B above Ground

    Joined:
    Aug 19, 2019
    Member:
    #34845
    Messages:
    3,975
    First Name:
    Bubba
    Where Eagles Nest
    Vehicle:
    04 DC LTD 4X4 4.7 V8
    T150 Lover
    For your 2002, curious if it was the Dome fuse, given that’s what controls backlight bulbs. The others are protected by the Gauge fuse.

    As for your drive spot, did an incandescent work before starting LED changer over ?
    Worse case the gear shifter or park/neutral switch has an issue, given that’s where the voltage is derived to the D bulb itself.

    shifty` likes this.
  6. Jun 10, 2025 at 8:34 AM
    #6
    matkes77

    matkes77 [OP] New Member

    Joined:
    Apr 30, 2025
    Member:
    #134257
    Messages:
    54
    Gender:
    Male
    Vehicle:
    2002 4.7L AC 4x4
    I didn't buy LED for the D light after watching a YouTube video where someone had trouble. I bought OEM bulbs and only had the one below D work. I swapped bulbs to check and no change on D light.

    The dome light is working so not sure if you meant something else...

  7. Jun 10, 2025 at 9:46 AM
    #7
    matkes77

    matkes77 [OP] New Member

    Joined:
    Apr 30, 2025
    Member:
    #134257
    Messages:
    54
    Gender:
    Male
    Vehicle:
    2002 4.7L AC 4x4
    It was the fuse. Love an easy fix! :rolleyes::yes:
