DIY 35" spare tire carrier

Discussion in 'General Tundra Discussion' started by CaptSpaulding, Mar 9, 2019.

  1. Mar 9, 2019 at 9:50 PM
    #1
    CaptSpaulding

    CaptSpaulding [OP] ...ain't nothin but nothin

    Joined:
    Nov 1, 2018
    Member:
    #21210
    Messages:
    568
    Gender:
    Male
    First Name:
    Jake
    Vehicle:
    2010 White DC 4x4

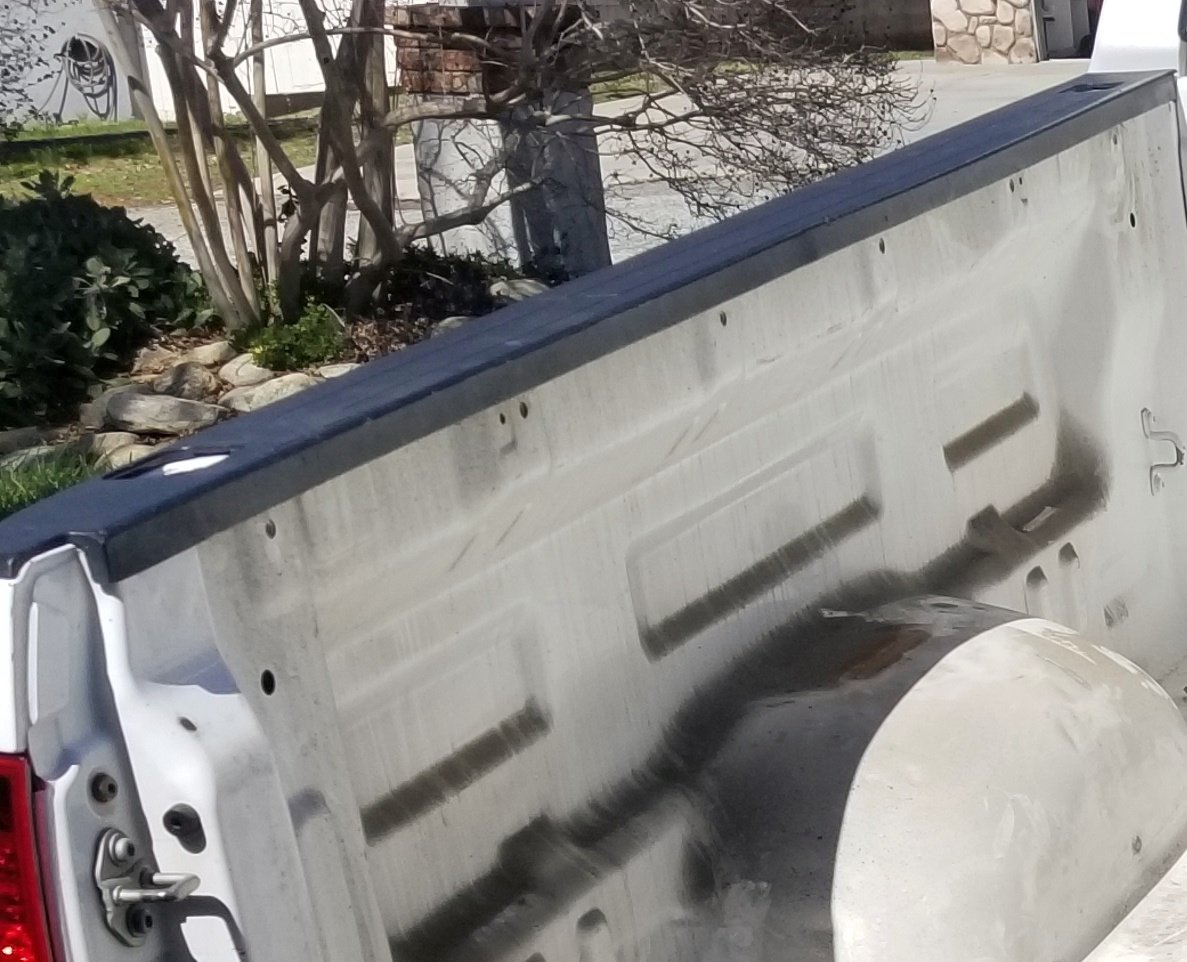

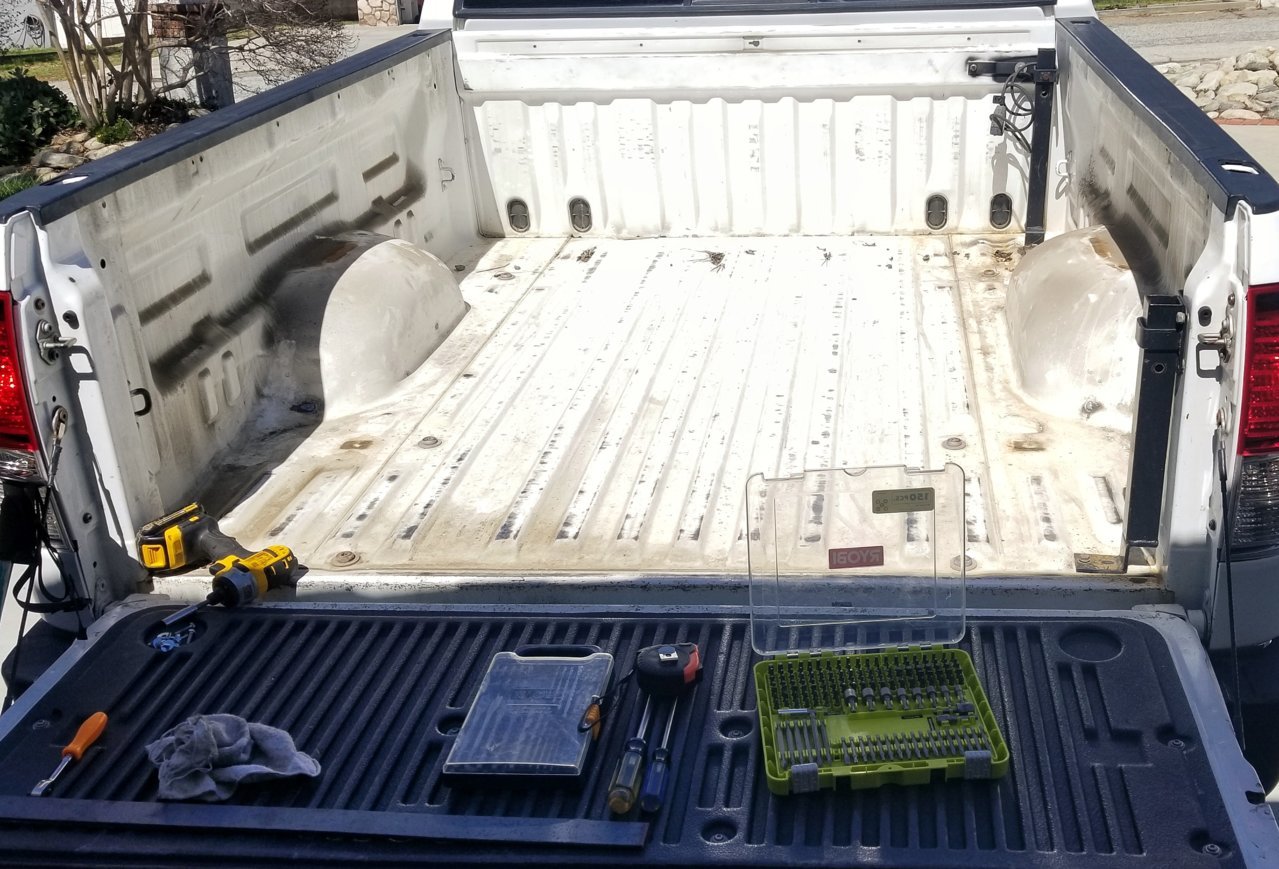

    I've been looking for a dual spare carrier option that didn't take up a majority of the bed space, and fit 35"s. The SDHQ rack is really cool, but takes up too much room. I had 1 spare underneath...uncomfortably tight squeeze and felt it may present clearance issues at some point. That said, I pulled my plastic liner and set out to make my own. I realize this is amateur stuff at best, but I'm still working with 1 arm for the most part. Had fun though.

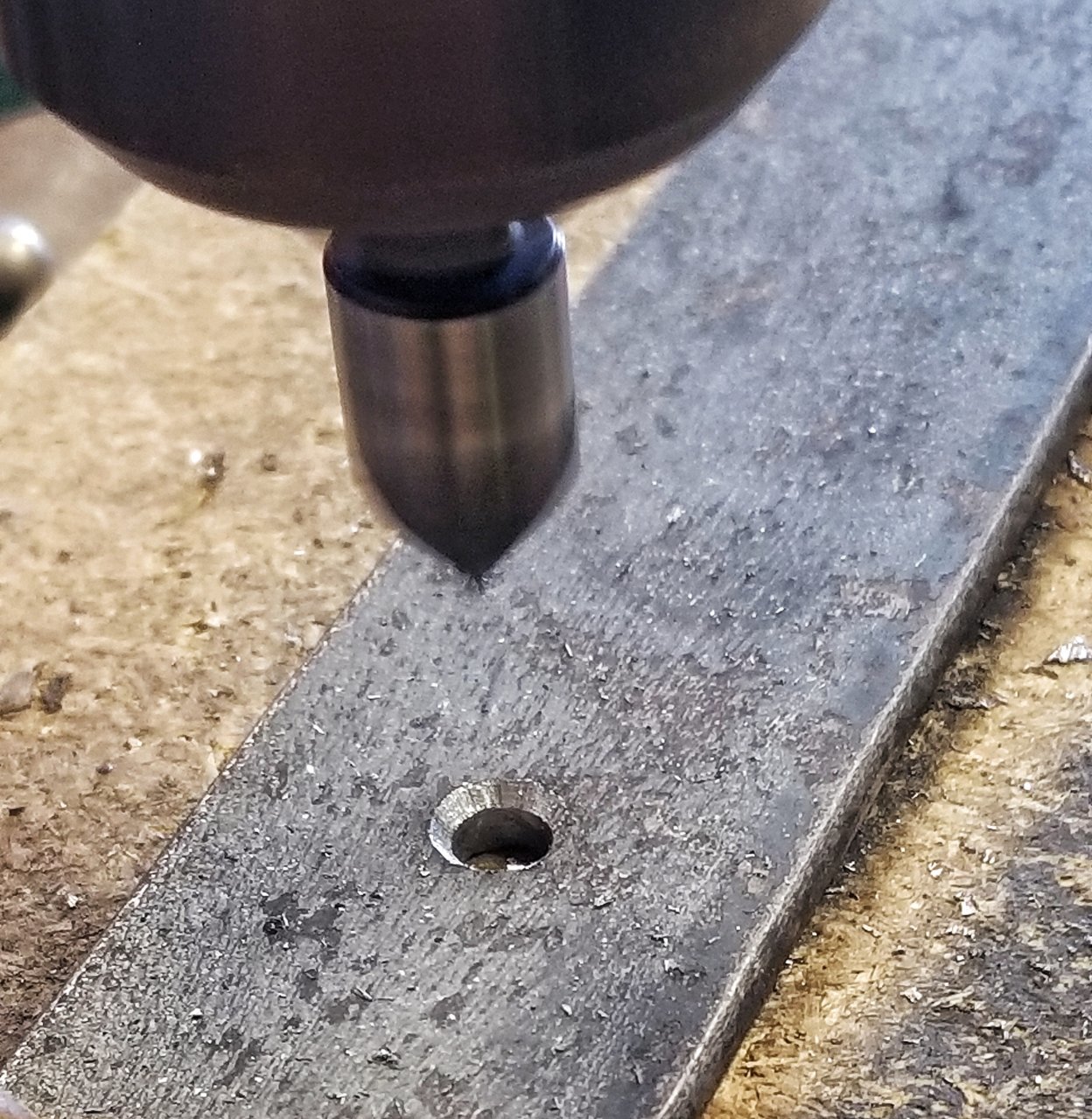

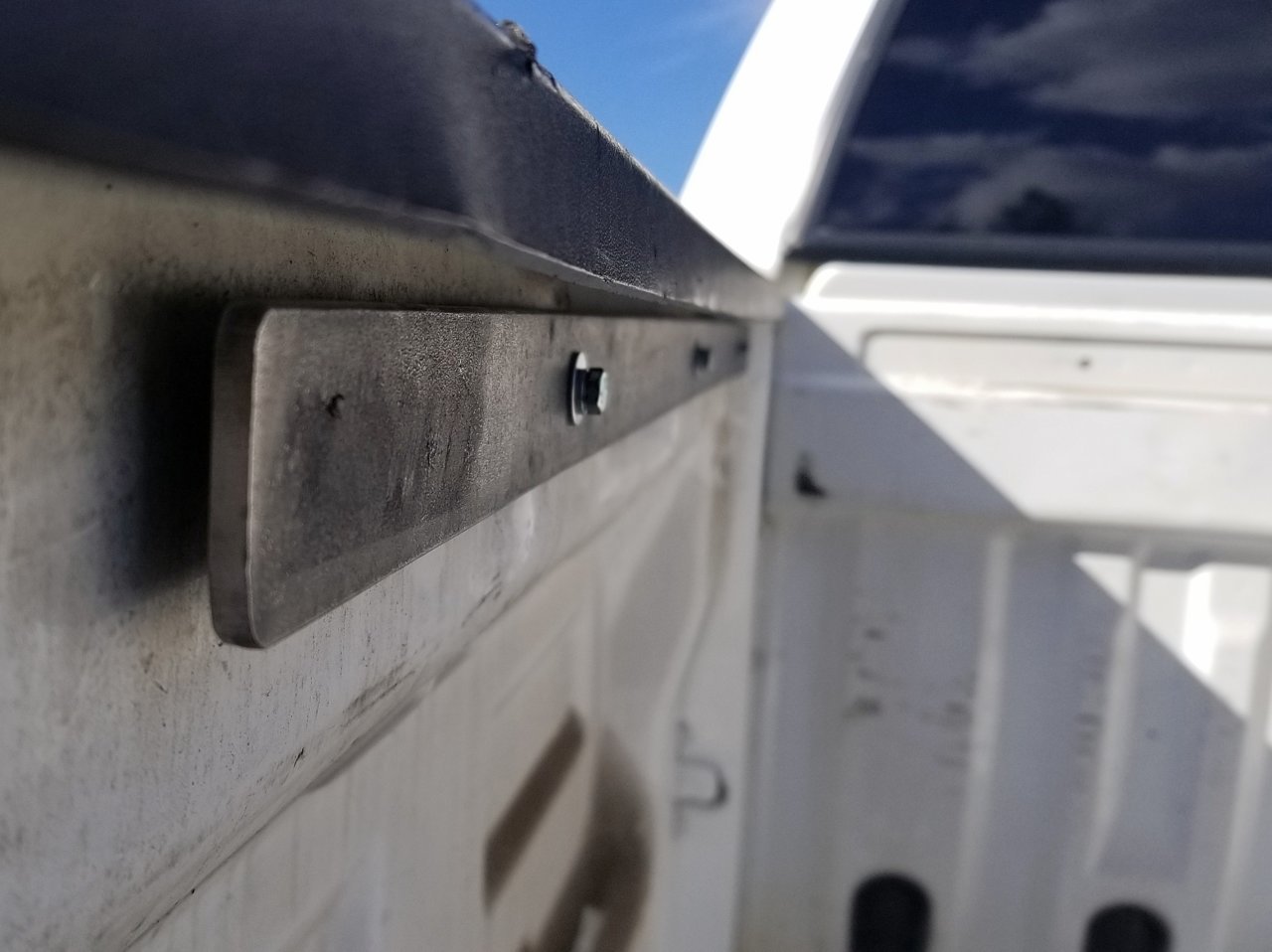

    I used 3/16" x 1-1/2" x 3' stock for the runner peices and @csuviper great write on adding a DIY bed rail system for the hardware to attach the peices securely to the existing bed rail holes. I drilled and beveled 9/16" holes for four 1/2" carriage bolts with washers and nuts for wheel placement.

    I plan to add a rail to the front of the bed, and potentially the sections left over in the rear. The remaining piece that looks like I didn't measure right, I'll use for a floor jack mount on 1 side and :crazy: on the other.
    I'll spray it with bedliner after I clean out the bed, with plans to have the bed lined soon. Also change the bolts to the same size as the wheel studs and use lug nuts to secure the wheels.

    Thoughts?
    Will I end up warping the bed? Should I add some Rago or TC bed stiffeners? Is this ridiculous and useless? Will people mistake me for B.J. Baldwin now? Did I hurt myself lifting those damn spares up there...yes.

    20190309_131717-01.jpg 20190309_132640-01.jpg 20190309_150229-01.jpg 20190309_170026-01.jpg 20190309_161115-01.jpg 20190309_171247-01.jpg 20190309_170805-01.jpg 20190309_170755-01.jpg


    Attached Files:

    Last edited: Mar 9, 2019
  2. Mar 9, 2019 at 9:59 PM
    #2
    TXRailRoadBandit73

    TXRailRoadBandit73 YOTAS,RAILROADER,RÖKnRÖLLN',BEER,MAX/GEMMA

    Joined:
    May 30, 2016
    Member:
    #3487
    Messages:
    50,308
    Gender:
    Male
    First Name:
    Adam
    The 956, TEXAS
    None yet
    Great job! To bad I can't do this due to solid one piece tonneau cover :( gonna have to hack away underneath to fit a 35

  3. Mar 9, 2019 at 10:05 PM
    #3
    Mountun Goat

    Mountun Goat She baaaaaahd

    Joined:
    Feb 19, 2018
    Member:
    #13002
    Messages:
    5,747
    Gender:
    Male
    First Name:
    Dan
    EhBerta, Canadia
    Vehicle:
    It’s a Goat.
    Hell ya. That’s what I like to see! Don’t get me wrong I love expensive flashy parts as much as the next guy. But I really love do it yourself stuff that gets the job done at a fraction of the price with a little ingenuity. :thumbsup:

  4. Mar 9, 2019 at 10:09 PM
    #4
    Larmand

    Larmand SSEM #6

    Joined:
    Dec 30, 2017
    Member:
    #11835
    Messages:
    4,160
    Gender:
    Male
    First Name:
    Lucas
    Fort Worth, TX
    Vehicle:
    2018 SLIGHTLY MODIFIED SR5 TRD CM 4x4-CEMENT
    I like it! Ive been trying to figure out what i could do with the same outcome. I wish one of these manufacturers would put a kit out like this, i dont have the means to make one.

    Major, 15whtrd and Mountun Goat like this.
  5. Mar 10, 2019 at 5:15 AM
    #5
    Slayer

    Slayer Member

    Joined:
    Nov 14, 2017
    Member:
    #10968
    Messages:
    555
    First Name:
    Slayer
    Nice Job

  6. Mar 10, 2019 at 5:21 AM
    #6
    Prostar 190

    Prostar 190 SSEM #9 I would rather be water skiing

    Joined:
    Sep 26, 2017
    Member:
    #9912
    Messages:
    69,374
    Gender:
    Male
    First Name:
    Bryan
    OH
    Vehicle:
    2010 CrewMax limited 4X4
    6" lift 35" Toyo M/T
    Good job.

  7. Mar 10, 2019 at 6:24 AM
    #7
    Hbjeff

    Hbjeff New Member

    Joined:
    Jan 20, 2019
    Member:
    #24845
    Messages:
    4,897
    Gender:
    Male
    Huntington Beach
    Vehicle:
    2010 DC 5.7 2wd
    Trd sways, bullydog, magnaflow, sumo springs
    Neat idea, but i wouldnt offroad with them mounted like that. They will snap off

  8. Mar 10, 2019 at 8:59 AM
    #8
    CaptSpaulding

    CaptSpaulding [OP] ...ain't nothin but nothin

    Joined:
    Nov 1, 2018
    Member:
    #21210
    Messages:
    568
    Gender:
    Male
    First Name:
    Jake
    Vehicle:
    2010 White DC 4x4
    Thank you guys, appreciate the kind words.
    As @Hbjeff mentioned, the carriage bolts may snap while offroading. I did ensure I used grade 5 bolts, 120,000 psi tinsel strength minimum rating. I'm wondering how I can further secure these so I can hit the dirt without worrying. Possibly a block underneath the tires to support the weight better? See attached

    @Larmand You just need a drill and some bits man. Sure, I used my drill press and bench grinder. But I'm also 1 armed currently, ahahah. I can make a template if that'll help?

    @Slayer best name ever!


  9. Mar 10, 2019 at 9:06 AM
    #9
    831Tun

    831Tun heartless Bastrd

    Joined:
    Jun 7, 2016
    Member:
    #3549
    Messages:
    11,577
    Gender:
    Male
    First Name:
    Warren
    Santa Cruz
    Vehicle:
    '16 CM limited
    TC long travel. Deaver 420 SU leaf packs.
    Love it. I would try to get a little more support underneath 'cause that's a lot of weight when wheeling.
    YES, you should get bed stiffeners.

  10. Mar 10, 2019 at 9:07 AM
    #10
    Larmand

    Larmand SSEM #6

    Joined:
    Dec 30, 2017
    Member:
    #11835
    Messages:
    4,160
    Gender:
    Male
    First Name:
    Lucas
    Fort Worth, TX
    Vehicle:
    2018 SLIGHTLY MODIFIED SR5 TRD CM 4x4-CEMENT
    No you dont need to get me a template. I can take some measurements, easy enough. I dont have a drill press but im guessing i could make it happen. I need to get my full size spares 1st.

  11. Mar 10, 2019 at 9:11 AM
    #11
    Mountun Goat

    Mountun Goat She baaaaaahd

    Joined:
    Feb 19, 2018
    Member:
    #13002
    Messages:
    5,747
    Gender:
    Male
    First Name:
    Dan
    EhBerta, Canadia
    Vehicle:
    It’s a Goat.
    Glad you asked! I was thinking how I will improve on your idea for my truck already haha.
    You could add two more bolts to the inside of the wheel (hub opening) to a plate that spreads past the hub opening.
    Or if ya have a welder like I do, build a steel bracket that extends out to a spreader bar.

    Also it would help to weld a drop bar to the floor for weight support.
    :hattip:




    Last edited: Mar 10, 2019
  12. Mar 10, 2019 at 9:16 AM
    #12
    831Tun

    831Tun heartless Bastrd

    Joined:
    Jun 7, 2016
    Member:
    #3549
    Messages:
    11,577
    Gender:
    Male
    First Name:
    Warren
    Santa Cruz
    Vehicle:
    '16 CM limited
    TC long travel. Deaver 420 SU leaf packs.
    Drop bar is a good idea! How long 'til you have mine ready?:wink:

  13. Mar 10, 2019 at 9:16 AM
    #13
    Trooper2

    Trooper2 Premium Lone Star Member / SSEM #13

    Joined:
    Feb 7, 2018
    Member:
    #12738
    Messages:
    6,736
    Gender:
    Male
    First Name:
    JR
    Houston, TX (Suburban South)
    Vehicle:
    2007 Tundra 5.7 L Double Cab TRD 2WD
    TSS 20's with Cooper ATP ll's, N Fab 3 Step Nerf Bars,, Pioneer AVIC-8100NEX, Masters Tailgate Replacement Latch with Camera, 1" Maxtrac Shackles, LED Interiors/Brake/Reverse/Cargo/Fog Bulbs, Fumoto Drain Valve, Toyota Aluminium Oil Filter Housing, TRD Shift Knob, Courtesy Door Projector LEDs with Toyota Emblem, Console Tray and Lower Divider.
    Thinking a block/wedge/chalk or "U" shape bottom support would work great.

  14. Mar 10, 2019 at 9:19 AM
    #14
    Larmand

    Larmand SSEM #6

    Joined:
    Dec 30, 2017
    Member:
    #11835
    Messages:
    4,160
    Gender:
    Male
    First Name:
    Lucas
    Fort Worth, TX
    Vehicle:
    2018 SLIGHTLY MODIFIED SR5 TRD CM 4x4-CEMENT

    I really think yall are on to something BIG here. I would certainly purchase something like this if a vendor, could produce this. Definitely making the bolts the same size as wheel studs, so we can secure with lug nuts. Maybe if @brimy311 is looking for a new little project. Since he seems to be producing all the goodies everyone is asking for.

  15. Mar 10, 2019 at 9:35 AM
    #15
    Mountun Goat

    Mountun Goat She baaaaaahd

    Joined:
    Feb 19, 2018
    Member:
    #13002
    Messages:
    5,747
    Gender:
    Male
    First Name:
    Dan
    EhBerta, Canadia
    Vehicle:
    It’s a Goat.
    Haha couple weeks!

    831Tun[QUOTED] likes this.
  16. Mar 10, 2019 at 10:10 AM
    #16
    Spvrtan

    Spvrtan Amateur fabricator

    Joined:
    Apr 2, 2015
    Member:
    #1140
    Messages:
    1,676
    Gender:
    Male
    First Name:
    Kris
    San Diego, CA
    Vehicle:
    Black '14 CM SR5 w/ SC; 40s on 17s; 5.29s
    I have a DIY 40" tire carrier..


  17. Mar 10, 2019 at 10:45 AM
    #17
    Mountun Goat

    Mountun Goat She baaaaaahd

    Joined:
    Feb 19, 2018
    Member:
    #13002
    Messages:
    5,747
    Gender:
    Male
    First Name:
    Dan
    EhBerta, Canadia
    Vehicle:
    It’s a Goat.
    Haha woody

  18. Mar 10, 2019 at 10:51 AM
    #18
    Hbjeff

    Hbjeff New Member

    Joined:
    Jan 20, 2019
    Member:
    #24845
    Messages:
    4,897
    Gender:
    Male
    Huntington Beach
    Vehicle:
    2010 DC 5.7 2wd
    Trd sways, bullydog, magnaflow, sumo springs
    I don’t think support under the tire is the issue. Its the front back and side to side forces that will pull and break the bolts.

    Had another thought. Maybe if you could make a wheel chock like support and get a ratchet strap around it?

    I think it’s a practical place to store the spares and you’ll figure it out.

    Last edited: Mar 10, 2019
    Sunnier and Mountun Goat like this.
  19. Mar 10, 2019 at 6:02 PM
    #19
    CaptSpaulding

    CaptSpaulding [OP] ...ain't nothin but nothin

    Joined:
    Nov 1, 2018
    Member:
    #21210
    Messages:
    568
    Gender:
    Male
    First Name:
    Jake
    Vehicle:
    2010 White DC 4x4

    We're on the same page here! I'll work on something, following your CAD drawings and add to its stability ;) Pics to follow
    Bed stiffeners also going in for peace of mind

  20. Mar 10, 2019 at 6:35 PM
    #20
    Mountun Goat

    Mountun Goat She baaaaaahd

    Joined:
    Feb 19, 2018
    Member:
    #13002
    Messages:
    5,747
    Gender:
    Male
    First Name:
    Dan
    EhBerta, Canadia
    Vehicle:
    It’s a Goat.
    Haha Ataboy!! Can’t wait to see!

  21. Mar 10, 2019 at 7:57 PM
    #21
    Slayer

    Slayer Member

    Joined:
    Nov 14, 2017
    Member:
    #10968
    Messages:
    555
    First Name:
    Slayer
    Ha... Back in 2003 I hit a deer while riding my motorcycle.
    killed that sumbitch

    my riding buddies started calling me "the deerslayer"

    over the years it was shortened to just "slayer"

    15whtrd and Mountun Goat like this.
  22. Mar 10, 2019 at 8:04 PM
    #22
    Mountun Goat

    Mountun Goat She baaaaaahd

    Joined:
    Feb 19, 2018
    Member:
    #13002
    Messages:
    5,747
    Gender:
    Male
    First Name:
    Dan
    EhBerta, Canadia
    Vehicle:
    It’s a Goat.
    :headbang::headbang::headbang::bowdown:

    TokerJoker and CaptSpaulding[OP] like this.
  23. Mar 13, 2019 at 2:07 PM
    #23
    Larmand

    Larmand SSEM #6

    Joined:
    Dec 30, 2017
    Member:
    #11835
    Messages:
    4,160
    Gender:
    Male
    First Name:
    Lucas
    Fort Worth, TX
    Vehicle:
    2018 SLIGHTLY MODIFIED SR5 TRD CM 4x4-CEMENT
  24. Mar 13, 2019 at 2:15 PM
    #24
    Erichudgins

    Erichudgins New Member

    Joined:
    Apr 19, 2018
    Member:
    #14593
    Messages:
    2,302
    Gender:
    Male
    First Name:
    Eric
    Murfreesboro, TN
    Vehicle:
    2017 Super white Limited DC
    https://www.tundras.com/threads/the-un-limited-build.25949/
    Larmand[QUOTED] likes this.
  25. Mar 13, 2019 at 2:20 PM
    #25
    Larmand

    Larmand SSEM #6

    Joined:
    Dec 30, 2017
    Member:
    #11835
    Messages:
    4,160
    Gender:
    Male
    First Name:
    Lucas
    Fort Worth, TX
    Vehicle:
    2018 SLIGHTLY MODIFIED SR5 TRD CM 4x4-CEMENT
  26. Mar 13, 2019 at 2:21 PM
    #26
    Erichudgins

    Erichudgins New Member

    Joined:
    Apr 19, 2018
    Member:
    #14593
    Messages:
    2,302
    Gender:
    Male
    First Name:
    Eric
    Murfreesboro, TN
    Vehicle:
    2017 Super white Limited DC
    https://www.tundras.com/threads/the-un-limited-build.25949/
    im pretty sure that would work just like the one he made. he just didn't have the bed tracks to work with. I bet you could use it in the same location!

  27. Mar 13, 2019 at 2:24 PM
    #27
    Larmand

    Larmand SSEM #6

    Joined:
    Dec 30, 2017
    Member:
    #11835
    Messages:
    4,160
    Gender:
    Male
    First Name:
    Lucas
    Fort Worth, TX
    Vehicle:
    2018 SLIGHTLY MODIFIED SR5 TRD CM 4x4-CEMENT
    Maybe so, i might give a try but i find the $270 price a bit excessive for this. If brimy can put something i might go that route otherwise ill try fabbing my own up.

    Erichudgins[QUOTED] likes this.
  28. Mar 13, 2019 at 2:25 PM
    #28
    Erichudgins

    Erichudgins New Member

    Joined:
    Apr 19, 2018
    Member:
    #14593
    Messages:
    2,302
    Gender:
    Male
    First Name:
    Eric
    Murfreesboro, TN
    Vehicle:
    2017 Super white Limited DC
    https://www.tundras.com/threads/the-un-limited-build.25949/
    agreed lol im sure the quality Is solid. looks to be the same pieces from the gate I have. but looks to be a pretty simple design.

  29. Mar 13, 2019 at 2:29 PM
    #29
    Larmand

    Larmand SSEM #6

    Joined:
    Dec 30, 2017
    Member:
    #11835
    Messages:
    4,160
    Gender:
    Male
    First Name:
    Lucas
    Fort Worth, TX
    Vehicle:
    2018 SLIGHTLY MODIFIED SR5 TRD CM 4x4-CEMENT
    My tires might have to mount a little higher than the ones posted as i dont have as much bed space with the CrewMax or mount to the rear of the bed. Itll get figured out soon enough.

  30. Mar 13, 2019 at 2:59 PM
    #30
    NE_WARRIOR

    NE_WARRIOR [HOONIGAN] Wannabe

    Joined:
    Nov 29, 2018
    Member:
    #22342
    Messages:
    1,377
    Gender:
    Male
    First Name:
    Nick
    Union, ME
    Vehicle:
    08 DC SR5
