2013 Flex fuel Optiron cluster

From my 2013 Sequoia, 131/132k miles don't remember.

I also have a new unopened lens. looking for 200 shipped to the continental US



Does this one have the Trans temp gauge in it?



Sorry, I did not see your question, yes it does. This was taken when I got the truck.



I read on here that the Sequoia and Tundra clusters are not compatible... Can you confirm this? I want to put this in my 2010 Rock Warrior.



I had a 2010 Tundra that I put an Optiron cluster in and it's cluster worked in my Sequoia (I gave it away and tested it first) so I'd say it will be ok.



Bump



bump



Fair enough... I'll take it, but if it doesn't work in my 2010 Rock Warrior, will you take it back and send my payment back? I'm a master electrician and owned my own detailing/aftermarket performance shop since 2018. I have been doing this stuff since '95. I can assure you I will be careful with it, but absolutely do not need a $200 paperweight laying around in my shop if it doesn't fit. Let me know.



That’s fair.



Non flex will show fuel 1/4 (or so high) Otherwise they work. But unless you want to be empty when the gauge says there is 1/4+ tank this is not for you.



Bump

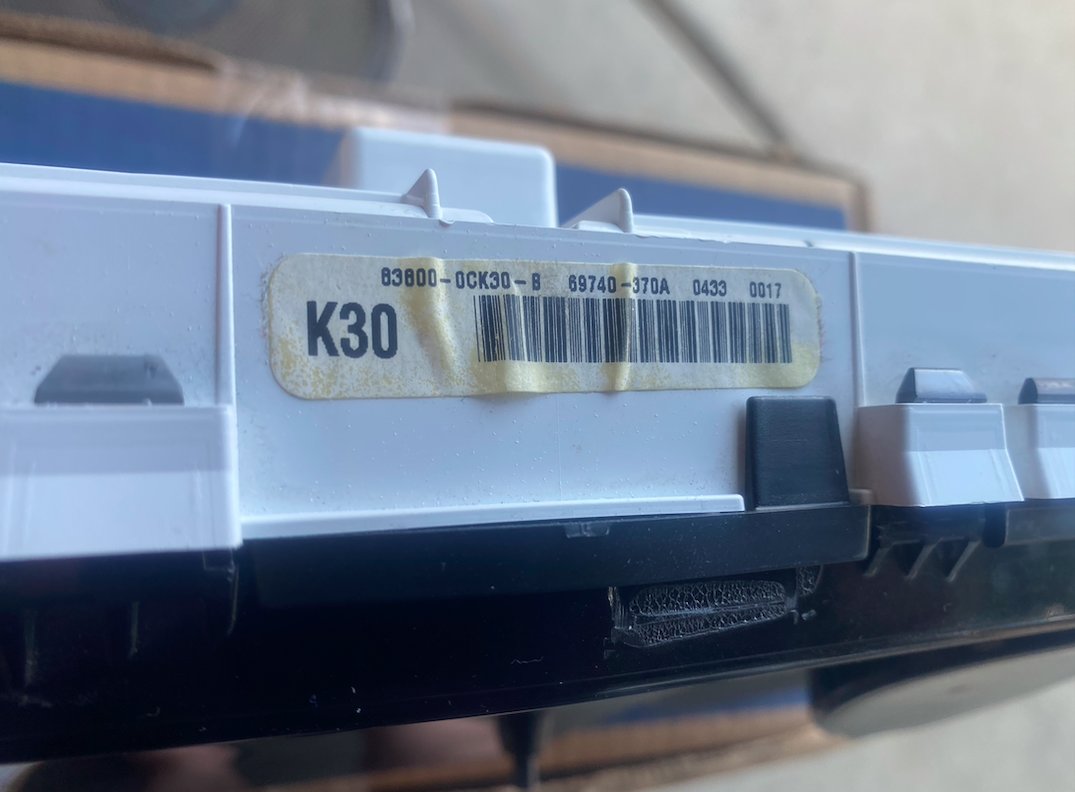

Here is a list for Tundra's of which vehicles need which cluster based on accessories and options. I don't see your number 83800-0CK30 on the list. Must be a Sequoia part number?? I figure it would work in the right truck, depending on above options/criteria.



Yup it's a Sequoia specific pn. A Sequoia Optiron cluster worked in my 2010, the orange 2010 worked in my Sequoia.

The issue is flex. If your Tundra isn't flex gas will read 1/4 low. You can add 100 ohms to the circuit and fix it.



Hey, if it is still available I'm interested. My truck is a flex fuel, but I am in the same boat as 1BadTundra was if it doesn't work in my truck would you take it back?



Sold!
